INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
TLW09W
Model Number/ No. de Modelo:

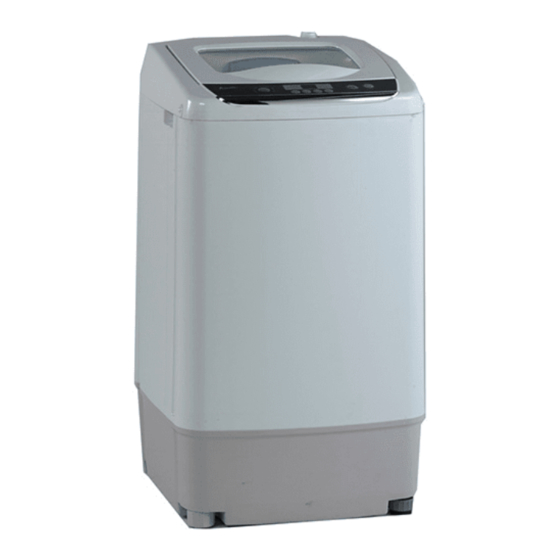

PORTABLE WASHER
LAVADORA PORTATIL
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 22.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications
without notice.
Avanti Products LLC
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
Advertisement
Table of Contents
Related Manuals for Avanti TLW09W
Summary of Contents for Avanti TLW09W
-
Page 1: Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. La sección en español empieza en la página 22. Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. Avanti Products LLC P.O. -
Page 3: Table Of Contents
Care and Maintenance 18 – 19 Problems with Your Portable Washer Troubleshooting Guide / Service for Your Portable W asher Your Avanti Products Warranty / What is not Covered Instrucciones en Español 22 - 28 Registration Information and Registration Card... -
Page 4: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. -
Page 5: Important Safeguides
IMPORTANT SAFEGUIDES Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following: •... -
Page 6: Help Us Help You / If You Need Service
Please write these numbers here: If you don't understand something or you need more assistance, please call: Date of Purchase Avanti Customer Service 800-220-5570 Keep proof of original purchase date (such as Model Number your sales slip) with this guide to establish the warranty period. -
Page 7: Parts, Features, And Accessories
PARTS & FEATURES... -
Page 8: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or WARNING injury when using your portable washer, follow these basic precautions: • Read all instructions before using the portable washer. • Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode. -
Page 9: Installation Instructions
(ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an Authorized Avanti Products service center. SELECTING A LOCATION Before you install the portable washer, select a location with the following characteristics: •... -
Page 10: Installing The Noise Damper Plate
INSTALLING THE NOISE DAMPER PLATE Affix the noise proof plate by using the two screws provided. CONNECTING THE COLD WATER SUPPLY HOSE The water supply hose must be connected to the washing machine at one end and to the water faucet at the other. -
Page 11: Connecting The Water Supply Hose / Sink Faucet Connection
SINK FAUCET CONNECTION For normal kitchen-sink tap only use the inlet hose with cold water inlet. Connect the inlet hose to the male hose thread adapter by turning it clockwise to be fixed tightly. Make sure to insert the rubber ring enclosed. Then connect tightly to your sink. Note: Some faucets may require you to also use the female hose thread adapter between the male adapter and your sink faucet as shown below. -
Page 12: Electrical Connection / Extension Cords
Warning Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center. This appliance should be properly grounded for your safety. -
Page 13: Control Panel / Functions Description
Program ON/OFF Start/Pause Pr es s th e bu tton t o select After program selection, corresponding pr og ram. On & off power press the button to start. “Heavy”、 “ Gentle” 、“ Normal” 、 Automatic power off “ Rapid” 、“Soak” Press the button to pause in the course of operation,... -
Page 14: Operating Your Portable Washer
OPERATING YOUR PORTABLE WASHER PREPARATION Connect the water inlet hose 3. Insert the plug into the 4. Insert the end of drain hose to the water faucet. socket. For safety the plug into the hook shelf, and hang should have ground the drain hose over a drain connection. - Page 15 BEFORE WASHING Make sure that you follow all manufacturer instructions for washing:...
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS PRESS THE POWER BUTTON. PRESS THE WATER LEVEL BUTTON. Choose appropriate water level according to wash load quantity. NOTE: The washer will provide a cold rinse in all settings. IMPORTANT: A single cold hose system does not allow the washing machine to automatically (select) regulate incoming water temperatures. - Page 17 Manual Wash Program Descriptions Manual Wa sh Programs Manual Wash Manual Rinse Manual Spin To tal Time To tal Time To tal Time Program # Program # Program # (Minutes) (Minutes) (Minutes) AUTOMATIC WASH PROGRAMS Water Level Wash Selection Program Default Range Heavy...
-
Page 18: Care And Maintenance
Note: • Clothes easily discolored should be washed separately so as to prevent inter-dyeing. • If you want to change a selected program, press the POWER button first to turn the unit off, then press the POWER button again to turn the unit back on, then press the Program button to select the new cycle before pushing START/PAUSE button. - Page 19 • Vacation time Note: Ensure the pump has drained completely all water before cleaning the lint filter. Opening the Lint filter assembly while the pump is full of water will result in an excessive amount of water leakage to your floor.
-
Page 20: Problems With Your Portable Washer
We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti portable washers. With the purchase of your Avanti portable washer, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service Team will be here for you. -
Page 21: Your Avanti Products Warranty / What Is Not Covered
For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. -
Page 22: Instrucciones En Español
EL USO INAPROPIADO DEL ENCHUFE A TIERRA PUEDE OCASIONAR RIESGO DE UN CHOQUE ELECTRICO. SI EL CORDON SE DAÑASE, LLEVELO A UN CENTRO DE SERVICIO AUTORIZADO POR AVANTI PRODUCTS PARA QUE SE REEMPLACE. • Para su seguridad, esta lavadora debe estar apropiadamente conectada a tierra. El cordón eléctrico de esta lavadora esta equipado con un enchufe de tres puntas, el cual encaja... - Page 23 CONECTE LA LAVADORA A UN ENCHUFE DE PARED EXCLUSIVO, CON CONEXION A TIERRA. BAJO NINGUNA CIRCUNSTANCIA REMUEVA O CORTE LA TERCERA PUNTA DEL ENCHUFE (CONEXION A TIERRA). DIRIJA CUALQUIER PREGUNTA RELACIONADA CON LA ELECTRICIDAD O CONEXION A TIERRA A UN ELECTRICISTA CERTIFICADO O A UN CENTRO DE SERVICIO AUTORIZADO POR AVANTI.
- Page 24 SELECCIONE UN LUGAR ANTES DE INSTALAR SU LAVADORA, SELECCIONE UN LUGAR CON LAS SIGUIENTES CARACTERISTICAS: SUPERFICIE PLANA Y DURA (SI LA SUPERFICIE ES IRREGULAR, VEA "AJUSTE DE PATAS NIVELADORAS"). LEJOS DE LA LUZ SOLAR DIRECTA. LA LUZ SOLAR DIRECTA PUEDE AFECTAR LA CAPA ACRILICA, COMPONENTES PLASTICOS Y ELECTRICOS.
- Page 25 PANEL DE CONTROL 3----large preset 2----medium Remain min/times (min) Program 1----small ON/OFF Start/Pause Spin Load Size Wash Rinse BOTON PARA SELECCIONAR EL MODO DE LAVADO PRE -PROGRAMADO PANTALLA ELECTRONICA BOTON PARA SELECCIONAR EL NIVEL DE AGUA BOTON PARA SELECCIONAR EL MODO DE LAVADO “MANU AL” BOTON PARA SELECCIONAR EL MODO DE ENGUAGE “MANUAL”...
- Page 26 1. CONECTE LA MANGUERA A EL GRIFO DE 2. REMUEVA LA TAPA DEL CONECTOR DE SUMINISTRO DE AGUA A LA LLAVE, AGUA FRIA Y CONECTE EL OTRO GIRANDO LA TUERCA DEL CONECTOR EXTREMO DE LA MANGUERA DE DE LA MANGUERA HACIA LA DERECHA. SUMINISTRO DE AGUA AL CONECTOR DE AGUA FRIA EN LA VALVULA MEZCLADORA DE AGUA.
- Page 27 NIVEL DEL PISO, DE LO CONTRARIO LA LAVADORA NO PODRA FUNCIONAR CORRECTAMENTE. MODO DE EMPLEO PREPARACION 1. CONECTE LA MANGUERA AL GRIFO DE SUMINISTRO DE AGUA. 2. ABRA EL GRIFO DE SUMINISTRO DE AGUA. NO ENCIENDA LA LAVADORA SI LA PRESION ES MENOR A 0.02MPA O MAYOR A 0.5MPA.
- Page 28 SOBRECARGAR LA LAVADORA PUEDE RESULTAR EN UN MAL LAVADO Y ENJUAGUE. LA SOBRECARGA PUEDE CAUSAR QUE LA ROPA SE ARRUGUE O QUE SE HALE. NOTA LAS PIEZAS DE ROPA DE COLORES QUE DESTIÑEN DEBEN SER LAVADAS POR SEPARADO PARA EVITAR QUE MANCHEN OTRAS PIEZAS. ...
-
Page 31: Registration Information And Registration Card
Registration Information Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits: Avanti Products LLC. P.O.Box 520604 – Miami, Florida 33152 ... - Page 32 TLW09W – V2.0 - 06182014 PRINTED IN CHINA...
