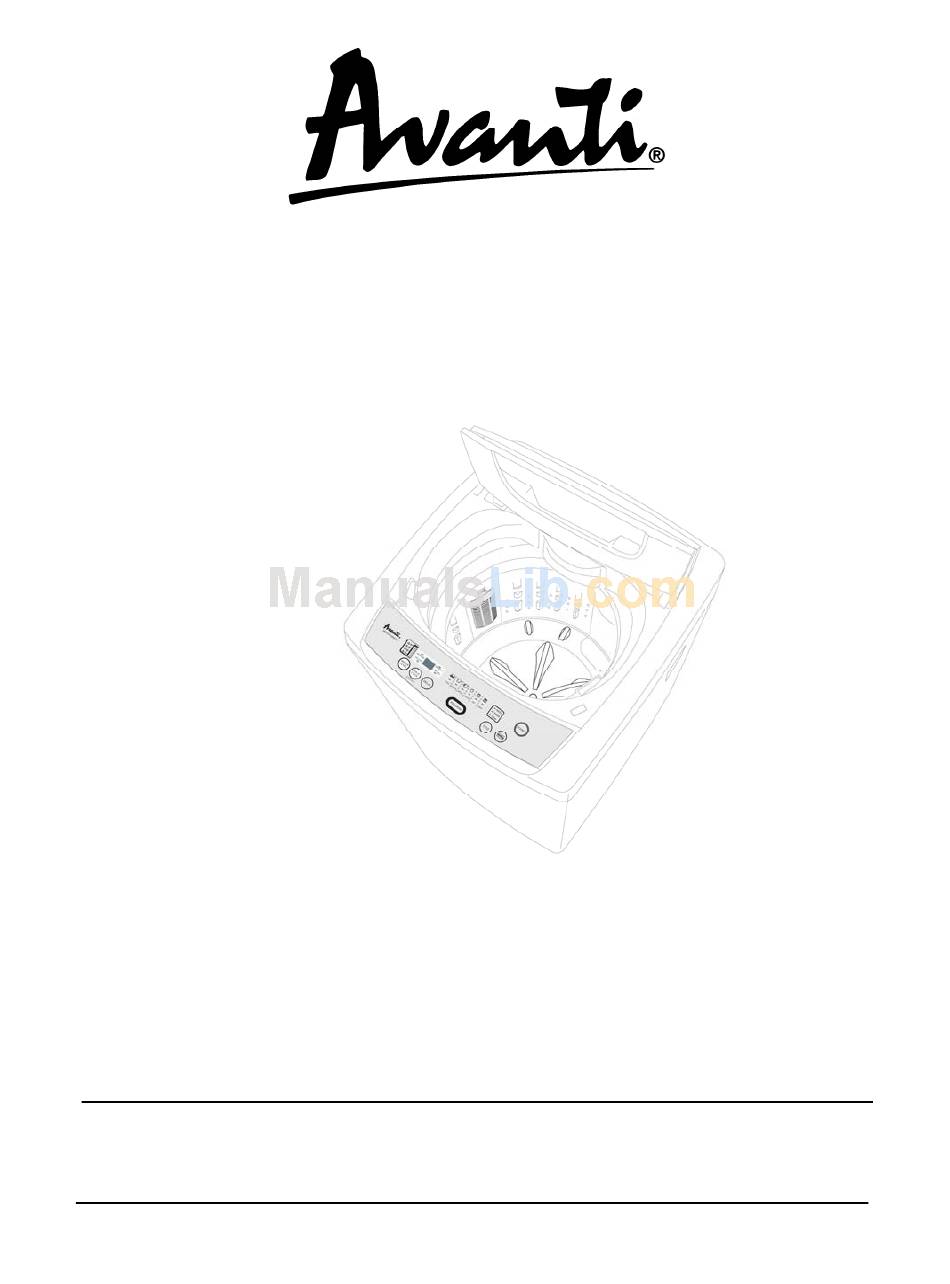

INSTRUCTION MANUAL

MANUAL DE INSTRUCCIONES
W511
Model Numbers/ No. de Modelos:
PORTABLE WASHER
LAVADORA PORTATIL
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 22.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications
without notice.
Avanti Products, A Division of the Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W511 and is the answer not in the manual?

Questions and answers

Related Manuals for Avanti W511

Summary of Contents for Avanti W511

  • Page 1: Instruction Manual

    INSTRUCTIONS. La sección en español empieza en la página 22. Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. Avanti Products, A Division of the Mackle Co., Inc.

  • Page 3: Table Of Contents

    Delayed Start (Preset) Setting / Auto-Locking Lid / Child-Proof Setting Care and Maintenance Problems with Your Portable Washer Troubleshooting Guide / Service for Your Portable Washer Your Avanti Products Warranty / What is not Covered Instrucciones en Español Registration Information and Registration Card 10 – 11 14 –...

  • Page 4: Appliance Safety

    Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others.

  • Page 5: Important Safeguides

    IMPORTANT SAFEGUIDES Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following: ...

  • Page 6: Help Us Help You / If You Need Service

    Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call: Avanti Customer Service 800-220-5570 Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

  • Page 7: Parts, Features, And Accessories

    PARTS & FEATURES...

  • Page 8: Important Safety Instructions

    Never clean portable washer parts with flammable fluids. The fumes can create a fire hazard or explosion.  Do not place the washer in steamy rooms or where the washer is directly exposed to rain. Moisture may destroy the electrical insulation causing an electrical shock hazard. ...

  • Page 9: Installation Instructions

     1 Water Inlet Plug  Remove shipping brace. Note - It should be saved and used (to prevent damage to washer components) whenever washer is moved or transported to a new location.  Clean the interior surface with lukewarm water using a soft cloth.

  • Page 10: Installing The Noise Damper Plate

    INSTALLING THE NOISE DAMPER PLATE CONNECTING THE WATER SUPPLY HOSES The water supply hose must be connected to the washing machine at one end and to the water faucet at the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to move the water faucet, replace the hose with a longer, high-pressure hose.

  • Page 11: Sink Faucet Connection

    Make sure the rubber ring is inserted and connect to your sink. If water leaks from faucet connection or washer connection, turn off water and tighten fully using a wrench. Be careful not to over tighten and damage water connection.

  • Page 12: Electrical Connection / Extension Cords

     ELECTRICAL CONNECTION Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center. This appliance should be properly grounded for your safety.

  • Page 13: Control Panel / Functions Description

    CONTROL PANEL...

  • Page 14: Operation Your Portable Washer

    When washing very large articles, do not fill inner tub as full as with other loads. The water level in your washer should fit the size of your wash load. Small load will use lower water levels. There must be enough water in the inner tub to allow articles to move and turn over freely. Overloading the inner tub can result in poor washing and rinsing.
  • Page 15 BEFORE WASHING Make sure that you follow all manufacturer instructions for washing:...

  • Page 16: Operating Instructions

    Choose appropriate water level according to wash load quantity. WATER TEMPERATURE CHOICE. Press the water temperature selection button, you can choose to from cold, warm, and/or hot water. NOTE: The washer will provide a cold rinse in all TEMPERATURE settings. Indicator Light Shown This means that you have selected to use COOL or cold water.

  • Page 17: Wash Program Time Chart

    SPIN ONLY  Press down the power button.  Press the cycle button to select the SPIN function until only SPIN indicator is ON.  Press the START/PAUSE to start the course. And the LED display will show the remaining time of the entire course.

  • Page 18: Delay Start (Preset) Setting

    Press START/PAUSE button again to restart. DELAY START (PRESET) SETTING Select this option when you would like to load the washer but not run the wash cycle until a later time. Note: As washing machines and other appliances are considered to present a potential child entrapment danger;...

  • Page 19: Care And Maintenance

    CARE AND MAINTENANCE CLEANING YOUR PORTABLE WASHER  Clean the surface of your portable washer regularly with soft fabric.  Clean the inner tub regularly, especially immediately after starch or bleach operation.  Clean the filter in the inlet valve or inlet hose regularly in order to prevent it from clogging.

  • Page 20: Problems With Your Portable Washer

    We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti portable washers. With the purchase of your Avanti portable washer, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service Team will be here for you.

  • Page 21: Your Avanti Products Warranty / What Is Not Covered

    For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use.

  • Page 22: Instrucciones En Español

    EL USO INAPROPIADO DEL ENCHUFE A TIERRA PUEDE OCASIONAR RIESGO DE UN CHOQUE ELECTRICO. SI EL CORDON SE DAÑASE, LLEVELO A UN CENTRO DE SERVICIO AUTORIZADO POR AVANTI PRODUCTS PARA QUE SE REEMPLACE.  Para su seguridad, esta máquina de hacer hielo debe estar apropiadamente conectada a tierra.
  • Page 23 DEL ENCHUFE (CONEXION A TIERRA). DIRIJA CUALQUIER PREGUNTA RELACIONADA CON LA ELECTRICIDAD O CONEXION A TIERRA A UN ELECTRICISTA CERTIFICADO O A UN CENTRO DE SERVICIO AUTORIZADO POR AVANTI. SELECCIONE UN LUGAR ANTES DE INSTALAR SU LAVADORA, SELECCIONE UN LUGAR CON LAS SIGUIENTES CARACTERISTICAS: ...
  • Page 24  LEJOS DE LAS FUENTES DE CALOR TALES COMO CARBON O GAS.  ASEGURESE QUE LA LAVADORA NO ESTE APLASTANDO EL CORDON ELECTRICO. LAS APERTURAS DE VENTILACION DEBEN ESTAR LIBRES DE OBSTRUCCIONES TALES COMO ALFOMBRA. INSERTE LA BANDEJA A PRUEBA DE RUIDO EN LA BASE DE LA LAVADORA 4.
  • Page 25 INDICADOR DEL NIVEL DE AGUA INDICADOR DEL SISTEMA DE PROTECCION PARA LOS NIÑOS PANTALLA ELECTRONICA INDICADOR DEL TIEMPO INDICADOR DE TIEMPO ATRASADO INDICADOR DEL MODO DE LAVADO PRE-PROGRAMADO INDICADOR DEL CICLO BOTON PARA ENCENDER O APAGAR LA LAVADORA BOTON PARA SELECCIONAR EL NIVEL DEL AGUA BOTON PARA SELECCIONAR LA TEMPERATURA DEL AGUA BOTON PARA PROGRAMAR UN CICLO DE LAVADO ATRASADO BOTON PARA SELECCIONAR EL MODO DE LAVADO PRE-PROGRAMADO...
  • Page 26 IMPORTANTE: EN ESTA SITUACION, NO PROGRAME LA OPCION CALIENTE (HOT) COMO TEMPERATURA DE LAVADO. 1. CONECTE LA MANGUERA A EL GRIFO DE SUMINISTRO DE AGUA A LA LLAVE GIRANDO LA TUERCA DEL CONECTOR DE LA MANGUERA HACIA LA DERECHA. ANILLO SELLADOR TUERCA DEL CONECTOR ASEGURESE QUE EL ANILLO SELLADOR...
  • Page 27 COLOCANDO LA MANGUERA DE DRENAJE CONECTE LA MANGUERA DE DRENAJE A LA SALIDA DE AGUA DE LA LAVADORA Y AJUSTELA CON UNA GRAMPA AJUSTABLE INCLUIDA. COMO PUEDE DRENAR HACIA ARRIBA O HACIA ABAJO, LA MANGUERA DE DRENAJE PUEDE SER COLOCADA EN EL PISO, EL BAÑO O LA BAÑERA, SIEMPRE QUE LA ALTURA NO SEA MAYOR A 70 CM.
  • Page 28 EL NIVEL DE AGUA PUEDE SER MODIFICADO DURANTE LA OPERACIÓN. SI DESEA UN NIVEL MAS ALTO DE AGUA, LA LAVADORA EMPEZARA A FUNCIONAR UNA VEZ QUE HAYA LLEGADO AL NIVEL DE AGUA DESEADO. ANTES DE LAVAR PREPARE LA CARGA DE ROPA A LAVAR. MEZCLE PIEZAS PEQUEÑAS Y GRANDES PARA OBTENER MEJORES RESULTADOS.

  • Page 31: Registration Information And Registration Card

    Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits: Avanti Products, A Division of The Mackle Co., Inc.
  • Page 32 W511 – VER2.0-06032011 PRINTED IN CHINA...
