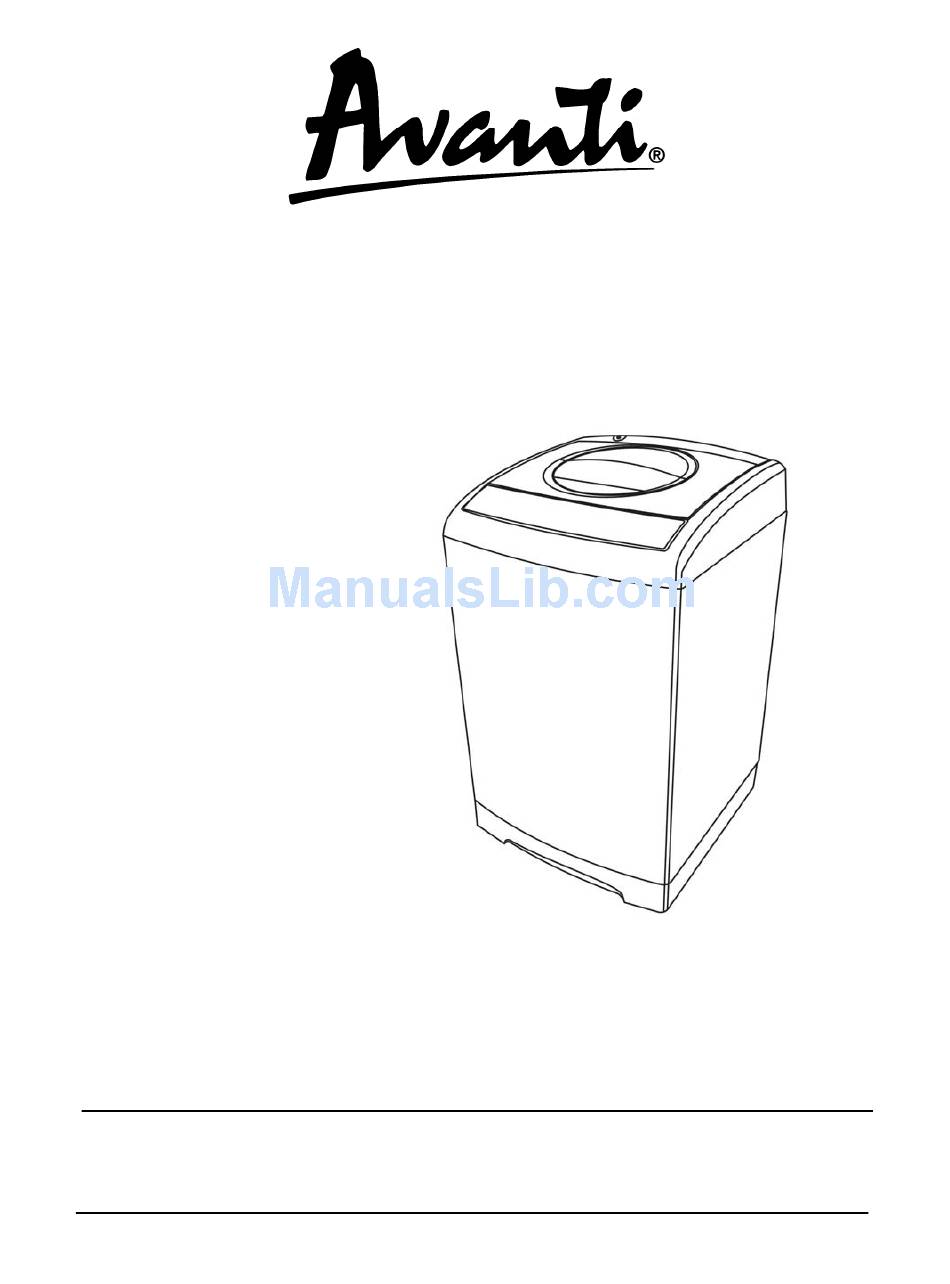

INSTRUCTIONS. La sección en español empieza en la página 22. Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. Avanti Products, A Division of the Mackle Co., Inc.
Delayed Start (Preset) Setting / Auto-Locking Lid / Child-Proof Setting Care and Maintenance Problems with Your Portable Washer Troubleshooting Guide / Service for Your Portable Washer Your Avanti Products Warranty / What is not Covered Instrucciones en Español 22 – 28 Registration Information and Registration Card...
APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others.
IMPORTANT SAFEGUIDES Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following: ...
Please write these numbers here: If you don't understand something or you need more assistance, please call: ____________________________________ Date of Purchase Avanti Customer Service 800-220-5570 ____________________________________ Keep proof of original purchase date (such as Model Number your sales slip) with this guide to establish the warranty period.
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or WARNING injury when using your portable washer, follow these basic precautions: Read all instructions before using the portable washer. Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
(ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an Authorized Avanti Products service center. SELECTING A LOCATION Before you install the portable washer, select a location with the following characteristics: ...
INSTALLING THE NOISE DAMPER PLATE Affix the noise proof plate by using the two screws provided. CONNECTING THE WATER SUPPLY HOSES The water supply hose must be connected to the washing machine at one end and to the water faucet at the other.
SINK FAUCET CONNECTION For normal kitchen-sink tap only use the inlet hose with cold water inlet. Connect the inlet hose to the male hose thread adapter by turning it clockwise to be fixed tightly. Make sure to insert the rubber ring enclosed. Then connect tightly to your sink. Note: Some faucets may require you to also use the female hose thread adapter between the male adapter and your sink faucet as shown below.
Warning Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center. This appliance should be properly grounded for your safety.
CONTROL PANEL CYCLE INDICATOR LIGHTS WATER LEVEL SELECTION INDICATOR LIGHTS ELECTRONIC DISPLAY WASH PROGRAM SELECTION INDICATOR LIGHTS WATER TEMPERATURE SELECTION INDICATOR LIGHTS POWER ON / OFF BUTTON FUNCTION SELECTOR BUTTON WATER LEVEL SELECTOR BUTTON DELAY WASH PROGRAM INDICATOR LIGHT DELAY WASH PROGRAM SELECTOR BUTTON WASH PROGRAM SELECTOR BUTTON WATER TEMPERATURE SELECTOR BUTTON START / PAUSE SELECTOR BUTTON...
OPERATING YOUR PORTABLE WASHER PREPARATION 1. Connect the water inlet hose 3. Insert the plug into the 4. Insert the end of drain hose to the water faucet. Don’t socket. For safety the plug into the hook shelf, and hang switch on the power if the should have ground the drain hose over a drain...
Page 15
BEFORE WASHING Make sure that you follow all manufacturer instructions for washing:...
OPERATING INSTRUCTIONS PRESS THE POWER BUTTON. PRESS THE WATER LEVEL BUTTON. Choose appropriate water level according to wash load quantity. WATER TEMPERATURE CHOICE. Press the water temperature selection button, you can choose from cold, warm, and/or hot water. NOTE: The washer will provide a cold rinse in all TEMPERATURE settings. Indicator Description Light Shown...
Page 17
Press down the power button. Press the cycle button to select the SPIN function until only SPIN indicator is ON. Press the START/PAUSE to start the course. And the LED display will show the remaining time of the entire course.
Close the lid, or the washing machine will buzz during wash and spin cycle. In the event the clothing loaded becomes unbalanced, the safety switch will be triggered causing the washing machine to automatically refill with water to adjust the imbalance. Note: ...
CARE AND MAINTENANCE CLEANING YOUR PORTABLE WASHER Clean the surface of your portable washer regularly with soft fabric. Clean the inner tub regularly, especially immediately after starch or bleach operation. Clean the filter in the inlet valve or inlet hose regularly in order to prevent it from clogging. Rem ove t he i nl et hose and cl ean Cl ean t he sur f ace of Unpl ug t he power cor d.
We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti portable washers. With the purchase of your Avanti portable washer, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service Team will be here for you.
For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use.
EL USO INAPROPIADO DEL ENCHUFE A TIERRA PUEDE OCASIONAR RIESGO DE UN CHOQUE ELECTRICO. SI EL CORDON SE DAÑASE, LLEVELO A UN CENTRO DE SERVICIO AUTORIZADO POR AVANTI PRODUCTS PARA QUE SE REEMPLACE. Para su seguridad, esta lavadora debe estar apropiadamente conectada a tierra. El cordón eléctrico de esta lavadora esta equipado con un enchufe de tres puntas, el cual encaja...
Page 23
DEL ENCHUFE (CONEXION A TIERRA). DIRIJA CUALQUIER PREGUNTA RELACIONADA CON LA ELECTRICIDAD O CONEXION A TIERRA A UN ELECTRICISTA CERTIFICADO O A UN CENTRO DE SERVICIO AUTORIZADO POR AVANTI. SELECCIONE UN LUGAR ANTES DE INSTALAR SU LAVADORA, SELECCIONE UN LUGAR CON LAS SIGUIENTES CARACTERISTICAS: ...
Page 24
LEJOS DE LAS FUENTES DE CALOR TALES COMO CARBON O GAS. ASEGURESE QUE LA LAVADORA NO ESTE APLASTANDO EL CORDON ELECTRICO. LAS APERTURAS DE VENTILACION DEBEN ESTAR LIBRES DE OBSTRUCCIONES TAL COMO ALFOMBRA. INSERTE LA BANDEJA A PRUEBA DE RUIDO EN LA BASE DE LA LAVADORA 1.
Page 25
PANEL DE CONTROL LUZ INDICADORA DE CICLO LUZ INDICADORA DE NIVEL DE AGUA PANTALLA ELECTRONICA LUZ INDICADORA DE PROGRAMA DE LAVADO PRE-PROGRAMADO LUZ INDICADORA DE TEMPERATURA DEL AGUA BOTON PARA ENCENDER / APAGAR LA UNIDAD BOTON PARA SELECCIONAR EL CICLO DE LAVADO BOTON PARA SELECCIONAR EL NIVEL DE AGUA LUZ INDICADORA PARA PROGRAMA DE LAVADO ATRASADO BOTON PARA PROGRAMAR EL LAVADO ATRASADO...
Page 26
IMPORTANTE: EN ESTA SITUACION, NO PROGRAME LA OPCION CALIENTE (HOT) COMO TEMPERATURA DE LAVADO. 1. CONECTE LA MANGUERA A EL GRIFO DE 2. REMUEVA LA TAPA DEL CONECTOR DE SUMINISTRO DE AGUA A LA LLAVE, AGUA FRIA Y CONECTE EL OTRO GIRANDO LA TUERCA DEL CONECTOR EXTREMO DE LA MANGUERA DE DE LA MANGUERA HACIA LA DERECHA.
Page 27
COLOCANDO LA MANGUERA DE DRENAJE CONECTE LA MANGUERA DE DRENAJE A LA SALIDA DE AGUA DE LA LAVADORA Y AJUSTELA CON UNA GRAMPA AJUSTABLE INCLUIDA. COMO PUEDE DRENAR HACIA ARRIBA O HACIA ABAJO, LA MANGUERA DE DRENAJE PUEDE SER COLOCADA EN EL PISO, EL BAÑO O LA BAÑERA, SIEMPRE QUE LA ALTURA NO SEA MAYOR A 70 CM.
Page 28
MAS ALTO DE AGUA, LA LAVADORA EMPEZARA A FUNCIONAR UNA VEZ QUE HAYA LLEGADO AL NIVEL DE AGUA DESEADO. ANTES DE LAVAR PREPARE LA CARGA DE ROPA A LAVAR. MEZCLE PIEZAS PEQUEÑAS Y GRANDES PARA OBTENER MEJORES RESULTADOS. DEPOSITE LAS PIEZAS DENTRO DEL CILINDRO. NO EMPAQUE LAS PIEZAS NI LAS ENVUELVA.
Registration Information Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits: Avanti Products, A Division of The Mackle Co., Inc.
Page 32
W711 – VER3.0-10312011 PRINTED IN CHINA...
