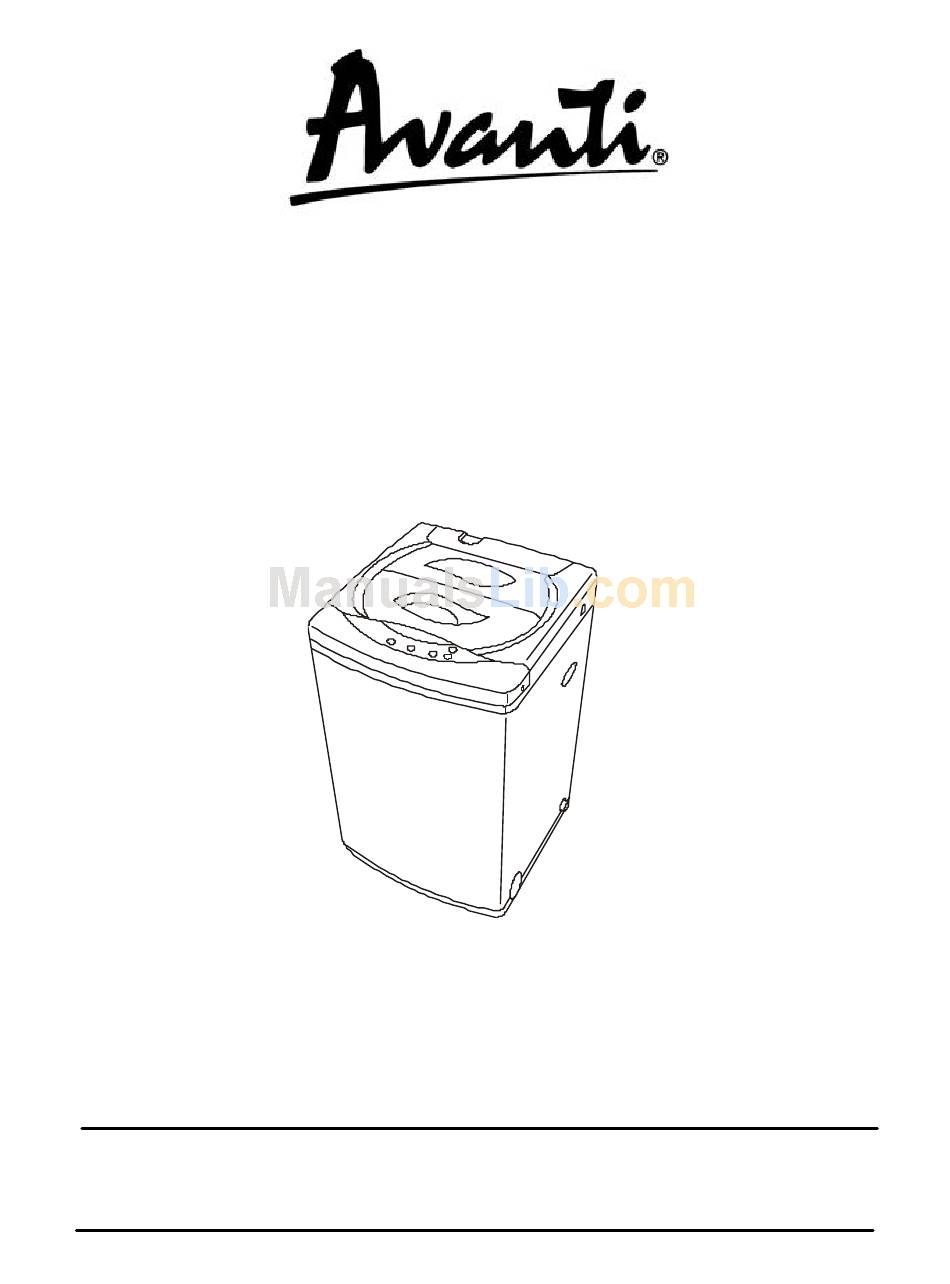

INSTRUCTION MANUAL

MANUAL DE INSTRUCCIONES
W789SA
Model Number/ No. de Modelo:
PORTABLE WASHER
LAVADORA PORTATIL
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 1 9.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications
without notice.
Avanti Products, A Division of the Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.av antiproducts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W789SA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avanti W789SA

Summary of Contents for Avanti W789SA

  • Page 1: Instruction Manual

    INSTRUCTIONS. La sección en español empieza en la página 1 9. Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. Avanti Products, A Division of the Mackle Co., Inc.

  • Page 2: Registration Information

    P.O. Box 520604 - Miami, Florida 33152 USA Protect your product: We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

  • Page 4: Help Us Help You

    Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call: Avanti Customer Service 800-220-5570 Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

  • Page 5: Table Of Contents

    Control Panel Operating Your Portable Washer Preparation Before Washing Operation Instructions Functions Care And Maintenance Cleaning Your Portable Washer Troubleshooting Guide Service For Your Portable Washer Your Avanti Products Warranty Wiring Diagram INSTRUCCIONES EN ESP AÑOL T ABLE OF CONTENTS 19~27...

  • Page 6: Parts & Features

    PARTS & FEATURES DETERGENT CASE SOFTENER DISPENSER INNER TUB CONTROL PANEL BASE NOISE PROOF PLATE ADJUSTABLE FOOT LEVEL ADJUSTABLE KNOB DRAIN HOSE (1 PC) 10. POWER SUPPLY CORD 11. AGITATOR 12. INLET HOSE (2 PCS) LINT FILTER INLET HOSE NOISE PROOF PLATE 2 PIECES 1 PIECE ACCESSORIES...

  • Page 7: Important Safety Instructions

    Never clean portable washer parts with flammable fluids. The fumes can create a fire hazard or explosion. Do not place the washer in steamy rooms or where the washer is directly exposed to rain. Moisture may destroy the electrical insulation causing an electrical shock hazard.

  • Page 8: Selecting A Location

    Put your laundry into the washer evenly. Uneven laundry may cause noise or vibration. Don’t use excessively hot water (50°C or more). Plastic parts may be deformed or damaged. Also, clothing may be deformed or bleached. Before washing, check all pockets. If nails or pins remain in pockets, they may damage the washer or clothes.

  • Page 9: Installing The Noise Proof Plate

    Installing The Noise Proof Plate The opening of the Take the noise proof plate out of the noise proof plate is at the bottom of package . the machine. Insert the noise proof Lay down the machine and secure the noise proof plate into the washing plate by fastening the two machine base.

  • Page 10: Connecting The Water Supply Hose

    Connecting The Water Supply Hose The water supply hose must be connected to the washing machine at one end and to the water faucet at the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to move the water faucet, replace the hose with a longer, high-pressure hose.

  • Page 11: Water Connection

    Make sure the rubber ring is inserted and connect to your sink. If water leaks from faucet connection or washer connection, turn off water and tighten fully using a wrench. Be careful not to over tighten and damage water connection.

  • Page 12: Electrical Connection

    Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center. This portable washer should be properly grounded for your safety. The power cord of this portable washer is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

  • Page 13: Operating Your Portable Washer

    When washing very large articles, do not fill inner tub as full as with other loads. The water level in your washer should fit the size of your wash load. Small load will use lower water levels. There must be enough water in the inner tub to allow articles to move and turn over freely. Overloading the inner tub can result in poor washing and rinsing.

  • Page 14: Operation Instructions

    When the cold-water indicator and the hot - water indicator turn on simultaneously, which means you chose the warm water. NOTE: The washer will provide a cold rinse in all TEMPERATURE settings. IMPORTANT: A single cold hose system does not allow the washing machine to automatically (select) regulate incoming water temperatures to match those listed on the control panel such as WARM or HOT.

  • Page 15: Care And Maintenance

    CARE AND MAINTENANCE Cleaning Your Portable Washer Clean the surface of your portable washer regularly with soft fabric. Clean the inner tub regularly, especially immediately after starch or bleach operation. Clean the filter in the inlet valve or inlet hose regularly in or der to prevent it from clogging.

  • Page 16: Problems With Your Portable Washer

    PROBLEMS WITH YOUR PORTABLE WASHER? You can solve many common portable washer problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. TROUBLESHOOTING GUIDE PROBLEM Washer does not operate.

  • Page 17: Service For Your Portable Washer

    We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti portable washers. With the purchase of your Avanti portable washer, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service Team will be here for you.

  • Page 18: Your Avanti Products Warranty

    LIMITED 5 YEAR WARRANTY ON PLASTIC TUB After one year and until five years from date of purchase, Avanti will fu rnish a replacement plastic tub, for one which is defective in material or workmanship. You will be responsible for labor.

  • Page 19: Wiring Diagram

    WIRING DIAGRAM...

  • Page 20: Instrucciones En Español

    INSTRUCCIONES EN ESPAÑOL LAVADORA AUTOMATICA DE ROPA LEA TODAS LAS INSTRUCCIONES ANTES DE USAR ESTA LAVADORA Y GUARDE ESTE MANUAL EN UN LUGAR SEGURO PARA REFERENCIA FUTURA. CONOCIENDO LAS PARTES DE SU LAVADORA AUTOMATICA 1. DISPENSADOR DEL DETERGENTE 2. DISPENSADOR DEL SUAVIZANTE DE ROPA 3.
  • Page 21 DEL ENCHUFE (CONEXION A TIERRA). DIRIJA CUALQUIER PREGUNTA RELACIONADA CON LA ELECTRICIDAD O CONEXION A TIERRA A UN ELECTRICISTA CERTIFICADO O A UN CENTRO DE SERVICIO AUTORIZADO POR AVANTI. SELECCIONE UN LUGAR ANTES DE INSTALAR SU LAVADORA, SELECCIONE UN LUGAR CON LAS SIGUIENTES CARACTERISTICAS: ? SUPERFICIE PLANA Y DURA (SI LA SUPERFICIE ES IRREGULAR, VEA "AJUSTE DE...
  • Page 22 AJUSTE DE PATAS NIVELADORAS SI EL PISO ES IRREGULAR, AJUSTE LAS PATAS (NO INSERTE PEDAZOS DE MADERA, U OTROS OBJETOS BAJO LAS PATAS). DESENROSQUE EL TORNILLO GIRANDOLO CON LA MANO HASTA QUE LLEGUE A LA ALTURA DESEADA. AJUSTE LA TUERCA CON LA LLAVE INGLESA. COLOQUE LA LAVADORA EN UNA SUPERFICIE PLANA Y FIRME.
  • Page 23 EL USO INAPROPIADO DEL ENCHUFE ELECTRICO PUEDE RESULTAR EN UN CHOQUE ELECTRICO. SI EL CORDON ESTA DAÑADO, REEMPLACELO EN UN CENTRO DE SERVICIO AUTORIZADO POR AVANTI PRODUCTS. PARA SU SEGURIDAD, ESTA LAVADORA PORTATIL DEBE SER CONECTADA A TIERRA. EL CORDON ELECTRICO ESTA EQUIPADO CON UN ENCHUFE DE TRES PUNTAS, PARA SER USADO EN LOS ENCHUFES DE PARED CON CONEXION A TIERRA ESTANDAR, MINIMIZANDO LA POSIBILIDAD DE CHOQUE ELECTRICO.
  • Page 24 CONECTANDO LA MANGUERA DE SUMINISTRO DE AGUA UN EXTREMO DE LA MANGUERA PARA SUMINISTRO DE AGUA DEBE SER CONECTADO A LA LAVADORA Y EL OTRO EXTREMO AL GRIFO. NO ESTIRE LA MANGUERA DE SUMINISTRO DE AGUA. SI LA MANGUERA ES MUY CORTA Y NO DESEA MOVER EL GRIFO, REEMPLACE LA MANGUERA CON UNA MAS LARGA, DE ALTA PRESION.
  • Page 25 DESCONECTANDO LA MANGUERA DE SUMINISTRO DE AGUA DEBIDO A LA ALTA PRESION DE LA LLAVE AUN CUANDO ESTA CERRADA, RECOMENDAMOS DESCONECTAR LA MANGUERA, YA QUE PODRIA CAUSAR GOTEO O SALPICAD URA. PARA EVITARLO SIGA ESTAS INSTRUCCIONES: 1. CIERRE LA LLAVE DEL AGUA 2.
  • Page 26 NOTA: EL ENJUAGUE ES SIEMPRE CON AGUA FRIA. IM PORTANTE: PARA PODER SELECCIONAR LA TEMPERATURA, UD. DEBE CONTAR CON DOS ENTRADAS DE AGUA, UNA PARA AGUA FRIA Y OTRA PARA CALIENTE. PROGRAMAS DE LAVADO (PROGRAM): PRESIONE HASTA QUE SE ILUMINE EL PROGRAMA DESEADO, DE ACUERDO A LA CARGA DE ROPA QUE VAYA A LAVAR.
  • Page 27 LAVADORA. NOTA LAS PIEZAS DE ROPA QUE DESTIÑEN DEBEN SER LAVADAS POR SEPARADO PARA EVITAR QUE MANCHEN OTRAS PIEZAS. ? SI DESEA CAMBIAR EL PROGRAMA SELECCIONADO, PRESIONE EL BOTON “START/STOP”, LUEGO PRESIONE EL BOTON DEL PROGRAMA DESEADO. NUEVAMENTE PRESIONE EL BOTON “START/STOP”. ? NO AÑADA DETERGENTE PARA EL CICLO DE ENJUAGUE Y DESAGÜE.

  • Page 28: Solucion De Problemas

    SI TIENE PROBLEMAS CON SU LAVADORA PORTATIL UD. PUEDE RESOLVER MUCHOS PROBLEMAS FACILMENTE, AHORRANDOSE EL COSTO DEL SERVICIO TECNICO. PRUEBE LAS SIGUIENTES SUGERENCIAS PARA VER SI PUEDE RESOLVER LOS PROBLEMAS, ANTES DE LLAMAR AL SERVICIO TECNICO. GUIA PARA LA SOLUCION DE PROBLEMAS PROBLEMA LA LAVADORA NO FUNCIONA NO ENTRA AGUA O EL NIVEL ES MUY BAJO...
