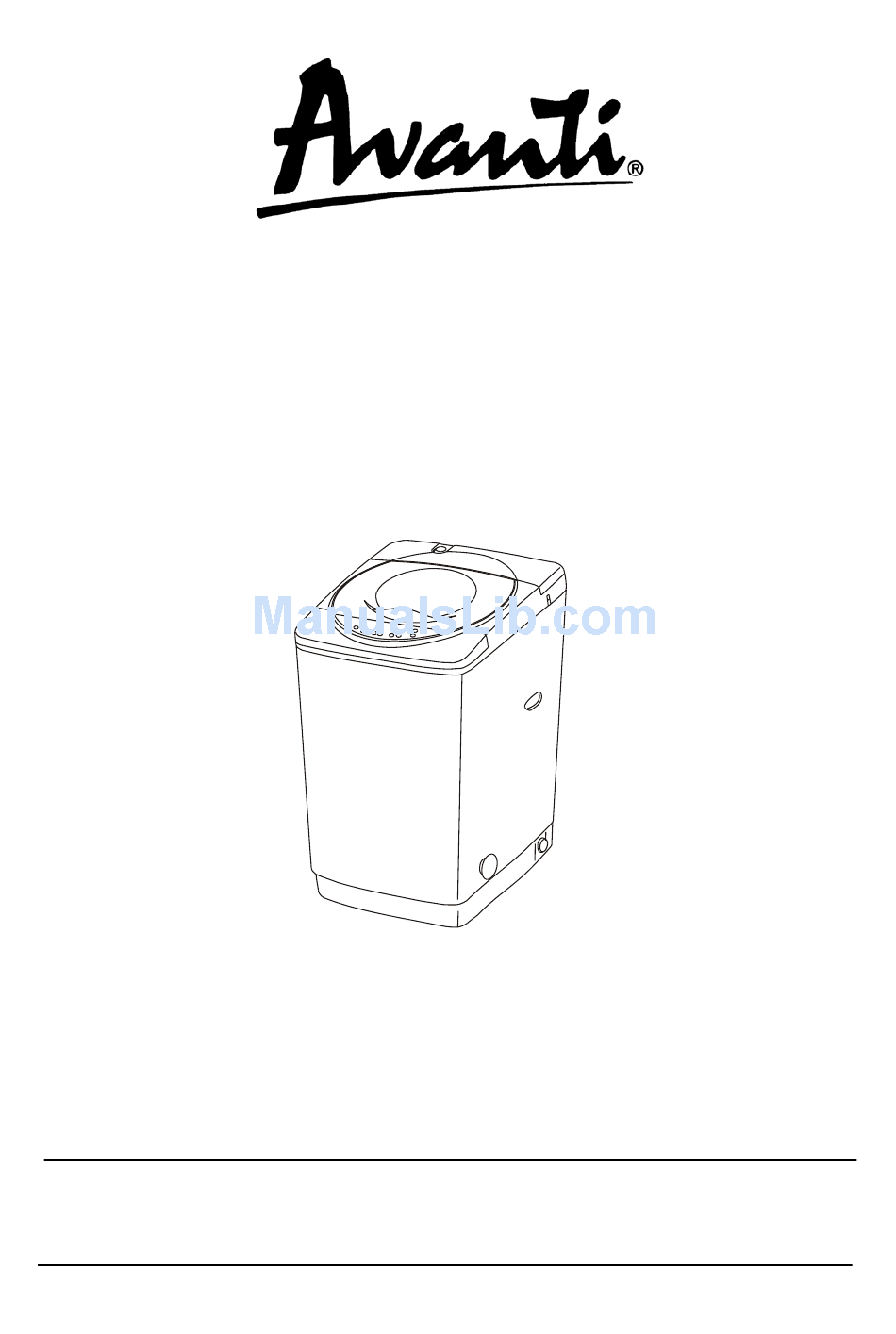

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
W798SS-1
Model Numbers/ No. de Modelos:

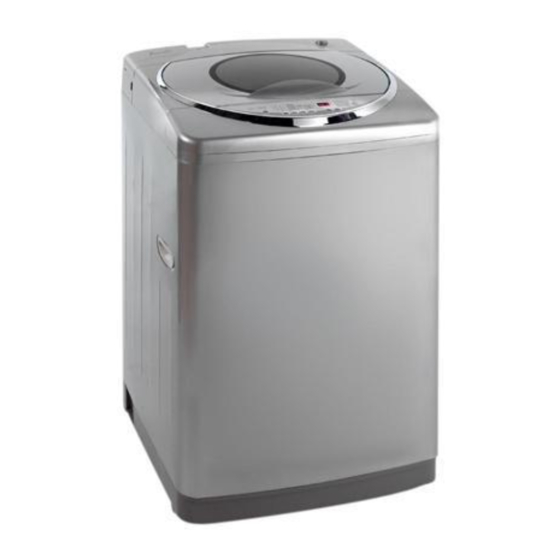

PORTABLE WASHER
LAVADORA PORTATIL
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 18.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications
without notice.
Avanti Products, A Division of the Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avanti W798SS-1
Summary of Contents for Avanti W798SS-1
-
Page 1: Instruction Manual
INSTRUCTIONS. La sección en español empieza en la página 18. Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. Avanti Products, A Division of the Mackle Co., Inc. -
Page 2: Table Of Contents
Operating Your Appliance Care and Maintenance Cleaning Your Appliance Troubleshooting Guide Service for Your Appliance Wiring Diagram Your Avanti Products Warranty Instrucciones en Español Registration Information and Registration Card TABLE OF CONTENTS Selecting a Location Adjusting the Adjustable Foot Installing the Noise Proof Plate... -
Page 3: Help Us Help You
Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call: Avanti Customer Service 800-220-5570 Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period. -
Page 4: Parts And Features
1. DETERGENT CASE 2. SOFTENER DISPENSER 3. INNER TUB 4. CONTROL PANEL 5. BASE 6. NOISE PROOF PLATE 7. INLET HOSE (2 PCS) 8. LINT FILTER 9. PULSATOR 10. POWER SUPPLY CORD 11. DRAIN HOSE (1 PC) 12. LEVEL ADJUSTABLE KNOB 13. -
Page 5: Important Safety Instructions
Never clean portable washer parts with flammable fluids. The fumes can create a fire hazard or explosion. • Do not place the washer in steamy rooms or where the washer is directly exposed to rain. Moisture may destroy the electrical insulation causing an electrical shock hazard. •... - Page 6 • Put your laundry into the washer evenly. Uneven laundry may cause noise or vibration. • Don’t use excessively hot water (50°C or more). Plastic parts may be deformed or damaged. Also, clothing may be deformed or bleached. • Before washing, check all pockets. If nails or pins remain in pockets, they may damage the washer or clothes.
- Page 7 CONNECTING THE WATER SUPPLY HOSE The water supply hose must be connected to the washing machine at one end and to the water faucet at the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to move the water faucet, replace the hose with a longer, high-pressure hose.
- Page 8 Make sure the rubber ring is inserted and connect to your sink. If water leaks from faucet connection or washer connection, turn off water and tighten fully using a wrench. Be careful not to over tighten and damage water connection.
-
Page 9: Electrical Connection
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center. This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock. -
Page 10: Control Panel
5. Spin Time Indicator 6. LED Display 7. Children-proof Indicator 8. Function Indicator 9. Power Button OPERATING YOUR PORTABLE WASHER PREPARATION 1. Connect the water inlet hose to the water faucet. Don’t switch on the power if the water pressure is lower than 0.05MPa and higher than... -
Page 11: Before Washing
When washing very large articles, do not fill inner tub as full as with other loads. The water level in your washer should fit the size of your wash load. Small load will use lower water levels. There must be enough water in the inner tub to allow articles to move and turn over freely. Overloading the inner tub can result in poor washing and rinsing. -
Page 12: Automatic Wash Programs
PRESS DOWN PRESET BUTTON. Press this button for delay start setting and children-proof setting. PRESS DOWN FUNCTIONS SELECTION BUTTON. Choose the desired function and then the corresponding indicator blink. PRESS DOWN START/HOLD BUTTON ONCE AND THE MACHINE WILL BEGIN OPERATION. Please press this button to stop the normal operation, if it continues to work, press it again. -
Page 13: Manual Functions
• Press the water supply button to select the water temperature. • Press the water level button to select the appropriate water level setting. • Press the START/HOLD to start the course. And the LED display will show the remaining time of the entire course. -
Page 14: Functions
SPIN ONLY • Press down the power button. • Press the wash button until all wash indicators are OFF. • Press the rinse button until all rinse indicators are OFF. • Press the spin button to select the spin time. •... -
Page 15: Care And Maintenance
To resume operation, close the lid. CLEANING YOUR PORTABLE WASHER • Clean the surface of your portable washer regularly with soft fabric. • Clean the inner tub regularly, especially immediately after starch or bleach operation. • Clean the filter in the inlet valve or inlet hose regularly in order to prevent it from clogging. -
Page 16: Problems With Your Portable Washer
We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti portable washers. With the purchase of your Avanti portable washer, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service Team will be here for you. - Page 17 LIMITED ONE-YEAR WARRANTY For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair or replace any part of the appliance that proves to be defective in material or workmanship under normal use.
- Page 18 LAVADORA AUTOMATICA DE ROPA LEA TODAS LAS INSTRUCCIONES ANTES DE USAR ESTA LAVADORA Y GUARDE ESTE MANUAL EN UN LUGAR SEGURO PARA REFERENCIA FUTURA. CONOCIENDO LAS PARTES DE SU LAVADORA AUTOMATICA 1. DISPENSADOR DEL DETERGENTE 2. DISPENSADOR DEL SUAVIZANTE DE ROPA 3.
- Page 19 DEL ENCHUFE (CONEXION A TIERRA). DIRIJA CUALQUIER PREGUNTA RELACIONADA CON LA ELECTRICIDAD O CONEXION A TIERRA A UN ELECTRICISTA CERTIFICADO O A UN CENTRO DE SERVICIO AUTORIZADO POR AVANTI. SELECCIONE UN LUGAR ANTES DE INSTALAR SU LAVADORA, SELECCIONE UN LUGAR CON LAS SIGUIENTES CARACTERISTICAS: ...
- Page 20 NOTA: AUN HACIENDO LO ANTERIOR, LA LAVADORA PODRIA MOVERSE. ESTO ES NORMAL. INSERTE LA BANDEJA A PRUEBA DE RUIDO EN LA BASE DE LA LAVADORA 4. RECUESTE LA LAVADORA PARA COLOCAR LA PLATAFORMA A PRUEBA DE RUIDOS, FIJANDOLA CON DOS TORNILLOS.
- Page 21 EL USO INAPROPIADO DEL ENCHUFE A TIERRA PUEDE OCASIONAR RIESGO DE UN CHOQUE ELECTRICO. SI EL CORDON SE DAÑASE, LLEVELO A UN CENTRO DE SERVICIO AUTORIZADO POR AVANTI PRODUCTS PARA QUE SE REEMPLACE. • Para su seguridad, esta máquina de hacer hielo debe estar apropiadamente conectada a tierra.
- Page 22 CONECTANDO LA MANGUERA DE SUMINISTRO DE AGUA UN EXTREMO DE LA MANGUERA PARA SUMINISTRO DE AGUA DEBE SER CONECTADO A LA LAVADORA Y EL OTRO EXTREMO AL GRIFO. NO ESTIRE LA MANGUERA DE SUMINISTRO DE AGUA. SI LA MANGUERA ES MUY CORTA Y NO DESEA MOVER EL GRIFO, REEMPLACE LA MANGUERA CON UNA MAS LARGA, DE ALTA PRESION.
- Page 23 DESCONECTANDO LA MANGUERA DE SUMINISTRO DE AGUA DEBIDO A LA ALTA PRESION DE LA LLAVE AUN CUANDO ESTA CERRADA, RECOMENDAMOS DESCONECTAR LA MANGUERA, YA QUE PODRIA CAUSAR GOTEO O SALPICADURA. PARA EVITARLO SIGA ESTAS INSTRUCCIONES: 1. CIERRE LA LLAVE DEL AGUA 2.
- Page 24 NOTA: EL ENJUAGUE ES SIEMPRE CON AGUA FRIA. IMPORTANTE: PARA PODER SELECCIONAR LA TEMPERATURA, UD. DEBE CONTAR CON DOS ENTRADAS DE AGUA, UNA PARA AGUA FRIA Y OTRA PARA CALIENTE. PROGRAMAS DE LAVADO (PROGRAM): PRESIONE HASTA QUE SE ILUMINE EL PROGRAMA DESEADO, DE ACUERDO A LA CARGA DE ROPA QUE VAYA A LAVAR.
- Page 25 PARA EVITAR RUIDOS MOLESTOS DURANTE EL SECADO, CIERRE LA TAPA DE LA LAVADORA. NOTA LAS PIEZAS DE ROPA DE COLORES QUE DESTIÑEN DEBEN SER LAVADAS POR SEPARADO PARA EVITAR QUE MANCHEN OTRAS PIEZAS. SI DESEA CAMBIAR EL PROGRAMA SELECCIONADO, PRESIONE EL BOTON “START/STOP”, LUEGO PRESIONE EL BOTON DEL PROGRAMA DESEADO.
- Page 26 SI TIENE PROBLEMAS CON SU LAVADORA PORTATIL UD. PUEDE RESOLVER MUCHOS PROBLEMAS FACILMENTE, AHORRANDOSE EL COSTO DEL SERVICIO TECNICO. PRUEBE LAS SIGUIENTES SUGERENCIAS PARA VER SI PUEDE RESOLVER LOS PROBLEMAS, ANTES DE LLAMAR AL SERVICIO TECNICO. GUIA PARA LA SOLUCION DE PROBLEMAS PROBLEMA LA LAVADORA NO FUNCIONA NO ENTRA AGUA O EL NIVEL ES MUY BAJO...
- Page 27 Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits: Avanti Products, A Division of The Mackle Co., Inc.
- Page 28 VER-W798SS-1 – 2.0 03282011 PRINTED IN CHINA...
