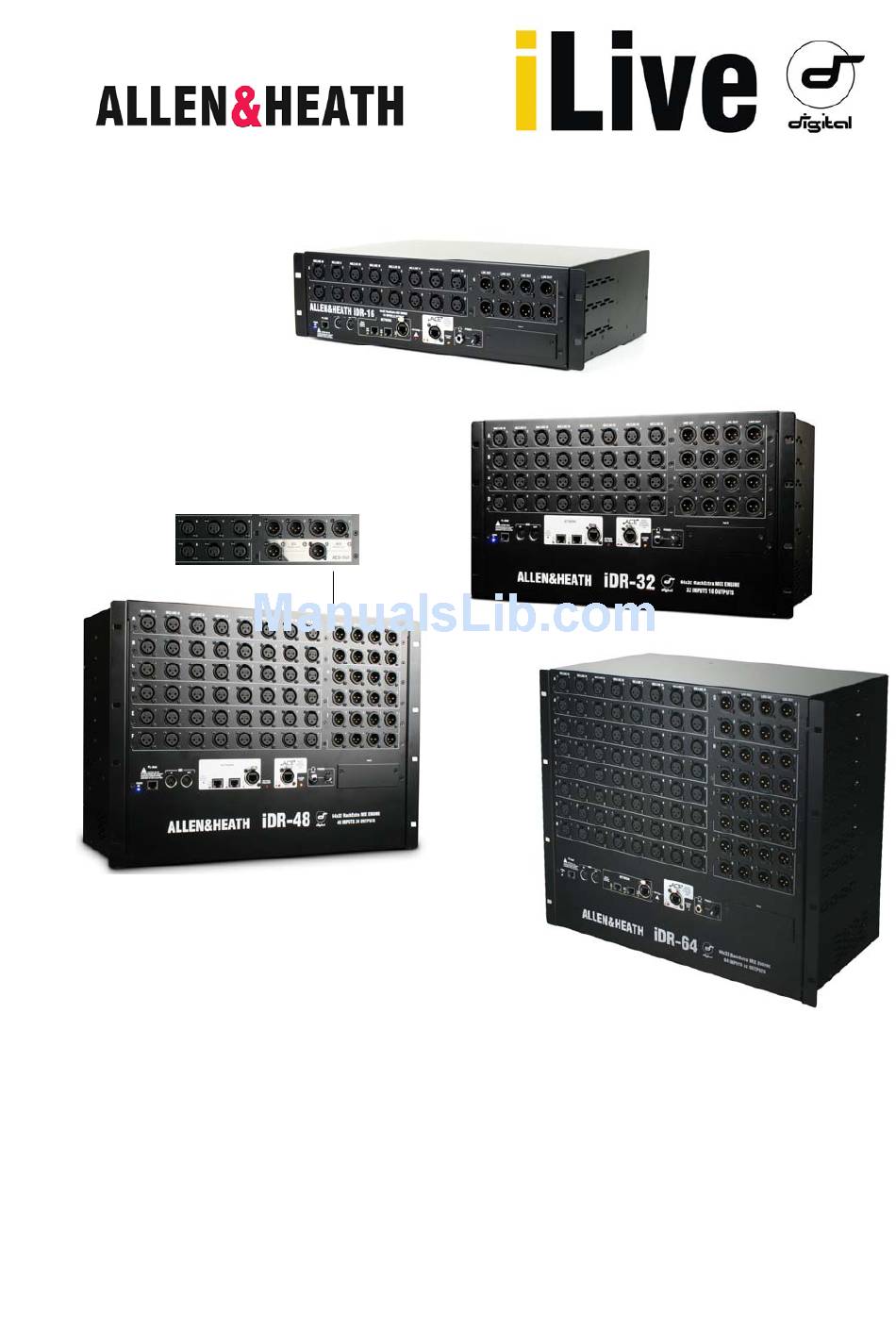

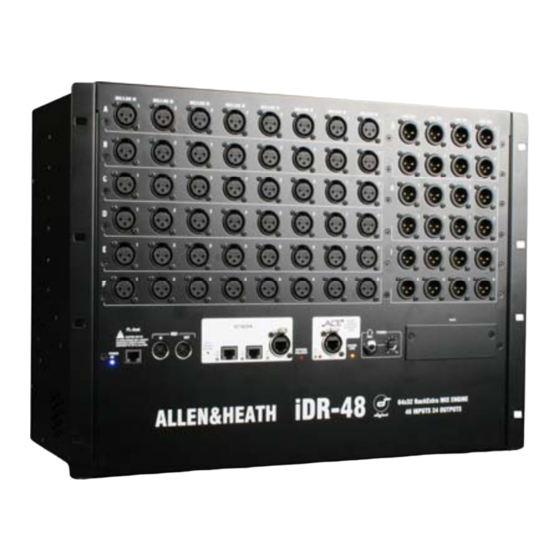

- Page 1 Available with AES digital outputs Fixed Format MixRacks iDR-16 iDR-32 iDR-48 iDR-64 Getting Started Guide Publication AP7445...
-
Page 2: Help Manual
32, 48 and 64 MixRack Getting Started Guide AP7445 Issue 4 Copyright © 2012 Allen & Heath. All rights reserved ALLEN&HEATH Designed in the United Kingdom by Allen & Heath Limited, Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK http://www.allen-heath.com iDR MixRack Getting Started Guide AP7445 iss.4... - Page 3 High performance, recallable mic/line preamps Digital +/-24dB Trim for FOH/Monitor gain sharing Low latency, low noise, very high preamp and mix headroom Relay protected outputs Redundant backup PSU capability iDR MixRack Getting Started Guide AP7445 iss.4...
- Page 4 AES digital outputs. The rack must be running firmware V1.9 before the card is fitted. This work should be carried out by a service agent. Order code: 004-388KIT AES digital out option kit 8 mic/line, 2 dual channel AES iDR MixRack Getting Started Guide AP7445 iss.4...
-
Page 5: Front Panel
Surface not equipped PL-9 hub with ACE™. All devices on the network must have compatible TCP/IP addresses. A recessed switch lets you reset the network settings to factory default. iDR MixRack Getting Started Guide AP7445 iss.4... -
Page 6: Connect And Power Up
Once connected, the PL controls can be configured. a wireless laptop, MixPad or OneMix app Settings can be saved as library items and in Scene on iPads and Tweak on an iPhone. memories. iDR MixRack Getting Started Guide AP7445 iss.4... -
Page 7: Mains Input
15 seconds while it The red error LED will light to indicate network reboots. collision if you connect both ACE™ and NETWORK to the Surface using two cables. iDR MixRack Getting Started Guide AP7445 iss.4... - Page 8 Connect to a SoundGrid server to run ADAT, Aviom™, Hearbus™, and links to Allen & popular low latency plug-ins or to a PC for multitrack Heath iDR Series mix processors and output recording. expanders. iDR MixRack Getting Started Guide AP7445 iss.4...
-
Page 9: System Example
Surface and rack. control instead of Gain. Set this using the laptop can be added at either or both ends in PREAMP screen. addition to or instead of the Surface. iDR MixRack Getting Started Guide AP7445 iss.4... -
Page 10: Dual-Rack Input Expansion
The Master MixRack processes the 32 buses. FX may be inserted on Master channels 1-64 only. Channels cannot be ganged across MixRacks. (control and audio) The Reset Network Settings recessed switch restores default single MixRack operation. iDR MixRack Getting Started Guide AP7445 iss.4... - Page 11 MixRack Getting Started Guide AP7445 iss.4...
- Page 12 In certain territories the terms may vary. Check with your ALLEN & HEATH distributor or agent for any additional warranty which may apply. If further assistance is required please contact Allen & Heath Ltd. iDR MixRack Getting Started Guide AP7445 iss.4...
