iLive
Fixed Format Systems
Getting Started Guide
Publication AP7141

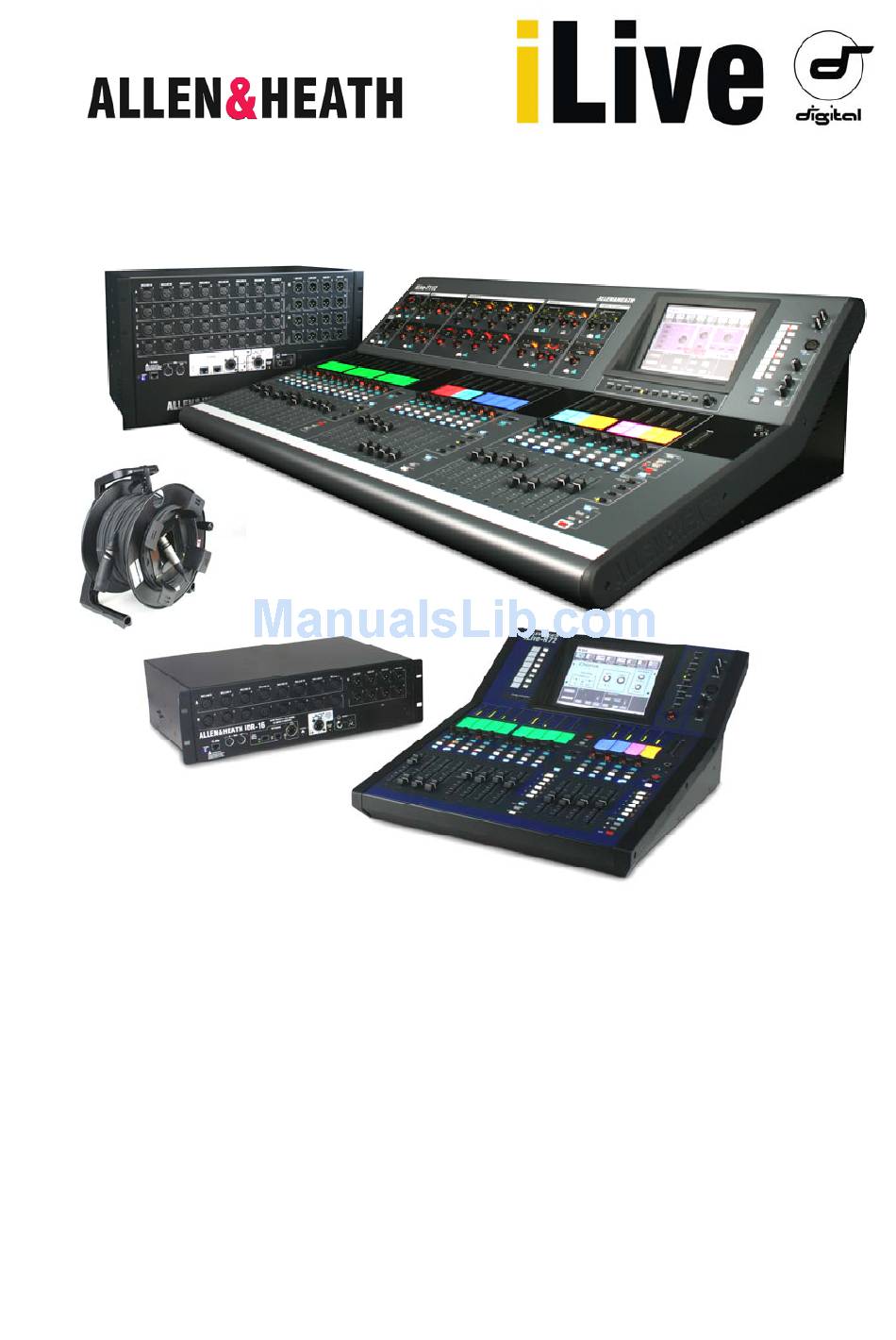

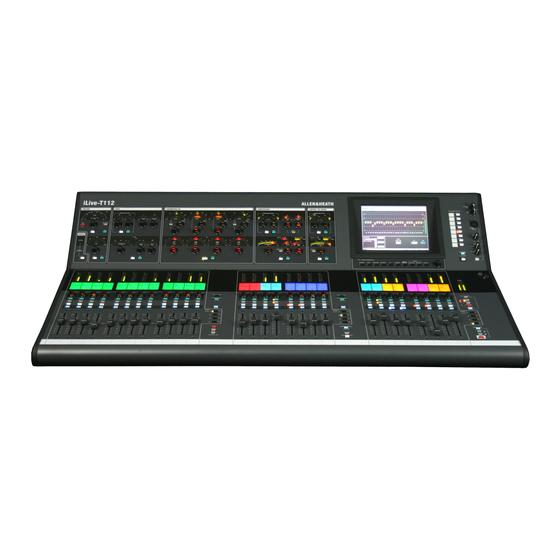

This guide is intended to help the new user quickly learn to configure
and operate the fixed format iLive audio mixing system. Fixed format
and modular iLive components are fully compatible with each other
letting you mix and match any combination of MixRack and Surface
according to application and budget.
Advertisement
Table of Contents
Related Manuals for ALLEN & HEATH iLIVE
Summary of Contents for ALLEN & HEATH iLIVE
-
Page 1: Getting Started Guide
Publication AP7141 This guide is intended to help the new user quickly learn to configure and operate the fixed format iLive audio mixing system. Fixed format and modular iLive components are fully compatible with each other letting you mix and match any combination of MixRack and Surface... -
Page 2: Safety Instructions
System operating firmware The feature set of the iLive is determined by the firmware (operating software) that runs it. Firmware is updated regularly as new features are added and improvements made, and is available for download from the Allen &... -
Page 3: Table Of Contents
FOH/Monitor dual system using digital mic split iLive-R72 Rack Ears ..........................Fitting instructions Default Template Show Layout ...................... Format, strip layout and socket patching of the FOH-LRSub Template Show Specification ............................Manufacturer’s Warranty ........................iLive Fixed Format Getting Started Guide AP7141 iss.5... - Page 4 Plug into a Network port at the MixRack or Surface to add simultaneous control using one or more laptops running iLive Editor software. Use wired or plug in a router for wireless connection. Add the assignable PL Series devices for distributed control, for example personal monitoring. One or more can be daisy chained from the MixRack PL-Anet port, or distributed via a PL-9 hub.
-
Page 5: Introduction
This guide takes you through the quick first steps in learning to use iLive. A little time spent during a quiet moment pressing buttons and navigating through the various screens should help you become familiar with its more advanced features and capabilities. -
Page 6: System Components
Surface or laptop. The PL-9 hub PL-10 is allows star point instead of daisy chain connection. More information on the PL Series is available on the PL-5 PL-6 Allen & Heath web site. PL-9 iLive Fixed Format Getting Started Guide AP7141 iss.5... -
Page 7: T Series Control Layout
Ethernet) CAT5 cable up to Balanced TRS jack in here. 120m (400 feet)* RCA phono * Depends on cable type. Refer to www.allen-heath.com RCA digital (SPDIF) for recommended cable types and maximum lengths. iLive Fixed Format Getting Started Guide AP7141 iss.5... -
Page 8: R Series Control Layout
Balanced TRS jack line level for recommended cable types RCA phono line level and maximum lengths. System hard RCA digital (SPDIF) reset jumpers Additional Ethernet ports for connecting laptops and wireless router. iLive Fixed Format Getting Started Guide AP7141 iss.5... -
Page 9: Step 1 - Connect And Power Up
PL-9 hub for star connection. Make sure ports at the Surface or MixRack. the termination provided is plugged into OUT of the last device in the chain. Start the iLive Editor program and connect online. Note: Once connected, the PL controls need to be configured. -
Page 10: Status Indicators
Port B slot then its status Net Bridge indicates correct operation of the Ethernet link over information is displayed here. ACE. Surface Lock indicates that the Surface audio is sync locked to the MixRack. iLive Fixed Format Getting Started Guide AP7141 iss.5... -
Page 11: Step 2 - Recall A Template Show As A Starting Point
Once you are comfortable working with iLive you can make changes to your set up and save these as your own ‘User’ Shows. A default show is already loaded when the iLive is shipped from the factory. This is FOH-LRSub. -
Page 12: Step 3 - A Few Things To Know Before Starting
Step 3 – A few things to know before starting Before working with the iLive familiarise yourself with its control layout and operating principles. Two important keys - Select the channel processing. View and adjust the parameters for that channel. Within the processing section... - Page 13 Hold down the FREEZE IN LAYERS key and press the strip keys to freeze or unfreeze selected strips. The blue LEDs display which strips are frozen while the key is pressed. iLive Fixed Format Getting Started Guide AP7141 iss.5...
-
Page 14: Step 4 - Name And Colour Channels
Note – The user defined quick names are stored in the Show memories. These get overwritten with the contents of the Show when it is recalled. iLive Fixed Format Getting Started Guide AP7141 iss.5... -
Page 15: Step 5 - Work With The Channel Processing
The fader on the right becomes the master or currently active send level for the mix. Hold down ALT VIEW to display the EQ dB settings on the strip LCDs. Press the strip keys to reset individual frequency bands to 0dB. iLive Fixed Format Getting Started Guide AP7141 iss.5... -
Page 16: Step 6 - Work With The Mix
Hold down ROTARY SHIFT and turn the encoders to adjust the second image control if one is available, for example LCRplus Blend, Sub or M fill level, or encoder mix Pan. iLive Fixed Format Getting Started Guide AP7141 iss.5... -
Page 17: The Routing Screen
Aux, Matrix - Choose to mix sends using the faders or rotary encoders. This can be configured for each mix. Note - Post-fader sends follow the fader level but get their source as set in this screen. iLive Fixed Format Getting Started Guide AP7141 iss.5... -
Page 18: Tap Tempo
Work with the FX iLive works with FX in a similar way to analogue consoles, using a send and return path, for example reverb or delay Spatial Modelling Reverberator effect. You can also configure inserted effects such as a flanger or reverb on a single channel. -
Page 19: Step 7 - Patching Signals
To assign SoftKeys use the SURFACE / SoftKey Setup screen. The Template Shows provided with the iLive already have the Soft keys preconfigured as DCA group 1-8 mutes. iLive Fixed Format Getting Started Guide AP7141 iss.5... -
Page 20: Channel Ganging
DCA assignments, but not fader level, source or pre/post settings. For example, you can copy one Aux mix into another as a starting point for setting up that monitor mix. iLive Fixed Format Getting Started Guide AP7141 iss.5... - Page 21 Step 7 – Patch the sockets The iLive features a built-in soft patchbay that lets you freely patch input and output sockets. The default Template Shows provide a standard patch as a useful starting point. You can change this patching to suit your application and store it in the Scene and Show memories.
-
Page 22: Step 8 - Customise Your Configuration
Step 8 – Customise your configuration Once you have familiarised yourself with the operation of the iLive through using a Template Show, you may wish to take advantage of its unique flexibility by reconfiguring the channel and master strip layout, DSP mix bus and stereo channel architecture, soft key assignments and more. -
Page 23: Step 9 - Save Your Settings
Step 9 - Save your settings iLive provides different types of memory to store your settings. Back up your settings to the onboard memories or archive them to your PC via USB key. For more information refer to the on screen HELP manual. -
Page 24: Scene Memories
Scene memories iLive has 250 Scene memories. These are 'snapshots' of all or a selection of the live mixing parameters. They do not store the DSP bus configuration and user preferences. Before starting go to the SURFACE / Preferences screen... -
Page 25: Show Memories
Note - For iLive to see the Shows on your USB key they should be placed in an 'allenheath \ shows' folder in the root directory of your key. If you have previously archived Shows to the key using an iLive then this folder should have already been created. -
Page 26: Dual-Rack Input Expansion
FX may be inserted on Master channels 1-64 only. Channels cannot be ganged across MixRacks. The Reset Network Settings recessed switch (control and audio) restores default single MixRack operation. iLive Fixed Format Getting Started Guide AP7141 iss.5... -
Page 27: System Example
Find out more about using the iLive We hope that this guide has given you a quick start to mixing with the iLive. Take some quiet time to familiarise yourself with the more advanced functions and utility screens. For further information please... -
Page 28: Ilive-R72 Rack Ears
Remove 8x M4 x 8mm TORX screws Use T20 driver 120.7mm (4.75") 52.5mm (2.07") 368mm (14.5") 482.2mm (19") The iLive-R72 Surface can be configured for from front of trim 540mm (21.26") desk top, flight case, 19” rack or furniture installation. The plastic side trims can be... -
Page 29: Default Template Show Layout
Fixed Format iLive - Factory Default Show Template Show = FOH-LRSub LRSub main mix CH1 - 60 = mono 4 mono, 2 stereo Groups Channels CH61/62, 63/64 = stereo 8 mono, 2 stereo Auxes 6 mono FX sends Bus configuration... -
Page 30: Specification
8U rack, 482mm (19") x 353mm (14"") x 250mm (10"), 16kg (35.2lbs) iDR-64 MixRack 9U rack, 482mm (19") x 397mm (15.6") x 250mm (10"), 17.5kg (38.5lbs) 475mm (18.7") x 235mm (9.3") x 540mm (21.2"), 12kg (26.5lbs) iLive-R72 - With Sidetrims iLive Fixed Format Getting Started Guide AP7141 iss.5... - Page 31 Fixed Format Getting Started Guide AP7141 iss.5...
-
Page 32: Manufacturer's Warranty
In certain territories the terms may vary. Check with your ALLEN & HEATH distributor or agent for any additional warranty which may apply. If further assistance is required please contact Allen & Heath Ltd. iLive Fixed Format Getting Started Guide AP7141 iss.5...
