User's Information Guide
Trane CleanEffects
Whole House Air Filtration System
TM
Congratulations – Your TRANE CleanEffects
air filtration system is the most advanced,
TM
innovative and effective whole house air filtration system on the market today. It is designed to
deliver what we call TRANE Air
throughout your home. It delivers air that is meticulously filtered
TM
and cleaned of up to 99.98% of allergens to provide maximum comfort. You and your family can
breathe easier than ever before.
© Trane 2013
Advertisement
Table of Contents
Related Manuals for Trane CleanEffects 32-5038-10
Summary of Contents for Trane CleanEffects 32-5038-10
- Page 1 It is designed to deliver what we call TRANE Air throughout your home. It delivers air that is meticulously filtered and cleaned of up to 99.98% of allergens to provide maximum comfort. You and your family can breathe easier than ever before.
-
Page 2: Features And Benefits
User’s Information FEATURES AND BENEFITS Congratulations on the purchase of your CleanEffects whole house air cleaner. As you already know, your CleanEffects air cleaner will outperform even the best HEPA filter, removing an unprecedented 99.98% of airborne allergens that pass through the filter. Your CleanEffects whole house air cleaner can be installed either as part of a Communicating heating and... -
Page 3: Display Features

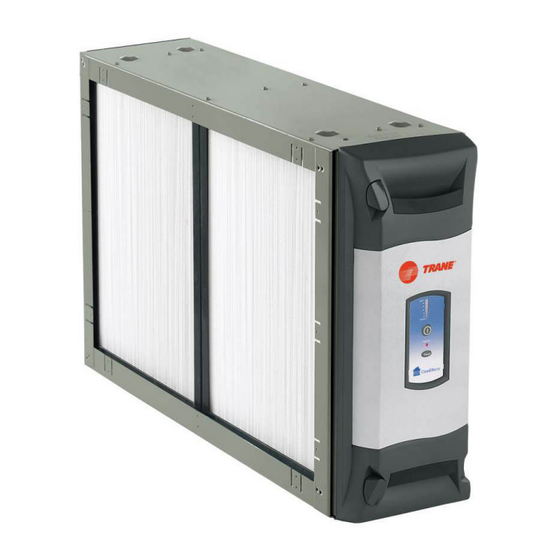

User’s Information Figure 1. COMPONENTS OF THE TRANE CLEANEFFECTS Fig. 1 1) PRE-FILTER - Traps large particles such as hair and lint 5) POWER DOOR - The solid state power supply components before they can enter the COLLECTION CELL section. -
Page 4: Sequence Of Operation
User’s Information SEQUENCE OF OPERATION MAINTENANCE WARNING Turn on the Trane CleanEffects by pressing and re- RISK OF ELECTRIC SHOCK: These servicing leasing the POWER button. The backlit POWER and instructions are for use by qualified personnel RESET button will illuminate along with the first green only. - Page 5 User’s Information CLEANING CAUTION Cleaning Instructions: Handle the door only by using the handles on the The air cleaner utilizes a PRE-FILTER and front of the door. Grasp the door by the handles as COLLECTION CELLS. The purpose of the PRE-FILTER depicted in Figure 3 to remove and replace the door.
- Page 6 User’s Information The air cleaner is factory set to notify the home owner to VACUUM CLEANING clean the PRE-FILTER every two months [10 weeks] of actual run time of the air cleaner. This notification can Vacuuming is the preferred method to clean the PRE- be changed by the installer/home owner to 1 month or FILTER and COLLECTION CELLS.
- Page 7 User’s Information 1. Using a vacuum hose, vacuum in even strokes across the entire COLLECTION CELL surface. Vacuum using even strokes in one direction, then repeat the process using even strokes in the oppo- site direction, as demonstrated in Figure 8 below. Handles Fold Flat Fig.
- Page 8 User’s Information NOTE: Once you press the POWER button, the first LED will be on and it will start flashing after the first 10 [12] minutes of indoor fan operation. This is normal operation. Cabinet Edge Alternate Cleaning option for homeowners with 200 or 200-1 COLLECTION CELLS ONLY Vacuuming the PRE-FILTER and COLLECTION CELLS restores them to a high efficiency.
- Page 9 User’s Information 2. After washing, drain as much water as possible from NOTE: If collection cells are wet, you may see a fault the COLLECTION CELLS. indication. Turn air cleaner off until collection cells are Holding the sides of the COLLECTION CELLS, completely dry.
-
Page 10: Changing The Settings
User’s Information FIELD CHARGER Power Level Set- COLLECTION CELLS Cleaning ting Interval Setting (Figure 21) The RED LED lights are used to set the power level One or more of the YELLOW LED lights will illuminate. of the FIELD CHARGER for maximum, medium, or To change the reminder interval time, press the RESET minimum. -
Page 11: System Information
User’s Information FAULT INDICATORS If the unit detects any other type of fault, all three RED LED lights will flash continuously as shown in Figure 24. The filter will shut down and does not represent a safety In communicating systems, the whole house air cleaner risk. - Page 12 Trane 06/13 6200 Troup Highway Tyler, TX 75707 Since the manufacturer has a policy of continuous product and product data improvement, it reserves the For more information contact right to change design and specifications without notice. your local dealer (distributor)
