32- 5038- 01

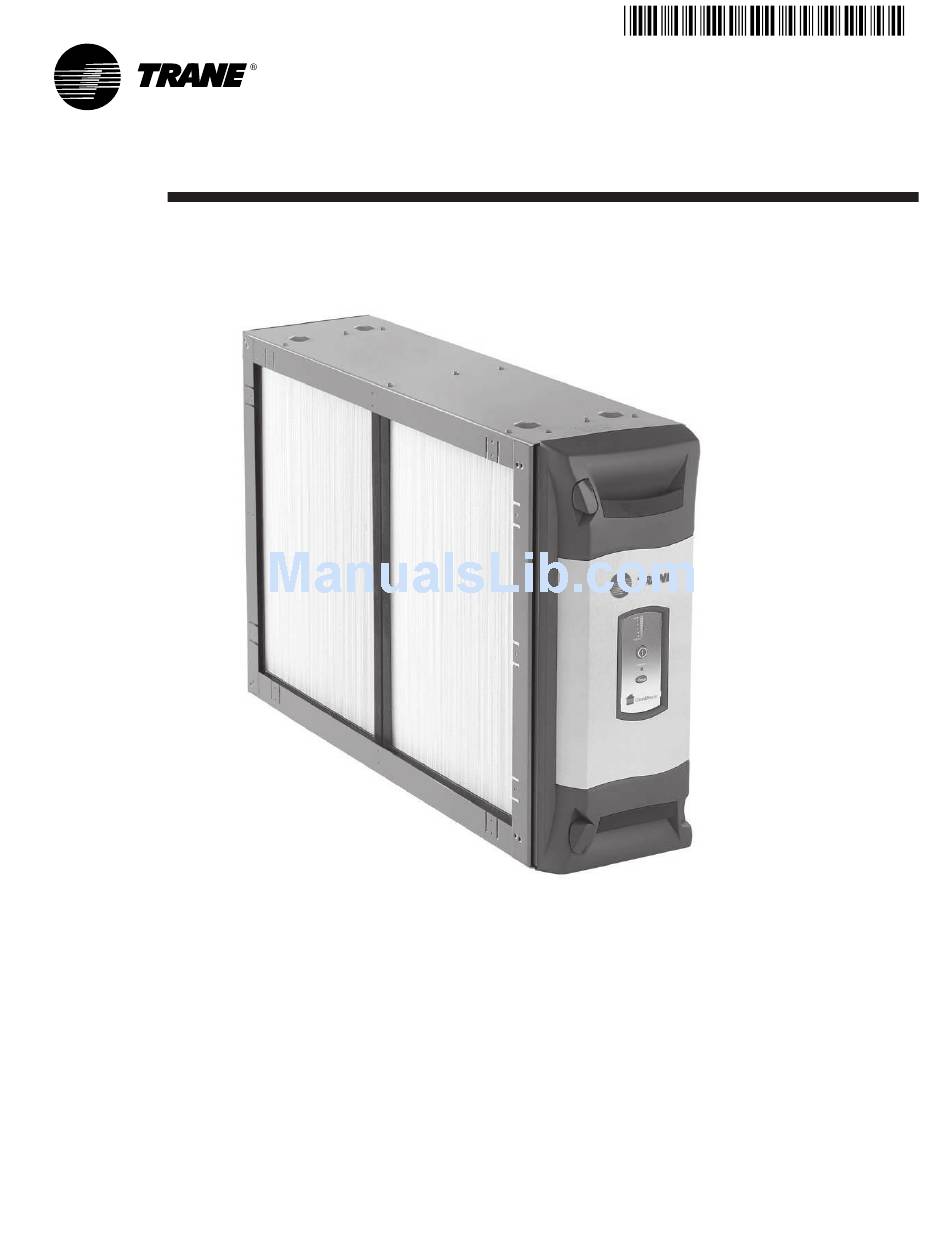

User's Information Guide
Trane CleanEffects
TM
Whole House Air Filtration System
Congratulations – Your TRANE CleanEffects
air filtration system is the most advanced,
TM
innovative and effective whole house air filtration system on the market today. It is designed to
deliver what we call TRANE Air
TM
throughout your home. It delivers air that is meticulously filtered
and cleaned of up to 99.98% of allergens to provide maximum comfort. You and your family can
breathe easier than ever before.
32-5038-01
Advertisement
Table of Contents
Related Manuals for Trane CleanEffects Air Filtration System
Summary of Contents for Trane CleanEffects Air Filtration System
- Page 1 It is designed to deliver what we call TRANE Air throughout your home. It delivers air that is meticulously filtered and cleaned of up to 99.98% of allergens to provide maximum comfort. You and your family can breathe easier than ever before.
-
Page 2: Display Features
Figure 1. COMPONENTS OF THE TRANE CLEANEFFECTS 1) Pre-filter - Traps large particles such as hair and lint before they can enter the cell section. 2) Field Charger - Charges the contaminants. Only to be serviced by a qualified technician. -
Page 3: Sequence Of Operation
SEQUENCE OF OPERATION You will need to turn off your air cleaner to clean the filters. After cleaning, turn on the unit by pressing and releasing the Power button. The backlit Power and Filter Reset button will illuminate along with first green LED indicating power is present. -
Page 4: Pre-Filter Cleaning
not remove the door until all lights are off. ♦ Disconnect the power cable, if required, and place the door in a secure location. ♦ Rotate the two latches and remove the door. PRE-FILTER CLEANING: The pre-filter can be vacuumed (recommended) or washed clean. - Page 5 SET-UP MODE You can customize the performance of the air cleaner to meet the needs of your home and family using the set-up mode. To enter the set-up mode, press and hold BOTH the Power and the filter RESET buttons for a minimum of 5 seconds.
-
Page 6: Changing The Settings
CHANGING THE SETTINGS While in the set-up mode, press the Power button once to begin cycling through the various setting options in the following order: Pre-Filter Cleaning Interval Setting (Figure 4) One or more of the GREEN LED lights will illuminate. -
Page 7: Fault Indicators
FAULT INDICATORS The air cleaner has been designed to continually monitor itself to insure it is working properly. If it detects a problem, all four YELLOW LED lights will flash continuously. If this occurs, turn the unit off and clean both the pre-filter and the collection cells to insure no large material is trapped in the filters and causing the fault. - Page 8 A business of American Standard Companies www.trane.com Limited Warranty CleanEffects™ Whole House Air Cleaner (Parts Only) Trane has a policy of continuous product and product data improvement and it reserves the right to change design and specifications without notice. P.I. 32-5038-01...
