TGA Eclipse Operating Instructions And Owner's Handbook page 9

CAUTION!
Lifting weight beyond your physical capability may result in personal injury.
Ask for assistance when necessary while disassembling or assembling your scooter.
Disassemble:
Turn the key switch to "OFF".
1.
2. Turn the tiller lock to locked position.
3. The tiller can then be laid flat by releasing the handwheel and folding the tiller down (See Fig. 4. 1.3)
4. Ensure the free wheel mode lever is in the drive position.
5. Pull upward on the swivel-release lever to remove the seat from seat post.

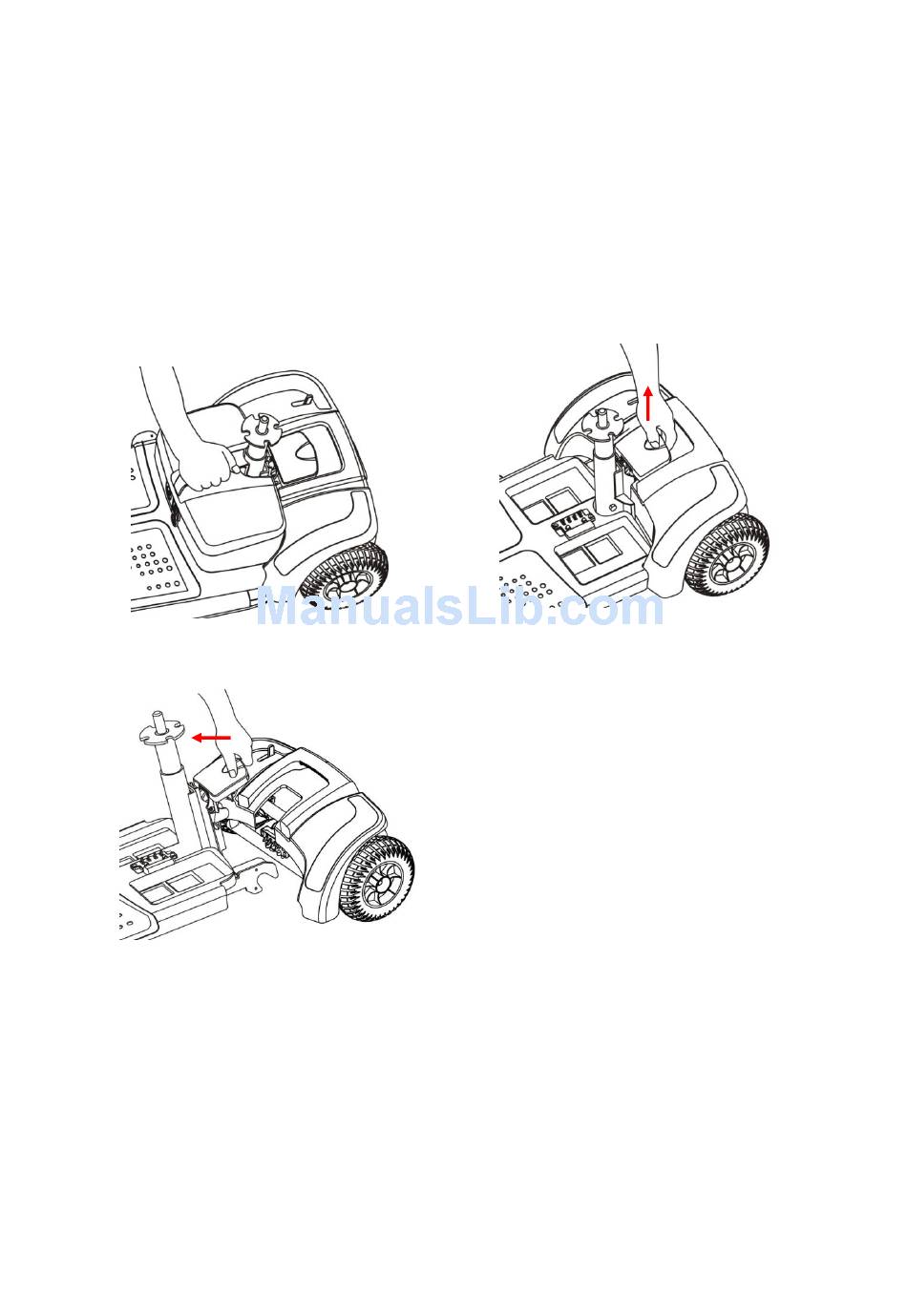

6. Pick up the battery pack and remove it from the scooter. (See Fig. 4.1.3)
7. After pulling the connecting device upward, pull the front section forward. (Fig. 4.1.4 and Fig. 4.1.5)
Fig. 4.1.5
ASSEMBLY
Note: Raise the tiller before reassembling the scooter.
1. Ensure the freewheel mode lever is in the drive position.
2. Set the rear section in the up position and make sure the hook for the front section is connected to the axle
of the rear section. (See Fig 4.1.6)
3. Put down the front and rear sections until the scooter is level. (See Fig 4.1.7)
4. Set down the battery pack on the scooter, and make sure it is in the correct position.
5. Set down the seat on the seat post until the swivel lock engages and you hear a click.
6. Turn key switch to "ON", make sure battery gauge has sufficient power.
Fig. 4.1.3 Fig. 4.1.4
9
