Summary of Contents for TGA Minimo Plus

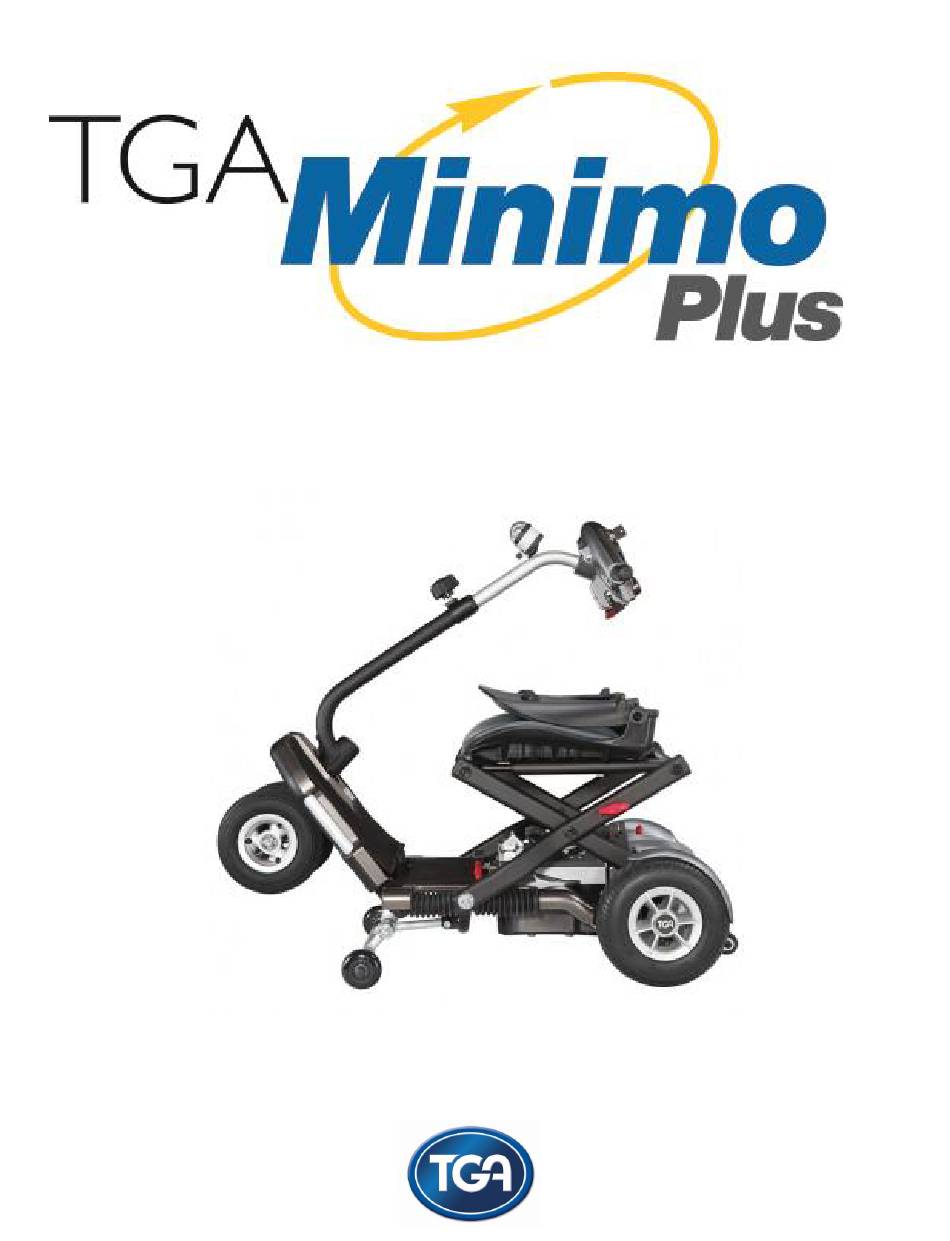

  • Page 1 Operating Instructions and Owner’s Handbook...

  • Page 2: Table Of Contents

    Contents Page Introduction Your Minimo Plus Controls & Instrument Panel Adjusting Your Minimo Plus Tiller Removing Your Minimo Plus Battery Pack Folding Your Minimo Plus Unfolding Your Minimo Plus Removing Your Minimo Plus Seat Charging Your Minimo Plus Airline Travel...

  • Page 3: Introduction

    Always proceed carefully while riding on uneven surfaces. Do not sit on your Minimo Plus while being transported in a moving vehicle. Always restrain your Minimo Plus so that it cannot move in the vehicle and transfer yourself to a vehicle seat.

  • Page 4: Your Minimo Plus Controls & Instrument Panel

    A. Horn – Press the Horn button to sound the horn. B. Key – Insert the key and rotate it clockwise to power on your Minimo Plus. To turn off your Minimo Plus rotate the key anti clockwise. Should you require additional or...

  • Page 5: Adjusting Your Minimo Plus Tiller

    3. Adjusting Your Minimo Plus Tiller If you’d like to adjust the height of your Minimo Plus tiller simply turn the adjustment wheel anti clockwise until the top part of the tiller moves freely up and down. Then just move the top half of the tiller to the height you would like and tighten the adjustment wheel by turning it clockwise until tight.

  • Page 6: Removing Your Minimo Plus Battery Pack

    5. Folding Your Minimo Plus To fold your Minimo Plus in order to put it into a car boot or stand it up and store it follow these 4 simple steps: 1.
  • Page 7 2. Fold the back of the seat down. 3. Use one hand to push the seat down towards the floor pan and the other to move the tiller towards the seat which will lift the front wheels off the floor and fold your Minimo Plus.
  • Page 8 4. Finally push the tiller against the seat and the front of the floor pan towards the rear wheels to ensure your Minimo Plus is locked into the folded position. Once folded you can then lift your Minimo Plus using the handle at the rear and stand it on its front wheels to move around in the folded position.

  • Page 9: Unfolding Your Minimo Plus

    6. Unfolding Your Minimo Plus To unfold your Minimo Plus follow these 3 simple steps: 1. Pull the red handle on the left hand side of your Minimo Plus towards you until you feel it click. 2. Pull the tiller away from the floor pan until the front wheels of your Minimo Plus touch the...

  • Page 10: Removing Your Minimo Plus Seat

    3. Ensure your Minimo Plus is locked in the unfolded position by pulling the seat away from the floor pan with one hand and pushing the tiller away from the seat with the other until you hear a click and feel you Minimo Plus lock into this position. Once your Minimo Plus is locked in position you will no longer be able to move the tiller towards and away from the seat so use this as a simple test to find out if you Minimo Plus is locked in the unfolded position.

  • Page 11: Charging Your Minimo Plus

    6. After a period of time the light on the charger will turn Green indicating the battery is fully charged 7. At this time the charger can be disconnected and your Minimo Plus is ready for use. NB At the point the Green light comes on the charger will automatically stop charging although the light will still be on.

  • Page 12: Airline Travel

    Care! Warning The Minimo Plus is easy to drive but it is essential that you familiarize yourself with the controls and learn to drive it in a safe area with sufficient room to maneuver for your safety and that of...
  • Page 13 When reversing the opposite will apply. 4. To cross the road you should try to find a suitable slope. Your Minimo Plus will mount lowered kerbs, but you should always approach a kerb at right angles (90°). If you are going up you should stop just short of the edge and select full speed.

  • Page 14: Parking Brake Release

    When it is pointing forwards the brake is released which allows your Minimo Plus to be pushed. There will be no power to drive your Minimo Plus when the brake is in this position, however when switched on the Power On light will flash to indicate the parking brake is disengaged.
  • Page 15 Motor Brakes If the motor brakes are functioning correctly, you will not be able to push your Minimo Plus when it is switched off or switched on with the speed control throttle in the neutral position. If your machine can be pushed when as described above, the motor brake(s) may be faulty. Do not use your Minimo Plus and contact your Minimo Plus dealer or TGA.

  • Page 16: Technical Specifications

    2.75" 14. Warranty This is to certify that your Minimo Plus is warranted by TGA for a period of twelve months from the date of purchase subject to the following conditions: 1. This warranty is available only to the original purchaser/user of the Minimo Plus. The Minimo Plus is identified by the unique serial number located on the frame.

  • Page 17: Tips, Cautions, Problems And Additional Features

    Stop Problems before they Start If you detect an unusual vibration or noise in the operation of your Minimo Plus, try to determine the cause. Be sure the power is off before investigating. If you cannot discover the cause of a problem contact your Minimo Plus dealer or TGA for help.
  • Page 18 Watch Your Brakes Never try to drive, or even sit on your Minimo Plus while it is in “free wheel”. The parking brake will be out of action and your Minimo could run away with you. Maintenance...
  • Page 19 Kerb climbing in any other manner will lead to your Minimo Plus becoming unstable and the risk of possible accident and injury. Watch out for:  Children – They may well run in front of you without warning. You may only be moving very slowly, but you could still injure a child.
  • Page 20 TGA Electric Leisure Ltd ● Woodhall Business Park ● Sudbury ● Suffolk ● CO10 1WH T 01787 882244 ● F 01787 882248 sales@tgamobility.co.uk www.tgamobility.co.uk TGA Electric Leisure Ltd reserves the right to change specification and/or prices without prior notification or warning INS02v2...
