Summary of Contents for TGA sonet

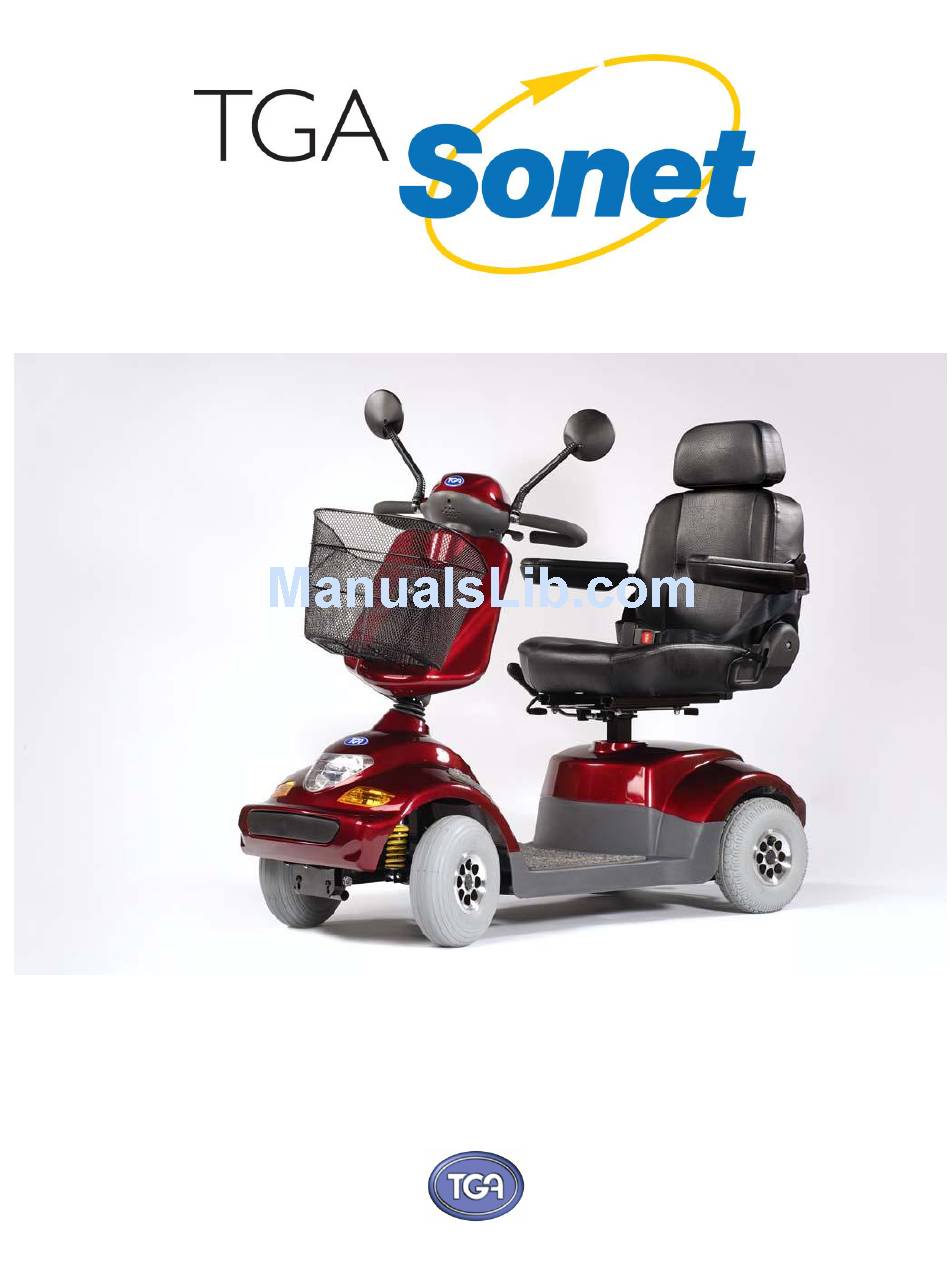

- Page 1 Operating Instructions and Owner’s Handbook...
-
Page 2: Table Of Contents
ONTENTS 1. I ....................3 NTRODUCTION 2. T ............4 ONTROLS AND NSTRUMENT ANEL 3. S ..................5 DJUSTMENT 4. D ......................6 RIVING 5. A ...................... 7 SSEMBLY 6. D ....................8 ISMANTLING 7. P ................8 ARKING RAKE ELEASE 8. -
Page 3: Introduction
Intended Purpose The Sonet is intended for outdoor use on gradients up to 12%. It is suitable to be used over uneven ground and will negotiate obstacles up to 80mm high but care must be taken when negotiating such conditions. It is unsuitable to traverse surfaces that have rutted (grooves) wider than 175mm. -
Page 4: The Controls And Instrument Panel
Care! Warning The Sonet is easy to drive but it is essential that you familiarise yourself with the controls and learn to drive it in a safe area with sufficient room to manoeuvre for your safety and that of others. The area should be free of obstacles and reasonably flat. -
Page 5: Seat Adjustment
Speed Selection facility on the control panel will set the upper speed limit. This is required by law, as although your Sonet has a top speed of around 6mph, by law you must not exceed 4mph on footpaths and shopping areas. -
Page 6: Driving
If going down, proceed slowly on low setting until on the road, then switch to a suitable higher speed to cross the road safely. 7. The Sonet is suitable for road use BUT great care must be taken and at the maximum speed of 6 mph, you may present a hazard to other faster moving road users. -
Page 7: Assembly
1. Before leaving the scooter, switch the ignition off, the battery indicator will then go off. Remove the ON/OFF Key for security. 2. If the Sonet has been used in the Free Wheel mode (see Parking Brake Release), it is VERY IMPORTANT to re-engage the drive to ensure that the scooter brake is on before you alight. -
Page 8: Dismantling
Should the Sonet need to be manoeuvred for any reason without using the motor, the parking brake can be released. The brake release lever can be found at the rear right hand side of the Sonet. Simply pull up to disengage the brake. -
Page 9: Battery Charging
If you detect an unusual vibration or noise in the operation of your Sonet, try to determine the cause. Be sure the power is off before investigating. If you cannot discover the cause of a problem contact your Sonet dealer or TGA for help. -
Page 10: A Guide To Safe & Lasting Batteries
For longest life, your batteries should be recharged after reasonable use. If your Sonet is not used for a period of time, a refresher charge should be given every 4-6 weeks. Never leave your batteries in a discharged condition. This is particularity important to sealed batteries such as the type in your Sonet. -
Page 11: Trouble Shooting
CAUTION: Do not hose down your Sonet. Water could be forced into the electronics and cause permanent damage. DO NOT store your Sonet in damp conditions. This may affect the electronics if left for very long periods of time. Electronics: Servicing of the drive electronics and charger should only be carried out by your local TGA service dealer. -
Page 12: Technical Specification
2 x 12 v 36 a/h sealed lead acid 15. Warranty This is to certify that your TGA product is warranted by TGA for a period of twelve months from the date of purchase subject to the following conditions: 1. This warranty is extended only to the original purchaser/user of the TGA product identified by the product serial number located on the frame. -
Page 13: Safe Driving Tips For Scooter Users
Operators Manual This warranty does not cover commercial or rental use of the Sonet or any use other than normal. Upholstery and seating (these are normal wear components and replacement is not warranted) ... - Page 14 Check bulbs regularly and replace when needed, use your lights frequently, at dusk onwards, on a dull or rainy day. However, remember the use of lights may reduce the range of your scooter. SENSIBLE GUIDELINES FOR SAFETY When using the footpath – Just because you are on the footpath or pedestrian precinct does not make you a pedestrian.
- Page 15 Remember although this is legal for all Class 3 vehicles it is not always safe or sensible to do so. You are responsible for your own safety and that of other road users. The normal rules of the road apply and you must observe the law about: ...
- Page 16 TGA Customer Service. TGA Electric Leisure Ltd, Woodhall Business Park, Sudbury, Suffolk, CO10 1WH Tel: 01787 882244 Fax: 01787 882248 E-mail: sales@tga-electric.com TGA Electric Leisure Ltd reserves the right to change specification and/or prices without prior notification or waning. Sonet Handbook 01/04/2010...
