TGA Maximo Operating Instructions And Owner's Handbook

Hide thumbs Also See for Maximo:

Advertisement

Table of Contents

The finest range of mobility products available in the UK
Maximo & Maximo Plus Operating Instructions and Owners Handbook

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maximo and is the answer not in the manual?

Questions and answers

Angela Harris
April 3, 2025

What type of tyre inflator do I need for Maximo Plus 4

0
1 comments:
Mr. Anderson
April 3, 2025

The TGA Maximo Plus 4 requires a tyre inflator capable of maintaining proper tyre pressure. While the exact type is not specified, a standard tyre inflator with a pressure gauge suitable for mobility scooter tyres is needed to keep the tyres properly inflated, as low pressure will degrade performance.

This answer is automatically generated

0
Ian Hickman
April 12, 2025

how do i adjust my seat with the bolts underneath to move it back

0

Subscribe to Our Youtube Channel

Related Manuals for TGA Maximo

Summary of Contents for TGA Maximo

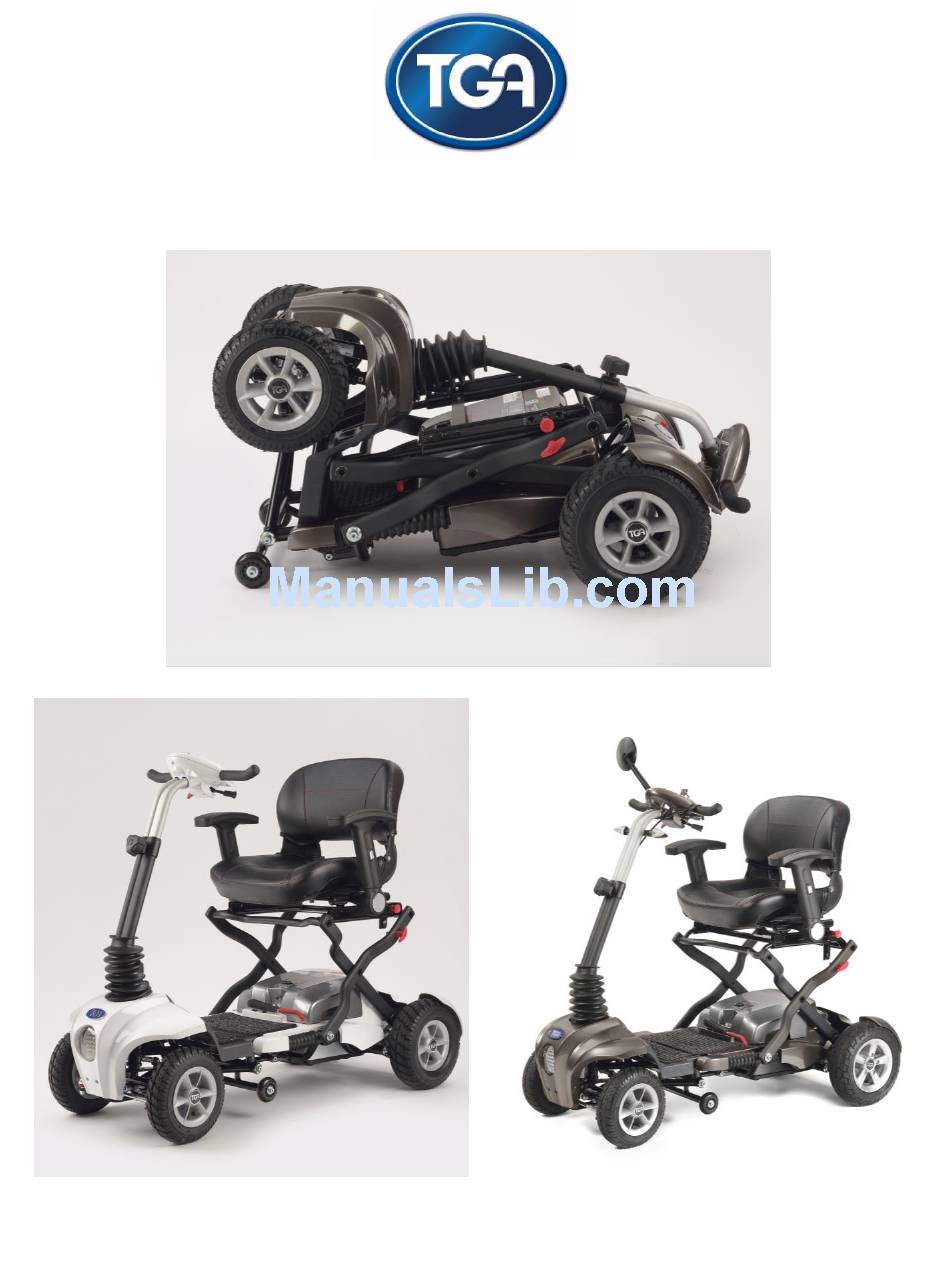

  • Page 1 The finest range of mobility products available in the UK Maximo & Maximo Plus Operating Instructions and Owners Handbook...

  • Page 2: Table Of Contents

    CONTENTS PAGE INTRODUCTION PRODUCT OVERVIEW YOUR SCOOTER CONTROLS DRIVING YOUR SCOOTER ADJUSTING YOUR TILLER REMOVING YOUR BATTERY PACK ADJUSTING YOUR SEAT FOLDING & UNFOLDING YOUR SCOOTER CHARGING YOUR SCOOTER PARKING BRAKE RELEASE MAINTENANCE TROUBLE SHOOTING TIPS FOR SCOOTER USERS TECHNICAL SPECIFICATIONS NOTES...

  • Page 3: Introduction

    PRODUCT OVERVIEW The Maximo is a class 2 mobility scooter and intended for indoor or outdoor use but is not road legal whereas the Maximo Plus is class 3 scooter is road legal. Both models are designed to be easily folded in order to fit in your car boot making it ideal for trips to your local town and shops.

  • Page 4: Driving Your Scooter

    G. Lights – This switch will turn your lights on and off (Maximo Plus only). H. Emergency Brake – Only to be used in an emergency. When pulled this brings the scooter to a quick stop.
  • Page 5 Driving on the road The Maximo is a class 2 mobility scooter and therefore it is not road legal, however the Maximo Plus is a class 3 mobility scooter and can be used on the road. Remember although this is legal for...

  • Page 6: Adjusting Your Tiller

    all Class 3 scooters it is not always safe or sensible to do so. You are responsible for your own safety and that of other road users. The normal rules of the road apply and you must observe the law about: Driving on the left side of the road.

  • Page 7: Removing Your Battery Pack

    REMOVING YOUR BATTERY PACK To remove the battery pack first ensure the pack is unlocked by inserting the key into the pack and turning it 90° anti clockwise to the unlock position. Then simply lift the pack up away from the base of the scooter and the seat using the handles provided each side.
  • Page 8 Adjusting your arm rests Your scooter has both height adjustable and rotating armrests. To adjust the height of your armrests follow these 2 simple steps: 1. Press the silver button located halfway up either armrest. 2. Slide the armrest up or down into either of the 3 positions available. To rotate the armrests follow these 2 simple steps: 1.

  • Page 9: Folding & Unfolding Your Scooter

    FOLDING & UNFOLDING YOUR SCOOTER Folding To fold your scooter in order to put it into a car boot or stand it up and store it follow these 4 simple steps: 1. Place one hand on your scooters seat base and use the other to pull up on the red handle located at the back of the floor pan just in front of the battery pack until you hear a click.

  • Page 10: Charging Your Scooter

    and feel you scooter lock into this position. Once your scooter is locked in position you will no longer be able to move the tiller towards and away from the seat so use this as a simple test to find out if you scooter is locked in the unfolded position. Care! Warning *Always take care when folding and unfolding your scooter that your hands and fingers are clear of moving parts.

  • Page 11: Parking Brake Release

    Never release this lever when your scooter is on a slope. MAINTENANCE We recommend that your scooter has an annual service and maintenance check by either TGA or an approved mobility specialist. There are however a few tips you can follow yourself to keep your scooter in good condition.

  • Page 12: Trouble Shooting

    Care! Warning if this is the case do not use your scooter and contact TGA or an approved mobility specialist. You can also test this when driving your scooter, if you let go of the speed control lever it should lose speed very quickly.

  • Page 13: Tips For Scooter Users

    It is best to check with the airline beforehand. An airline compliance certificate is available from TGA. Due to circumstances out of TGA’s control, it is not possible to board an aeroplane with our 14.5AH Lithium batteries.

  • Page 14: Technical Specifications

    TECHNICAL SPECIFICATIONS Specification Maximo Maximo Plus Length 120cm 116cm Width 60cm 58cm Folded Dimensions 97x60x55cm 98x65x53cm Seat Width 46cm 46cm Total Weight 92.5lbs 95lbs Wheel & Tyre Size front 24 x 8cm 24 x 8cm Wheel & Tyre Size rear...
  • Page 16 TGA Mobility Ltd Woodhall Business Park Sudbury Suffolk CO10 1WH Tel: 01787 882244 Fax: 01787 882248 Web: www.tgamobility.co.uk Email: info@tgamobility.co.uk TGA Mobility Ltd reserves the right to change specification and/or prices without prior notification or warning INS01v3...

This manual is also suitable for:

Maximo plus
