Basic Troubleshooting - TGA Eclipse Operating Instructions And Owner's Handbook

Please store the scooter in a location where it is out of direct sunlight, rain, or moisture. When storing
for long periods of time, please charge the battery every 3 months. For further details, contact your
dealer.

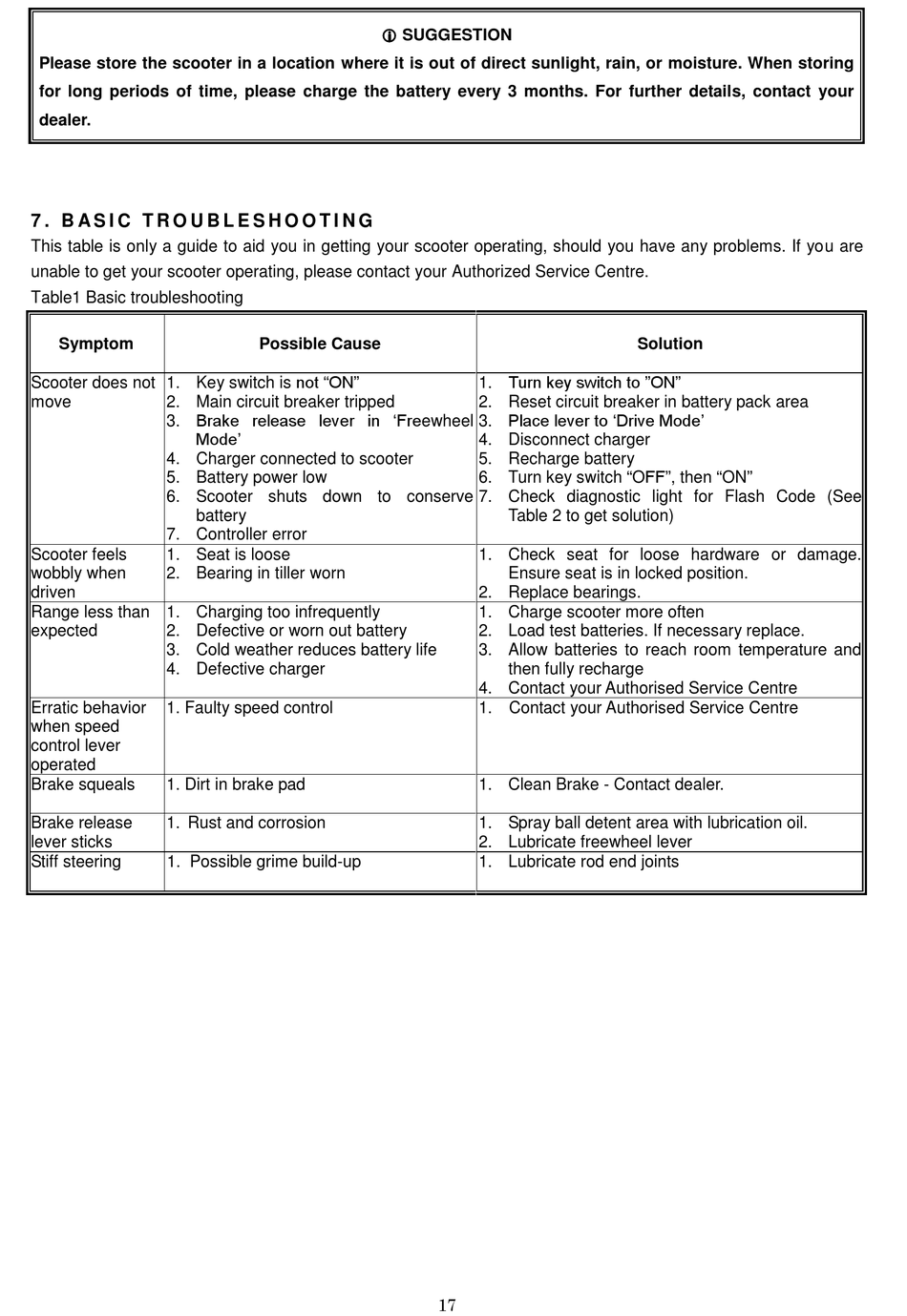

7 . B A S I C T R O U B L E S H O O T I N G
This table is only a guide to aid you in getting your scooter operating, should you have any problems. If you are
unable to get your scooter operating, please contact your Authorized Service Centre.
Table1 Basic troubleshooting
Symptom
1. Key switch is not "ON"
Scooter does not
move 2. Main circuit breaker tripped
3. Brake release lever in 'Freewheel
Mode'
4. Charger connected to scooter
5. Battery power low
6. Scooter shuts down to conserve
battery
7. Controller error
Scooter feels 1. Seat is loose
wobbly when 2. Bearing in tiller worn
driven
Range less than 1. Charging too infrequently
expected 2. Defective or worn out battery
3. Cold weather reduces battery life
4. Defective charger
Erratic behavior 1. Faulty speed control
when speed
control lever
operated
Brake squeals 1. Dirt in brake pad
Brake release 1. Rust and corrosion
lever sticks
Stiff steering 1. Possible grime build-up
 SUGGESTION
Possible Cause
1. Turn key switch to "ON"
2. Reset circuit breaker in battery pack area
3. Place lever to 'Drive Mode'
4. Disconnect charger
5. Recharge battery
6. Turn key switch "OFF", then "ON"
7. Check diagnostic light for Flash Code (See
Table 2 to get solution)
1. Check seat for loose hardware or damage.
Ensure seat is in locked position.
2. Replace bearings.
1. Charge scooter more often
2. Load test batteries. If necessary replace.
3. Allow batteries to reach room temperature and
then fully recharge
4. Contact your Authorised Service Centre
1. Contact your Authorised Service Centre
1. Clean Brake - Contact dealer.
1. Spray ball detent area with lubrication oil.
2. Lubricate freewheel lever
1. Lubricate rod end joints
17
Solution
