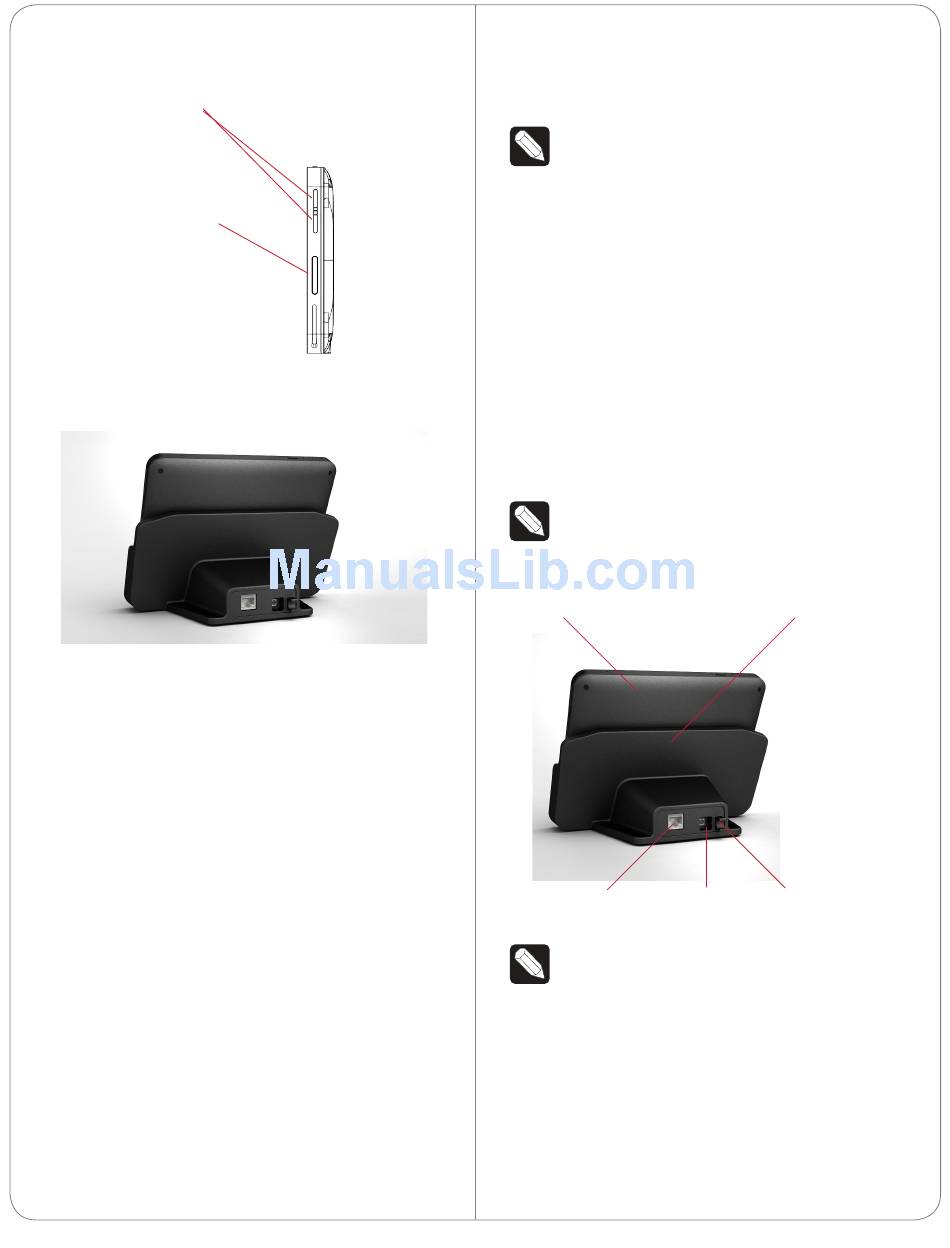

Figure 4. Right View
Programmable
Buttons
(on right and left sides)
Speaker
Figure 5. Back View with Dock and Connectors
Portable or Tabletop Installation
Options
You can use the 7" Portable Touch Screen with
Camera as a portable device that you carry with you
as you move around the house, or you can screw the
Touch Screen into the dock.
• If you intend to use the device ONLY as a
tabletop, you can use either an Ethernet or a WiFi
connection.
• If you intend to use the Touch Screen as a
portable device and remove the Touch Screen
from its dock, you must use a WiFi connection.
To use the Touch Screen as a portable device, follow
the instructions next.
To use the Touch Screen as a tabletop device (using
the two (2) screws provided) follow the instructions
in "Using the Touch Screen as a Tabletop Device."
Using the Touch Screen as a Portabie Device
Use the 7" Portable Touch Screen dock as the
docking station for the Touch Screen (see Figure 6).
NOTE: You must set up for WiFi if the Touch
Screen will be used as a portable device. See
"Configure the Network Settings."
1 Place the 7" Portable Touch Screen dock on a flat
surface.
2 Power. This device can be powered using either
an Ethernet connector or a PoE connector.
a Insert the power cable into the power jack
slot on the back of the device (see Figure 6).
b
Plug the power cord into a wall outlet.
c
To use Ethernet, plug the RJ-45 connector
into the PoE connector and then into the
Ethernet jack on the back of the Touch
Screen dock (see Figure 6).
NOTE: If you use Ethernet and undock the
Touch Screen, you will lose connectivity.
Figure 6. Back View with Power Connections
Touch Screen
Ethernet, PoE Power Jack
NOTE: The power cord angles to the right and
is held by the retaining clip. When you insert
the power cord, it also snaps into the retaining
clip.
3
Insert the Touch Screen into its dock.
4 Wake up the Touch Screen by either touching the
screen or by pressing any button.
Touch Screen Dock
Retaining Clip
