7" Portable
Touch Screen
with Camera
Setup Guide
various home automation activities in Composer
programming.
3
Power Button. Used to power the Touch Screen
on or off. See "Touch Screen Modes."
4 Touch Screen. The front face of the Touch Screen.
5 Reset/Restore Pinhole. Used to reset or restore
the factory defaults.
6 Speaker. Used for Intercom purposes.
7 Headphone Jack (3.5 mm). Used to connect
headphones for intercom purposes.
8
Camera LED Indicator. Indicates if the camera is
on. Green indicates the camera is on.
9 Power LED Indicator. Indicates if the power is on.
10 Microphones. Used to speak into the Touch
Screen when Intercom is used.

Power and Network Connections

Before you begin to install this Touch Screen, you'll
need to make a few decisions:
1 Will your customers be using the Touch Screen
as a portable device (dock not attached) or with
the dock attached? See "Portable or Tabletop
Installation Options" and "Power Management
Best Practices" for details.
2
Will the DC Power Adapter (included) or Power
over Ethernet (sold separately) be used? See
"Portable or Tabletop Installation Options" for
details.

LED Indicators

The LEDs on the Touch Screen indicate the status of
the power supply, battery charge, booting, and so on,
as described in the next table.
2
™
LED Color
Off - Not charging
- Screensaver mode, blank
- Screensaver mode, charging
Red - Off, charging
Green - On, not charging
- Suspend/asleep, not charging
Green (blinking) - Booting, not charging
Green (fast blinks) - Restoring, not charging
Orange - On, charging
- Suspend/asleep, charging
Orange (blinking) - Booting while charging
Orange (fast - Restoring while charging
blinks)
NOTES: (1) If the device is OFF, press Power.
If the device is asleep, press any button or tap
the screen. (2) The device must be connected
to a power supply for at least six (6) hours so
the battery can fully charge. (3) If the battery
power is critically low, you can still turn on the
device as long as the dock is plugged in to the
power adapter or PoE.

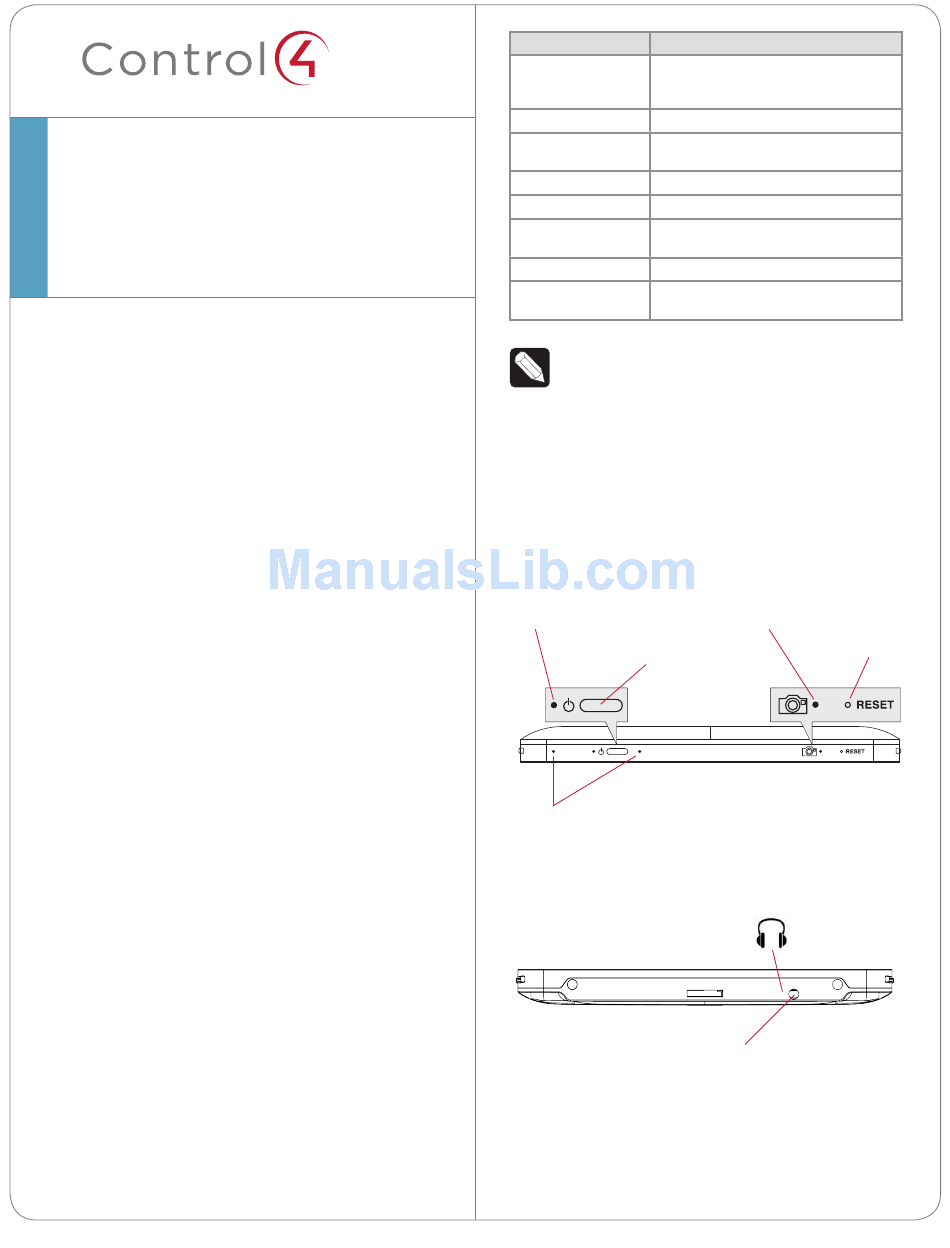

Figure 2. Top View
Power/Charging LED
Power Button
Microphones
Figure 3. Bottom View
Headphone Jack
Touch Screen Status
Camera LED
Reset/Restore
Pinhole
