Maintenance and Care
Replacing the secondary filter
The secondary filter protects the motor
from dust and dirt. Before installing a new
vacuum bag, check the filter. Accumulated
dirt in the bag compartment will be
collected on this filter and may restrict
motor performance when the filter
becomes dirty.

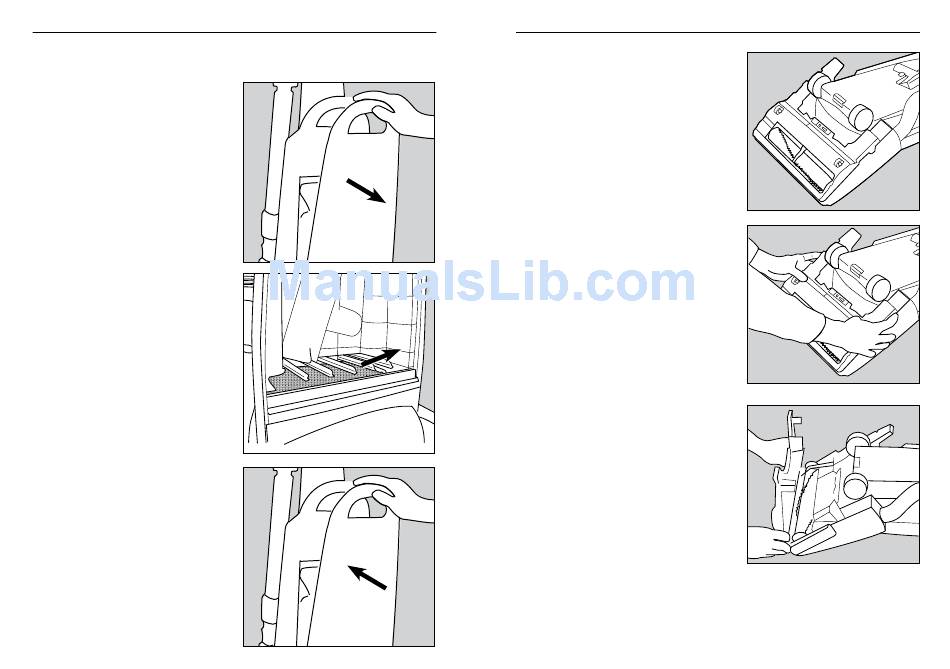

• Open the bag compartment lid and locate
the secondary filter on the bottom of the
bag compartment.
• Remove secondary filter from the bottom
of the bag compartment.
• The foam secondary filter can be washed
and reused. If washed, make sure the
filter is completely dry before reinstalling.
The charcoal secondary filter cannot
be reused (models SYMPNT & SYMP).
Remove and throw away the used
charcoal secondary filter.
• Insert the new filter by sliding it under
the bag support.
• Close the bag compartment lid.
20

Removing and reinstalling bottom plate

CAUTION: Disconnect the vacuum cleaner
from the electrical outlet before removing the
bottom plate.
• Depress handle release pedal twice and
place the vacuum cleaner in the low
position.
• Turn vacuum cleaner over, exposing the
underside.
• Slide locking latch to the right.
• Press tabs inward on each side and pull
bottom plate off.
• Reinstall by placing lower edge of bottom
plate along lower edge of nozzle. Snap
plate into place. Slide locking latch to the
left to secure.
NOTE: To ensure maximum cleaning
efficiency, the condition of the belt should
be checked regularly. If belt is stretched,
cracked or if excessive slipping is
occurring, replace the belt.
Maintenance and Care
21
