Summary of Contents for Simplicity HEAVY DUTY SHD-1T

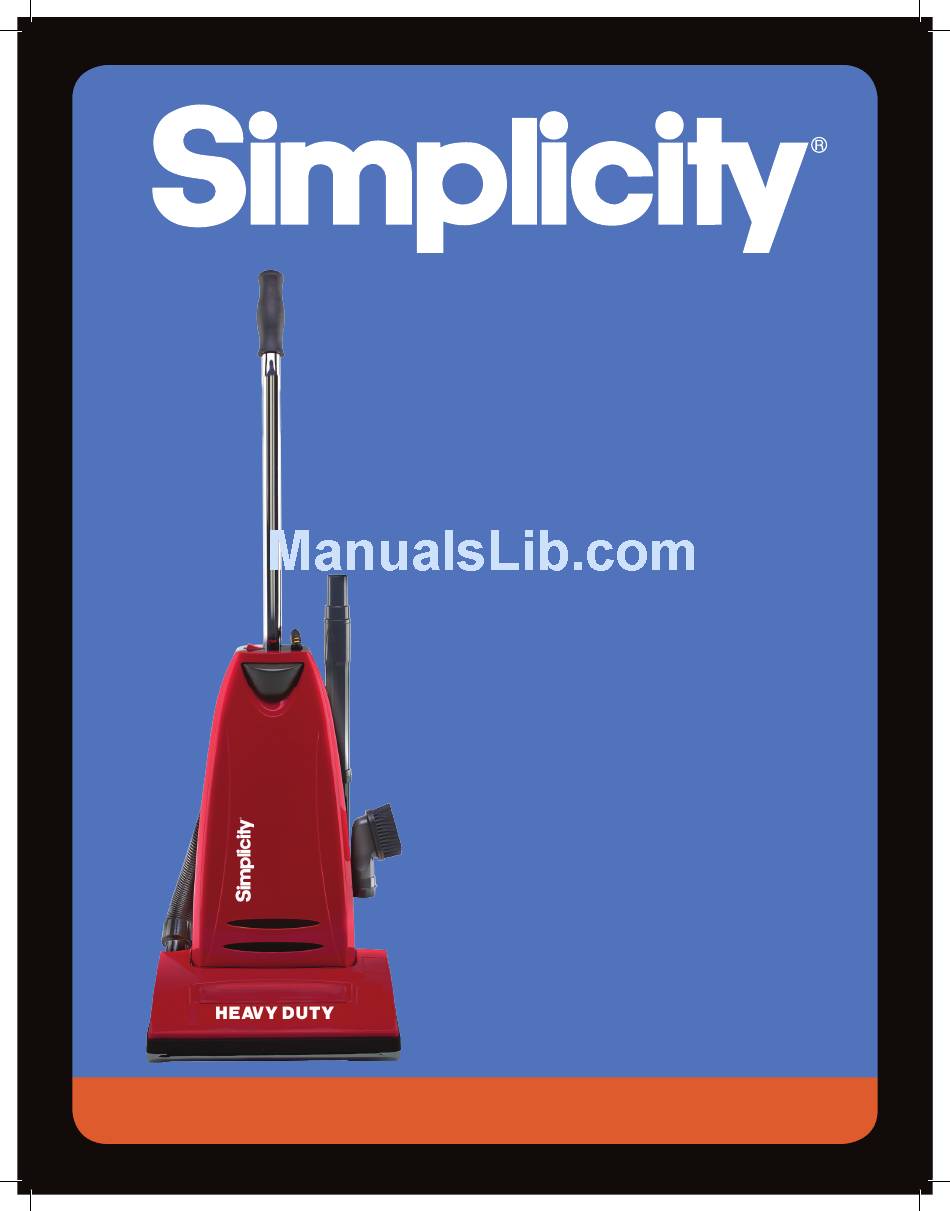

- Page 1 (The chances are you’ r e never going to read me) Owner’s Manual HEAVY DUTY SHD-1T www.SimplicityVac.com...
-
Page 2: Table Of Contents
Visit Simplicity Vacuums Online ........ -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. This machine is not intended for use by persons (including children) with reduced physical, sensory or When using an electrical appliance, basic precautions should always be followed, including the following: mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. -
Page 4: Two-Wire Polarization
Two-Wire Polarized Cord MODELS CPU-1 and CPU-1T This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. -
Page 5: Parts Identification
Furniture guard Self-adjusting nozzle Thermal reset instructions Thermal reset button Replacement Bags/Filters • Genuine Simplicity Paper Bags • Genuine Simplicity Filter Set Part # S6-3 (3 pk.) Part # SF-HD (1 pk.) Part # S6-12 (12 pk.) Genuine Simplicity Vacuum Belts... -
Page 6: How To Assemble And Operate The Vacuum
How to Assemble and Operate the Vacuum How to Attach the Handle to the Vacuum Cleaner The vacuum cleaner and the handle are packed separately. 1. After first removing the handle screw, insert handle into the hole on top of the vacuum cleaner. Make sure that the cord hooks on the handle are positioned to the back of the vacuum cleaner (Fig. -
Page 7: Handle Adjustments
Fig. 2 Filters Your Simplicity vacuum cleaner is equipped with a secondary filter and a post filter. These filters capture fine dust particles and protect the motor from dirt. It is important to change the filters regularly — approximately once a year, or as needed. -
Page 8: Automatic Self-Adjusting Nozzle
Automatic Self-Adjusting Nozzle Your Simplicity upright vacuum cleaner is designed with an Automatic Self-Adjusting Nozzle. No manual adjustments are required. The height of the nozzle is instantly and automatically adjusted to carpet pile height. This self-adjusting feature allows the nozzle to float evenly over all carpet pile surfaces. -
Page 9: How To Replace The Vacuum Belt
How to Replace the Vacuum Belt CAUTION: Unplug the vacuum cleaner before performing any of these steps. How to Remove the Bottom Plate 1. Place the vacuum cleaner in the low position by pressing the handle release pedal twice. Turn the vacuum over. 2. -
Page 10: How To Clean The Nozzle Hose
How to Clean the Nozzle Hose CAUTION: Unplug the vacuum cleaner. The nozzle hose, located on the back of the vacuum cleaner, carries the dirt from the nozzle to the vacuum bag. The hose also functions as the attachment cleaning hose (on CPU-1T and CPU-2T models only). If the hose should become clogged 1. -
Page 11: Thermal Motor Protection
Thermal Fuse Protection Your Simplicity vacuum cleaner comes equipped with a Manual Reset Thermal Motor Protector. This thermal protector is designed to protect your vacuum cleaner from overheating due to a cutoff in airflow (i.e. clogged hose, operating the vacuum without a bag). Should this situation occur, the thermal motor protector will safely shut off your vacuum cleaner to avoid any potential damage. -
Page 12: Troubleshooting
• Change vacuum bags once a month or when the bag is 2/3 full to maximize cleaning performance. • Always use genuine Simplicity vacuum bags and replacement parts. Use of other products may result in poor cleaning performance, potential vacuum cleaner damage and may void vacuum warranty. -
Page 13: Warranty
Warranty Warranty What is Covered: This warranty covers any defects in material and workmanship in your new Simplicity Heavy Duty vacuum. How Long Coverage Lasts: Warranty coverage for Simplicity Heavy Duty lasts two years. Household models used commercially are only warranted for 90 days. - Page 14 Owner’s Warranty Information keep this for your records… Date of purchase Serial number Model number Purchased from: Store name Address City, State, Zip Telephone...
- Page 16 www.SimplicityVac.com www.SimplicityVac.com 1-888-9-SIMPLY ©2015 Tacony Corporation LVOM-SHD 5.15...
