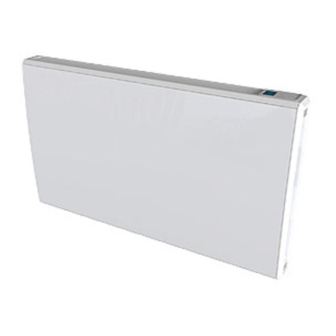

- Page 1 MANuAl Arezzo Electric Radiator Models: ARE050 / ARE075 ARE100 ARE150 ARE200 These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. iNcEuKE3Rg issuE 0...
- Page 2 iMpoRTANT These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. iMpoRTANT sAFETY ADVicE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: iMpoRTANT –...
- Page 3 3mm. Pilot Wire Connection The BlAcK control wire is designed to carry a signal from a wall mounted creda programmer. if a programmer is not being used, the pilot wire should be isolated in accordance with the current iEE Wiring Regulations.
-
Page 4: Wall Mounting
Raise the heater to upright position and push the heater onto bracket to engage top latches. Dimensions Model(s) Watt (kW) A (mm) ARE050 0.50 kW ARE075 0.75 kW ARE100 1.0 kW ARE150 1.5 kW ARE200 2.0 kW... - Page 5 Fig. 2 Fig. 1 150 mm (Min) shelf 546 mm 300 mm 105 mm 150 mm (Min) Fig. 3 Model (s) A (mm) ARE050 ARE075 ARE100 ARE150 ARE200 275 mm 294 mm (Min) 260 mm (Min)
-
Page 6: Notes To The Installer
Menu, Back and Enter for ten seconds to enter the service menu, select Pilot Wire and press Enter. - Page 7 Anticipatory Control Having learnt how quickly it can heat up your room, the creda Arezzo Electric Radiator is able to turn on at just the right time in order to get the room up to a comfortable temperature when you want it.
-
Page 8: Set The Temperature
Quick start guide This guide is for quick reference only. please refer to the operating section for further information. How Does the Heater control Work? The control allows you to choose when you want heat and at what temperature. When using a timer mode (see below), Comfort On will display on the home screen to tell you when the heater is maintaining the temperature displayed. - Page 9 Which Timer Mode is Best for Me? The heater leaves the factory set in Out All Day mode. if you are out during the day and only require heat in the mornings and evenings then this mode will suit your lifestyle and you won’t need to alter anything. if you are in during the day then you should select the Home All Day mode which is a single heating period.
-
Page 10: Operation
operation The controls are located on the top right of the heater. The heater is fitted with an adjustable electronic controller consisting of a display screen and six touch sensitive buttons. Display screen ‘Menu’ Button ‘Back’ Button ‘up and Down’ Arrows ‘Enter’... -
Page 11: Control Functions
control Functions The heater controls can be easily adjusted by using the six buttons on the user interface. The Display Screen shows the options available at each stage of adjustment. Menu – displays the main options list; Date/Time – set the date and time. Mode –... -
Page 12: Main Screen
Main screen After 30 seconds of inactivity the heater will default back to the Main Screen. Here the chosen temperature is displayed along with the mode of operation. Any use of the Advance function will be displayed here, and pressing Enter will show the functions which are enabled. -
Page 13: Modes Of Operation
Modes of operation The heater comes pre-programmed with a set of heating profiles. There are four options available - three preset and one user adjustable timer; 1. Out Day (pre-programmed) - has the following preset times Monday to sunday, which can be altered if desired; 07.00 until 08.30 17.30 until 22.00 2. - Page 14 choosing and setting a Mode Timer Modes To choose a timer mode press Menu and to select Mode, then press Enter. Now select Timer Mode, again using the Enter button. select the mode required, by pressing the and Enter buttons. For options Out All Day, Home All Day and User Timer, three choices are available - Select, Preview and Modify.
- Page 15 if anticipatory control is disabled, the heater will not operate until the beginning of the heating period. This should be taken into consideration when setting the heating periods (see note below and page 17). in Holiday mode the number of days that the room will be unoccupied can be adjusted together with the required room temperature.
- Page 16 Advance The Advance function allows the heating profile of the appliance to be changed temporarily. When Advance a timer has been selected, the Advance function is used to begin the next Comfort On mode early. Home All Day if the heater is in Comfort Off mode and heat is comfort on required, press the Advance button.
-
Page 17: Child Lock
child lock To lock the controls press Back and Enter for three seconds. Child Lock will appear at the bottom of the screen. To unlock the control repeat the action of pressing Back and Enter for three seconds. NOTE: The controls cannot be adjusted when child lock is active. -
Page 18: Energy Saving Tips
Energy saving Tips The energy we use to heat, light and power our Treat your hot water tank... homes contributes over a quarter of the uK’s give it a jacket An insulating jacket for hot carbon emissions, the principle contributor to water tanks costs only a few pounds and pays climate change. - Page 19 important During the initial operation, some odour may After Sales Service be noticed due to the newness of materials if this product appears damaged when used in manufacture. This is normal and will first received or does not function correctly disappear after a short period or use.
- Page 20 patent/patent Application This product is protected by one or more of the following patents or patent applications: great Britain: gB1304025.8 international: pcT/Ep2014/054404 This product complies with the European safety standards EN60335-2-30 and the European standard Electromagnetic compatibility (EMc) EN55014, EN60555-2 and EN60555-3. These cover the essential requirements of EEc Directives 2006/95/Ec and 2004/108/Ec Millbrook House grange Drive Hedge End...
