Operating Instructions
IMPORTANT
These instructions should be read carefully and retained for
future use.
Note also the information presented on the appliance.

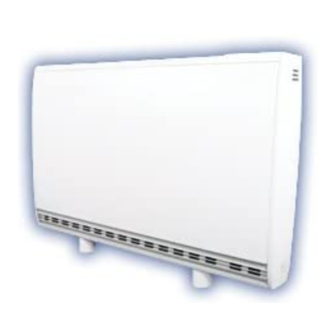

Quantum Heater
Models:
CQH070
Boost
Output
230/240V~:
567/630W
Storage
Element
Rating
230/240V~:
1435/1560W 2042/2220W
Rated
Charge
Period:
7.7 - 7 Hours
Energy Cells:
18
Installed
Weight:
91kg
kWh:
10.9kWh
CQH100
CQH125
792/880W
1017/1130W
2540/2760W
24
30
115kg
142kg
15.5kWh
19.3kWh
CQH150
1242/1380W
3024/3300W
36
165kg
23.1kWh
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Creda CQH070
Summary of Contents for Creda CQH070
-
Page 1: Operating Instructions
Operating Instructions IMPORTANT These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. Quantum Heater Models: CQH070 CQH100 CQH125 CQH150 Boost Output 230/240V~: 567/630W 792/880W 1017/1130W 1242/1380W Storage Element Rating 230/240V~:... - Page 2 IMPORTANT IMPORTANT WARNING - THE SURFACE OF THIS HEATER CAN BE HOT. These instructions should be • The surface temperatures of this heater are within the read carefully and retained for requirements of EN60335-2-61, the European Standard covering the safety requirements for Electric Storage future use.
- Page 3 CAUTION: DO NOT COVER SURFACES OF THE HEATER AND DO NOT OBSTRUCT AIR OUTLET GRILLES. • Surfaces of the heater should not be covered or obstructed as this can cause excessive temperatures that can be hazardous and may cause safety cut-outs to operate. This will stop the heater from working.
-
Page 4: The Benefi Ts Of Quantum
The benefi ts of Quantum Quantum is designed to be a responsive heating system that meets your comfort requirements while optimising energy use. The heater releases heat in two ways: A small amount of heat is dispersed by ‘natural’ convection and radiation from the heater case. The vast majority of heat is released using the built- in fan that pushes hot air out from the heat outlet grille at the bottom of the product. - Page 5 Function Compared with traditional storage heaters the amount of energy released from the outer case of the heater is signifi cantly reduced, resulting in lower surface UE TO THE LOW ENERGY LOSSES FROM temperatures. This allows more effi cient running because the Quantum is heating the room only when THE CASING OF THE HEATER THE SURFACE you want it to.
-
Page 6: Operation
Operation The user controls are located on the top right of the heater. The heater is fi tted with an adjustable electronic temperature controller and three buttons. Programmable timer Display screen ‘ Menu’ b utton ‘ Back’ button Comfort status ‘Selector Dial’... -
Page 7: Control Functions
Control Functions The heater controls can easily be adjusted by using a combination of the three buttons and the selector dial, which can be rotated and pressed. 1. The DISPLAY SCREEN shows the options available at each stage of the adjustment. 2. -
Page 8: Setting The Date And Time
Setting the Date and Time Your Quantum controller incorporates a real time clock with calendar function. The time clock has a battery backup that will keep the clock running in the event of a mains power outage. To adjust the time or date follow the steps below. Note - the display screen will return to standard display after a period of 20 seconds of inactivity. -
Page 9: Choosing And Setting A Timer Mode
Choosing and Setting a Timer Mode Your Quantum controller comes pre-programmed with a set of heating profi les. There are four options available - three preset and one user adjustable timer; 1. Out All Day (pre-programmed) - has the following preset times Monday to Sunday, which can be altered if desired;... - Page 10 To choose a Timer Mode press Menu and rotate the Selector Dial to select ‘Timer Mode’ and press Selector Main Menu Dial. Date / Time Timer Mode Boost Options Select the mode required, again by rotating and pressing the Selector Dial. Timer Mode For options Out All Day, Home All Day and User Out All Day...
- Page 11 In Holiday mode the number of days that the room will be unoccupied can be adjusted together with the Holiday required room temperature. Active Days Rotate the Selector Dial to choose a holiday period Temperature between 1 and 255 days, then press the Selector Dial. Rotate the Selector Dial to choose a temperture between 7°C (frost protection) and 26°C (comfort) to be maintained during this period and press the Selector...
- Page 12 Main Screen After 10 seconds the heater will default back to the Main Screen. Here the chosen temperature is displayed along with Comfort On or Comfort Off, which tells you whether you are in a timed heating period or not. Any use of the Advance function will be displayed here, and pressing the Selector Dial will show the Timer Mode in use.
-
Page 13: Child Lock
Options The Options menu enables you to choose time and temperature formats to suit your preferences. These are; Options DST Rule - Select your daylight saving setting. DST rule The heater clock will automatically adjust for daylight Temp Units saving (British Summer Time as it is often referred to). If no adjustment is required then select none. -
Page 14: User Information
User Information Press and hold the Selector Dial to display the User Information menu, three choices are available; SP Range - enables adjustment of the temperature User Info range available. Maximum range 7°C to 30°C. SP Range Factory - return all settings to the factory presets - Yes or No. Factory Extra Charge - forces an extra charge of up to four Extra Charge... - Page 15 (such as soot or incense generated from the burning of candles, etc.). A suitable shelf (available from Creda Heating) may be fi tted to limit the extent of any wall discolouration.
-
Page 16: After-Sale Service
This product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3. These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC Creda Heating, Millbrook House, Grange Drive, Hedge End, Southampton SO30 2DF Customer Help Line: 0844 879 3588 Fax: 0844 879 3583 Website: www.credaheating.co.uk...
