Creda CPH05T Installation And Operating Instructions

Dimensions
Model(s) Watt
CPH05T 500
CPH10T 1000
CPH15T 1500
CPH20T 2000
CPH24T 2400
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
IMPORTANT SAFETY ADVICE
When using electrical
precautions should always be followed to
reduce the risk of fire, electrical shock, and
injury to persons, including the following:
IMPORTANT - The wall bracket supplied with
the appliance must be used.
DO NOT use this heater in the immediate
surroundings of a bath, a shower or a swimming
pool.
IMPORTANT - If the heater is installed in a
room containing a bath or shower, it must be
so installed that switches and other controls
cannot be touched by a person using a bath
or shower.
WARNING - In order to avoid overheating, do
not cover the heater. Do not place material
or garments on the heater, or obstruct the
air circulation around the heater, for instance
by curtains or furniture, as this could cause
overheating and a fire risk.
This heater carries the warning symbol
indicating that it must not be covered.
NEVER cover or obstruct in any way the heat
outlet slots at the top of the heater or the air
inlet slots in the base of the heater.
CAUTION - Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience or knowledge if they
have been given supervision or instruction
concerning the use of the appliance in a safe
Installation and Operating Instructions
A B
425mm 400mm 115mm
525mm 400mm 115mm
625mm 400mm 115mm
925mm 400mm 115mm
925mm 400mm 115mm
appliances, basic

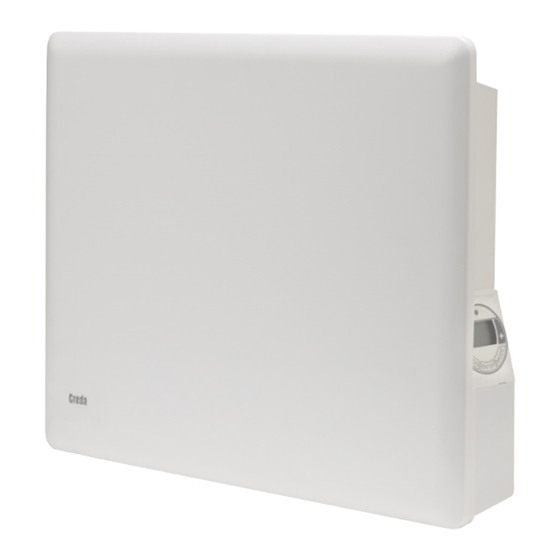

Creda Compact Heater
Fig. 1
30mm
(min)
C
'B'
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
carried out by children without supervision.
Children aged from 3 years and less than 8 years
shall only switch on/off the appliance provided
that it has been placed or installed in its intended
normal operating position and they have been
given supervision or instruction concerning the
use of the appliance in a safe way and understand
the hazards involved.
Children aged from 3 years and less than 8 years
shall not plug in, regulate and clean the appliance
or perform user maintenance.
If the supply cord is damaged it must be
replaced by the manufacturer or service agent
or a similarly qualified person in order to avoid
a hazard.
WARNING: Servicing and product repairs should
only be undertaken by the manufacturer's
approved service agent or a similarly qualified
person, using only exact manufacturer approved
spare parts.
IMPORTANT: The supply circuit to the heater
must incorporate a double pole isolating switch
having a contact separation of at least 3mm.
WARNING: Packaging should be disposed of
responsibly as the EPS used could be a potential
choking hazard for children.
WARNING: Do not locate the heater immediately
below a fixed socket outlet or connection box.
CAUTION: In order to avoid a hazard due to
inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched
on and off by the utility.
300003040 Issue 2
30mm
'A'
(min)
300mm
Minimum
front
clearance
50mm
(min)
50mm (min)
Shelf
(min)
'C'
