Installing the "Rail Left Assembly"
1. Measure the length between the rear rack mount rails and the front rack
mount rails. If the measurement is shorter than the StorageLoader, move the
two sets of screws M4x12, washers and nuts shown in Figure 4.
2. Adjust the "Rail Left Assembly" to fit the measurement in step 1.
3. Use a 7 mm open-end wrench together with the screwdriver to tighten the
two M4x12 screws to fix the rail length. Note: Using more than two screws
will increase the stability of the Rack Mounting Kit.
4. Place the "Rail Left Assembly" on the left side of the rack, between the rear
rack mount rail and the front rack mount rail.
5. Mount the "Rail Left Assembly" at desired height using one M6x12 screw in
front (upper hole in rail only) and two M6x12 screws at the backside. See
figure 5.
Installing the "Rail Right Assembly"
Follow the instruction for left side only using the "Rail Right Assembly" on the
right side of the rack.
Rear Rack
Mount Rail
Step 5
(Screw
M6x12)
Step 3
(Screw M4x12,
nut and washer)
8
Step 1
Step 2

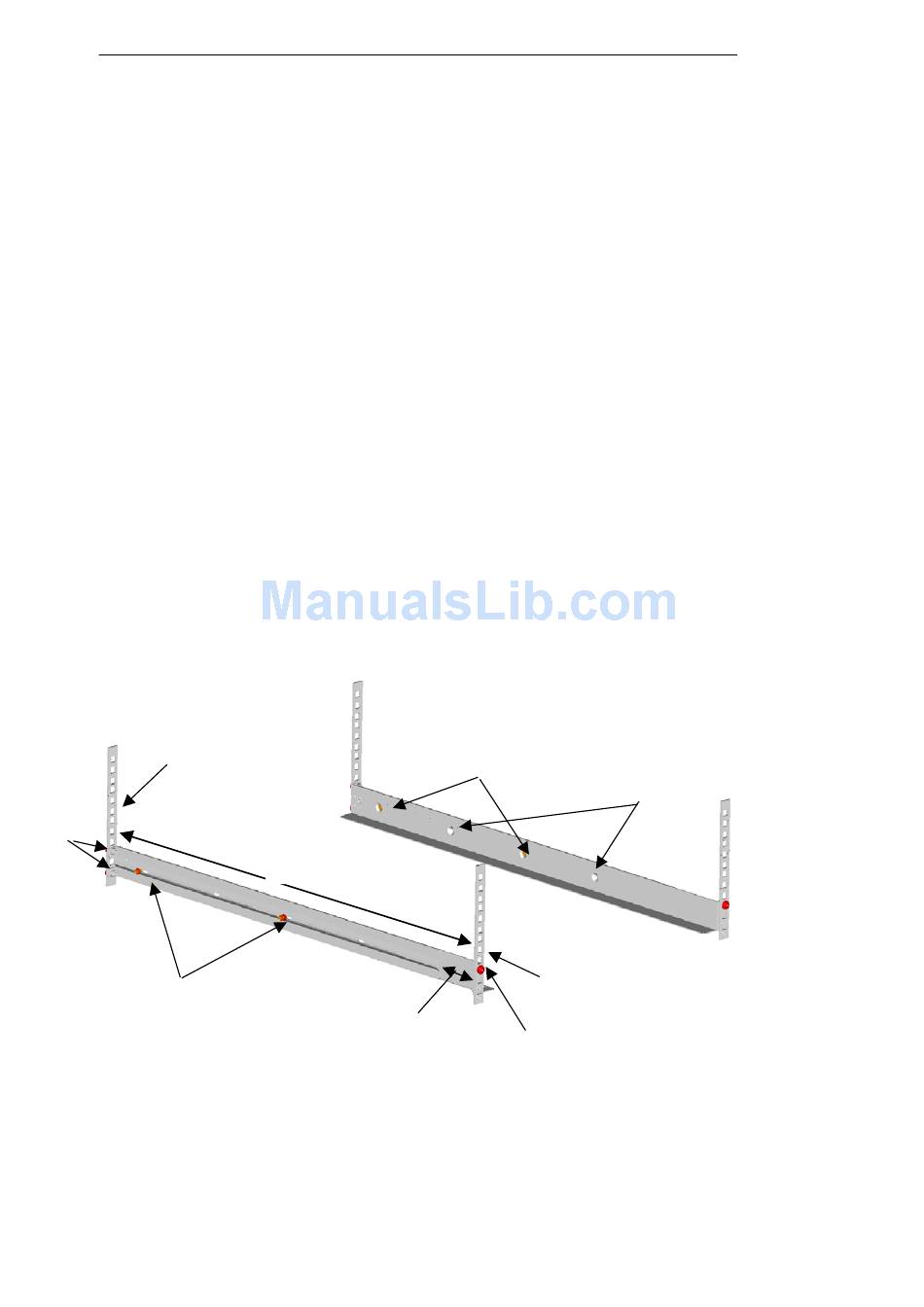

Figure 4. Mounting the Rack mounting kit to a rack
Use these holes
Step 1
if rack depth is
equal or longer
Holes to be
than the
used if rack
StorageLoader
depth is shorter
than the
StorageLoader
Front Rack Mount Rail
Step 5
(Screw M6x12)
