2.3 Setting up the VoIP Zone Controller

Before you set up the VoIP Zone Controller, be sure that you have received all the parts described in
Section 2.1, "Parts

2.3.1 Cables Used for Connecting to Legacy Analog Amplifiers

The VoIP Zone Controller connects to zones through RCA line level output connections to legacy
analog amplifiers to existing legacy analog speakers.

2.3.2 Connect to the Power Source

PoE

Non PoE (with 48 VDC power supply)

Chassis Ground

Chassis Ground
Operations Guide
List".

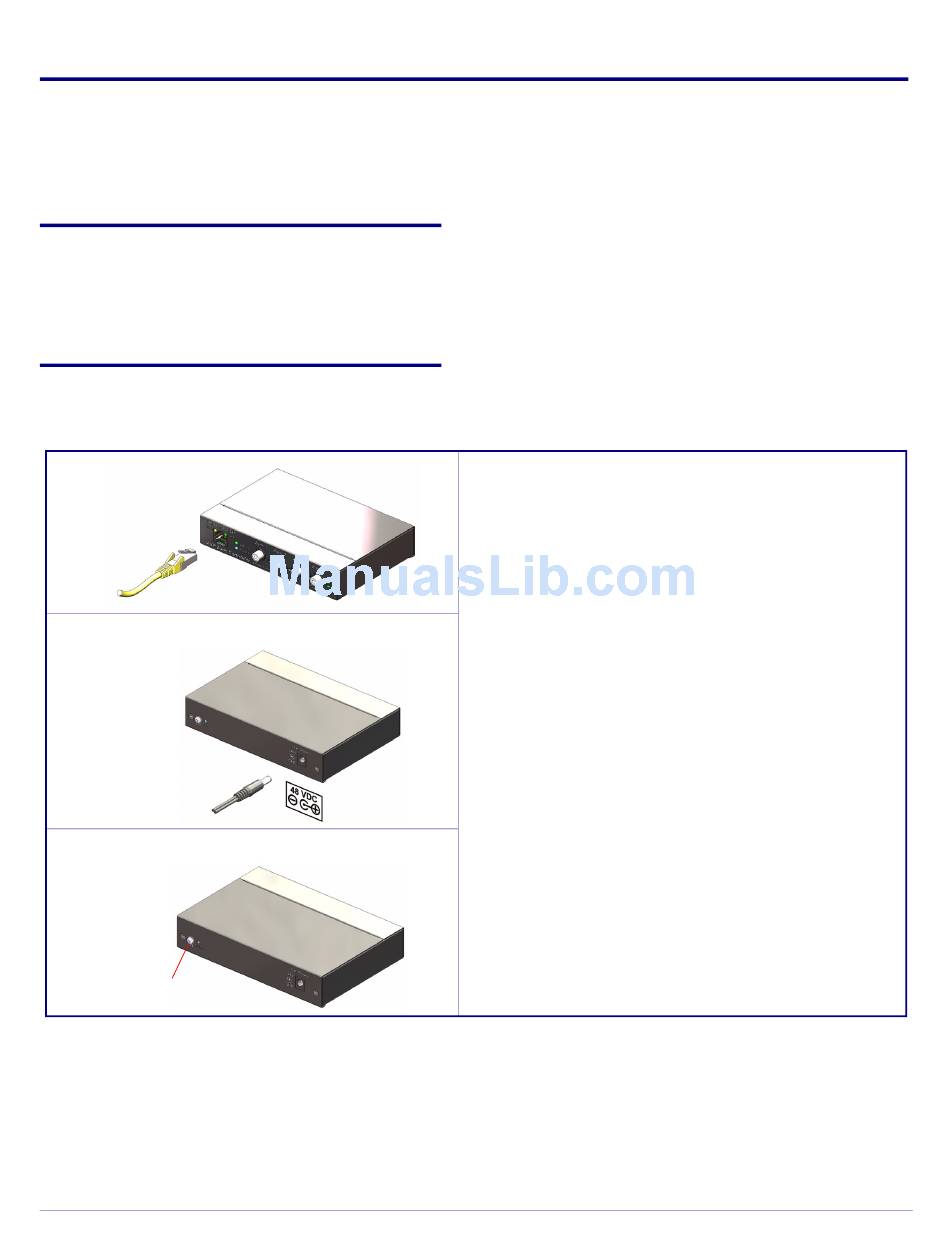

Figure 2-2. Connecting to the Power Source
930446F
Implementing the VoIP V3 Zone Controller
To set up the VoIP Zone Controller, connect the
device to your network:
Poe
• For PoE, plug one end of an 802.3af Ethernet
cable into the VoIP Zone Controller Ethernet
port. Plug the other end of the Ethernet cable
into your network. See the figure on the left.

Non-Poe

• For Non-PoE, connect the VoIP Zone
Controller to a 48VDC power supply. See the
figure on the left.
Chassis Ground
• If required, connect the earth grounding wire to
the Chassis Ground on the back of the unit.
See the figure on the left.
Setting up the VoIP Zone Controller
CyberData Corporation
5
