CyberData 010881 Operation Manual

Voip zone controller, 4-port audio out
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VoIP Zone Controller:
4-Port Audio Out
Operations Guide
SiP Compliant 010881
Document Part #930109C
for Firmware Version 1.0.6
CyberData Corporation
2555 Garden Road
Monterey, CA 93940
(831) 373-2601
930109C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 010881 and is the answer not in the manual?

Questions and answers

Related Manuals for CyberData 010881

Summary of Contents for CyberData 010881

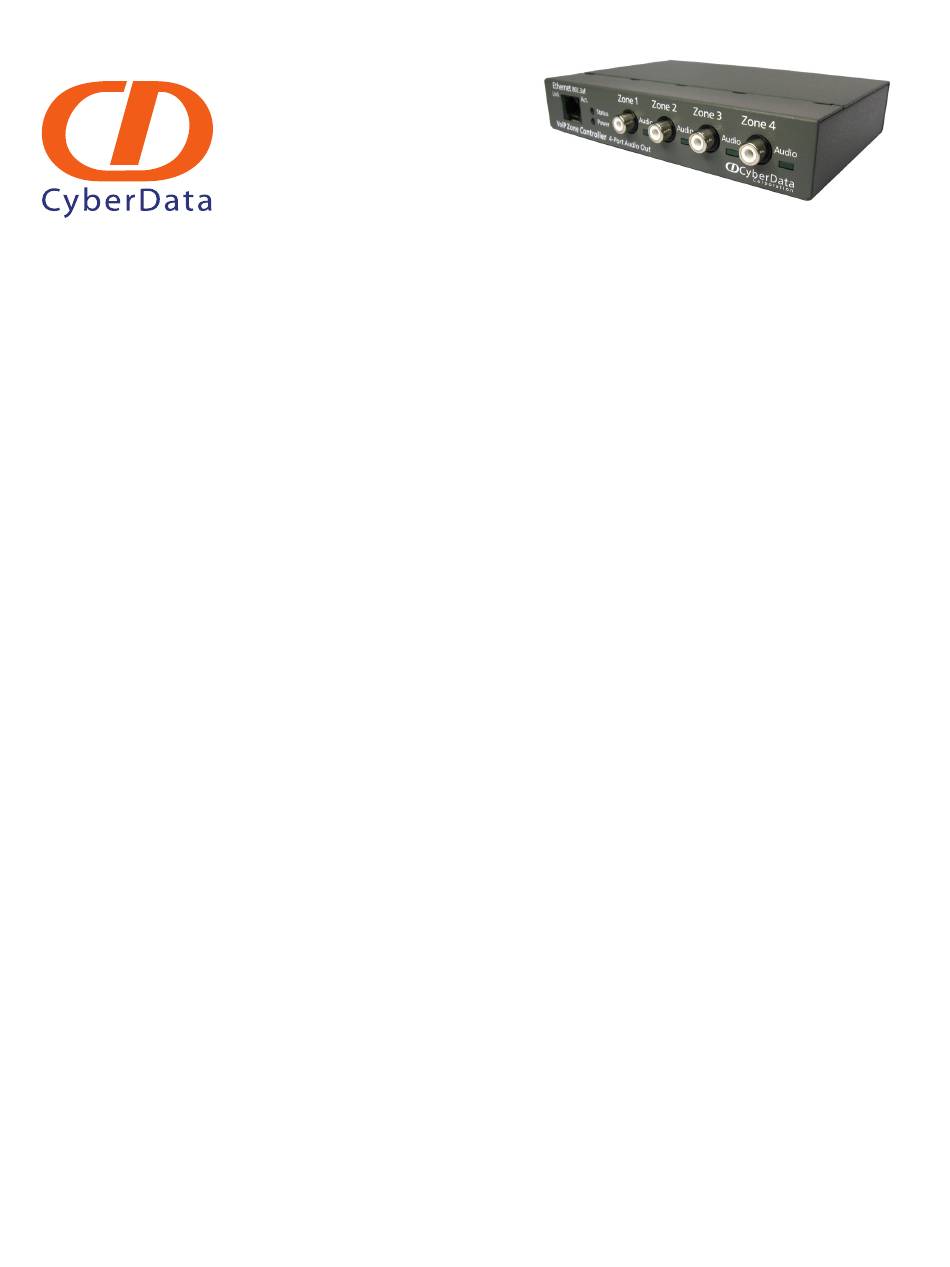

  • Page 1 VoIP Zone Controller: 4-Port Audio Out Operations Guide SiP Compliant 010881 Document Part #930109C for Firmware Version 1.0.6 CyberData Corporation 2555 Garden Road Monterey, CA 93940 (831) 373-2601 930109C...
  • Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
  • Page 3 URL: http://www.cyberdata.net/support/voip/index.html 9/7/2010 Updates Section 2.3.4, “Restore the Factory Default Settings as Required”. Updates Section B.1, “Frequently Asked Questions (FAQ)”. Updates Section B.1.1, “Documentation”. Updates Section B.2, “Contact Information”. Updates Section B.3, “Warranty”. CyberData Corporation 930109C Operations Guide...
  • Page 4 Chapter CyberData Corporation 930109C Operations Guide...

  • Page 5: Table Of Contents

    B.3.2 Warranty & RMA Returns Outside of the United States ............ 26 B.3.3 Spare in the Air Policy ......................27 B.3.4 Return and Restocking Policy ....................27 B.3.5 Warranty and RMA Returns Page ..................27 Index VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...
  • Page 6 CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...

  • Page 7: Chapter 1 Product Overview

    ● 10/100BaseT Ethernet Connection ● Page any combination of zones in 15 configurable groups ● TFTP-based firmware upgrades ● PoE enabled ● Connector for optional external power supply ● VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...
  • Page 8 FCC Class A, UL 60950, CE Power Requirement PoE or 48V DC Baud Rate 10/100 Mbps Protocol SiP compliant Part Number 010881 Dimensions 6.11”L x 4.05”W x 1.15” H Weight 1.2 pounds CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...

  • Page 9: Chapter 2 Implementing The Voip Zone Controller

    Mounting Template (located on the last page of the Installation Quick Reference) Mounting Kit (part #070057A) which includes: (2) #4-6 x 7/8" Mounting Anchors (2) #4 x 1-1/4" Round Phillips Wood Screws VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...

  • Page 10: Typical Installation

    Implementing the VoIP Zone Controller Typical Installation 2.2 Typical Installation Figure 2-1 illustrates how the VoIP Zone Controller is normally installed as part of a paging system. Figure 2-1. Typical Installation CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...

  • Page 11: Setting Up The Voip Zone Controller

    2.3.2 Connect to the Network Plug one end of a standard Ethernet cable into the VoIP Zone Controller Ethernet port. Plug the other end into your network. Figure 2-3. Connecting to the Network VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...

  • Page 12: Confirm That The Voip Zone Controller Is Up And Running

    The green Paging light comes on after the device is booted and initialized. This light blinks ● when a page is in progress. 2.3.3.2 Verify Network Activity The square, yellow Act light blinks when there is network activity. CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...

  • Page 13: Restore The Factory Default Settings As Required

    5. Wait for approximately five seconds. 6. Power down the device. 7. Wait for approximately 10 seconds. 8. Power on the device. The unit should now be restored to factory defaults. VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...

  • Page 14: Configuring The Voip Zone Controller

    2.4.2 Log in to the Configuration GUI To log in: 1. For the initial configuration of the VoIP Zone Controller, open your browser and enter the following address: http://192.168.3.10 CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...
  • Page 15 Shows the current IP address. Subnet Mask Shows the current subnet mask address. Default Gateway Shows the current default gateway address. DNS Server 1 Shows the DNS Server 1 address. VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...

  • Page 16: Configure The Network Parameters

    Configuring the network parameters enables your network to recognize the VoIP Zone Controller and communicate with it. Click Network Setup on the Home page to open the Network Configuration page. CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...
  • Page 17 Enter the DNS Server 2 address. Click on this button to save your configuration settings. Changing a parameter that has an asterisk next to it will cause a system reboot when saved. VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...
  • Page 18 Changing the VoIP Zone Controller’s IP Address causes the system to reboot when you click Save Settings. b. The Subnet Mask. c. The Default Gateway. 3. Click Save Settings when you finish. CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...

  • Page 19: Change The Default Username And Password

    Use this field to re-enter a new password Click on this button to save your configuration settings. Changing a parameter that has an asterisk next to it will cause a system reboot when saved. VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...

  • Page 20: Configure The Sip Parameters

    The SIP parameters enable the VoIP Zone Controller to contact and register with the SIP server. On the Home page, click SIP Setup to open the SIP Configuration page. CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...
  • Page 21 Implementing the VoIP Zone Controller Configuring the VoIP Zone Controller Figure 2-9. SIP Setup Page VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...
  • Page 22 Link to the Home page. 1. Enter the IP address of the SIP Server. 2. Enter the port numbers used for SIP signaling: a. Remote SIP Port b. Local SIP Port CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...
  • Page 23 6. In the Register Expiration field, enter the number of minutes the VoIP Zone Controller registration lease remains valid with the SIP Server. The VoIP Zone Controller automatically re- registers with the SIP server before the lease expiration timeout. VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...

  • Page 24: Set Up The Zones

    Any speakers attached to the amplifier will be present in the Zone. 1. Click on the Zones Setup button to open the Zones Setup page. See Figure 2-10. Figure 2-10. Zones Setup CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...
  • Page 25 Link to the Admin Settings web page. Link to the SIP Setup web page. Link to the Upgrade Firmware web page. Link to the Home page. 3. After changing the parameters, click Save Settings. VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...

  • Page 26: Operating The Voip Zone Controller

    Uploading the firmware files requires a host machine running a TFTP server. If you need to set up this server, "Appendix A: Setting Up a TFTP Server" provides instructions. Figure 2-11. Firmware Upgrade Page CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...
  • Page 27 3. Enter the Kernel or Application New Filename for the firmware file you are uploading. 4. Select the Partition to which the firmware is uploaded. 5. Click Upload File to automatically upload the selected firmware, and reboot your system. VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...

  • Page 28: Rebooting The Voip Zone Controller

    1. On the Home page, click Upgrade Firmware to open the Firmware Upgrade page. Go to the Reboot section on the right side of the page. 2. Click Reboot. CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...

  • Page 29: Appendix A Setting Up A Tftp Server

    2. Select File Configure Security tab Transmit Only. 3. Make a note of the default directory name, and then move the firmware files to be uploaded to that directory. VoIP Zone Controller 4-Port Audio Out Operations Guide 930109C CyberData Corporation...
  • Page 30 Set up a TFTP Server CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...

  • Page 31: Appendix B Troubleshooting/Technical Support

    Phone: 831-373-2601, Extension 136 Email: RMA@CyberData.net When returning a product to CyberData, an approved CyberData RMA number must be printed on the outside of the original shipping package. No product will be accepted for return without an approved RMA number. Send the product, in its original package, to the following address:...

  • Page 32: Warranty

    Warranty RMA Status Form If you need to inquire about the repair status of your product(s), please use the CyberData RMA Status form at the following web address: http://www.cyberdata.net/support/rmastatus.html B.3 Warranty CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase.

  • Page 33: Spare In The Air Policy

    B.3.3 Spare in the Air Policy CyberData now offers a Spare in the Air no wait policy for warranty returns within the United States and Canada. More information about the Spare in the Air policy is available at the following web address: http://www.cyberdata.net/support/warranty/spareintheair.html...
  • Page 34 Warranty CyberData Corporation 930109C VoIP Zone Controller 4-Port Audio Out Operations Guide...

  • Page 35: Index

    GUI 13 green paging light 6 configurable parameters 9, 11, 16, 21 Group 18 configuration information 8 GUI username and password 13 contact information 25 contact information for CyberData 25 current settings, reviewing 10 Operations Guide 930109C CyberData Corporation...
  • Page 36 10 subnet mask static addressing 12 port supported protocols 2 ethernet 5 local SIP 16 remote SIP 16 power connecting to 5 requirement 2 tech support 25 product overview 1 technical support, contact information 25 CyberData Corporation 930109C Operations Guide...
  • Page 37 & RMA returns outside of the United States 26 warranty & RMA returns within the United States 26 warranty and RMA returns page 27 warranty policy at CyberData 26 web configuration log in address 8 weight 2 Windows, setting up a TFTP server on 23...
  • Page 38 CyberData Corporation 930109C Operations Guide...
