Service Manual
Removal:
1. Remove arm top cover.
2. Remove retaining ring (S), the cam controlled feed follower (O) and the retaining ring
located under it.
3. Remove link screw (P) through the pattern selector dial hole.
4. Remove needle position selection lever assembly (Q).
Replacement:
1. Replacement is the same as removal but in reverse order.
2. Check and adjust if necessary:
Left-center-right needle position. (Pages 68-69)
l
Disc and disc follower clearance. (Pages 56-57)
l
Cam stack radial play (Pages 56-57)
l
Needle bar pendulum timing. (Pages 64-65)
l
Buttonhole cutting space. (Pages 111-112)
l
Zig-zag bight stop positioning (Pages 72-73)
l
Rev. n .
o

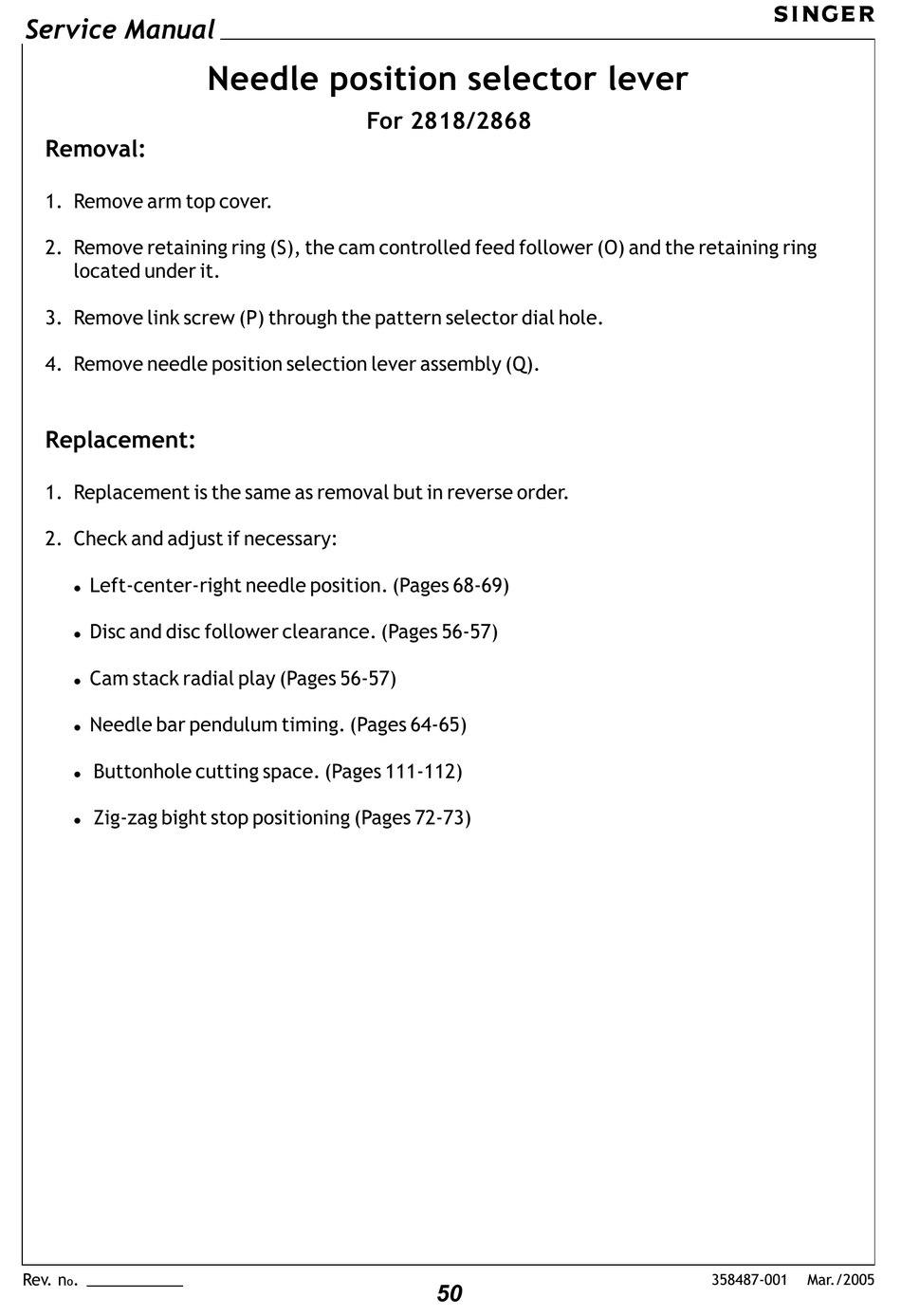

Needle position selector lever
For 2818/2868
50
358487-001 Mar./2005
