Getting Started

Thank you for choosing an Angelcare Video, Movement and Sound Monitor
AC1100.
We want you to be happy with this baby monitor and therefore we suggest
that you take the time to read through the instructions thoroughly. This will
ensure that you set the monitor up to suit your needs.

Installation Guide

CONTENTS
1. Installation of the SensorPad
2. Nursery Unit:
a. Installation of the Nursery Unit
b. Overview Functions Nursery Unit
3. Parent Unit:
a. Installation of the Parent Unit
b. Overview Functions Parent Unit
c. Main Screens
4. Testing your Angelcare Baby Monitor
5. How to Change & Save your Monitor Settings
6. Sound Function
7. Sound Transmission
8. Movement Function:
a. Movement Settings
b. SensorPad Sensitivity
c. Tic Function
9. Video Function:
a. Power Saving Function
b. Zoom & Rotate Function
c. Night Vision

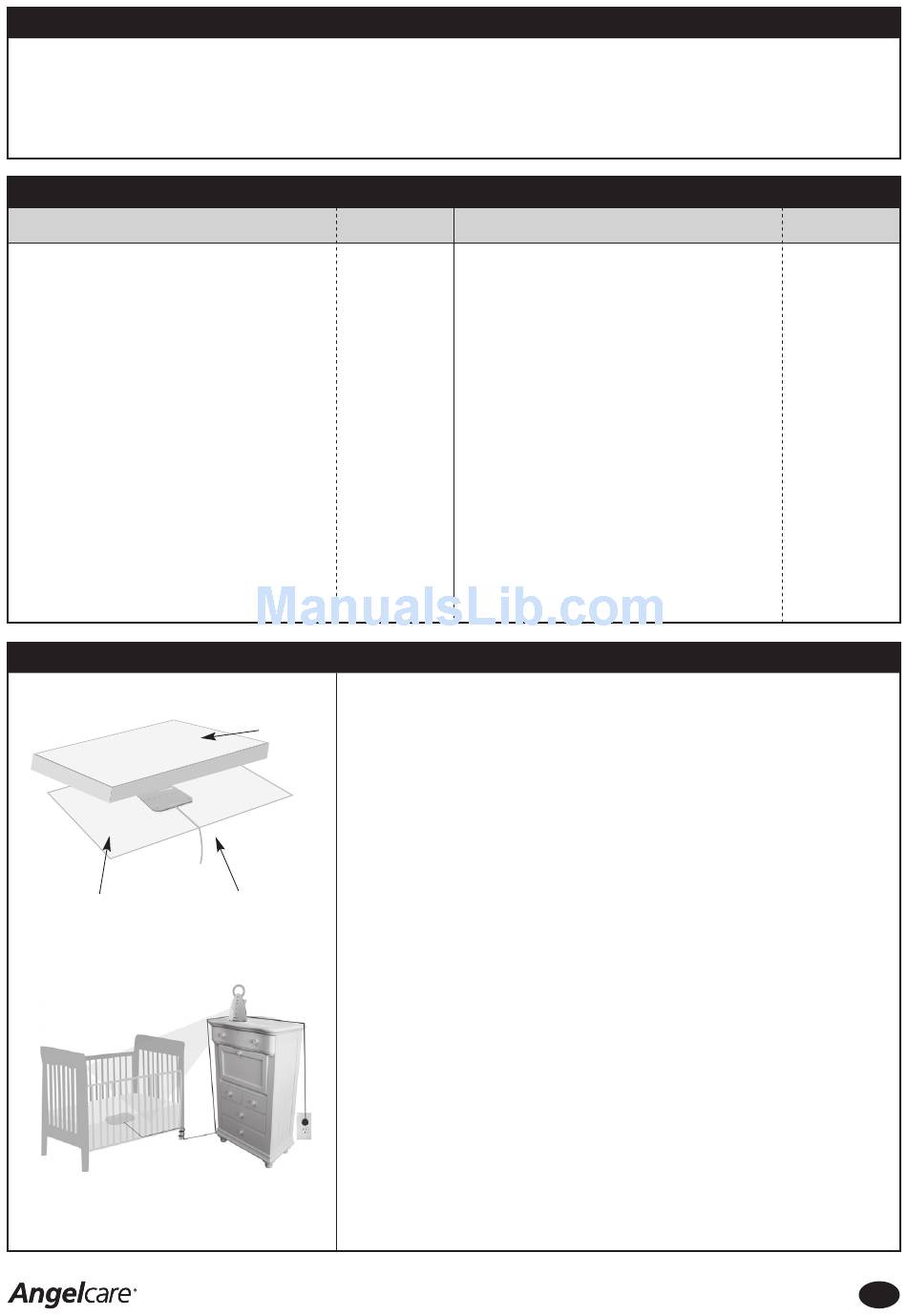

Step 1: Installation of the SensorPad

Positioning of SensorPad under the mattress
Positioning and Installation of SensorPad and
Nursery Unit
Consumer Helpline: 0845 009 1789 | www.angelcare-uk.co.uk
PAGES No.
2
3
3
3
4
4
5
5
6
6
7
7
8
8
8
9
1. The SensorPad works with all baby bed
sizes and all mattresses, except memory
Mattress
foam and hollow frame mattresses
2. Position the SensorPad in the middle of the
bed on top of the mattress base as shown
on the left, with the printed side of the
SensorPad facing upwards
3. The SensorPad must rest on a completely
fl at and rigid surface. We recommend
placing a piece of plywood UNDER the
SensorPad if the baby bed has a slatted
base. The plywood will push the SensorPad
into the mattress and ensures contact
between the SensorPad and the mattress
at all times. The plywood needs to be at
least 10cm larger than the SensorPad and
approx. 6mm thick. Drill a few holes in the
plywood to allow air circulation
4. Place the mattress back ON TOP of the
SensorPad
5. Secure the SensorPad wire to the bed using
a tie wrap. Keep the wire out of the baby's
reach at all times.
6. The Sensitivity of the SensorPad has been
set at level 3
DO NOT ADJUST UNLESS NECESSARY
The sensitivity of the SensorPad can be
adjusted to ensure optimal performance
in any situation (e.g. mattress size and
thickness). See Step 4: Testing your
Angelcare Baby Monitor.
For ease of use the Instruction Manual has been divided into 15 easy to
follow Steps.
If you encounter any problems there is a comprehensive trouble-shooting
guide at the end of this manual. For all further information please contact the
Angelcare Helpline on 0845 009 1789 or helpline@angelcare-uk.co.uk.
CONTENTS
10. Alarm Type Settings
11. Hold Function
12. Temperature Control
13. Timer Function
14. Battery Level Indicator
15. Signal Strength & Out of Range Indicator
• Monitoring more than one baby (e.g. twins)
• Maintenance of your Angelcare Baby Monitor
• Factory Settings
• Technical Specifi cations
• Warnings
• Limited Warranty
• Protect the Environment
• Troubleshooting
MULTIPLE BABIES
NEVER use the Angelcare Video, Movement &
Sound Monitor if multiple babies are sleeping
together in ONE bed. For monitoring more than
one baby (e.g. twins) you need two Angelcare
Movement & Sound Monitors and the babies
need to be in SEPARATE beds.
MOSES BASKETS
The SensorPad can be used with moses
baskets, but the plywood is not required in
this specifi c situation. ALWAYS place the
SensorPad directly under the moses basket
mattress and ensure the lead is fed through a
hole in the base so it is out of reach from baby.
ADULT MATTRESSES
The SensorPad CANNOT be used with
mattresses for adults or memory foam and
hollow frame mattresses.
DO NOT attach any moving or vibrating items
(e.g. mobiles) to the cot, as this will affect the
SensorPad readings.
PAGES No.
9
9
10
10
11
11
12
12
12
12
13
14
14
14
