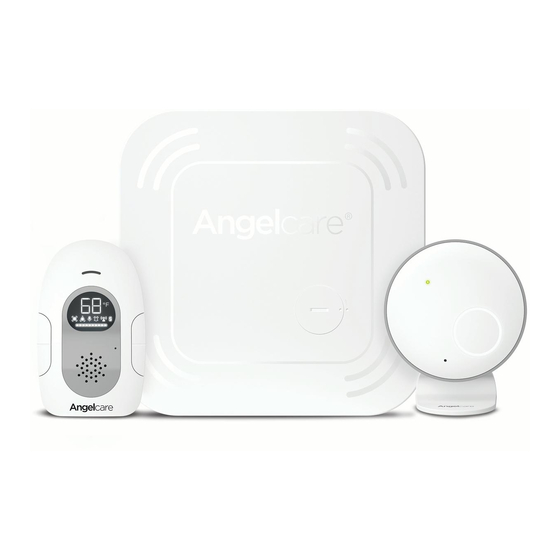

Angelcare AC117 Owner's Manual

Baby sound and movement monitor
Hide thumbs Also See for AC117:

Advertisement

Table of Contents

See also: Owner's Manual
OWNER'S MANUAL
Model AC117
Baby Sound and Movement Monitor
Cord Safety
Ensure the Nursery Unit is at least 1 metre away from your baby's cot.
For assistance, FAQs or guidance with your monitor
please visit our Customer Support page at angelcare.co.uk

TABLE OF CONTENTS

WARNINGS............................................................................................................................................................................... 2
SETUP REQUIREMENTS ................................................................................................................................................................. 3
Charging the Parent Unit (10 hours) ..........................................................................................................................................4
Positioning the movement Sensor Pad ..................................................................................................................................... 5
Setting up the nursery unit ...........................................................................................................................................................6
Turning on your monitor ................................................................................................................................................................ 7
Testing and getting to know your monitor ..............................................................................................................................8
Activating and deactivating additional functions ............................................................................................................... 14
Troubleshooting .............................................................................................................................................................................. 15
Limited warranty ............................................................................................................................................................................. 19
Technical specifications ................................................................................................................................................................ 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC117 and is the answer not in the manual?

Questions and answers

Related Manuals for Angelcare AC117

Summary of Contents for Angelcare AC117

  • Page 1: Table Of Contents

    Cord Safety Ensure the Nursery Unit is at least 1 metre away from your baby’s cot. For assistance, FAQs or guidance with your monitor please visit our Customer Support page at angelcare.co.uk TABLE OF CONTENTS WARNINGS....................................2 SETUP REQUIREMENTS ................................. 3 Charging the Parent Unit (10 hours) ............................4...

  • Page 2: Warnings

    DO NOT short circuit integral convenience receptacles as this can result in a risk of fire or supply terminals. Only use the Angelcare provided power adapter to charge electric shock. the battery. Remove the battery from your Parent Unit if product is to be stored for an extended period of time.

  • Page 3: Setup Requirements

    Sudden release of battery the Sensor Pad has not been placed under the mattress properly. electrolyte may occur, causing burns or irritation to eyes or skin. Be sure the Sensor Pad is on a flat, firm surface with the Angelcare ® logo side facing up.

  • Page 4: Charging The Parent Unit (10 Hours)

    STEP 1 - CHARGING THE PARENT UNIT (10 HOURS) 1) Remove the battery compartment on the rear. Insert the provided Battery rechargeable batteries into compartment the compartment. 2) Connect the USB plug to the Parent Unit and connect the power adapter to an electrical outlet.

  • Page 5: Positioning The Movement Sensor Pad

    1) Remove the mattress from the cot. 2) Place the Sensor Pad - Angelcare logo side up - in the ® center of the mattress. It should...

  • Page 6: Setting Up The Nursery Unit

    STEP 3 - SETTING UP THE NURSERY UNIT 3.1 - SELECT A LOCATION FOR THE NURSERY UNIT IMPORTANT Place the cot near a supporting wall and far from air currents. Install the Nursery Unit on a flat, stable surface facing the cot at a distance of at least 1 meter. Make sure to plug the adapter to the socket outlet nearest to the equipment and that is easily accessible.

  • Page 7: Turning On Your Monitor

    Port Temperature Indicator STEP 4 - TURNING ON YOUR MONITOR YOU ARE NOW READY TO USE YOUR MONITOR The Angelcare monitor can be used with the pre-program factory settings or you can also ® customize your settings to your preference.

  • Page 8: Testing And Getting To Know Your Monitor

    (VOX ON) Continuous sound transmission (VOX OFF) STEP 5 - TESTING AND GETTING TO KNOW YOUR MONITOR The Angelcare monitor can be used with the pre-program factory settings or you can ® customize your settings to your preference. All changes and...
  • Page 9 5.2 - ACTIVATING/DEACTIVATING THE SENSOR PAD SET THE MOVEMENT DETECTION Allows you to detect baby’s movements. 1) Press and HOLD the MENU button until the Movement monitoring icon blinks. 2) Use the UP and DOWN arrows to activate or deactivate movement detection.
  • Page 10 MOVEMENT ALARM • If NO movement is detected after 15 seconds you will hear a single ‘TIC’ pre-alarm sound from the Nursery Unit. • If after a further 5 seconds there is still NO movement detected on the surface of the mattress, the Parent Unit and Nursery Unit will emit loud continuous beeps - this is the Movement Alarm.
  • Page 11 5.4 ADJUST THE SENSOR PAD SENSITIVITY LEVEL: To ensure adequate monitoring of your baby’s movements, you can adjust the sensitivity of the Sensor Pad. Set a high sensitivity for a newborn and a lower sensitivity as baby grows and gains weight.
  • Page 12 ADJUST THE PUT IN PUT IN DIALOGUE SOUND LEVEL MUTE MODE MODE Press and Raise hold talk volume button to speak to baby. Lower volume Press the VOLUME - until L0 is displayed. When in MUTE the sound icon will flash to indicate this.
  • Page 13 5.7 - TEMPERATURE TO SELECT TEMPERATURE IN CELSIUS OR FAHRENHEIT 1) Press and hold the MENU button then press OK button until the ˚C / ˚F icon blinks. 2) Use the UP and DOWN arrows to select temperature in Celsius or Fahrenheit.

  • Page 14: Activating And Deactivating Additional Functions

    TEMPERATURE ALARM • Alarm activates when the temperature reaches the maximum or minimum set temperature. • Parent Unit will emit 3 consecutive beeps, every 5 seconds if the temperature reaches levels out of your chosen range. The relevant icon will flash on the Parent Unit screen to alert you.

  • Page 15: Troubleshooting

    IMPORTANT If you turn the Nursery Unit OFF the Out-of-Range Alarm will sound. Turn the Nursery Unit ON again to reactivate the link. TO STOP THE OUT-OF-RANGE ALARM: Press 2 seconds to turn the Parent Unit OFF Turn the Nursery Unit ON 6.3 - PAGER Allows you to locate the Parent Unit.
  • Page 16 Power On/Off Light Indicator Low Battery Light Indicator Nursery unit is using the Flashing green back-up batteries Flashing yellow Nursery Unit batteries are low Steady green Monitor is activated Sensor Pad Light Indicator Temperature Indicator Flashing red No movement is detected Monitor is paused Flashing white Loss of connectivity between the...
  • Page 17 The Parent Unit will display H1-H2 icon during the reconnection procedure. The reconnection is successful if Parent unit shows regular screen view. LOSS OF CONNECTIVITY BETWEEN THE NURSERY UNIT AND THE WIRELESS SENSOR PAD • In the case of loss of connectivity, the first step is to bring the Sensor Pad and Nursery Unit closer together and make sure that both units are ON to restore the connection.
  • Page 18 ALARM WILL NOT SOUND • Avoid contact with the cot when the monitor is ON. • Place cot near a solid supporting wall to avoid Sensor Pad from detecting movement from outside the cot. • Turn OFF cot mobile, fans, loud music or anything else that may cause vibration. •...

  • Page 19: Limited Warranty

    The warranty is also void if the owner repairs or Please contact your local distributor for warranty information. Find your local modifies the product in any way. Angelcare® is not liable for any incidental distributor by visiting our website: www.angelcarebaby.com or consequential damages with regard to this product.
  • Page 20 For assistance, FAQs or guidance with your monitor please visit our Customer Support page at Angelcare.co.uk www.angelcarebaby.com...

This manual is also suitable for:

Ac115
