Summary of Contents for John Lewis JLBIWM 1402

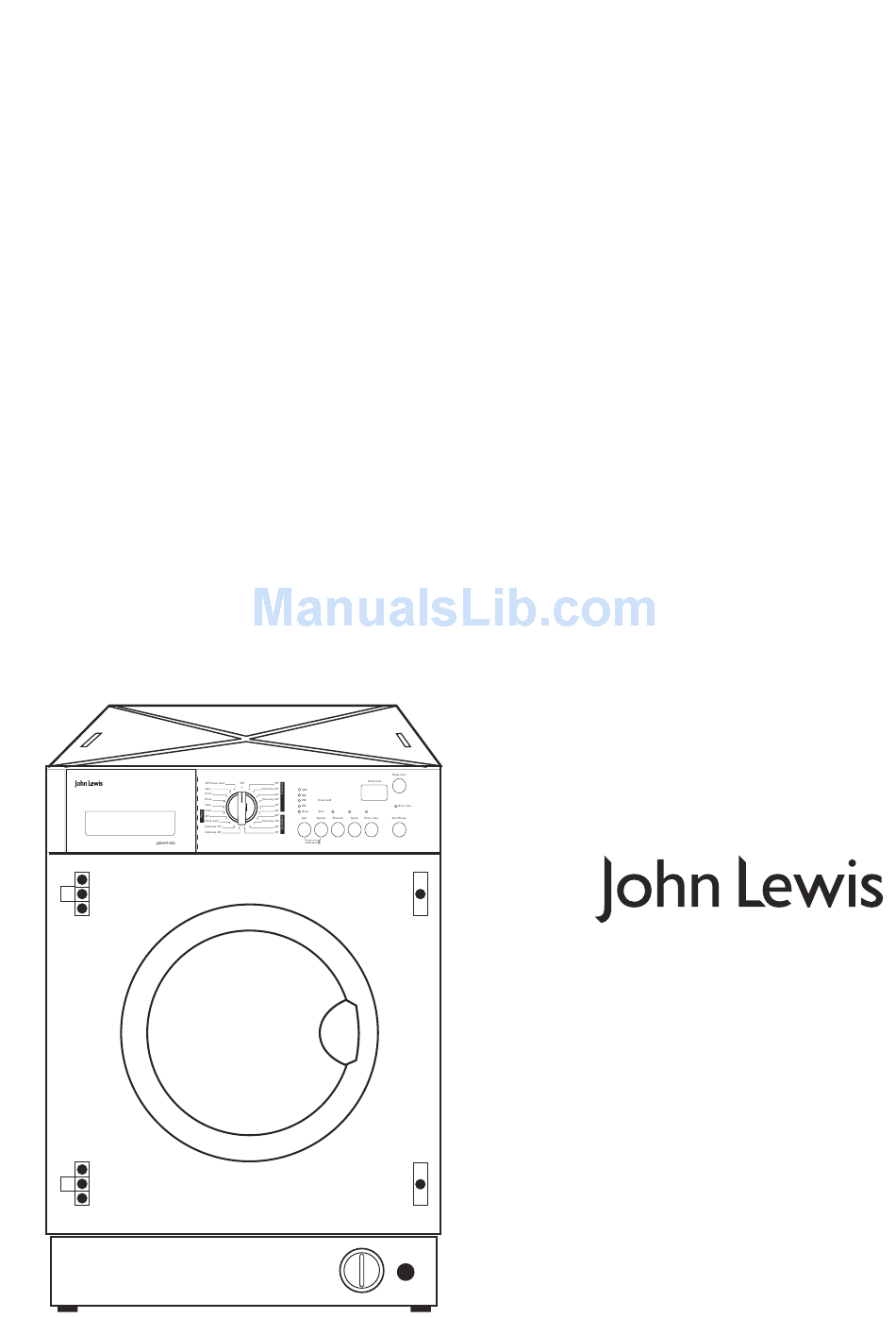

- Page 1 JLBIWM 1402 Built-in 1400 spin washing machine Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before use or installation by a qualified person. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. -
Page 3: Maintenance And Cleaning
Maintenance and cleaning ● For information on maintenance and cleaning your washing machine see the relevant chapter of this instruction manual. Service ● This product should only be repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used. Ecological hints To save water and energy and help protect the environment, we recommend that you follow these... -
Page 4: Table Of Contents
Contents For the User Important Safety Information Installation Child safety Description of the Appliance Detergent dispenser drawer Child safety feature The Control Panel Before the First use Using the washing machine Load the laundry Measure out the detergent Measure out the fabric softener Switch the machine on Select the desired programme/temperature Select the spin speed or the “None”... -
Page 5: Description Of The Appliance
Description of the appliance 1 Detergent dispenser drawer 2 Control panel 3 Door handle 4 Rating plate 5 Filter 6 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener Child safety feature This machine incorporates a special child safety feature to prevent small children from being trapped inside the machine. -
Page 6: The Control Panel
The control panel 1 Programme selector dial The programme selector dial is divided into the following sections: Cottons, • • Synthetics, • Delicates • Wool Hand washing • Special programmes from “Soak” to “30 Minute wash” • Reset/Off programme Off The selector dial can be turned either clockwise or anticlockwise. -
Page 7: Prewash Button
Rinse hold: when you choose this option, the machine will not drain the water of the last rinse, this will ensure the minimum of creasing to laundry. At the end of the cycle, the lights corresponding to the options “Rinse hold” and the “Door lock” are on, the “Start/Pause”... -
Page 8: Delay Start Button
This is indicated by the message Err for about 2 seconds when a function incompatible with the current programme is selected. An alarm code ● It indicates a fault with the machine (see the relevant chapter). 8 Start/Pause button To start the selected programme, press the Start/Pause button;... -
Page 9: Before The First Use
First use Child lock This function allows you to leave the appliance unsupervised and not to worry that children might be injured by or cause damage to the appliance. This function remains enabled also when the washing machine is not working. There are two different ways to set this option: If enabled before the «Start/Pause»... -
Page 10: Select The Desired Programme/Temperature
machine on. The Start/Pause light starts to flash and the display shows the duration of the selected programme. To switch the appliance off turn it to “Off”. Select the desired programme/temperature Turn the selector dial to the desired position (Cottons 90°... -
Page 11: End Of Programme
• The level of the water is not high; If these requirements are met, when you pause the washing machine, the “Door lock” light goes off and the door can be opened. Should it not be possible to open the door, and should it be absolutely necessary to do so, switch the machine off by turning the selector dial to “Off”. -
Page 12: Hints & Tips On Washing
Hints & tips on washing Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette... -
Page 13: Wash Care Symbols
Wash care symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 14: Washing Programmes
Washing programmes Programme/ Fabrics Type of laundry temperature 90° White Sheets, household linen, cotton towels, tablecloths Cottons Economy White Sheets, household linen, 60° cotton towels, tablecloths Cottons Fast coloured and non- 60° - fast items, for example White and 40° - 30° coloured hand towels, sheets, cotton... -
Page 15: Washing Programmes
Washing programmes Programme Programme description Soak for 40 minutes Soak at 30°C 3 rinses Rinse Long spin at max. speed Drain For emptying out the last rinse of the programmes Water draining with option “Rinse hold” and programme “Soak” Drain and long spin at Spin max. -
Page 16: Maintenance And Cleaning
Maintenance and cleaning You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 17: Cleaning The Water Inlet Filter
• When no more water comes out, unscrew the pump cover and remove it. Always keep a rag nearby to dry up spillage of water when removing the cover. Remove any objects from the pump impeller by • rotating it. •... -
Page 18: Troubleshooting
Something not working Please carry out the following checks before contacting your local Service Force agent. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. During machine operation it is possible that the red Start/Pause pilot light flashes, one of the following alarm codes appears on the display and some acoustic signals sound to indicate that the machine is not working: E E 1 1 0 0... - Page 19 Symptom The green Start/Pause light flashes and the display seems off The machine vibrates when spinning The door will not open Spinning starts late or the machine does not spin The machine makes an unusual noise No water is visible in the drum Solution ●...
-
Page 20: Installation
Installation It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 21: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance. Keep all packaging away from children. You are advised to keep all the transit bolts for re-use in case the machine is to be transported again. After removing all the packaging, with assistance carefully lay machine on it’s back to remove the polystyrene base from the bottom. -
Page 22: Water Inlet
The appliance has an inlet hose, with female 3/4” BSP thread connector. If this connection is not compatible with the plumbing of the existing installation, a variety of connectors are available from good hardware stores and plumbers merchants to suit most domestic plumbing. -
Page 23: Levelling
If your drain hose looks like this (see below) you do not require the “U” piece”. Just push the hose firmly into the standpipe. 2. Onto a sink outlet spigot. If the outlet spigot has not been used before, remove any blanking plug that may be in place. -
Page 24: Electrical Connection
Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. Should the appliance power supply cable need to be replaced, this must be carried out by a Service Force agent (see page 27). -
Page 25: Building-In
Building-in This appliance has been designed to be built into the kitchen furniture. The recess should have the dimensions shown in picture A. When installing the appliance into the kitchen furniture ensure, if possible, the hoses are placed in either of the two recesses on the back of the appliance. - Page 26 If the door has to be opened from left to right, invert the position of the plates (7), the magnet (4) and the plate (5) (Fig. B and E). Mount the countermagnet (6) and the hinges (1) as previously described. Recommendations regarding the construction and fitting of a base when the installation...
-
Page 27: Repairs - After Sales Service
Repairs - After sales service In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact our extended warranty administrators by telephoning: 0870 01 07887 They will give you details for your local Service Force Centre. - Page 28 John Lewis Partnership 171 Victoria Street London SW1E 5NN 132 963 910 www.johnlewis.com 34/08...
