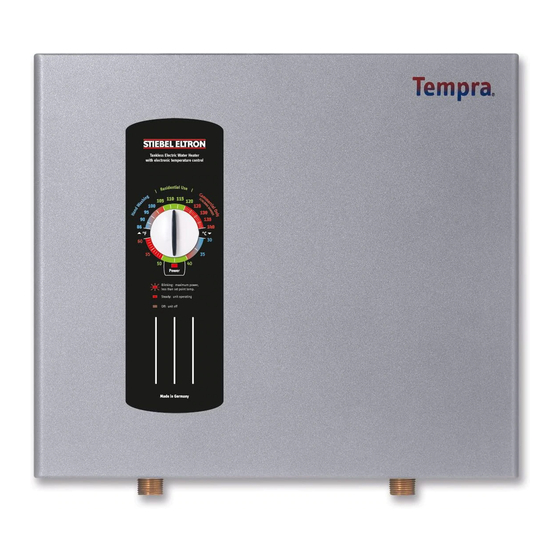

TANKLESS ELECTRIC WATER HEATERS
INSTALLATION INSTRUCTIONS FOR THE LICENSED
PLUMBER AND ELECTRICIAN
TEMPRA 22, TEMPRA 29, TEMPRA 36
15, Tempra
TM
TM
24, Tempra
TM
TM
20,
29, Tempra
36
TM
English Table of contents
Table showing temperature increase above
ambient water temperature
Español Índice de materias
Aumento máximo de temperatura del agua
fría entrante
Características generales de la unidad
Colocación y montaje
Conexiones de agua
Conexión eléctrica
Arranque inicial
Mantenimiento rutinario
Datos técnicos
Identificación y resolución de problemas 11
Repuestos
Français Sommaire
Tableau indiquant montée en température
au-dessus de la température d'eau ambiante 2
Généralités
Montage de l'appareil
Raccords d'eau
Connexions électriques
Mise en service du chauffe-eau
Entretien de routine
Caractéristiques techniques
Dépannage
Pièces de rechange
2
6
6
6
7
7
7
7
8
8
9
2
9
10
10
10
10
10
11
11
15
9
9
9
10
10
10
11
11
12
16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tempra 12 and is the answer not in the manual?

Questions and answers

Related Manuals for STIEBEL ELTRON Tempra 12

Summary of Contents for STIEBEL ELTRON Tempra 12

  • Page 1: Table Of Contents

    TANKLESS ELECTRIC WATER HEATERS INSTALLATION INSTRUCTIONS FOR THE LICENSED PLUMBER AND ELECTRICIAN English Table of contents Table showing temperature increase above TEMPRA 12, TEMPRA 15, TEMPRA 20, TEMPRA 24 ambient water temperature General Mounting the unit Water connections Electrical connections...
  • Page 2 105 °F 40 °C Temperatura del agua caliente Température de sortie d‘eau chaude Cold water inlet temperature °F °C agua fría temperatura de entrada Température d‘entrée d‘eau froide TEMPRA 12 @ 208 V 9 kW 0.95 1.14 1.36 1.70 2.27 3.58 4.30...

  • Page 3: Tempra 12, Tempra 15, Tempra 20, Tempra

    TEMPRA 12, TEMPRA 15, TEMPRA 20, TEMPRA 22, TEMPRA 29, TEMPRA 36 TEMPRA 24 – 3 –...
  • Page 4 (4x) (4x) – 4 –...
  • Page 5 TEMPRA 12 > CKT 1 CKT 1 220 - 240 V / 208 V AC TEMPRA 15, TEMPRA 20, TEMPRA 24 > > CKT 1 CKT 2 CKT 1 CKT 2 220 - 240 V / 208 V AC TEMPRA 22, TEMPRA 29, TEMPRA 36...

  • Page 6: General

    OUTLINED IN THIS MANUAL, THE UNIT MAY NOT OPERATE PROPERLY AND IT COULD CAUSE PROPERTY DAMAGE, SERIOUS BODILY INJURY AND/OR DEATH. STIEBEL ELTRON, INC. WILL NOT BE LIABLE FOR ANY DAMAGES BECAUSE OF FAILURE TO COMPLY WITH THE INSTALLATION AND OPERATING INSTRUCTIONS OUTLINED IN THIS MANUAL OR BECAUSE OF IMPROPER USE.

  • Page 7: Electrical Connection

    flow, it is recommen- ded to periodically remove scale and dirt that A TEMPRA 12 can be conected to a Putting the water heater may build up at the aerator of the faucet(s) or single circuit. Use a supply cable protected...

  • Page 8: Troubleshooting

    If you are not able to resolve a problem please contact us toll free at 800-582-8423 before removing the unit from the wall. STIEBEL ELTRON is happy to provide technical assistance. In most instances, we can resolve the problem over the phone.

  • Page 9: Warranty

    GARANTÍA GARANTÍA RESIDENCIAL Y COMERCIAL: STIEBEL ELTRON GARANTIZA LA MANO DE OBRA Y LAS PIEZAS DE LOS CALENTADORES ELÉCTRICOS SIN TANQUE DHC, POR UN PERIODO DE TRES AÑOS A PARTIR DE LA FECHA DE COMPRA. EN CASO QUE ALGUNA PARTE O PARTES SE DAÑEN DURANTE ESTE PERIODO, STIEBEL ELTRON, INC SE RESPONSABILIZA A CAMBIAR LA PARTE(S) DEFECTUOSA(S) ÚNICAMENTE.

This manual is also suitable for:

Tempra 15Tempra 20Tempra 22Tempra 24Tempra 29Tempra 36

Table of Contents
