STIEBEL ELTRON CF Plus Series Wiring Diagrams
  1. Manuals
  2. Brands
  3. STIEBEL ELTRON Manuals
  4. Water Heater
  5. CF Plus Series
  6. Wiring diagrams
STIEBEL ELTRON CF Plus Series Wiring Diagrams

STIEBEL ELTRON CF Plus Series Wiring Diagrams

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTALLATION
TEChNICAL DATA
CE PLUS/CF Plus wiring diagrams
Wiring diagrams

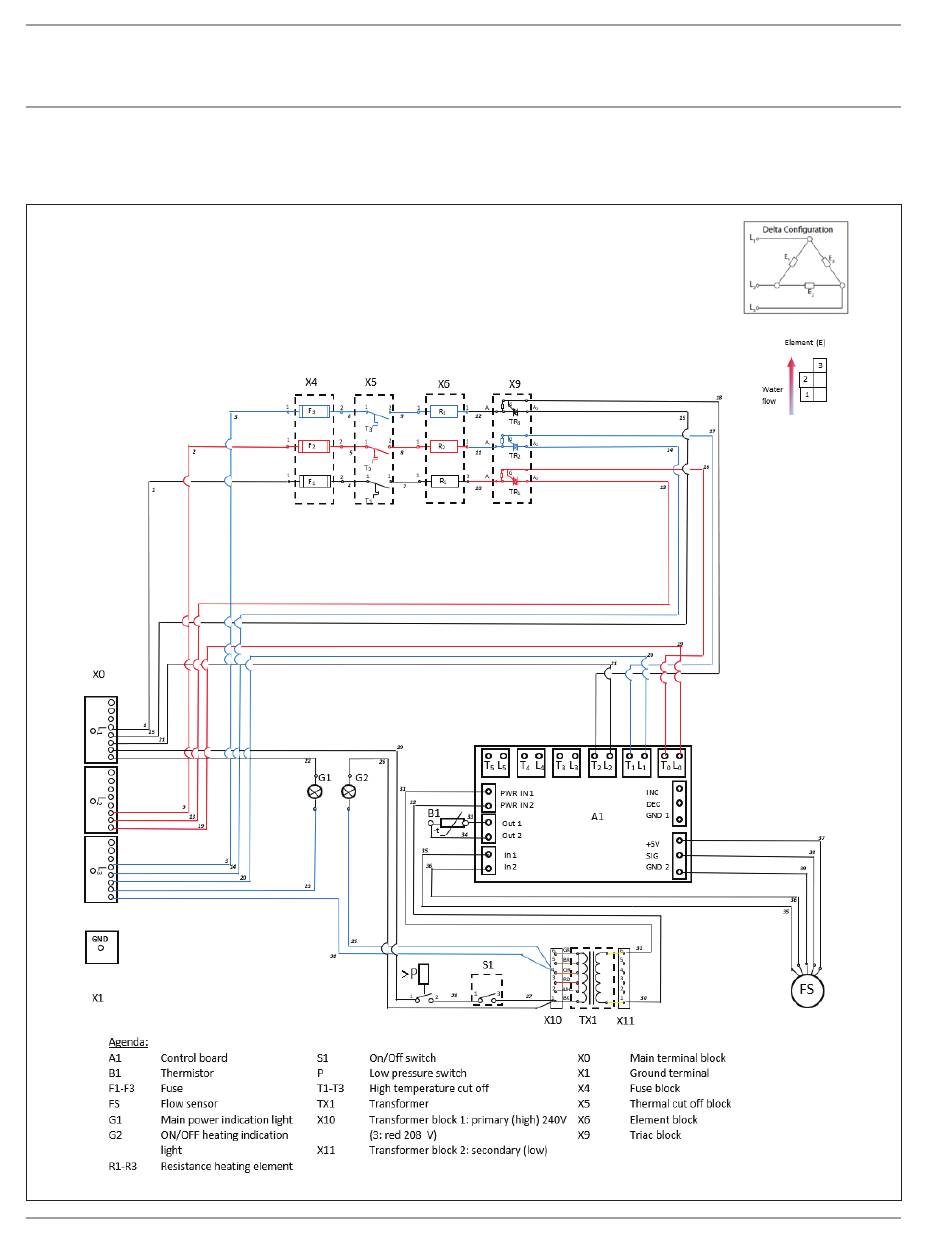

CF Plus 12–18, 208–240 V Delta wiring diagram
16
| CF CE CES CERO PLUS SERIES
WWW.STIEBEL-ELTRON-USA.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the CF Plus Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STIEBEL ELTRON CF Plus Series

Summary of Contents for STIEBEL ELTRON CF Plus Series

  • Page 1 INSTALLATION TEChNICAL DATA CE PLUS/CF Plus wiring diagrams Wiring diagrams CF Plus 12–18, 208–240 V Delta wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
  • Page 2 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CF 12–18 Plus 480 V Wye wiring diagram WWW.STIEBEL-ELTRON-USA.COM CF CE CES CERO PLUS SERIES|...
  • Page 3 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CF Plus 24–36, 208–240 V Delta wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
  • Page 4 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CF Plus 24–36, 480 V Delta wiring diagram WWW.STIEBEL-ELTRON-USA.COM CF CE CES CERO PLUS SERIES|...
  • Page 5 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CF Plus 24–36, 480 V Wye wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
  • Page 6 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CF Plus 24–36, 575 V Delta wiring diagram WWW.STIEBEL-ELTRON-USA.COM CF CE CES CERO PLUS SERIES|...
  • Page 7 INSTALLATION TEChNICAL DATA CE PLUS/CF Plus wiring diagrams CF Plus 48–72, 208–240 V Delta wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
  • Page 8 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CF Plus 48–72, 480 V Delta wiring diagram WWW.STIEBEL-ELTRON-USA.COM CF CE CES CERO PLUS SERIES|...
  • Page 9 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CF Plus 81–108, 480–575 V Delta wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
  • Page 10 INSTALLATION TEChNICAL DATA CE PLUS/CF Plus wiring diagrams CF Plus 120–144, 480 V Delta wiring diagram WWW.STIEBEL-ELTRON-USA.COM CF CE CES CERO PLUS SERIES|...
  • Page 11 INSTALLATION TEChNICAL DATA CE PLUS/CF Plus wiring diagrams CF Plus 120–144, 575 V Delta wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
  • Page 12 CE PLUS/CF Plus wiring diagrams INSTALLATION TEChNICAL DATA CE/CES/CERO Plus 12–15, 208–240 V Delta wiring diagram WWW.STIEBEL-ELTRON-USA.COM CF CE CES CERO PLUS SERIES|...
  • Page 13 CE PLUS/CF Plus wiring diagrams INSTALLATION TEChNICAL DATA CE/CES/CERO Plus 12–15, 480 V Wye wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
  • Page 14 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CE/CES/CERO Plus 24–36, 208–240 V Delta wiring diagram WWW.STIEBEL-ELTRON-USA.COM CF CE CES CERO PLUS SERIES|...
  • Page 15 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CE/CES/CERO Plus 24–36, 480 V Delta wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
  • Page 16 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CE/CES/CERO Plus 24–36, 480 V Wye wiring diagram WWW.STIEBEL-ELTRON-USA.COM CF CE CES CERO PLUS SERIES|...
  • Page 17 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CE/CES/CERO Plus 24–36, 575 V Delta wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
  • Page 18 INSTALLATION TEChNICAL DATA CE PLUS/CF Plus wiring diagrams CE/CES/CERO Plus 48–72, 208–240 V Delta wiring diagram WWW.STIEBEL-ELTRON-USA.COM CF CE CES CERO PLUS SERIES|...
  • Page 19 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CE/CES/CERO Plus 48–72, 480 V Delta wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
  • Page 20 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CE/CES/CERO Plus 48–72, 575 V Delta wiring diagram WWW.STIEBEL-ELTRON-USA.COM CF CE CES CERO PLUS SERIES|...
  • Page 21 INSTALLATION CE PLUS/CF Plus wiring diagrams TEChNICAL DATA CE/CES/CERO Plus 81–108, 480–575 V Delta wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
  • Page 22 INSTALLATION TEChNICAL DATA CE PLUS/CF Plus wiring diagrams CE/CES/CERO Plus 120–144, 480 V Delta wiring diagram WWW.STIEBEL-ELTRON-USA.COM CF CE CES CERO PLUS SERIES|...
  • Page 23 INSTALLATION TEChNICAL DATA CE PLUS/CF Plus wiring diagrams CE/CES/CERO Plus 120–144, 575 V Delta wiring diagram | CF CE CES CERO PLUS SERIES WWW.STIEBEL-ELTRON-USA.COM...
