Page 1: Table Of Contents

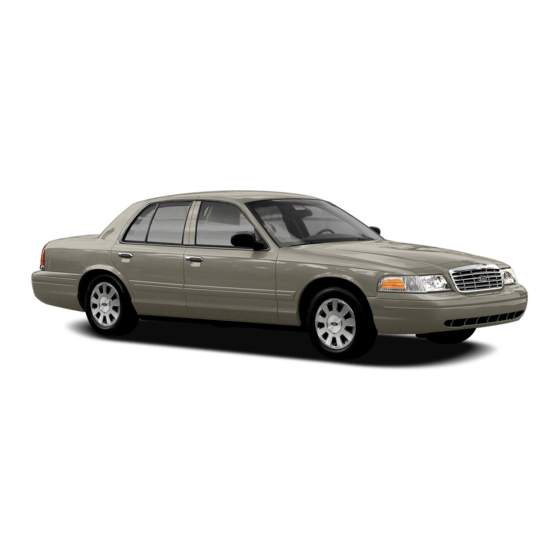

2006 Crown Vic www.hillerford.com Table of Contents Introduction Instrument Cluster Warning and control lights Gauges Entertainment Systems AM/FM stereo AM/FM stereo cassette AM/FM stereo with CD AM/FM stereo cassette with CD AM/FM stereo with cassette and in-dash six CD Climate Controls Manual heating and air conditioning Automatic temperature control Rear window defroster...
Page 2 Table of Contents Seating and Safety Restraints Seating Safety restraints Airbags Child restraints Tires, Wheels and Loading Tire Information Vehicle loading Trailer towing Recreational towing Driving Starting Brakes Traction control Air suspension Transmission operation Roadside Emergencies Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires...
Page 4: Introduction
The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com •...
Page 5 Introduction SAFETY AND ENVIRONMENT PROTECTION Warning symbols in this guide How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.
Page 6 • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent,...
Page 7 Introduction Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls. Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury. Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.
Page 8: Vehicle Symbol Glossary
Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Fasten Safety Belt Airbag - Front Airbag - Side Child Seat Child Seat Installation Child Seat Lower Warning Anchor Child Seat Tether Brake System Anchor...
Page 9 Introduction Vehicle Symbol Glossary Power Windows Power Window Lockout Front/Rear Interior Luggage Child Safety Door Compartment Release Lock/Unlock Symbol Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, Battery Acid or Sparks Explosive Gas Fan Warning Maintain Correct Fluid...
Page 10: Instrument Cluster
Instrument Cluster WARNING LIGHTS AND CHIMES Standard instrument cluster Optional instrument cluster Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works.
Page 11 Instrument Cluster Check engine: The Check engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter.
Page 12 Instrument Cluster Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system...
Page 13 Instrument Cluster Never remove the coolant reservoir cap while the engine is running or hot. Traction control AdvanceTrac active (if equipped): Illuminates when the Traction control system is active. It will be lit for a minimum of four seconds or for the duration of the Traction Control event, refer to the Driving chapter for more information.
Page 14: Gauges
Instrument Cluster Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.
Page 15 Instrument Cluster Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.
Page 16 Instrument Cluster • With Message Center Press and release the message center INFO button until “TRIP” appears in the display (this represents the trip mode). Press the control again to select Trip A and Trip B features. Press and hold the RESET button for two seconds to reset.
Page 17: Entertainment Systems
Entertainment Systems AUDIO SYSTEMS AM/FM stereo (if equipped) PUSH SEEK TONE TONE VOL TUNE AM/FM 1. Seek: Press to find the next strong station down/up the frequency band. 2. Tune: Press to manually change radio frequency down/up. 3. AM/FM: Press to choose a AM/FM frequency band in radio mode.
Page 18 Entertainment Systems 5. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels. 6. Tone: Press TONE until the PUSH desired level — Bass, Treble, Fade TONE appears on the display. Turn the volume control to raise/lower the levels, or to move the audio sound from the right to left or the front to back (if equipped).
Page 19: Am/Fm Stereo Cassette
Entertainment Systems AM/FM stereo cassette (if equipped) 14 15 16 17 VOL - PUSH ON BASS TREB FADE TAPE SEEK SIDE 1 - 2 SCAN TUNE 1. Balance: Press to shift sound to the left/right speakers. 2. Fade: Press to shift sound to the rear/front speakers.
Page 20 Entertainment Systems next selection). Then, press REW (for the beginning of the current selection) or FF (to advance to the next selection). The tape MUST have a blank section of at least four seconds duration between programs. 5. Side 1–2: Press to change tape SIDE 1 - 2 direction.
Page 21: Am/Fm Stereo With Cd
Entertainment Systems 13. AM/FM: Press to choose a frequency band in radio mode. 14. Bass: Press decrease/increase the bass output. 15. Treble: Press decrease/increase the treble output. 16. EJ (Eject): Press to eject a tape. 17. Cassette door: Insert a cassette into the cassette door. AM/FM Stereo Single CD Premium audio system (if equipped)
Page 22 Entertainment Systems 1. CD slot: Insert a CD, label side up. With the ignition on, the radio will begin play when a CD is inserted. If the ignition is off, press CD prior to inserting a disc. Do not force a disc into the system as damage could result. 2.
Page 23 Entertainment Systems 8. SEL: Use with Bass, Treble, Balance, Fade and other menu functions. 9. MENU: Press MENU to access the following functions: Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed.
Page 24 Entertainment Systems 11. On/Off/Volume: Push to turn on/off; turn to adjust the volume levels. Note: With the ignition turned off, you may press the volume control to momentarily view the clock. 12. CD: Press to enter CD mode if a CD is already present in the system. In radio mode, the CD icon will appear in the display if a CD is loaded into the system.
Page 25: Am/Fm Stereo Cassette With Cd
Entertainment Systems Premium/Audiophile Satellite Compatible AM/FM Stereo Single CD/Cassette system (if equipped) 1. CD slot: Insert a CD, label side up. With the ignition on, the radio will begin to play a CD once inserted. With the ignition off, the CD control must be pressed before inserting the disc.
Page 26 Entertainment Systems TREB (Treble): Press TREB; then press SEL-TEXT decrease/increase the level of treble output. 4. BAL (Balance): Press BAL; then press SEL-TEXT to shift sound to the left/right speakers. FADE: Press FADE; then press SEL-TEXT to shift sound to the rear/front speakers. 5.
Page 27 Entertainment Systems With RDS ON, press MENU until the program type menu is displayed. One of the various program types will appear. Press SEL-TEXT to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category. Show TYPE: Selects between displaying the station’s call letters or music format when RDS is enabled.
Page 28 Entertainment Systems The Dolby noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Setting the clock: Press MENU repeatedly until SELECT HOUR or SELECT MINS is displayed. Press SEL-TEXT to manually decrease/increase the hours/minutes.
Page 29 Entertainment Systems 14. SHUF (Shuffle): Press to play the tracks on the current CD in random order. Press again to stop. 15. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns.
Page 30: Am/Fm Stereo With Cassette And In-Dash Six Cd
Entertainment Systems Audiophile AM/FM Satellite Compatible Stereo In-dash Six CD sound system (if equipped) 1. CD slot: To insert a CD, press LOAD. When the system is ready, insert a CD, label side up. 2. SEEK: Press to access the next/previous radio station or CD track.
Page 31 Entertainment Systems 4. MUTE: Press to mute the playing media. Press again to return to the playing media or turn the volume control to adjust the volume. 5. Eject: Press to eject CD(s) when the ignition is on or off. Numbers will illuminate in the display indicating which CD slots are loaded with CDs.
Page 32 Entertainment Systems 9. MENU: Press MENU repeatedly to access RDS on/off. SEL-TEXT to toggle RDS on/off. Press MENU again to access Program type mode or Show Type mode. (MENU must be pressed within 10 seconds to proceed to the next RDS mode.) The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information.
Page 33 Entertainment Systems Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU to access and use SEL-TEXT to adjust the volume setting.
Page 34 Entertainment Systems dealer installed kit. Dealer installed satellite kit available only in the continental United States. 16. SHUF (Shuffle) /SCAN: Press SCAN to hear a brief sampling of radio stations or CD tracks on the current CD. Press again to stop. SHUF (Shuffle): Press and hold to play the CD tracks in random order for the CD currently being played.
Page 35 Entertainment Systems CD/CD player care: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner and wipe from the center out. Don’t: • Expose discs to direct sunlight or heat sources for extended periods of time.
Page 36: Climate Controls
Climate Controls MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle.
Page 37: Automatic Temperature Control
Climate Controls To aid in side window defogging/demisting in cold weather: 1. Select NORM A/C. 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to HI. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
Page 38 Climate Controls 3. Fan speed: Turn to manually increase or decrease fan speed. 4. Defrost: Distributes outside air through the windshield defroster vents and the side window demisters. 5. Floor/defrost: Distributes outside air through the windshield defroster vents, floor vents and the side window demisters. 6.
Page 39: Rear Window Defroster
Climate Controls • Remove any snow, ice or leaves from the air intake area at the base of the windshield. To aid in side window defogging/demisting in cold weather: 1. Select NORM A/C. 2. Adjust the temperature control to maintain comfort. 3.
Page 40: Lights
Lights HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps. Turns the headlamps on. Autolamp control The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.
Page 41 Lights High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate. Flash to pass Pull toward you slightly to activate and release to deactivate. Daytime running lamps (DRL) (if equipped) Turns the lowbeam headlamps on with a reduced output. To activate: •...
Page 42: Turn Signal Control
Lights PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during headlamp and parklamp operation. • Rotate the thumbwheel from left to right to brighten the instrument panel. • Rotate the thumbwheel from right to left to dim the instrument panel.
Page 43 Lights INTERIOR LAMPS Map/Courtesy lamps The courtesy lamps light when: • any door is opened. • the instrument panel dimmer switch is rotated past the detent. • the UNLOCK control of the remote entry controls is pressed and the ignition is OFF. The reading lamps can be turned on by pressing the rocker controls next to each lamp.
Page 44: Bulb Replacement
Lights Rear courtesy/reading lamps Rotate the lens to illuminate the lamp. With the lens in the flat position, the courtesy lamp lights when: • Any door is opened. • The panel dimmer thumbwheel is rotated fully to the right past detent.
Page 45 Lights Function Trade Number License plate lamp High-mount brakelamp Luggage compartment lamp 212-2 Rear reading lamp Map lamp Dual floorwell lamp Glove compartment Visor vanity lamp - Slide on Rail system (SOR) All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.
Page 46 Lights 3. Disconnect the electrical connector from the bulb by pulling rearward. 4. Remove the bulb retaining ring by rotating it counterclockwise (when viewed from the rear) to free it from the bulb socket, and slide the ring off the plastic base. Keep the ring to retain the new bulb.
Page 47 Lights 5. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again. Replacing front parking lamp/turn signal bulbs The park/turn lamp bulbs can be replaced without removing the headlamp assembly.
Page 48 Lights Replacing tail lamp/brake/turn lamp bulbs The tail lamp, the brake lamp and the turn signal lamp bulbs are located in the tail lamp assembly. Follow the same steps to replace either bulb. 1. Make sure headlamp switch is in OFF position, then open the trunk and remove plastic retainer to expose the lamp assembly hardware.
Page 49 Lights Replacing license plate lamp bulbs 1. Make sure headlamp switch is in OFF position, then remove two screws, grommets and the license plate lamp assembly from the trunk lid. 2. Carefully pull the bulb from the socket and push in the new bulb. 3.
Page 50 Lights Replacing high-mount brakelamp bulbs 1. Make sure headlamp switch is in OFF position, then remove two screws from the lamp assembly. 2. Carefully lift the lamp assembly up for access to the bulbs. 3. Carefully pull the bulb socket out of the lamp assembly.
Page 51: Driver Controls
Driver Controls MULTI-FUNCTION LEVER Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers. Windshield washer: Push the end of the stalk: •...
Page 52 Driver Controls ILLUMINATED VISOR MIRROR (IF EQUIPPED) Lift the mirror cover to turn on the visor mirror lamp. Slide on rod feature (if equipped) Rotate the visor towards the side window and extend it rearward for additional sunlight coverage. Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.
Page 53 Driver Controls The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in or on the vehicle may also affect compass accuracy. Adjustments may need to be made to the zone and calibration of the compass.
Page 54 Driver Controls OVERHEAD CONSOLE WITH MOON ROOF (IF EQUIPPED) The appearance of your vehicle’s overhead console will vary according to your option package. Some of the features in the overhead console include Compass, Homelink, and Moon Roof controls. Compass mode The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna.
Page 55 Driver Controls 2. Hold down the MODE button for 5 seconds to enter zone mode. The display will read PRESS RESET TO SET ZONE XX where XX is the current zone. 3. Release the MODE button. 4. Determine which magnetic zone you are in by referring to the zone map.
Page 56 Driver Controls 2. Hold down the MODE button for 10 seconds to enter the calibration mode. The display will read PRESS RESET TO DECAL. 3. Release the MODE button. 4. Press the RESET button to de-calibrate the compass. The display will read CIRCLE SLOWLY TO CALIBRATE for a few seconds and then display a direction with CAL displayed on the right side.
Page 57 Driver Controls door to stop and reverse, does not meet current U.S. federal safety standards. For more information, contact HomeLink at: www.homelink.com or 1–800–355–3515. Retain the original transmitter for use in other vehicles as well as for future programming procedures (i.e. new HomeLink equipped vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed HomeLink buttons be erased for security purposes, refer to Programming in this section.
Page 58 Driver Controls 2. Position the end of your hand-held transmitter 1–3 inches (2–8 cm) away from the HomeLink button you wish to program (located on your overhead console) while keeping the display in view. 3. Simultaneously press and hold both the HomeLink and hand-held transmitter button.
Page 59 Driver Controls 5. Press and hold the just-trained HomeLink button and observe the HomeLink house icon on the display. If the indicator light(s) underneath the house icon are constant, programming is complete and your device should activate when the HomeLink button is pressed and released.
Page 60 Driver Controls • Continue to press and hold the HomeLink button (note step 3 in the “Programming” section) while you press and release — every two seconds (“cycle”) your hand-held transmitter until the frequency signal has been accepted by the HomeLink . The message CHANNEL “X”...
Page 61 Driver Controls • After about 20 seconds, the message CHANNELS CLEARED will appear on the display. Do not hold for longer that 30 seconds. HomeLink is now in the train (or learning) mode and can be programmed at any time beginning with step 2 in the “Programming”...
Page 62: Power Windows
Driver Controls AUXILIARY POWER POINT (12VDC) Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug.
Page 63 Driver Controls Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window. One touch down Allows the driver’s window to open fully without holding the control down.
Page 64: Mirrors
Driver Controls Do not block the sensor on the backside of the inside rear view mirror since this may impair proper mirror performance. EXTERIOR MIRRORS Power side view mirrors To adjust your mirrors: 1. Select to adjust the left mirror or to adjust the right mirror.
Page 65: Speed Control
Driver Controls POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED) The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P (Park) position. Press and hold the rocker control to adjust accelerator and brake pedal. •...
Page 66 Driver Controls 3. Press the SET + control and release it. 4. Take your foot off the accelerator pedal. 5. The indicator light (if equipped) on the instrument cluster will turn on. Note: • Vehicle speed may vary momentarily when driving up and down a steep hill.
Page 67 Driver Controls Increasing speed while using speed control There are two ways to set a higher speed: • Press and hold the SET + control until you get to the desired speed, then release the control. You can also use the SET + control to operate the Tap-Up function.
Page 68 Driver Controls Turning off speed control There are two ways to turn off the speed control: • Depress the brake pedal. This will not erase your vehicle’s previously set speed. • Press the speed control OFF control. Note: When you turn the speed control or the ignition off, your speed control set speed memory is erased.
Page 69 Driver Controls Climate control features • Press TEMP + or - to adjust temperature. MOON ROOF (IF EQUIPPED) To vent the moon roof: • Press and hold the control forward to raise the moon roof to the vent position (when the glass panel is closed).
Page 70 Driver Controls transmitters with a single built-in device. This feature will learn the radio frequency codes of most transmitters to operate garage doors, entry gate operators, security systems, entry door locks, and home or office lighting. When programming your HomeLink Wireless Control System to a garage door or gate, be sure that people and objects are out of the way to prevent potential harm or damage.
Page 71 Driver Controls 3. Simultaneously press and hold both the HomeLink and hand-held transmitter button. Do not release the buttons until Step 4 has been completed. Some entry gates and garage door openers may require you to replace Step 3 with procedures noted in the “Gate Operator and Canadian Programming”...
Page 72 Driver Controls Gate Operator & Canadian Programming During programming, your hand-held transmitter may automatically stop transmitting — not allowing enough time for HomeLink to accept the signal from the hand-held transmitter. After completing Steps 1 and 2 outlined in the “Programming” section, replace Step 3 with the following: Note: If programming a garage door opener or gate operator, it is...
Page 73: Message Center
Driver Controls Erasing HomeLink buttons To erase the three programmed buttons (individual buttons cannot be erased): • Press and hold the two outer HomeLink buttons until the indicator light begins to flash-after 20 seconds. Release both buttons. Do not hold for longer that 30 seconds.
Page 74 Driver Controls Your display can show up to 3 reconfigurable telltales at one time. What ever is displayed in the top left corner has the highest priority. Selectable features Select Press this control to select functions shown in the INFO menu and SETUP menu.
Page 75 Driver Controls Distance to empty (DTE) Selecting this function from the INFO menu estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition OFF when refueling to allow this feature to correctly detect the added fuel.
Page 76 Driver Controls Instantaneous fuel economy Select this function from the INFO menu to display your instantaneous fuel economy. This will display your fuel economy as a Bar Graph ranging from poor economy excellent economy. Your vehicle must be moving to calculate instantaneous fuel economy.
Page 77 Driver Controls The sequence of the system check report and how it appears in the message center is as follows: 1. OIL LIFE — PRESS RESET IF NEW OIL 2. WASHER FLUID 3. AIR SUSPENSION 4. RECONFIGURABLE TELLTALES — OK —...
Page 78 Driver Controls Language 1. Select this function from the SETUP menu for the current language to be displayed. 2. Pressing the SELECT control cycles the message center through each of the language choices. Oil Minder Start Value 1. Select this function from the SETUP control for the current display mode.
Page 79 Driver Controls • They will not reappear until an ignition OFF-ON cycle has been completed. This acts as a reminder that these warning conditions still exist within the vehicle. Warning display Status Door Ajar Warning cannot be reset Coolant over temperature Warning returns after 10 minutes Powertrain malfunction Check fuel cap...
Page 80 Driver Controls LOW FUEL. Displayed as an early reminder of a low fuel condition. Warning message can be reset by pressing the RESET button, but will return after 10 minutes. If any other button is pressed besides RESET, the message ’’PRESS RESET TO CLEAR’’ will appear in the Message Center.
Page 81 Driver Controls 2. Press and hold the RESET control for 3 seconds and release. Oil life is set to 100% and “OIL LIFE START VALUE SET TO XXX%” is displayed. INTERIOR TRUNK CONTROL The remote trunk release control is located on the driver’s door trim panel and can be operated at any time.
Page 82: Locks And Security
Locks and Security KEYS The vehicle is equipped with a master (black) key and valet (gray) key lock system. • The master key will access the vehicle’s doors, trunk, glove box, ignition and remote trunk release. • The valet key will access doors and ignition only. Before using the valet key with an attendant, lock the interior trunk control to disable the interior trunk control located on the drivers door, then lock the glove compartment with your master key.
Page 83 Locks and Security Smart locks (if equipped) With the key in any ignition position, and either the driver’s or passenger’s door open, the doors cannot be locked using the power door lock switches. The vehicle may still be locked with the key in the ignition, and performing one of the following actions: •...
Page 84 Locks and Security To open the luggage compartment door (lid) from within the luggage compartment, pull the illuminated “T” shaped handle and push up on the trunk lid. The handle is composed of a material that will glow for hours in darkness following brief exposure to ambient light.
Page 85 Locks and Security REMOTE ENTRY SYSTEM (IF EQUIPPED) This device complies with part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 86 Locks and Security Locking the doors Press once to lock all the doors. The doors will lock upon first press. Press again within three seconds to receive confirmation that the vehicle was successfully locked. Note: If all vehicle doors are closed upon the second press of the , the horn will chirp once and the parklamps/taillamps will flash once to confirm the successful locking.
Page 87 Locks and Security To replace the battery: 1. Twist a thin coin between the two halves of the remote entry transmitter near the key ring. DO NOT TAKE THE RUBBER COVER AND CIRCUIT BOARD OFF THE FRONT HOUSING OF THE REMOTE ENTRY TRANSMITTER.
Page 88 Locks and Security • Perform the following programming procedure yourself: Place the key in the ignition and cycle from 1 (OFF/LOCK) to 3 (ON) eight times in rapid succession within 10 seconds. After doors lock/unlock, press any control on all transmitters (up to four).
Page 89 Locks and Security Autolock (if equipped) This feature automatically locks all vehicle doors when: • all doors are closed, • the engine is running, • you shift into any gear, putting the vehicle in motion, and • the vehicle’s speed is greater than 3 mph (5 km/h). Auto-relock The autolock feature repeats when: •...
Page 90: Anti-Theft System
Locks and Security 5. Turn the ignition back to the 3 (ON) position. 6. The door locks will lock/unlock to confirm programming mode is entered/active. 7. With the ignition still in the 3 (ON) position, for the autolock feature, press the unlock control once then press the lock control once. The horn will chirp once to confirm successful programming.
Page 91 Locks and Security 2. Within five seconds press 1 • 2 on the keypad to enter the programming mode. 3. Enter your personal 5-digit code. Each number must be entered within five seconds of each other. 4. Press 1 • 2 to store the first personal code. 5.
Page 92 Locks and Security 2. Press and release 1 • 2 within 5 seconds of step 1. 3. Press and hold 1 • 2 for two seconds. All of the vehicle doors will lock and then unlock to confirm erasure. Unlocking the doors and releasing the trunk with the keyless entry system To unlock the driver door, enter either the factory-set code or personal code (each digit pressed within 5 seconds of prior digit).
Page 93 Locks and Security Radio type approval numbers for Immobiliser System PATS XCVR If the type approval of your immobilizer system is inspected in one of the countries listed in the following table, refer to the corresponding approval number: Immobiliser System PATS XCVR certification numbers TX Frequency: 134,2 kHz -8,1 dBµA/m @ 10 m Country Name...
Page 94 Locks and Security Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Your vehicle comes with two coded keys (or three, if your vehicle is equipped with the valet feature); additional coded keys may be purchased from your authorized dealer.
Page 95 Locks and Security Automatic arming The vehicle is armed immediately after switching the ignition to the 1 (OFF/LOCK) position. The theft indicator on the instrument panel will flash every two seconds when the vehicle is armed. Automatic disarming Switching the ignition to the 3 (ON) position with a coded key disarms the vehicle.
Page 96 Locks and Security 1. Insert the first previously programmed coded key into the ignition and turn the ignition from 1 (OFF/LOCK) to the 3 (ON) position (maintain ignition in 3 (ON) for at least one second). 2. Turn ignition to 1 (OFF/LOCK) and remove the first coded key from the ignition.
Page 97 Locks and Security The system is ready to arm whenever the key is out of the ignition. Any of the following actions will arm the alarm system: • Press the remote transmitter lock control one time to arm the system. •...
Page 98: Seating And Safety Restraints
Seating and Safety Restraints SEATING Adjustable head restraints Head restraints help to limit head motion in the event of a rear collision. To properly adjust your head restraints, lift the head restraint so that it is located directly behind your head or as close to that position as possible.
Page 99 Seating and Safety Restraints Lift handle to move seat forward or backward. Pull lever up to adjust seatback. Before returning the seatback to its original position, make sure that cargo or any objects are not trapped behind the seatback. After returning the seatback to its original position, pull on the seatback to ensure that it has fully...
Page 100 Seating and Safety Restraints To adjust the front seatback using the manual recliner: • Lift and hold the handle located on the side of the seat. • Lean against the seatback to adjust it to your desired position. You can recline the seat back or bring it forward.
Page 101 Seating and Safety Restraints To reduce the risk of possible serious injury: Do not hang objects off seat back or stow objects in map pocket (if equipped) when a child is in the front passenger seat. Do not place objects underneath the front passenger seat or between the seat and the center console (if equipped).
Page 102 Seating and Safety Restraints Press to move the front portion of the seat cushion up or down. Press to move the rear portion of the seat cushion up or down. Using the power lumbar support (if equipped) The power lumbar control is located on the outboard side of the seat.
Page 103: Safety Restraints
Seating and Safety Restraints • Push the indicated side of the control for minimum heat. • Push again to deactivate. The heated seat module resets at every ignition run cycle. While the ignition is in the ON position, activating the high or low heated seat switch enables heating mode.
Page 104 Seating and Safety Restraints Your vehicle’s Personal Safety System consists of the following items: • Driver and passenger dual-stage airbag supplemental restraints • Front safety belts with pretensioners, energy management retractors, and safety belt usage sensors • Driver’s seat position sensor •...
Page 105 Seating and Safety Restraints information early in the crash event on the severity of the impact. This allows your Personal Safety System to distinguish between different levels of crash severity and modify the deployment strategy of the dual-stage airbags and safety belt pretensioners. Driver’s seat position sensor The driver’s seat position sensor allows your Personal Safety System tailor the deployment level of the driver dual-stage airbag based on seat...
Page 106 Seating and Safety Restraints When the front passenger seat is occupied and the sensing system has turned off the passenger’s frontal airbag, the “pass airbag off” indicator will light and stay lit to remind you that the front passenger frontal airbag is off.
Page 107 Seating and Safety Restraints • The warning light will either flash or stay lit. • The warning light will not illuminate immediately after ignition is turned on. • A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and warning light are repaired.
Page 108 Seating and Safety Restraints Each seating position in your vehicle has a specific safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only.
Page 109 Seating and Safety Restraints Energy management feature • This vehicle has a safety belt system with an energy management feature at the front outboard seating positions to help further reduce the risk of injury in the event of a head-on collision. •...
Page 110 Seating and Safety Restraints movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of approximately 5 mph (8 km/h) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.
Page 111 This indicates the safety belt is now in the automatic locking mode. How to disengage the automatic locking mode Ford Motor Company recommends that all passenger safety belt assemblies and attaching hardware should be inspected by an authorized dealer after any collision to verify that the automatic locking retractor feature for child seats is still working properly.
Page 112 (if equipped), shoulder belt guide on seatback (if equipped), child safety seat LATCH and tether anchors, and attaching hardware, should be inspected after a collision. Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a collision be replaced.
Page 113 Seating and Safety Restraints Safety belt warning light and indicator chime The safety belt warning light illuminates in the instrument cluster and a chime sounds to remind the occupants to fasten their safety belts. Conditions of operation If... Then... The driver’s safety belt is not The safety belt warning light buckled before the ignition illuminates 1-2 minutes and the...
Page 114 Seating and Safety Restraints If... Then... The driver’s and front The BeltMinder feature will not passenger’s safety belts are activate. buckled before the ignition switch is turned to the ON position or less than 1-2 minutes have elapsed since the ignition switch has been turned ON...
Page 115 Seating and Safety Restraints The following are reasons most often given for not wearing safety belts (All statistics based on U.S. data): Reasons given... Consider... “Crashes are rare events” 36700 crashes occur every day. The more we drive, the more we are exposed to “rare”...
Page 116 Seating and Safety Restraints Reasons given... Consider... “I have an airbag” Airbags offer greater protection when used with safety belts. Frontal airbags are not designed to inflate in rear and side crashes or rollovers. “I’d rather be thrown clear” Not a good idea. People who are ejected are 40 times more likely to DIE.
Page 117 Seating and Safety Restraints • The gearshift is in P (Park) (automatic transmission) • The ignition switch is in the OFF position • The driver and front passenger safety belts are unbuckled To reduce the risk of injury, do not deactivate/activate the BeltMinder feature while driving the vehicle.
Page 118: Airbags
Seating and Safety Restraints AIRBAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) Important SRS precautions The SRS is designed to work with the safety belt to help protect the driver and right front passenger from certain upper body injuries. Airbags DO NOT inflate slowly; there is a risk of injury from a deploying airbag.
Page 119 Never place your arm over the air bag module as a deploying air bag can result in serious arm fractures or other injuries. Ford Motor Company recommends that an authorized dealer inspect all steering column assemblies in use in vehicles involved in a collision.
Page 120 Seating and Safety Restraints Children and airbags Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position. Failure to follow these instructions may increase the risk of injury in a collision.
Page 121 Seating and Safety Restraints The airbags inflate and deflate rapidly upon activation. After airbag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (e.g., baking soda) that result from the combustion process that inflates the...
Page 122 Seating and Safety Restraints Several air bag system components get hot after inflation. Do not touch them after inflation. If the air bag has deployed, the air bag will not function again and must be replaced immediately. If the air bag is not replaced, the unrepaired area will increase the risk of injury in a collision.
Page 123 Seating and Safety Restraints • the seat is empty and safety belt is unbuckled. • a child or a small person occupies the front passenger seat and the child or small person is unbuckled. The front passenger sensing system uses a passenger airbag off or pass airbag off indicator which will illuminate and stay lit to remind you that the front passenger frontal...
Page 124 Seating and Safety Restraints • Restart the vehicle and have the person remain in this position for about two minutes. This will allow the system to detect that person and enable the passenger’s frontal airbag. • If the indicator lamp remains lit even after this, the person should be advised to ride in the rear seat.
Page 125 Seating and Safety Restraints Pass Airbag Off Objects Passenger Airbag Indicator Lamp Small (i.e. 3 ring Unlit Disabled binder, small purse, bottled water) Medium (i.e. heavy Disabled briefcase, fully packed luggage) Empty seat, Small or Disabled medium object with safety belt buckled If you think that the status of the passenger airbag off indicator lamp is incorrect, check for the following: •...
Page 126 Seating and Safety Restraints In case there is a problem with the front passenger sensing system, the airbag readiness lamp in the instrument cluster will stay lit. If the airbag readiness lamp is lit, do the following: The driver and/or adult passengers should check for any objects that may be lodged underneath the front passenger seat or cargo interfering with the seat.
Page 127 Seating and Safety Restraints Determining if the system is operational The SRS uses a readiness light in the instrument cluster or a tone to indicate the condition of the system. Refer to Airbag readiness section in the Instrument Cluster chapter. Routine maintenance of the airbag is not required.
Page 128 Seating and Safety Restraints All occupants of the vehicle should always wear their safety belts even when an airbag SRS is provided. How does the side airbag system work? The design and development of the side airbag system included recommended testing procedures that were developed by a group of automotive safety experts known as the Side Airbag Technical Working...
Page 129 Seating and Safety Restraints to inflate in side-impact collisions, not roll-over, rear-impact, frontal or near-frontal collisions, unless the collision causes sufficient lateral deceleration. Several air bag system components get hot after inflation. Do not touch them after inflation. If the side airbag has deployed, the airbag will not function again.
Page 130: Child Restraints
Seating and Safety Restraints SAFETY RESTRAINTS FOR CHILDREN See the following sections for directions on how to properly use safety restraints for children. Also see Airbag supplemental restraint system (SRS) in this chapter for special instructions about using airbags. Important child restraint precautions You are required by law to use safety restraints for children in the U.S.
Page 131 To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Ford Motor Company recommends use of a belt-positioning booster. Booster seats position a child so that safety belts fit better. They lift the child up so that the lap belt rests low across the hips and the knees bend comfortably.
Page 132 Seating and Safety Restraints Types of booster seats There are two types of belt-positioning booster seats: • Those that are backless. If your backless booster seat has a removable shield, remove the shield and use the lap/shoulder belt. If a seating position has a low seat back and no head restraint, a backless booster seat may place your child’s head (top...
Page 133 Seating and Safety Restraints Children and booster seats vary widely in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder.
Page 134 Seating and Safety Restraints Never use pillows, books, or towels to boost a child. They can slide around and increase the likelihood of injury or death in a collision. SAFETY SEATS FOR CHILDREN Child and infant or child safety seats Use a safety seat that is recommended for the size and weight of the child.
Page 135 Seating and Safety Restraints tether anchors. For more information on top tether straps and anchors, refer to Attaching safety seats with tether straps in this chapter. For more information of LATCH anchors refer to Attaching safety seats with LATCH (Lower Anchors and Tethers for Children) attachments in this chapter.
Page 136 Seating and Safety Restraints 2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions.
Page 137 Seating and Safety Restraints 5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is pulled out and a click is heard. 6. Allow the belt to retract. The belt will click as it retracts to indicate it is in the automatic locking mode.
Page 138 Seating and Safety Restraints Attaching child safety seats with tether straps Most new forward-facing child safety seats include a tether strap which goes over the back of the seat and hooks to an anchoring point. Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child seat for information about ordering a tether strap.
Page 139 Seating and Safety Restraints 4. Open the tether anchor cover. 5. Clip the tether strap to the anchor as shown. If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a collision. 6.
Page 140 Seating and Safety Restraints Attaching safety seats with LATCH (Lower Anchors and Tethers for Children) attachments Some child safety seats have two rigid or webbing mounted attachments that connect to two anchors at certain seating positions in your vehicle. This type of child seat eliminates the need to use safety belts to attach the child seat.
Page 141 Seating and Safety Restraints If you install a child seat with rigid LATCH attachments, do not tighten the tether strap enough to lift the child seat off the vehicle seat cushion when the child is seated in it. Keep the tether strap just snug without lifting the front of the child seat.
Page 142: Tires, Wheels And Loading
10 to 12 inches or limited production tires as defined in Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford Motor Company to give you the following information about tire grades exactly as the government has written it.
Page 143 Tires, Wheels and Loading The traction grade assigned to this tire is based on straight-ahead braking traction tests, and does not include acceleration, cornering, hydroplaning or peak traction characteristics. Temperature A B C The temperature grades are A (the highest), B and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
Page 144 Tires, Wheels and Loading Increasing the inflation pressure beyond this pressure will not increase the tire’s load carrying capability. • kPa: Kilopascal, a metric unit of air pressure. • PSI: Pounds per square inch, a standard unit of air pressure. •...
Page 145 Tires, Wheels and Loading gauges may be inaccurate. Ford Motor Company recommends the use of a digital or dial-type tire pressure gauge rather than a stick-type tire pressure gauge. Use the recommended cold inflation pressure for optimum tire performance and wear. Under-inflation or over-inflation may cause uneven treadwear patterns.
Page 146 Tires, Wheels and Loading To check the pressure in your tire(s): 1. Make sure the tires are cool, meaning they are not hot from driving even a mile. Note: If you have to drive a distance to get air for your tire(s), check and record the tire pressure first and add the appropriate air pressure when you get to the pump.
Page 147 Tires, Wheels and Loading Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Inspect all your tires, including the spare, frequently, and replace them if one or more of the following conditions exist: Tire wear When the tread is worn down to 1/16th of an inch (2 mm), tires must be replaced to help prevent your vehicle from skidding and...
Page 148 Tires, Wheels and Loading This begins with the letters “DOT” and indicates that the tire meets all federal standards. The next two numbers or letters are the plant code designating where it was manufactured, the next two are the tire size code and the last four numbers represent the week and year the tire was built.
Page 149 Tires, Wheels and Loading Never spin the tires in excess of the 35 mph (55 km/h) point indicated on the speedometer. Highway hazards No matter how carefully you drive there’s always the possibility that you may eventually have a flat tire on the highway. Drive slowly to the closest safe area out of traffic.
Page 150 Tires, Wheels and Loading • Rear Wheel Drive (RWD) vehicles/Four Wheel Drive (4WD)/ All Wheel Drive (AWD) vehicles (front tires at top of diagram) Sometimes irregular tire wear can be corrected by rotating the tires. Note: If your tires show uneven wear ask an authorized dealer to check for and correct any wheel misalignment, tire imbalance or mechanical problem involved before tire rotation.
Page 151 Tires, Wheels and Loading Information on “P” type tires P215/65R15 95H is an example of a tire size, load index and speed rating. The definitions of these items are listed below. (Note that the tire size, load index and speed rating for your vehicle may be different from this example.) 1.
Page 152 Tires, Wheels and Loading Note: You may not find this information on all tires because it is not required by federal law. Letter rating Speed rating - mph (km/h) 81 mph (130 km/h) 87 mph (140 km/h) 99 mph (159 km/h) 106 mph (171 km/h) 112 mph (180 km/h) 118 mph (190 km/h)
Page 153 Tires, Wheels and Loading 12. Treadwear, Traction and Temperature Grades • Treadwear: The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 ⁄...
Page 154 Tires, Wheels and Loading Additional information contained on the tire sidewall for “LT” type tires “LT” type tires have some additional information beyond those of “P” type tires; these differences are described below: 1. LT: Indicates a tire, designated by the Tire and Rim Association (T&RA), that is intended for service on light trucks.
Page 155 Tires, Wheels and Loading Information on “T” type tires “T” type tires have some additional information beyond those of “P” type tires; these differences are described below: T145/80D16 is an example of a tire size. Note: The temporary tire size for your vehicle may be different from this example.
Page 156: Vehicle Loading
Tires, Wheels and Loading SNOW TIRES AND CHAINS Snow tires must be the same size and grade as the tires you currently have on your vehicle. The tires on your vehicle have all weather treads to provide traction in rain and snow. However, in some climates, you may need to use snow tires and chains.
Page 157 Tires, Wheels and Loading Payload – is the combined weight of cargo and passengers that the vehicle is carrying. The maximum payload for your vehicle can be found on the Tire Label on the B-Pillar or the edge of the driver’s door (vehicles exported outside the US and Canada may not have a Tire Label).
Page 158 Tires, Wheels and Loading Example only: Cargo Weight – includes all weight added to the Base Curb Weight, including cargo and optional equipment. When towing, trailer tongue load or king pin weight is also part of cargo weight. GAW (Gross Axle Weight) – is the total weight placed on each axle (front and rear) –...
Page 159 Tires, Wheels and Loading GAWR (Gross Axle Weight Rating) – is the maximum allowable weight that can be carried by a single axle (front or rear). These numbers are shown on the Safety Compliance Certification Label located on the B-Pillar or the edge of the driver’s door. The total load on each axle must never exceed its GAWR.
Page 160 Tires, Wheels and Loading GVWR (Gross Vehicle Weight Rating) – is the maximum allowable weight of the fully loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is shown on the Safety Compliance Certification Label located on the B-Pillar or the edge of the driver’s door.
Page 161 Tires, Wheels and Loading 10–15% (conventional trailer) or king pin weight of 15–25% (fifth wheel trailer), and driver only (150 lb. [68 kg]). Consult your authorized dealer (or the RV and Trailer Towing Guide provided by your authorized dealer) for more detailed information. Do not exceed the GVWR or the GAWR specified on the Safety Compliance Certification Label.
Page 162: Trailer Towing
Tires, Wheels and Loading capacity to carry you, 4 of your friends and all the golf bags? You and four friends average 220 lb. (99 kg) each and the golf bags weigh approximately 30 lb. (13.5 kg) each. The calculation would be: 1400 – (5 x 220) –...
Page 163 Tires, Wheels and Loading Towing trailers beyond the maximum recommended gross trailer weight exceeds the limit of the vehicle and could result in engine damage, transmission damage, structural damage, loss of vehicle control, vehicle rollover and personal injury. The GCW of your vehicle and trailer should not exceed 6,600 lb. (2,993 kg). Preparing to tow Use the proper equipment for towing a trailer and make sure it is properly attached to your vehicle.
Page 164 Tires, Wheels and Loading authorized dealer or trailer rental agency for proper instructions and equipment for hooking up trailer lamps. Driving while you tow When towing a trailer: • Keep your speed no faster than 70 mph (112 km/h) during the first 500 miles (800 km) of towing a trailer, and don’t make full throttle starts.
Page 165: Recreational Towing
Tires, Wheels and Loading lube used, do not tow a trailer for the first 500 miles (800 km) of a new vehicle, and that the first 500 miles (800 km) of towing be done at no faster than 70 mph (112 km/h) with no full throttle starts. •...
Page 166 • Maximum distance is 50 miles (80 km) If a distance of 50 miles (80 km) or a speed of 35 mph (56 km/h) must be exceeded, you must disconnect the driveshaft. Ford Motor Company recommends the driveshaft be removed/installed only by a qualified technician at an authorized dealer.
Page 167: Driving
Driving STARTING Positions of the ignition 1. OFF/LOCK, shuts off the engine and all accessories/locks the gearshift lever and allows key removal. 2. ACC, allows the electrical accessories such as the radio to operate while the engine is not running. 3.
Page 168 Driving If you smell exhaust fumes inside your vehicle, have your dealer inspect your vehicle immediately. Do not drive if you smell exhaust fumes. Important safety precautions A computer system controls the engine’s idle revolutions per minute (RPM). When the engine starts, the idle RPM runs higher than normal in order to warm the engine.
Page 169 Driving 5. Turn the key to 3 (ON) without turning the key to 4 (START). Some warning lights will briefly illuminate. See Warning lights and chimes in the Instrument Cluster chapter for more information regarding the warning lights. Starting the engine 1.
Page 170 Driving Do not use starting fluid such as ether in the air intake system. Such fluid could cause immediate explosive damage to the engine and possible personal injury. If you should experience cold weather starting problems on E ethanol, and neither an alternative brand of E ethanol nor an engine block heater is available, the addition of unleaded gasoline to your tank will improve cold starting performance.
Page 171: Brakes
Driving To reduce the risk of electrical shock, do not use your heater with ungrounded electrical systems or two-pronged (cheater) adapters. BRAKES Your service brakes are self-adjusting. Refer to the scheduled maintenance information for scheduled maintenance. Occasional brake noise is normal and often does not indicate a performance concern with the vehicle’s brake system.
Page 172 Driving snowy roads is normal and indicates proper functioning of the vehicle’s anti-lock brake system. If the vehicle has continuous vibration or shudder in the steering wheel while braking, the vehicle should be inspected by an authorized dealer. The ABS operates by detecting the onset of wheel lockup during brake applications and compensates for this tendency.
Page 173 Driving illuminated with parking brake released. (If your brake warning lamp illuminates, have your vehicle serviced immediately.) Parking brake with auto-release (if equipped) Apply the parking brake whenever the vehicle is parked. To set the parking brake: 1. Move the gearshift to P (Park). 2.
Page 174: Traction Control
Driving If the parking brake fails to release after completing this procedure, use the manual parking brake release lever. Pull the lever to manually release the parking brake. TRACTION CONTROL (IF EQUIPPED) Your vehicle may be equipped with the optional Traction Control system.
Page 175 STEERING Ford Motor Company recommends that an authorized dealer inspect all steering column assemblies in use in vehicles involved in a collision. Failure to inspect and if necessary replace the steering column assembly could result in severe injury or death in the event of a collision.
Page 176: Air Suspension
Driving • Do not operate the vehicle with a low power steering pump fluid level (below the MIN mark on the reservoir). • Some noise is normal during operation. If the noise is excessive, check for low power steering pump fluid level before seeking service by your authorized dealer.
Page 177: Transmission Operation
Driving If you exceed the load limit, the rear air suspension may not operate. The air suspension shut-off switch is AIR SUSPENSION located on the left side of the trunk. SWITCH If this switch is in the OFF position, INTERRUPTEUR DE the rear air suspension will not LA SUSPENSION operate.
Page 178 Driving 2. Locate the access plug on the underside of the steering column cover. 3. Remove the access plug using a flat head screwdriver. Insert the screwdriver into the access hole nearest the steering wheel. Then push and hold the override button using a flat head screwdriver. Apply the brake pedal and shift the transmission into N (Neutral) while continuing to depress the override button.
Page 179 Driving 2. Insert the key and turn it to ACC. Apply the brake pedal and shift to N (Neutral). When the key is in the ignition and in the ACC position, the automatic transmission shift lever can be moved from the P (Park) position without the brake pedal depressed.
Page 180 Driving • Depress the brake pedal • Move the gearshift lever into the desired gear To put your vehicle in P (Park): • Come to a complete stop • Move the gearshift lever and securely latch it in P (Park) Always set the parking brake fully and make sure the gearshift is latched in P (Park).
Page 181 Driving If your vehicle is equipped with a floor-shift transmission, overdrive can be deactivated by pressing the transmission control switch on the gearshift handle. The transmission control indicator light (TCIL) will illuminate on the instrument cluster. Drive (not shown) Drive is activated when the transmission control switch is pressed. •...
Page 182 Driving 1 (First) • Provides maximum engine braking. • Allows upshifts by moving gearshift lever. • Will not downshift into 1 (First) at high speeds; allows for 1 (First) when vehicle reaches slower speeds. Forced downshifts • Allowed in (Overdrive) or Drive. •...
Page 183: Roadside Emergencies
Roadside Emergencies ROADSIDE ASSISTANCE Getting roadside assistance To fully assist you should you have a vehicle concern, Ford Motor Company offers a complimentary roadside assistance program. This program is separate from the New Vehicle Limited Warranty. The service is available: •...
Page 184: Hazard Flasher Switch
1–800–241–3673; Lincoln vehicle customers call 1–800–521–4140. Canadian customers who require roadside assistance, call 1–800–665–2006. If you need to arrange roadside assistance for yourself, Ford Motor Company will reimburse a reasonable amount. To obtain reimbursement information, U.S. Ford or Mercury vehicles customers call 1–800–241–3673;...
Page 185: Fuel Pump Shut-Off Switch
Roadside Emergencies • The hazard lights control is located on top of the steering column. • Depress hazard lights control to activate all hazard flashers simultaneously. • Depress control again to turn the flashers off. FUEL FUEL PUMP SHUT-OFF SWITCH RESET The fuel pump shut-off switch is a device intended to stop the electric fuel pump when your vehicle has been involved in a substantial jolt.
Page 186: Fuses And Relays
Roadside Emergencies 3. If no fuel leak is apparent, reset the fuel pump shut-off switch by pushing in on the reset button. 4. Turn the ignition to the ON position. Pause for a few seconds and return the key to the OFF position. 5.
Page 187: Passenger Compartment Fuse Panel
Roadside Emergencies COLOR Cartridge Fuse Mini Standard Maxi Fuse link maxi rating fuses fuses fuses cartridge fuses — — — — Blue — Yellow — — — Brown — — Natural — Black Passenger compartment fuse panel The fuse panel is located below and to the left of the steering wheel by the brake pedal.
Page 188 Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description Taxi, Cluster, Lighting Control Module (Interior Lighting) Ignition (ON) - Electronic Automatic Temperature Control (EATC) module, A/C mode switch (vehicles equipped with manual A/C only), A/C blower relay coil EATC module (vehicles equipped with EATC only) Ignition (ON) - Anti-lock Brake...
Page 189 Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description Ignition (ON) - BTSI (Floor-shift transmission) 7.5A Ignition (ON/ACC) - LCM, Door lock switch illumination, Heated seat switch illumination, Moonroof, Overhead console, Electrochromatic mirror Ignition (ON) - Turn signals Ignition (ON/ACC) - Audio Ignition (ON) - A/C mode switch (manual A/C only), Blend door,...
Page 190: Power Distribution Box
Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description Autolamp/Sunload sensor, Power mirrors, Door lock switches, Mirror switch, Keypad switch, Decklid switch, Adjustable pedal switch, DDM Ignition (ON/START) - Cluster, LCM, Overdrive cancel switch, Rear defroster relay coil Cigar lighter, OBD II 7.5A Center High-Mounted Stop Lamp...
Page 191 Roadside Emergencies The high-current fuses are coded as follows. Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 25A* Ignition switch (Key in, RUN 1, RUN 2), Hazards 25A* Ignition switch (RUN/START, RUN/ACC, START) 10A* Powertrain Control Module (PCM) keep alive power 20A* Fuel relay feed 10A*...
Page 192 Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 25A* Audio 20A* Instrument panel power point 20A* Stop lamp switch 20A* Heated seats 25A* Tray lamps (Police vehicles only) — Not used — Not used 15A* Injectors 15A* PCM, Mass Air Flow (MAF) sensor, IAT 15A*...
Page 193 Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 20A** Moonroof (non-Police vehicles only) Spotlights (available on Police vehicles, Long Wheel Base [LWB] vehicles and commercial vehicles only) 20A** ABS module (Valves) 30A** Wiper module 50A** Police PDB or Police I/P accessory battery feed (Police vehicles only) 30A** Air suspension compressor...
Page 194 Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description ⁄ ISO relay — Not used ⁄ ISO relay Fuel — Not used — Not used ⁄ ISO relay Horn Full ISO relay Starter Full ISO relay Air compressor (non-Police vehicles only) RUN/ACC relay (Police vehicles only)
Page 195: Changing Tires
Roadside Emergencies CHANGING THE TIRES If you get a flat tire while driving: • do not brake heavily. • gradually decrease the vehicle’s speed. • hold the steering wheel firmly. • slowly move to a safe place on the side of the road. Your vehicle may be equipped with a conventional spare tire that is different in one or more of the following: type, brand, size, speed rating and tread design.
Page 196 Roadside Emergencies • Tow a trailer • Use snow chains on the end of the vehicle with the dissimilar spare tire • Use more than one dissimilar spare tire at a time • Use commercial car washing equipment • Try to repair the dissimilar spare tire Use of one of the dissimilar spare tires listed above at any one wheel location can lead to impairment of the following: •...
Page 197 Roadside Emergencies When driving with the full-size dissimilar spare tire/wheel additional caution should be given to: • Towing a trailer • Driving vehicles equipped with a camper body • Driving vehicles with a load on the cargo rack Drive cautiously when using a full-size dissimilar spare tire/wheel and seek service as soon as possible.
Page 198 Roadside Emergencies 2. Place gearshift lever in P (Park), turn engine OFF and block the diagonally opposite wheel. 3. Remove the spare tire and the jack. The jack could be located: • A — behind the mini spare tire or •...
Page 199 Roadside Emergencies 5. Locate pry off notch (if equipped) and remove the center ornament from the aluminum wheel with the tapered end of the wheel nut wrench that came with your vehicle. Insert and twist the handle, then pry against the wheel. 6.
Page 200: Lug Nut Torque
Roadside Emergencies To lessen risk of personal injury, do not put any part of your body under the vehicle while changing a tire. Do not start the engine when your vehicle is on the jack. The jack is ONLY meant for changing the tire. •...
Page 201: Jump Starting
Roadside Emergencies Bolt size Wheel lug nut torque* lb.ft. N•m ⁄ x 20 * Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel.
Page 202 Roadside Emergencies 3. Park the booster vehicle close to the hood of the disabled vehicle making sure the two vehicles do not touch. Set the parking brake on both vehicles and stay clear of the engine cooling fan and other moving parts.
Page 203 Roadside Emergencies 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 4. Make the final connection of the negative (-) cable to an exposed metal part of the stalled vehicle’s engine, away from the battery and the carburetor/fuel injection system.
Page 204 Roadside Emergencies 3. Once the disabled vehicle has been started, run both engines for an additional three minutes before disconnecting the jumper cables. Removing the jumper cables Remove the jumper cables in the reverse order that they were connected. 1. Remove the jumper cable from the ground metal surface. Note: In the illustrations, lightning bolts are used to designate the assisting (boosting) battery.
Page 205 Roadside Emergencies 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.
Page 206: Wrecker Towing
It is recommended that your vehicle be towed with a wheel lift or flatbed equipment. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure. Before your vehicle can be towed, the air suspension control in the luggage compartment must be turned to the OFF position (if equipped).
Page 207: Customer Assistance
2. If your inquiry or concern remains unresolved, contact the Sales Manager, Service Manager or Customer Relations Manager. 3. If you require assistance or clarification on Ford Motor Company policies or procedures, please contact the Ford Customer Relationship Center at 1-800-392-3673 (FORD).
Page 208 Customer Assistance In Canada: Customer Relationship Centre Ford Motor Company of Canada, Limited P.O. Box 2000 Oakville, Ontario L6J 5E4 1-800-565-3673 (FORD) www.ford.ca If you own a Lincoln vehicle and are away from home when your vehicle needs service, or if you need more help than the authorized dealer could provide, after following the steps described above, contact the Ford Customer Relationship Center to find an authorized dealer to help you.
Page 209 In the case of 1 or 2 above, the consumer must also notify the manufacturer of the need for the repair of the nonconformity at the following address: Ford Motor Company 16800 Executive Plaza Drive Mail Drop 3NE-B Dearborn, MI 48126...
Page 210 THE BETTER BUSINESS BUREAU (BBB) AUTO LINE PROGRAM (U.S. ONLY) Your satisfaction is important to Ford Motor Company and to your dealer. Experience has shown that our customers have been very successful in achieving satisfaction by following the three-step procedure outlined on the front page of the Warranty Guide.
Page 211 Customer Assistance authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP). The CAMVAP program is a straight-forward and relatively speedy alternative to resolve a disagreement when all other efforts to produce a settlement have failed.
Page 212 The use of leaded fuel in your vehicle without proper conversion may damage the effectiveness of your emission control system and may cause engine knocking or serious engine damage. Ford Motor Company/Ford of Canada is not responsible for any damage caused by use of improper fuel.
Page 213: Reporting Safety Defects (U.s. Only)
Obtaining a French owner’s guide French Owner’s Guides can be obtained from your authorized dealer or by writing to Ford Motor Company of Canada, Limited, Service Publications, P.O. Box 1580, Station B, Mississauga, Ontario L4Y 4G3. REPORTING SAFETY DEFECTS (U.S. ONLY)
Page 214: Cleaning
Cleaning WASHING THE EXTERIOR Wash your vehicle regularly with cool or lukewarm water and a neutral pH shampoo, such as Motorcraft Detail Wash (ZC-3–A), which is available from your authorized dealer. • Never use strong household detergents or soap, such as dish washing or laundry liquid.
Page 215 Cleaning WAXING Applying Motorcraft Paint Sealant (ZC-45) to your vehicle every six months will assist in reducing minor scratches and paint damage. • Wash the vehicle first. • Do not use waxes that contain abrasives; use Motorcraft Premium Liquid Wax (ZC-53-A), which is available from your authorized dealer, or an equivalent quality product.
Page 216 Cleaning ENGINE Engines are more efficient when they are clean because grease and dirt buildup keep the engine warmer than normal. When washing: • Take care when using a power washer to clean the engine. The high-pressure fluid could penetrate the sealed parts and cause damage.
Page 217 Cleaning • If tar or grease spots are present, use Motorcraft Bug and Tar Remover (ZC-42). • For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass Cleaner (ZC-23). WINDOWS AND WIPER BLADES The windshield, rear and side windows and the wiper blades should be cleaned regularly.
Page 218 Cleaning • Be certain to wash or wipe your hands clean if you have been in contact with certain products such as insect repellent and suntan lotion in order to avoid possible damage to the interior painted surfaces. INTERIOR TRIM •...
Page 219 Cleaning • To help maintain its resiliency and color, use the Motorcraft Deluxe Leather Care Kit (ZC-11–D), available from your authorized dealer. • Do not use household cleaning products, alcohol solutions, solvents or cleaners intended for rubber, vinyl and plastics, or oil/petroleum-based leather conditioners.
Page 220 Cleaning Motorcraft Premium Car Wash Concentrate (U.S. only) (ZC-17-B) Motorcraft Premium Glass Cleaner (Canada only) (CXC-100) Motorcraft Premium Liquid Wax (ZC-53-A) Motorcraft Premium Windshield Washer Concentrate (ZC-32–A) Motorcraft Professional Strength Carpet & Upholstery Cleaner (ZC-54) Motorcraft Spot and Stain Remover (U.S. only) (ZC-14) Motorcraft Tire Clean and Shine (ZC-28) Motorcraft Triple Clean (U.S.
Page 221: Maintenance And Specifications
Maintenance and Specifications SERVICE RECOMMENDATIONS To help you service your vehicle: • We highlight do-it-yourself items in the engine compartment for easy location. • We provide scheduled maintenance information which makes tracking routine service easy. If your vehicle requires professional service, your authorized dealer can provide the necessary parts and service.
Page 222 Maintenance and Specifications OPENING THE HOOD 1. Inside the vehicle, pull the hood release handle located under the instrument panel. 2. Go to the front of the vehicle and release the auxiliary latch that is located under the front of the hood. 3.
Page 223: Engine Compartment
Maintenance and Specifications IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT 4.6L SOHC V8 engine 1. Brake fluid reservoir 2. Engine oil dipstick 3. Windshield washer fluid reservoir 4. Air filter assembly 5. Power steering fluid reservoir 6. Engine coolant reservoir 7. Battery 8.
Page 224 Maintenance and Specifications WINDSHIELD WASHER FLUID Add fluid to fill the reservoir if the level is low. In very cold weather, do not fill the reservoir completely. Only use a washer fluid that meets Ford specification WSB-M8B16–A2. Do not use any special washer fluid such as windshield water repellent type fluid or bug wash.
Page 225: Engine Oil
Maintenance and Specifications Poor wiper quality can be improved by cleaning the wiper blades and the windshield, refer to Windows and wiper blades in the Cleaning chapter. To prolong the life of the wiper blades, it is highly recommended to scrape off the ice on the windshield before turning on the wipers.
Page 226 Maintenance and Specifications • If the oil level is within this range, the oil level is acceptable. DO NOT ADD OIL. • If the oil level is below this mark, engine oil must be added to raise the level within the normal operating range.
Page 227 Maintenance and Specifications To avoid possible oil loss, DO NOT operate the vehicle with the engine oil level indicator and/or the engine oil filler cap removed. Engine oil and filter recommendations Look for this certification trademark. Use SAE 5W-20 engine oil. Only use oils “Certified For Gasoline Engines”...
Page 228: Battery
Maintenance and Specifications BATTERY Your vehicle is equipped with a Motorcraft maintenance-free battery which normally does not require additional water during its life of service. However, for severe usage or in high temperature climates, check the battery electrolyte level. Refer to scheduled maintenance information for the service interval schedules.
Page 229 Maintenance and Specifications When lifting a plastic-cased battery, excessive pressure on the end walls could cause acid to flow through the vent caps, resulting in personal injury and/or damage to the vehicle or battery. Lift the battery with a battery carrier or with your hands on opposite corners.
Page 230: Engine Coolant
Maintenance and Specifications • Always dispose of automotive batteries in a responsible manner. Follow your local authorized standards for disposal. Call your local authorized recycling center to find out more about recycling automotive batteries. RECYCLE ENGINE COOLANT Checking engine coolant The concentration and level of engine coolant should be checked at the intervals listed in scheduled maintenance information.
Page 231 Maintenance and Specifications When the engine is cold, check the level of the engine coolant in the reservoir. • The engine coolant should be at the “FULL COLD” level or within the “COLD FILL RANGE” as listed on the engine coolant reservoir (depending upon application).
Page 232 Maintenance and Specifications Do not add engine coolant when the engine is hot. Steam and scalding liquids released from a hot cooling system can burn you badly. Also, you can be burned if you spill coolant on hot engine parts. Do not put engine coolant in the windshield washer fluid container.
Page 233 Recycled engine coolant Ford Motor Company does NOT recommend the use of recycled engine coolant in vehicles originally equipped with Motorcraft Premium Gold Engine Coolant since a Ford-approved recycling process is not yet...
Page 234 Maintenance and Specifications Used engine coolant should be disposed of in an appropriate manner. Follow your community’s regulations and standards for recycling and disposing of automotive fluids. Coolant refill capacity To find out how much fluid your vehicle’s cooling system can hold, refer to Refill capacities in this section.
Page 235 Maintenance and Specifications What you should know about fail-safe cooling If the engine coolant supply is depleted, this feature allows the vehicle to be driven temporarily before incremental component damage is incurred. The “fail-safe” distance depends on ambient temperatures, vehicle load and terrain.
Page 236: Fuel Information
Maintenance and Specifications 5. Re-start the engine and take your vehicle to an authorized dealer. Driving the vehicle without repairing the engine problem increases the chance of engine damage. Take your vehicle to an authorized dealer as soon as possible. FUEL FILTER For fuel filter replacement, see your authorized dealer.
Page 237 Maintenance and Specifications Observe the following guidelines when handling automotive fuel: • Extinguish all smoking materials and any open flames before refueling your vehicle. • Always turn off the vehicle before refueling. • Automotive fuels can be harmful or fatal if swallowed. Fuels such as gasoline and ethanol are highly toxic and if swallowed can cause death or permanent injury.
Page 238 Maintenance and Specifications and sugar cane. When ethanol is produced for use in motor fuels, a small amount of gasoline is added to make it unfit for beverage use. The resulting ethanol blend is called denatured fuel ethanol meaning that it is denatured with 2% to 5% gasoline and is suitable for automotive use.
Page 239 Maintenance and Specifications Refueling Fuel vapor burns violently and a fuel fire can cause severe injuries. To help avoid injuries to you and others: • Read and follow all the instructions on the pump island; • Turn off your engine when you are refueling; •...
Page 240 Maintenance and Specifications The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap. Otherwise, fuel may spray out and injure you or others. If you do not use the proper fuel filler cap, excessive pressure or vacuum in the fuel tank may damage the fuel system or cause the fuel cap to disengage in a collision, which may result in possible...
Page 241 Maintenance and Specifications Octane recommendations Do not be concerned if your engine sometimes knocks lightly. However, if it knocks heavily under most driving conditions while you are (R+M)/2 METHOD using fuel with the recommended octane rating, see your authorized dealer to prevent any engine damage. Unleaded Gasoline engines Your vehicle is designed to use “Regular”...
Page 242 Maintenance and Specifications FFV engine (if equipped) Your FFV will operate well on ordinary “Regular” unleaded gasoline, but only the highest quality fuel ethanol will provide the same level of protection and performance. To identify if your vehicle is an FFV, check your VIN or the label on the inside of your fuel filler door.
Page 243 Maintenance and Specifications of driving (engine break-in period). You will get a more accurate measurement after 2,000 miles-3,000 miles (3,000 km–5,000 km). Filling the tank The advertised fuel capacity of the fuel tank on your vehicle is equal to the rated refill capacity of the fuel tank as listed in the Refill capacities section of this chapter.
Page 244 Maintenance and Specifications 4. Subtract your initial odometer reading from the current odometer reading. 5. Follow one of the simple calculations in order to determine fuel economy: Calculation 1: Divide total miles traveled by total gallons used. Calculation 2: Multiply liters used by 100, then divide by total kilometers traveled.
Page 245 Maintenance and Specifications Maintenance • Keep tires properly inflated and use only recommended size. • Operating a vehicle with the wheels out of alignment will reduce fuel economy. • Use recommended engine oil. Refer to Lubricant specifications in this chapter. •...
Page 246 Ford Motor Company parts in performance and durability. Do not park, idle, or drive your vehicle in dry grass or other dry ground cover.
Page 247 Maintenance and Specifications it from working. Information about your vehicle’s emission system is on the Vehicle Emission Control Information Decal located on or near the engine. This decal identifies engine displacement and gives some tune up specifications. Please consult your Warranty Guide for complete emission warranty information.
Page 248 Maintenance and Specifications condition. To ready the on-board diagnostics system for I/M testing, a minimum of 30 minutes of city and highway driving is necessary as described below: • First, at least 10 minutes of driving on an expressway or highway. •...
Page 249 Maintenance and Specifications BRAKE FLUID The fluid level will drop slowly as the brakes wear, and will rise when the brake components are replaced. Fluid levels below the “MAX” line that do not trigger the brake system warning lamp are within the normal operating range, there is no need to add fluid.
Page 250 Maintenance and Specifications Low fluid level Do not drive the vehicle if the fluid level is at the bottom of the dipstick and the ambient temperature is above 50°F (10°C). Correct fluid level The transmission fluid should be checked at normal operating temperature 150°F-170°F (66°C-77°C) on a level surface.
Page 251: Air Filter(S)
Maintenance and Specifications High fluid level Fluid levels above the safe range may result in transmission failure. An overfill condition of transmission fluid may cause shift and/or engagement concerns and/or possible damage. High fluid levels can be caused by an overheating condition. Adjusting automatic transmission fluid levels Before adding any fluid, make sure the correct type is used.
Page 252: Part Numbers
Maintenance and Specifications Changing the air filter element 1. Release the clamps that secure the air filter housing cover. 2. Carefully separate the two halves of the air filter housing. 3. Remove the air filter element from the air filter housing. 4.
Page 253: Refill Capacities
Maintenance and Specifications For PCV valve replacement, see your authorized dealer. Refer to scheduled maintenance information for the appropriate intervals for changing the PCV valve. Replace the PCV valve with one that meets Ford material and design specifications for your vehicle, such as a Motorcraft or equivalent replacement part.
Page 254 Maintenance and Specifications Fluid Ford Part Name Capacity Fuel tank 19.0 gallons (71.9L) Rear axle lubricant Motorcraft SAE 80W-90 Premium Rear 5.0 pints (2.4L) Axle Lubricant Windshield washer Motorcraft Premium fluid Windshield Washer Fill to line on reservoir Concentrate Use only brake fluids certified to meet Ford specifications. Refer to Lubricant Specifications in this chapter.
Page 255: Lubricant Specifications
Maintenance and Specifications LUBRICANT SPECIFICATIONS Item Ford part Ford part Ford name number specification Brake fluid Motorcraft High PM-1 or PM-1-C ESA-M6C25-A or Performance WSS-M6C62-A DOT 3 Motor Vehicle Brake Fluid Door Silicone Spray XL-6 ESR-M13P4-A weatherstrips Lubricant Engine coolant Motorcraft VC-7–A (except WSS-...
Page 256 Maintenance and Specifications Item Ford part Ford part Ford name number specification Automatic Motorcraft XT-5-QM transmission MERCON V MERCON V (4R75E) Rear Axle Motorcraft SAE XY-80W90-QL WSP-M2C197-A Lubricant 80W-90 Premium Rear Axle Lubricant Windshield Motorcraft ZC-32-A WSB-M8B16–A2 washer fluid Premuim Windshield Washer Concentrate...
Page 257 Maintenance and Specifications VEHICLE DIMENSIONS (AT CURB MASS) Vehicle dimensions Inches (mm) (1) Overall length 212 (5385)/218 (5538) (2) Overall width 78.3 (1990) (3) Overall height 58.3 (1481)/58.9 (1495) (4) Wheelbase 114.6 (2911)/120.8 (3067) (5) Track - Front 62.8 (1596) (5) Track - Rear 65.6 (1666) Denotes long wheel base...
Page 258 Maintenance and Specifications IDENTIFYING YOUR VEHICLE Safety Compliance Certification Label The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label is located on the structure by the trailing edge of the driver’s door or...
Page 259 Maintenance and Specifications The Vehicle Identification Number (VIN) contains the following information: 1. World manufacturer identifier 2. Brake system / Gross Vehicle Weight Rating (GVWR) / Restraint System 3. Vehicle line, series, body type 4. Engine type 5. Check digit 6.
Page 260: Accessories
In addition, each accessory is made from high quality materials and meets or exceeds Ford’s rigorous engineering and safety specifications. Ford Motor Company will repair or replace any properly dealer-installed Genuine Ford Accessories found to...
Page 261 Accessories Peace of mind First aid and safety kits Full vehicle covers Locking gas cap Remote start Vehicle security systems Mobile-Ease hands-free communication system For maximum vehicle performance, keep the following information in mind when adding accessories or equipment to your vehicle: •...
Page 262: Index
Index ABS (see Brakes) .....171 Battery ........228 acid, treating emergencies ..228 Air cleaner filter ....251–252 jumping a disabled battery ..201 maintenance-free ....228 Air conditioning ......37 replacement, specifications ...252 Air suspension ......176 servicing ........228 description ......176 BeltMinder .........113 Airbag supplemental restraint Brakes ........171 system ........118, 127 anti-lock ......171–172...
Page 263 Index wiper blades ......217 Climate control (see Air Daytime running lamps conditioning or Heating) ....37 (see Lamps) ........41 Clock adjust Defrost 6-CD in dash ......33 rear window ......39 AM/FM ........18 Dipstick AM/FM/Cassette ......19 automatic transmission AM/FM/CD .........23 fluid ..........249 AM/FM/Tape/CD .......28 engine oil .........225 Doors Compass, electronic...
Page 264 Index recommendations ....227 refill capacities ......253 specifications ....255–256 Hazard flashers ......184 Exhaust fumes ......170 Head restraints ......98 Headlamps ........40 aiming ........42 autolamp system .......40 Fail safe cooling ......235 bulb specifications ....44 Flexible Fuel Vehicle (FFV) ..236 daytime running lights .....41 flash to pass ......41 Floor mats ........81 high beam .........41...
Page 265 Index Jump-starting your vehicle ..201 english/metric button ....77 system check button ....76 warning messages .....78 Mirrors .........64 Keyless entry system ....90 automatic dimming rearview autolock ........89 mirror ........63 keypad ........90 fold away ........64 programming entry code ..90 heated ........64 Keys ........82, 95 side view mirrors (power) ..64 positions of the ignition ..167 Moon roof ........69...
Page 266 Index Rear window defroster ....39 Servicing your vehicle ....221 Relays ........186, 194 Setting the clock AM/FM single CD .....23 Remote entry system ....85 AM/FM stereo ......18 illuminated entry ......88 AM/FM/Cassette ......19 locking/unlocking doors ...86 AM/FM/In-dash 6 CD ....33 opening the trunk .....86 AM/FM/Tape/CD .......28 panic alarm .......86 Spark plugs,...
Page 267 Index treadwear ......142, 147 Vehicle Identification Number (VIN) ..........258 Towing ........162 recreational towing ....165 Vehicle loading ......156 trailer towing ......162 Ventilating your vehicle ...170 wrecker ........206 Traction control ......174 Traction-lok rear axle ....177 Transmission ......177 Warning lights (see Lights) ..10 brake-shift interlock Washer fluid ......224 (BSI) ........177–178...

Ford 2006 Crown Victoria User Manual

Introduction

Instrument Cluster

Entertainment Systems

Climate Controls

Lights

Driver Controls

Locks and Security

Seating and Safety Restraints

Tires, Wheels and Loading

Driving

Roadside Emergencies

Customer Assistance

Maintenance and Specifications

Accessories

Index

Quick Links

Table of Contents

Need help?

Questions and answers

Related Manuals for Ford 2006 Crown Victoria

Summary of Contents for Ford 2006 Crown Victoria

Table of Contents
