Table of Contents Introduction Instrument Cluster Warning and control lights Gauges Entertainment Systems AM/FM stereo AM/FM stereo with CD AM/FM stereo cassette with CD AM/FM stereo with in-dash six CD Climate Controls Heater only Manual heating and air conditioning Automatic temperature control Lights Headlamps Turn signal control...
Page 2 Table of Contents Locks and Security Keys Locks Seating and Safety Restraints Seating Safety restraints Airbags Child restraints Tires, Wheels and Loading Tire Information Tire Inflation Vehicle loading Trailer towing Trailer Brake Controller-Integrated Recreational towing Driving Starting Brakes Transmission operation Roadside Emergencies Getting roadside assistance Hazard flasher switch...
Page 4: Introduction
State of California to cause cancer and birth defects or other reproductive harm. CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
Page 5 Introduction SAFETY AND ENVIRONMENT PROTECTION Warning symbols in this guide How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.
Page 6 In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, Ford Motor Company, S.A. de C.V. and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.
Page 7 Introduction if the modification is removed. When a dealer or repair facility works on your vehicle, it may be necessary for them to access the information in the Powertrain Control System. This information will likely identify if any unauthorized modifications have been made to the system and may be used to determine if repairs will be covered by warranty.
Page 8 For additional information, please contact the Truck Body Builders Advisory Service at 1–877–840–4338. Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures.
Page 9 You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain 6.0L Diesel engine equipped vehicles.
Page 10 Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Fasten Safety Belt Airbag-Front Airbag-Side Child Seat Child Seat Installation Child Seat Lower Warning Anchor Child Seat Tether Brake System Anchor Brake Fluid - Anti-Lock Brake System...
Page 11 Introduction Vehicle Symbol Glossary Power Windows Power Window Lockout Front/Rear Interior Luggage Child Safety Door Compartment Release Lock/Unlock Symbol Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, Battery Acid or Sparks Explosive Gas Fan Warning Maintain Correct Fluid...
Page 12: Instrument Cluster
Instrument Cluster WARNING LIGHTS AND CHIMES Standard instrument cluster (manual transmission) Standard instrument cluster (automatic transmission) Harley-Davidson instrument cluster Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions.
Page 13 Instrument Cluster Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, have the respective system inspected immediately. If your vehicle is equipped with a diesel engine, it has a unique cluster, refer to Starting the engine in your 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement.
Page 14 Instrument Cluster after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing authorized dealer. Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may occur.
Page 15 Instrument Cluster Four wheel drive low: Illuminates when four-wheel drive low is RANGE engaged. Four wheel drive indicator: Illuminates when four-wheel drive is engaged. Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.
Page 16: Gauges
Instrument Cluster GAUGES Speedometer: Indicates the current vehicle speed. Standard instrument cluster Harley-Davidson instrument clusters Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating.
Page 17 Instrument Cluster Odometer: Registers the total miles (kilometers) of the vehicle. • With Mini Message Center • With Full Message Center Refer to Message Center in the Drivers Controls chapter on how to switch the display from Metric to English. Trip odometer: Registers the miles (kilometers) of individual journeys.
Page 18 Instrument Cluster Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine. Standard instrument cluster Harley-Davidson instrument cluster Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between “L”...
Page 19 Instrument Cluster Battery voltage gauge (manual transmission only): Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked as soon as possible. Transmission fluid temperature gauge (automatic transmission only): If the gauge is in the: Normal area (normal) - the...
Page 20: Entertainment Systems
Entertainment Systems AUDIO SYSTEMS AM/FM stereo system (if equipped) Tuner: Press to manually go up or down the radio frequency. Also use in menu mode to select various settings. 2. Audio: Press to access select various settings. Treble: Press to adjust the treble setting. SEEK, SEEK Bass: Press to adjust the bass setting.
Page 21 Entertainment Systems 3. Seek: Press to access the next/previous strong station or track. 4. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 5. AM/FM: Press to select AM/FM frequency band.
Page 22: Am/Fm Stereo With Cd
Entertainment Systems AM/FM stereo/single CD sound system (if equipped) COMPRESS Tuner: Press to manually go up or down the radio frequency. Also use in menu mode to select various settings. 2. Phone/mute: Press to mute the playing media. Press again to return to the playing media.
Page 23 Entertainment Systems Treble: Press to adjust the treble setting. Use SEEK Balance: Press to adjust the audio between the left and right speakers. SEEK Fade: Press to adjust the audio between the front and rear speakers. SEEK Speed sensitive volume (if equipped): Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise.
Page 24 Entertainment Systems 11. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 12. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop.
Page 25: Am/Fm Stereo Cassette With Cd
Entertainment Systems AM/FM stereo cassette/single CD sound system (if equipped) DOLBY B NR COMPRESS Tuner: Press to manually go up or down the radio frequency. Also use in menu mode to select various settings. 2. Seek: Press to access the next strong station or track.
Page 26 Entertainment Systems Fade: Press to adjust the audio between the front and rear speakers. SEEK Speed sensitive volume (if equipped): Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Press MENU to access and use SEEK to adjust.
Page 27 Entertainment Systems 10. Fast forward: Press to manually advance in a CD track or cassette. 11. Rewind: Press to manually reverse in a CD track or cassette. 12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns.
Page 28: Am/Fm Stereo With In-Dash Six Cd
Entertainment Systems 20. Seek: Press to access the previous strong station or track. 21. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop. When this radio is used in cargo vans where no rear speakers are installed in the vehicle, fading to the rear speakers will result in no audio output.
Page 29 Entertainment Systems 3. Menu: Press to toggle through the following modes: Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press MENU to access. Use SEEK to set. When the six strongest stations are filled, the station stored in preset 1 will begin playing.
Page 30 Entertainment Systems 7. Comp (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level. 8. Repeat: Press to repeat the current CD track. 9. Fast forward: Press to manually advance in a CD track. 10.
Page 31 Entertainment Systems 17. LOAD: Press to load a CD, then select a slot number using the radio presets 1 through 6. If you don’t select a slot within 5 seconds, the radio shall choose the first available slot for you. Press and hold for 2 seconds to auto load up to six CDs. 18.
Page 32 Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player.
Page 33: Climate Controls
Climate Controls HEATER ONLY SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle.
Page 34: Manual Heating And Air Conditioning
Climate Controls To aid in side window defogging/demisting in cold weather: 1. Select 2. Modulate the temperature control to maintain comfort. 3. Set the fan speed to the highest setting. 4. Direct the outer instrument panel vents toward the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
Page 35 Climate Controls : Distributes outside air through the instrument panel vents, floor vents and center console vents (if equipped). O (OFF): Outside air is shut out and the climate system is turned off. : Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents, floor vents and demister vents.
Page 36: Automatic Temperature Control
Climate Controls AUTOMATIC TEMPERATURE CONTROL SYSTEM (IF EQUIPPED) AUTO EXT TEMP AUTO Press the AUTO and (floor/defrost) controls at the same time and hold for one second to switch between Fahrenheit and Celsius. 1. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency.
Page 37 Climate Controls (Floor): Distributes air through the floor vents. (Panel/floor): Distributes air through the instrument panel vents, floor vents and center console vents (if equipped). (Panel): Distributes air through the instrument panel vents and center console vents (if equipped). 9. OFF: Outside air is shut out and the climate control system is turned off.
Page 38 Climate Controls • To improve the A/C cool down, drive with the windows slightly open for 2–3 minutes after start up or until the vehicle has been “aired out.” For maximum cooling performance in AUTO mode: • Press AUTO control and set to desired temperature. For maximum cooling performance using manual override modes: •...
Page 39: Lights
Lights HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps. Turns the headlamps on. Autolamp control (if equipped) The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.
Page 40 Lights Foglamp control (if equipped) The headlamp control also operates the foglamps. The foglamps can be turned on only when the headlamp control is in the position and the high beams are not turned on. In autolamp mode, the foglamps won’t be operational until lighting conditions warrant the activation of the headlamp/parklamp lighting.
Page 41: Headlamps
Lights High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate. Flash to pass Pull toward you slightly to activate and release to deactivate. PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation.
Page 42 Lights Vertical and horizontal aim adjustment (sealed beam headlamps) The headlamps on your vehicle are intended to be aimed using mechanical aimers. If mechanical aimers are used and the cross-car sight line is in any way blocked, set the legs of the universal adaptor all to the same setting, such that the cross-car sight line is no longer blocked, per the instructions for the brand of mechanical aimer used.
Page 43 Lights 5. Locate the vertical adjuster (2) for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust up) or counterclockwise (to adjust down). 6. In addition to the horizontal line marked in step 2, a pair of vertical lines (5) must be marked at the center line of the headlamps on the wall or screen.
Page 44 Lights • (4) Horizontal reference line 2. Measure the height from the center of your headlamp (indicated by a 3.0 mm circle on the lens) to the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).
Page 45: Turn Signal Control
Lights TURN SIGNAL CONTROL • Push down to activate the left turn signal. • Push up to activate the right turn signal. COURTESY/READING LAMPS (IF EQUIPPED) The dome lamp illuminates when any door is not completely closed, the instrument panel switch is pushed past the detent and when any of the remote entry controls are pressed while the ignition is off.
Page 46: Bulb Replacement
Lights BULBS Headlamp condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation. Replacing exterior bulbs Check the operation of all the bulbs frequently.
Page 47 Lights 2. Remove the four screws from the top and bottom front of the headlamp assembly. 3. Press the retaining clip at the top of the headlamp assembly while pulling the assembly straight out. If removing the lamp is difficult, removing the four screws along the top of the grill will help provide more clearance.
Page 48 Lights 2. Remove the four screws from the top and bottom front of the headlamp assembly. 3. Press the retaining clip at the top of the headlamp assembly while pulling the assembly straight out. If removing the lamp is difficult, removing the four screws along the top of the grill will help provide more clearance.
Page 49 Lights 2. Remove the four screws from the top and bottom front of the headlamp assembly. 3. Press the retaining clip at the top of the headlamp assembly while pulling the assembly straight out. If removing the lamp is difficult, removing the four screws along the top of the grill will help provide more clearance.
Page 50 Lights Replacing park/turn/sidemarker bulbs (sealed beam) 1. Make sure that the headlamp control is in the OFF position and open the hood. 2. Remove the four screws from the top and bottom front of the headlamp assembly. 3. Press the retaining clip at the top of the headlamp assembly while pulling the assembly straight out.
Page 51 Lights Replacing tail lamp/turn/backup lamp bulbs — F–250/F–350 only 1. Make sure the headlamp switch is in the OFF position and then open the tailgate to expose the lamp assemblies. 2. Remove the two bolts from the tail lamp assembly and carefully pull the lamp assembly from the tailgate pillar by releasing the two retaining tabs.
Page 52 Lights Replacing cargo lamp and high-mount brakelamp bulbs 1. Make sure the headlamp switch is in the OFF position. 2. Remove the two screws and lamp assembly from vehicle as wiring permits. 3. Remove the bulb socket by rotating counterclockwise. 4.
Page 53 Lights Replacing license plate lamp bulbs The license plate bulbs are located behind the rear bumper. To change the license plate lamp bulbs: 1. Reach behind the rear bumper to locate the bulb. 2. Twist the bulb socket counterclockwise and carefully pull to remove it from the lamp assembly.
Page 54: Driver Controls
Driver Controls MULTI-FUNCTION LEVER Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers. Windshield washer: Push the end of the stalk: •...
Page 55 Driver Controls TRANSMISSION CONTROL Tow/Haul feature (5–speed automatic transmission) (if equipped) To activate, press the transmission control switch (TCS) located on the gearshift. The TOW/HAUL indicator light will illuminate in the instrument cluster. The transmission will operate in all gears. Press the transmission control switch again to deactivate Tow/Haul mode.
Page 56 Driver Controls Storage compartment (if equipped) Press the release on the door to open the storage compartment. The storage compartment may be used to secure sunglasses or a similar object and the front tab can be used for holding tickets, paper, envelopes, etc.
Page 57: Power Windows
Driver Controls POWER WINDOWS (IF EQUIPPED) Do not leave children unattended in the vehicle and do not let children play with the power windows. They may seriously injure themselves. When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in the proximity of the window openings.
Page 58: Mirrors
Driver Controls Power rear slider window (if equipped) • Press and hold the open arrow side of control to open window. • Press and hold the closed arrow side of control to close window. Accessory delay (if equipped) With accessory delay, the window switches may be used for up to ten minutes after the ignition switch is turned to the OFF position or until any door is opened.
Page 59 Driver Controls Type A The mirror heating elements are designed to operate regardless of the geographic location of the vehicle. There is no switch to turn on, or other operator involvement required other than to start the vehicle. Type B The spotter mirror, below the main mirror, is not heated and must be adjusted manually.
Page 60 Driver Controls Clearance lamps (if equipped) Illuminates when the headlamps or parking lamps are switched on. This provides additional visibility of your vehicle to other drivers on the road. Fold-away mirrors The mirrors can be manually folded forward or backwards for narrow spaces like driving through an automatic car wash or backing out of a garage with the trailer tow mirror.
Page 61: Speed Control
Driver Controls POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED) The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P (Park) position. Press and hold the rocker control to adjust accelerator and brake pedal toward you or away from you.
Page 62 Driver Controls 3. Press the SET ACCEL control and release it. 4. Take your foot off the accelerator pedal. 5. The indicator light on the instrument cluster will turn on. Note: • Vehicle speed may vary momentarily when driving up and down a steep hill.
Page 63 Driver Controls Reducing speed while using speed control There are two ways to reduce a set speed: • Press and hold the COAST control until you get to the desired speed, then release the control. You can also use the COAST control to operate the Tap-Down function.
Page 64: Upfitter Controls
Driver Controls UPFITTER CONTROLS (IF EQUIPPED) Your vehicle may be equipped with the Upfitter option package which will provide four switches, mounted in the center of the instrument panel, labeled AUX 1, AUX 2, AUX 3 and AUX 4. These switches will only operate while the ignition is in the 4 (ON) position, whether the engine is running or not.
Page 65 1935 Orange with Light Blue Trace More detailed information about the Upfitter switches can be found in the Electrical Wiring section of the Ford Truck Body Builders Layout Book, found at www.fleet.ford.com/truckbbas. 2006 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)
Page 66: Moon Roof
Driver Controls STEERING WHEEL CONTROLS (IF EQUIPPED) These controls allow you to operate some radio and climate control features. Radio control features • Press MODE to select AM, FM1, FM2, TAPE or CD (if equipped). In Radio mode: • Press NEXT to seek/scan to the NEXT next strong station.
Page 67 Driver Controls Press and release the control again to fully open. To stop the one-touch open feature press either the AUTO or control again. To close the moon roof: Press and hold the control until the glass panel stops at the “comfort” position. Press and hold the control again until the glass stops moving.
Page 68: Message Center
Driver Controls MINI-MESSAGE CENTER (IF EQUIPPED) With the ignition in the ON position, the mini message center, located on your instrument cluster, displays text messages that alert you to possible problems or malfunctions in your vehicle’s operating systems. Note: The following warning messages will reappear after an ignition OFF-ON cycle has been completed.
Page 69 Driver Controls Check gauge: Displays when any of the following conditions has occurred: • The engine coolant temperature is high. • The engine oil pressure is low. • The fuel gauge is at or near empty. Check trailer (if equipped): Displayed when a trailer connection becomes disconnected, either intentionally or unintentionally, and...
Page 70 Driver Controls display features on the message center for a display of status preceded by a brief indicator chime. The system will also notify you of potential vehicle problems with a display of system warnings followed by a long indicator chime. Selectable features Reset Press this control to select and reset...
Page 71 Driver Controls conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass zone/calibration adjustment. Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones.
Page 72 Driver Controls 7. Press the RESET control to start the compass calibration function. 8. Slowly drive the vehicle in a circle (less than 3 mph [5 km/h]) until the CIRCLE SLOWLY TO CALIBRATE display changes to CALIBRATION COMPLETED. It will take up to five circles to complete calibration.
Page 73 Driver Controls • Differences in the automatic shut-off points on the fuel pumps at service stations • Variations in top-off procedure from one fill-up to another • Rounding of the displayed values to the nearest 0.1 gallon (liter) 1. Drive the vehicle at least 5 miles (8 km) with the speed control system engaged to display a stabilized average.
Page 74 Driver Controls The sequence of the system check report and how it appears in the message center is as follows: 1. ENGINE TEMP 2. TRANS TEMP 3. OIL PRESSURE 4. BRAKE FLUID LEVEL 5. DOOR AJAR 6. FUEL CAP (gasoline engine only) 7.
Page 75 Driver Controls Language 1. Select this function from the SETUP menu for the current language to be displayed. 2. Pressing the RESET control cycles the message center through each of the language choices. 3. Press and hold the RESET control to set the language choice. System warnings System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.
Page 76 Driver Controls Warning display Status Reduced engine power Warning cannot be reset Stop engine safely Low fuel level Warning returns after 10 minutes Low brake fluid level Low oil pressure Check engine temperature Trailer disconnected Water in fuel (diesel only) Check air filter (diesel only) Door ajar Warning returns after the ignition key...
Page 77 Driver Controls LOW BRAKE FLUID LEVEL. Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Checking and adding brake fluid in the Maintenance and Specifications chapter. LOW OIL PRESSURE. Displayed when the engine oil pressure is low. If this warning message is displayed, check the level of the engine oil.
Page 78 Driver Controls DATA ERR. These messages indicate improper operation of the vehicle network communication between electronic modules. • Odometer • Fuel flow • Fuel level • Trans temp • Fuel cap • Engine sensor • Brake fluid • Auto lock •...
Page 79 Driver Controls Tailgate removal Your tailgate is removable to allow more room for loading. 1. Lower the tailgate. 2. Use a screwdriver to pry the spring clip (on each connector) past the head of the support screw. Disconnect cable. 3. Disconnect the other cable. 4.
Page 80: Locks And Security
Locks and Security KEYS The key operates all locks on your vehicle. You should always carry a second key with you in a safe place in case you require it in an emergency. Your keys are programmed to your vehicle; using a non-programmed key will not permit your vehicle to start.
Page 81 Locks and Security CHILDPROOF DOOR LOCKS (IF EQUIPPED) • When these locks are set, the rear doors cannot be opened from the inside. • The rear doors can be opened from the outside when the doors are unlocked. The childproof locks are located on rear edge of each rear door and must be set separately for each door.
Page 82 Locks and Security Your vehicle is equipped with a remote entry system which allows you to: • unlock the vehicle doors without a key. • lock all the vehicle doors without a key. • activate the personal alarm. If there are problems with the remote entry system, make sure to take ALL remote entry transmitters with you to the authorized dealer in order to aid in troubleshooting the problem.
Page 83 Locks and Security The UNLOCK feature will work again after: • a door has become ajar, • the ignition is turned to the 4 (ON) position, • unlocking the vehicle using the keyless entry keypad, • or using the UNLOCK control on your remote entry transmitter (if equipped).
Page 84 Locks and Security 2. Do not wipe off any grease on the battery terminals on the back surface of the circuit board. 3. Remove the old battery. Note: Please refer to local regulations when disposing of transmitter batteries. 4. Insert the new battery. Refer to the diagram inside the remote entry transmitter for the correct orientation of the battery.
Page 85 Locks and Security To program the keyless entry keypads remote entry transmitters yourself: 1. Ensure the vehicle is electronically unlocked. 2. Put the key in the ignition. 3. Turn the key from the 2 (LOCK) position to 3 (OFF). 4. Cycle eight times rapidly (within 10 seconds) between the 3 (OFF) position and 4 (ON).
Page 86 Locks and Security Illuminated entry The interior lamps illuminate when the remote entry system is used to unlock the door(s). The illuminated entry system will turn off the interior lights if: • the ignition switch is turned to the 4 (ON) position, or •...
Page 87 Locks and Security 4. The doors will again lock then unlock to confirm that your personal keycode has been programmed to the module. Tips: • Do not set a code that uses five of the same number. • Do not use five numbers in sequential order. •...
Page 88 Locks and Security Autolock (if equipped) This feature automatically locks all vehicle doors when the following conditions are met: • the ignition key is in the 4 (ON) position, • all the doors are closed, • the brake is pressed before reaching 5 mph (8 km/h), and •...
Page 89 Locks and Security To deactivate/reactivate the autolock feature using the power door unlock control You must complete Steps 1-7 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait 30 seconds. 1.
Page 90: Seating And Safety Restraints
Seating and Safety Restraints SEATING Notes: Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the event of a collision. Do not pile cargo higher than the seatbacks to reduce the risk of injury in a collision or sudden stop.
Page 91 Seating and Safety Restraints Full bench seat (if equipped) • Lift the release bar to move the seat forward or backward. Ensure that the seat is relatched into place. • Pull up on the lever located at the bottom of the seatback to quickly fold the seatback forward.
Page 92 Seating and Safety Restraints 40/20/40 front seat armrest and console (if equipped) To release the armrest, pull forward on the strap and pull the armrest down. To gain access to the storage compartment in your armrest, lift the latch to open the lid. The lid cannot be opened in the upright position.
Page 93 Seating and Safety Restraints Captain’s chair (if equipped) • Lift the bar to move the seat forward or rearward. Make sure that the seat is relatched into place. • To recline the seatback, pull the release lever handle located on the side of the seat up.
Page 94 Seating and Safety Restraints Press to raise or lower the rear portion of the seat cushion. • Type A • Type B Press the control to move the seat forward, backward, up or down. • Type A • Type B 2006 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)
Page 95 Seating and Safety Restraints Using the manual lumbar support For more lumbar support, turn the lumbar support control toward the front of vehicle. For less lumbar support, turn the lumbar support control toward the rear of vehicle. Heated seats (if equipped) To operate the heated seats, do the following: •...
Page 96 Seating and Safety Restraints REAR FOLDING SEAT SYSTEM WITH LOAD FLOOR (IF EQUIPPED) The rear seatback has a split 60/40 seat. Each seat cushion can be flipped up into the seatback position. 1. Pull down the latch lever located on the bottom seat back to fold the seat back forward.
Page 97: Safety Restraints
Seating and Safety Restraints To gain access to the cupholders and tray, pull down on the armrest. To gain access to the 60/40 load floor, store the cushion in the upright locked position. Pull up on the straps located at the sides of the load floor, and rotate forward until resting on the carpet.
Page 98 Seating and Safety Restraints It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 99 Seating and Safety Restraints 2. To unfasten, push the release button and remove the tongue from the buckle. The front outboard and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front outboard passenger and rear seat outboard safety belts have two types of locking modes described below: Vehicle sensitive mode...
Page 100 Seating and Safety Restraints How to use the automatic locking mode • Buckle the combination lap and shoulder belt. • Grasp the shoulder portion and pull downward until the entire belt is pulled out. • Allow the belt to retract. As the belt retracts, you will hear a clicking sound.
Page 101 Seating and Safety Restraints BELT AND RETRACTOR ASSEMBLY MUST BE REPLACED if the seat belt assembly “automatic locking retractor” feature or any other seat belt function is not operating properly when checked according to the procedures in the Workshop Manual. Failure to replace the belt and retractor assembly could increase the risk of injury in collisions.
Page 102 Seating and Safety Restraints • 4–door Super Cab To adjust the shoulder belt height, push the button and slide the height adjuster up or down. Release the button and pull down on the height adjuster to make sure it is locked in place. Position the safety belt height adjusters so that the belt rests across the middle of your shoulder.
Page 103 Seating and Safety Restraints Insert the tongue into the correct buckle (the buckle closest to the direction the tongue is coming from). To lengthen the belt, turn the tongue at a right angle to the belt and pull across your lap until it reaches the buckle.
Page 104 Seating and Safety Restraints Conditions of operation If... Then... The driver’s safety belt is not The safety belt warning light buckled before the ignition illuminates 1-2 minutes and the switch is turned to the ON warning chime sounds 4-8 seconds. position...
Page 105 Seating and Safety Restraints If... Then... The driver’s safety belt is The BeltMinder feature will not buckled before the ignition activate. switch is turned to the ON position... The following are reasons most often given for not wearing safety belts (All statistics based on U.S.
Page 106 Seating and Safety Restraints Reasons given... Consider... “The people I’m with don’t Set the example, teen deaths occur wear belts” 4 times more often in vehicles with TWO or MORE people. Children and younger brothers/sisters imitate behavior they see. “I have an airbag” Airbags offer greater protection when used with safety belts.
Page 107 Seating and Safety Restraints • all vehicle doors are closed • the driver’s safety belt is unbuckled • the parklamps/headlamps are in the OFF position (If the vehicle is equipped with Autolamps, this will not affect the procedure) To reduce the risk of injury, do not deactivate/activate the Belt Minder feature while driving the vehicle.
Page 108 (if equipped), shoulder belt guide on seatback (if equipped), child safety seat LATCH and tether anchors, and attaching hardware, should be inspected after a collision. Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a collision be replaced.
Page 109: Airbags
Seating and Safety Restraints AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) Important SRS precautions The SRS is designed to work with the safety belt to help protect the driver and right front passenger from certain upper body injuries. Airbags DO NOT inflate slowly; there is a risk of injury from a deploying airbag.
Page 110 Seating and Safety Restraints Never place your arm over the air bag module as a deploying air bag can result in serious arm fractures or other injuries. To properly position yourself away from the airbag: • Move your seat to the rear as far as you can while still reaching the pedals comfortably.
Page 111 Seating and Safety Restraints Children must always be properly restrained. Failure to follow these instructions may increase the risk of injury in a collision. An infant in a rear-facing seat faces a high risk of serious or fatal injuries from a deploying passenger airbag. Rear facing infant seats should NEVER be placed in the front seats, unless the passenger airbag is turned off.
Page 112 Seating and Safety Restraints restrained or are otherwise out of position at the time of airbag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the airbag module as possible while maintaining vehicle control. Several air bag system components get hot after inflation.
Page 113 Seating and Safety Restraints Disposal of airbags and airbag equipped vehicles See your local authorized dealer. Airbags MUST BE disposed of by qualified personnel. Passenger airbag ON/OFF switch (if equipped) An airbag ON/OFF switch has been installed in this vehicle. Before driving, always look at the face of the switch to be sure the switch is in the proper position in accordance with these...
Page 114 Seating and Safety Restraints An infant in a rear-facing seat faces a high risk of serious or fatal injuries from a deploying passenger airbag. Rear facing infant seats should NEVER be placed in the front seats, unless the passenger airbag is turned off. Turning the passenger airbag back on The passenger airbag remains OFF until you turn it back ON.
Page 115: Child Restraints
Seating and Safety Restraints If your vehicle has rear seats, always transport children who are 12 and younger in the rear seat. Always use safety belts and child restraints properly. If a child in a rear facing infant seat must be transported in front, the passenger airbag must be turned OFF.
Page 116 Seating and Safety Restraints • the child has a medical condition which, according to the child’s physician, makes it necessary for the child to ride in the front seat so that the driver can constantly monitor the child’s condition. 3. Medical condition. A passenger has a medical condition which, according to his or her physician: •...
Page 117 Seating and Safety Restraints • the child has a medical condition that, according to the child’s physician, makes it necessary for the child to ride in the front seat so that the driver can monitor the child’s condition. 3. Medical condition: A passenger has a medical condition that, according to his or her physician: •...
Page 118 To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Ford Motor Company recommends use of a belt-positioning booster. Booster seats position a child so that safety belts fit better. They lift the child up so that the lap belt rests low across the hips and the knees bend comfortably.
Page 119 Seating and Safety Restraints When children should use booster seats Children need to use booster seats from the time they outgrow the toddler seat until they are big enough for the vehicle seat and lap/shoulder belt to fit properly. Generally this is when they weigh about 80 lb.
Page 120 Seating and Safety Restraints • Those with a high back. If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice. Either type can be used at any seating position equipped with lap/shoulder belts if your child is over 40 lb.
Page 121 Seating and Safety Restraints Follow all instructions provided by the manufacturer of the booster seat. Never put the shoulder belt under a child’s arm or behind the back because it eliminates the protection for the upper part of the body and may increase the risk of injury or death in a collision. Never use pillows, books, or towels to boost a child.
Page 122 80 pounds (36 kg) using an upper torso harness and a belt-positioning booster. Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position with a tether anchor.
Page 123 Seating and Safety Restraints 2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions.
Page 124 Seating and Safety Restraints 5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is extracted and a click is heard. 6. Allow the belt to retract. The belt will click as it retracts to indicate it is in the automatic locking mode.
Page 125 Seating and Safety Restraints Attaching child safety seats with tether straps Most new forward-facing child safety seats include a tether strap which goes over the back of the seat and hooks to an anchoring point. Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child seat for information about ordering a tether strap.
Page 126 Seating and Safety Restraints • F-Series Crew Cab Tether strap attachment 1. Position the child safety seat on the seat cushion. 2. Route the child safety seat tether strap over the back of the seat. 3. Locate the correct anchor for the selected seating position. 4.
Page 127 Seating and Safety Restraints • Rear seats (Crew Cab) If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a collision. 6. Refer to the Installing child safety seats in combination lap and shoulder belt seating positions section of this chapter for further instructions to secure the child safety seat.
Page 128 Seating and Safety Restraints Many tether straps cannot be tightened if the tether strap is hooked to the loop directly behind the child seat. To provide a tight tether strap: 1. Route the tether strap through the loop directly behind the child seat.
Page 129: Tires, Wheels And Loading
Tires, Wheels and Loading NOTICE TO UTILITY VEHICLE AND TRUCK OWNERS Utility vehicles and trucks handle differently than passenger cars in the various driving conditions that are encountered on streets, highways and off-road. Utility vehicles and trucks are not designed for cornering at speeds as high as passenger cars any more than low-slung sports cars are designed...
Page 130 Tires, Wheels and Loading Power is supplied to all four wheels through a transfer case or power transfer unit. 4WD vehicles allow you to select different drive modes as necessary. Information on shifting procedures and maintenance can be found in your Owner’s Guide. You should become thoroughly familiar with this information before you operate your vehicle.
Page 131 10 to 12 inches or limited production tires as defined in Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford to give you the following information about tire grades exactly as the government has written it. Treadwear...
Page 132: Tire Information
Tires, Wheels and Loading and one-half (1 ⁄ ) times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices, and differences in road characteristics and climate.
Page 133: Tire Inflation
Tires, Wheels and Loading • Tire Identification Number (TIN): A number on the sidewall of each tire providing information about the tire brand and manufacturing plant, tire size and date of manufacture. Also referred to as DOT code. • Inflation pressure: A measure of the amount of air in a tire. •...
Page 134 (if equipped), at least monthly and before long trips. You are strongly urged to buy a reliable tire pressure gauge, as automatic service station gauges may be inaccurate. Ford recommends the use of a digital or dial type tire pressure gauge rather than a stick type tire pressure gauge.
Page 135 Tires, Wheels and Loading which can be found on the Safety Compliance Certification Label or Tire Label which is located on the B-Pillar or the edge of the driver’s door. The cold inflation pressure should never be set lower than the recommended pressure on the Safety Compliance Certification Label or Tire Label.
Page 136 Tires, Wheels and Loading 6. Visually inspect the tires to make sure there are no nails or other objects embedded that could poke a hole in the tire and cause an air leak. 7. Check the sidewalls to make sure there are no gouges, cuts or bulges. Tire inflation information All tires with Steel Carcass Plies (if equipped): This type of tire utilizes steel cords in the sidewalls.
Page 137 Tires, Wheels and Loading Stay out of the trajectory (1) as indicated in the illustration. TIRE CARE Inspecting your tires Periodically inspect the tire treads for uneven or excessive wear and remove objects such as stones, nails or glass that may be wedged in the tread grooves.
Page 138 Tires, Wheels and Loading Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Inspect all your tires, including the spare, frequently, and replace them if one or more of the following conditions exist: Tire wear When the tread is worn down to 1/16th of an inch (2 mm), tires must be replaced to help prevent your vehicle from skidding and...
Page 139 Only use replacement tires and wheels that are the same size and type (such as P-metric versus LT-metric or all-season versus all-terrain) as those originally provided by Ford. Use of any tire or wheel not recommended by Ford can affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.
Page 140 Tires, Wheels and Loading Never spin the tires in excess of the 35 mph (55 km/h) point indicated on the speedometer. Highway hazards No matter how carefully you drive there’s always the possibility that you may eventually have a flat tire on the highway. Drive slowly to the closest safe area out of traffic.
Page 141 Tires, Wheels and Loading • Rear Wheel Drive (RWD) vehicles/Four Wheel Drive (4WD) (front tires at top of diagram) Sometimes irregular tire wear can be corrected by rotating the tires. Note: If your tires show uneven wear ask your authorized dealer to check for and correct any wheel misalignment, tire imbalance or mechanical problem involved before tire rotation.
Page 142 Tires, Wheels and Loading • DRW – Six tire rotation If your vehicle is equipped with dual rear wheels it is recommended that the front and rear tires (in pairs) be rotated only side to side. We do not recommend splitting up the dual rear wheels.
Page 143 Tires, Wheels and Loading Information on “P” type tires P215/65R15 95H is an example of a tire size, load index and speed rating. The definitions of these items are listed below. (Note that the tire size, load index and speed rating for your vehicle may be different from this example.) 1.
Page 144 Tires, Wheels and Loading Note: You may not find this information on all tires because it is not required by federal law. Letter rating Speed rating - mph (km/h) 81 mph (130 km/h) 87 mph (140 km/h) 99 mph (159 km/h) 106 mph (171 km/h) 112 mph (180 km/h) 118 mph (190 km/h)
Page 145 Tires, Wheels and Loading 12. Treadwear, Traction and Temperature Grades • Treadwear: The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 ⁄...
Page 146 Tires, Wheels and Loading Additional information contained on the tire sidewall for “LT” type tires “LT” type tires have some additional information beyond those of “P” type tires; these differences are described below: 1. LT: Indicates a tire, designated by the Tire and Rim Association (T&RA), that is intended for service on light trucks.
Page 147 Tires, Wheels and Loading Information on “T” type tires “T” type tires have some additional information beyond those of “P” type tires; these differences are described below: T145/80D16 is an example of a tire size. Note: The temporary tire size for your vehicle may be different from this example.
Page 148: Vehicle Loading
Tires, Wheels and Loading SNOW TIRES AND CHAINS Snow tires must be the same size and grade as the tires you currently have on your vehicle. Note: Do not use snow chains on front tires of vehicles with 20” wheels and tires.
Page 149 Tires, Wheels and Loading Payload – is the combined weight of cargo and passengers that the vehicle is carrying. The maximum payload for your vehicle can be found on the Tire Label (vehicles exported outside the U.S. and Canada may not have a Tire Label) on the B-Pillar or the edge of the driver’s door.
Page 150 Tires, Wheels and Loading Example only: Cargo Weight – includes all weight added to the Base Curb Weight, including cargo and optional equipment. When towing, trailer tongue load or king pin weight is also part of cargo weight. GAW (Gross Axle Weight) – is the total weight placed on each axle (front and rear) –...
Page 151 Tires, Wheels and Loading GAWR (Gross Axle Weight Rating) – is the maximum allowable weight that can be carried by a single axle (front or rear). These numbers are shown on the Safety Compliance Certification Label located on the B-Pillar or the edge of the driver’s door. The total load on each axle must never exceed its GAWR.
Page 152 Tires, Wheels and Loading GVWR (Gross Vehicle Weight Rating) – is the maximum allowable weight of the fully loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is shown on the Safety Compliance Certification Label located on the B-Pillar or the edge of the driver’s door.
Page 153 Tires, Wheels and Loading mandatory options, no cargo (internal or external), a tongue load of 10–15% (conventional trailer) or king pin weight of 15–25% (fifth wheel trailer), and driver only (150 lb. [68 kg]). Consult your authorized dealer (or the RV and Trailer Towing Guide provided by your authorized dealer) for more detailed information.
Page 154 Tires, Wheels and Loading 6. If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle. The following gives you a few examples on how to calculate the available amount of cargo and luggage load capacity: •...
Page 155: Trailer Towing
Tires, Wheels and Loading Special loading instructions for owners of pickup trucks and utility-type vehicles For important information regarding safe operation of this type of vehicle, see the Preparing to drive your vehicle section in the Driving chapter of this owner guide. Loaded vehicles may handle differently than unloaded vehicles.
Page 156 Tires, Wheels and Loading components carefully prior to and after any towing operation. Refer to Transmission temperature gauge in the Instrument Cluster chapter for the transmission fluid temperature information. The following trailer towing charts apply to vehicles equipped with gasoline engines; for vehicles equipped with diesel engines, refer to your 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement.
Page 157 Tires, Wheels and Loading Hitches Do not use hitches that clamp onto the vehicle’s bumper or attach to the axle. You must distribute the load in your trailer so that 10%–15% for conventional towing or 15%-25% fifth-wheel towing of the total weight of the trailer is on the tongue.
Page 158 Tires, Wheels and Loading Towing trailers beyond the maximum tongue weight exceeds the limit of the towing system and could result in vehicle structural damage, loss of vehicle control and personal injury. Load equalizing hitch When hooking up a trailer using a load equalizing hitch, always use the following procedure: 1.
Page 159: Trailer Brake Controller-Integrated
The Ford TBC has only been verified to be compatible with trailers having electric-actuated drum brakes (one to four axles) and not hydraulic surge or electric-over-hydraulic types. It is the...
Page 160 Tires, Wheels and Loading 3. GAIN setting display: Shows the current GAIN setting. This will illuminate when a trailer is connected, flash if the trailer becomes disconnected, or remain off if no trailer is connected. 4. OUTPUT bar graph: When the vehicle’s brake pedal is pushed, or when the manual control is activated, green bar indicators will illuminate to indicate the amount of power going to the trailer brakes relative to the brake pedal or manual control input.
Page 161 Note: Your TBC can be diagnosed by your authorized dealer to determine exactly which trailer fault has occurred; however, if the fault is with the trailer this diagnosis is not covered under your Ford warranty. 2006 F-250/350/450/550 (f23)
Page 162 Reactivation of the ignition from 3 (OFF) to 4 (ON) will awaken the TBC module. • The TBC is only a factory or dealer installed item. Ford is not responsible for warranty or performance of the TBC due to misuse or customer installation.
Page 163 Tires, Wheels and Loading Driving while you tow When towing a trailer: • Do not drive faster than 70 mph (112 km/h) during the first 500 miles (800 km) of trailer towing and don’t make full-throttle starts. • Turn off the speed control. The speed control may shut off automatically when you are towing on long, steep grades.
Page 164 Tires, Wheels and Loading refilling your rear axle with synthetic gear lubricant if not already so equipped. Refer to Lubricant Specifications in the Maintenance and specifications chapter for the proper axle lubricant. Remember that regardless of the rear axle lubricant used, do not tow a trailer for the first 500 miles (800 km) of a new vehicle, and that the first 500 miles of towing be done at no faster than 70 mph (112 km/h) with no full-throttle starts.
Page 165: Recreational Towing
• Maximum distance is 50 miles (80 km). If a distance of 50 miles (80 km) or a speed of 35 mph (56 km/h) must be exceeded, you must disconnect the driveshaft. Ford recommends the driveshaft be removed/installed only by a qualified technician. See your local authorized dealer for driveshaft removal/installation.
Page 166 Tires, Wheels and Loading 4x4 with manual shift transfer case: • Place the transfer case in N (Neutral). • Front hub locks are in the FREE position. 4x4 electronic shift transfer case vehicles with automatic transmissions: Regarding recreational towing or having your vehicle towed, 4x4 vehicles with electronic shift on the fly cannot be towed with any wheels on the ground unless the rear driveshaft is removed and the front hub locks are in free mode (with the exception of moving it as a disabled vehicle off...
Page 167: Driving
Driving STARTING Positions of the ignition 1. ACCESSORY, allows the electrical accessories such as the radio to operate while the engine is not running. 2. LOCK, locks the steering wheel, automatic transmission gearshift lever and allows key removal. For vehicles equipped with a manual transmission, you must depress the ignition release lever to release the key.
Page 168 Driving Extended idling at high engine speeds can produce very high temperatures in the engine and exhaust system, creating the risk of fire or other damage. Do not park, idle, or drive your vehicle in dry grass or other dry ground cover.
Page 169 Driving If starting a vehicle with an automatic transmission: 1. Make sure the parking brake is set. 2. Make sure the gearshift is in P (Park). If starting a vehicle with a manual transmission: 1. Make sure the parking brake is set.
Page 170 Driving • Turn the key to 4 (ON) without turning the key to 5 (START). 2006 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)
Page 171 Driving Make sure the corresponding lights illuminate or illuminate briefly. If a light fails to illuminate, have the vehicle serviced. • If the driver’s safety belt is fastened, the light may not illuminate. Starting the engine 1. Turn the key to 4 (ON) without turning the key to 5 (START).
Page 172: Brakes
Driving Important ventilating information If the engine is idling while the vehicle is stopped for a long period of time, open the windows at least one inch (2.5 cm) or adjust the heating or air conditioning to bring in fresh air. USING THE ENGINE BLOCK HEATER (IF EQUIPPED) Use of an engine block heater is strongly recommended if you live in...
Page 173 Driving Four-wheel anti-lock brake system (ABS) Your vehicle is equipped with an Anti-lock Braking System (ABS). This system helps you maintain steering control during emergency stops by keeping the brakes from locking. Noise from the ABS pump motor and brake pedal pulsation may be observed during ABS braking and the brake pedal may suddenly travel a little farther as soon as ABS braking is done and normal brake operation resumes.
Page 174 Driving Parking brake To set the parking brake, press the parking brake pedal down until the pedal stops. The BRAKE warning lamp in the instrument cluster illuminates and remains illuminated until the BRAKE parking brake is released. Pull the right side of the release lever to release the parking brake;...
Page 175 Driving Note: If your vehicle is equipped with a manual transmission, the engine may be required to run while power accessories operate and the parking brake is set. It is recommended that wheel chocks be used during this operation. If you’re parking your vehicle on a grade or with a trailer, press and hold the brake pedal down, then set the parking brake.
Page 176 Driving TRACTION-LOK AXLE (IF EQUIPPED) This axle provides added traction on slippery surfaces, particularly when one wheel is on a poor traction surface. Under normal conditions, the Traction-Lok axle functions like a standard rear axle. The axle may exhibit a slight noise or vibration in tight turns with low vehicle speed. This is normal behavior and indicates the axle is working.
Page 177: Transmission Operation
Driving AUTOMATIC TRANSMISSION OPERATION (IF EQUIPPED) Brake-shift interlock This vehicle is equipped with a brake-shift interlock feature that prevents the gearshift lever from being moved from P (Park) when the ignition is in the 4 (ON) position unless brake pedal is depressed. If you cannot move the gearshift lever out of P (Park) with ignition in the 4 (ON) position and the brake pedal depressed: 1.
Page 178 Driving Understanding the shift positions of the 5–speed automatic transmission This vehicle is equipped with an adaptive Transmission Shift Strategy. Adaptive Shift Strategy offers the optimal transmission operation and shift quality. When the vehicle’s battery has been disconnected for any type of service or repair, the transmission will need to relearn the normal shift strategy parameters, much like having to reset your radio stations when your vehicle battery has been disconnected.
Page 179 Driving N (Neutral) With the gearshift lever in N (Neutral), the vehicle can be started and is free to roll. Hold the brake pedal down while in this position. D (Overdrive) with Tow/Haul OFF D (Overdrive) with Tow/Haul OFF is the normal driving position for the best fuel economy.
Page 180 Driving 3 (Third) Transmission starts and operates in third gear only. Used for improved traction on slippery roads. Selecting 3 (Third) provides engine braking. 2 (Second) Use 2 (Second) to start-up on slippery roads or to provide additional engine braking on downgrades. 1 (First) •...
Page 181 Driving To start the vehicle: 1. Make sure the parking brake is fully set. 2. Press the clutch pedal to the floor, then put the gearshift lever in the neutral position. 3. Start the engine, then press the brake pedal and release the parking brake.
Page 182 Driving Maximum downshift speeds 6-speed transmission Shift from: Transfer case position (if equipped) 2H or 4H 45 mph (72 km/h) 16 mph (26 km/h) (Overdrive) - 4 35 mph (56 km/h) 12 mph (19 km/h) 20 mph (32 km/h) 8 mph (13 km/h) 5 mph (8 km/h) 2 mph (3 km/h) 1-LO...
Page 183 Driving Removing the key Turn the ignition off, push the release lever (located above the ignition), then turn the key toward you and remove the key. REVERSE SENSING SYSTEM (IF EQUIPPED) The Reverse Sensing System (RSS) sounds a tone to warn the driver of obstacles near the rear bumper when the R (Reverse) is selected and the vehicle is moving at speeds less than 3 mph (5 km/h).
Page 184 Driving The RSS detects obstacles up to 6 feet (2 meters) from the rear bumper with a decreased coverage area at the outer corners of the bumper, (refer to the figures for approximate zone coverage areas). As you move closer to the obstacle, the rate of the tone increases.
Page 185 Driving If your vehicle sustains damage to the rear bumper/fascia, leaving it misaligned or bent, the sensing zone may be altered causing inaccurate measurement of obstacles or false alarms. FOUR-WHEEL DRIVE (4WD) OPERATION (IF EQUIPPED) For important information regarding safe operation of this type of vehicle, see Preparing to drive your vehicle in this chapter.
Page 186 Driving Electronic Shift On the Fly (ESOF) 4x4 system (if equipped) If equipped with the electronic shift 4WD System, and the instrument panel control is moved to 4X4 LOW (4WD Low) while the vehicle is moving above 3 mph (5 km/h), the system will not engage and no damage will occur to the 4WD system.
Page 187 Driving 4WD system indicator lights The 4WD system indicator lights illuminate only under the following conditions. If these lights illuminate when driving in 2WD, contact your authorized dealer as soon as possible. • 4x4 - momentarily illuminates after the engine is started. Illuminates when 4H (4x4 High) or 4L (4x4 Low) is engaged.
Page 188 Driving • Do not shift into 4H (4WD High) with the rear wheels slipping. Shifting from 4H (4WD High) to 2H (2WD High) Move the transfer case lever to 2H (2WD High) at a stop or a vehicle speed below 3 mph (5 km/h). With the vehicle at complete stop, disengage the locking hubs (optional) by rotating the hub lock...
Page 189 Driving 3. Move the transfer case shift lever through N (Neutral) directly to 4H (4WD High) or 2H (2WD High). 4. If the transfer case will not engage into 4H (4WD High) or 2H (2WD High), let the vehicle creep at a speed above 1 mph (1.6 km/h), then repeat steps 2 and 3.
Page 190 Driving 2H (2WD High) – For general on-road driving. Sends power to the rear wheels only. 4H (4WD High) – For winter and off-road conditions. Sends power to front and rear wheels. 4L (4WD Low) – For low-speed off-road applications that require extra power such as steep grades, deep sand or pulling a boat out of the water.
Page 191 Driving Shifting from 4x4 HIGH (4WD High) to 4x4 LOW (4WD Low) 1. Bring the vehicle to a complete stop. 2. Depress the brake. 3. Place the gearshift in N (Neutral). 4. Move the 4WD control to the 4x4 LOW position. 5.
Page 192 Driving How your vehicle differs from other vehicles Truck and utility vehicles can differ from some other vehicles. Your vehicle may be higher to allow it to travel over rough terrain without getting hung up or damaging underbody components. The differences that make your vehicle so versatile also make it handle differently than an ordinary passenger car.
Page 193 Driving sideways out of control or roll over. Remember, your safety and the safety of others should be your primary concern. Vehicles with a higher center of gravity such as utility and four-wheel drive vehicles handle differently than vehicles with a lower center of gravity.
Page 194 Driving Vehicles with a higher center of gravity such as utility and four-wheel drive vehicles handle differently than vehicles with a lower center of gravity. Utility and four-wheel drive vehicles are not designed for cornering at speeds as high as passenger cars any more than low-slung sports cars are designed to perform satisfactorily under off-road conditions.
Page 195 Driving Power is supplied to all four wheels through a transfer case. On 4WD vehicles, the transfer case allows you to select 4WD when necessary. Information on transfer case operation and shifting procedures can be found in the Driving chapter. Information on transfer case maintenance can be found in the Maintenance and Specifications chapter.
Page 196 Ford Motor Company joins the U.S. Forest Service and the Bureau of Land Management in encouraging you to help preserve our national forest and other public and private lands by “treading lightly.”...
Page 197 Driving When climbing a steep slope or hill, start in a lower gear rather than downshifting to a lower gear from a higher gear once the ascent has started. This reduces strain on the engine and the possibility of stalling. If you do stall out, do not try to turn around because you might roll over.
Page 198 Ford Motor Company recommends that caution be used with any vehicle equipped with a high load or device (such as ladder racks or pickup box cover).
Page 199 PTO installer, since the duration of operation limit for the aftermarket PTO may be less than 10 minutes. A more complete description of PTO operation is discussed in the Ford Truck Body Builders Layout Book, found at www.fleet.ford.com/truckbbas.
Page 200 • The Total Accessory Reserve Capacity (TARC) is shown on the lower right side of the vehicle’s Safety Compliance Certification Label. This applies to Ford-completed vehicles of 10,000 lb. (4,536 kg) GVWR or less. This is the weight of permanently-attached auxiliary equipment, such as snowplow frame-mounting hardware, that can be added to the vehicle and satisfy Ford compliance certification to FMVSS.
Page 201 Do not attempt to service, repair, or modify the air bag supplemental restraint system (SRS) or its fuses. See your Ford or Lincoln Mercury dealer. Additional equipment such as snowplow equipment may effect the performance of the airbag sensors increasing the risk of injury.
Page 202 Driving Do not rock the vehicle if the engine is not at normal operating temperature. Do not rock the vehicle for more than a minute. The transmission and tires may be damaged or the engine may overheat. Refer to Transmission temperature gauge in the Instrument Cluster chapter for transmission fluid temperature information.
Page 203: Roadside Emergencies
50,000 miles (80,000 km) on Lincoln vehicles. Roadside assistance will cover: • a flat tire change with a good spare (except Ford GT which has a tire inflation kit) • battery jump start • lock-out assistance (key replacement cost is the customer’s responsibility) •...
Page 204 1–800–241–3673; Lincoln vehicle customers call 1–800–521–4140. Canadian customers who require roadside assistance, call 1–800–665–2006. If you need to arrange roadside assistance for yourself, Ford Motor Company will reimburse a reasonable amount. To obtain reimbursement information, U.S. Ford or Mercury vehicles customers call 1–800–241–3673;...
Page 205: Hazard Flasher Switch
Roadside Emergencies HAZARD FLASHER The hazard flasher is located on the steering column, just behind the steering wheel. The hazard flashers will operate when the ignition is in any position or if the key is not in the ignition. Push in the flasher control and all front and rear direction signals will flash.
Page 206: Fuel Pump Shut-Off Switch
Roadside Emergencies FUEL PUMP SHUT-OFF SWITCH This device stops the electric fuel pump from sending fuel to the engine when your vehicle has had a substantial jolt. After an accident, if the engine cranks but does not start, this switch may have been activated.
Page 207 Roadside Emergencies Standard fuse amperage rating and color COLOR Cartridge Fuse Mini Standard Maxi Fuse link maxi rating fuses fuses fuses cartridge fuses Grey Grey — — — Violet Violet — — — Pink Pink — — — — — —...
Page 208 Roadside Emergencies To remove a fuse use the fuse puller tool provided on the fuse panel cover. To reinstall the cover, align and engage the two hooked clips at the bottom of the cover onto the instrument panel, then lift the panel and press the top clips firmly into place.
Page 209 Roadside Emergencies The fuses are coded as follows. Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description 15A* Adjustable pedals 10A* Cluster 10A* Upfitter #3 20A* Power point (Instrument panel) 10A* Upfitter #4 — Not used 30A* High beam headlamps, Flash-to-pass 20A* Back-up lamps...
Page 210 Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description — Not used — Not used 15A* Exterior lamps 20A* Flasher, Brake On-Off (BOO) lamps 10A* Body Security Module (BSM) (Security) 15A* Trailer tow Electric Brake Controller (EBC) 20A* Heated seats 20A*...
Page 211 Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description 20A* Fuel pump 10A* Instrument cluster 15A* Delayed accessory 10A* Fog lamps — Not used 10A* Ignition switch RUN/START feed 10A* Left-hand low beam headlamp 10A* Right-hand low beam headlamp —...
Page 212 Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description — Not used Full ISO relay Upfitter control Full ISO relay Delayed accessory Full ISO relay Starter 30A circuit Delayed accessory, Power breaker windows, Moonroof — Not used * Mini fuse ** Cartridge fuse Power distribution box The power distribution box is located in the engine compartment.
Page 213 Roadside Emergencies The high-current fuses and relays are coded as follows. Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 30A* Wipers 40A* Blower 30A* Electronic Shift on the Fly (ESOF) — Not used 50A* Injector Driver Module (IDM) (Diesel engine only) —...
Page 214 Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description — Not used 15A** IDM logic (Diesel engine only) — Not used 10A** A/C clutch 10A** IDM relay (Diesel engine only) — Not used 10A** Trailer tow back-up lamps —...
Page 215: Changing Tires
Ford. If the dissimilar spare tire or wheel is damaged, it should be replaced rather than repaired.
Page 216 Roadside Emergencies A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that is different in brand, size or appearance from the road tires and wheels and can be one of three types: 1. T-type mini-spare: This spare tire begins with the letter “T” for tire size and may have “Temporary Use Only”...
Page 217 Roadside Emergencies The usage of a full-size dissimilar spare tire/wheel can lead to impairment of the following: • Handling, stability and braking performance • Comfort and noise • Ground clearance and parking at curbs • Winter weather driving capability • Wet weather driving capability •...
Page 218 Roadside Emergencies • Ground clearance and parking at curbs • Winter weather driving capability • Wet weather driving capability Location of the spare tire and tools If your vehicle is equipped with a spare tire, jack and associated tools, refer to the following table for their locations: Tool Location Spare tire (pick-up trucks only)
Page 219 Roadside Emergencies • one wheel nut wrench. Slide over square end of jack handle. • Vehicles equipped with dual rear wheels, insert the lug wrench extension into the lug wrench to reach the lug nuts. 2. Attach the spare tire lock key (A) to the jack handle (B).
Page 220 Roadside Emergencies Tire change procedure 1. Park on a level surface, activate hazard flashers and set the parking brake. • Automatic transmission: Place gearshift lever in P (Park). • Manual transmission: Place gearshift lever in R (Reverse). • Electronic Shift-On-the-Fly (ESOF) 4WD: Place transfer case in any position.
Page 221 Roadside Emergencies If the vehicle slips off the jack, you or someone else could be seriously injured. The following steps apply to F–250/F–350 Single Rear Wheel (SRW) vehicles only (unless otherwise noted): 6. Insert the hooked end of the jack handle into the jack and use the handle to slide the jack under the vehicle.
Page 222 Roadside Emergencies • Front passenger side (4x4) Note: View shown from the rear of the vehicle to clearly identify the jack point. Place the jack directly under the axle. • Rear (including F-350 Dual Rear wheel [DRW] vehicles) Never use the front or rear differential as a jacking point.
Page 223 Roadside Emergencies 10. Replace the flat tire with the spare tire, making sure the valve stem is facing outward for all front wheels and single rear wheel vehicles. If replacing an inboard rear tire on dual rear wheel vehicles, the valve stem must be facing outward.
Page 224 Roadside Emergencies • Front passenger side (4x4): F-350 Note: View shown from the rear of the vehicle to clearly identify the jack point. Note: Place the jack directly under axle and inboard of the radius arm so that the jack clears the radius arm.
Page 225 Roadside Emergencies 17. Replace the flat tire with the spare tire, making sure the valve stem is facing outward on all front an inboard rear wheels. If replacing the outboard wheel, the valve stem must be facing inward. Reinstall the lug nuts until the wheel is snug against the hub.
Page 226 Roadside Emergencies 20. Stow the flat tire. Refer to Stowing the spare tire if the vehicle is equipped with a spare tire carrier. Note: Do not stow the Harley-Davidson flat tire and wheel using the spare tire winch mechanism; store the flat in the bed of the truck. 21.
Page 227: Lug Nut Torque
N•m M14 x 1.5 * Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. On all two-piece flat wheel nuts, apply one drop of motor oil between the flat washer and the nut. Do not apply motor oil to the wheel nut threads or the wheel stud threads.
Page 228: Jump Starting
Roadside Emergencies JUMP STARTING YOUR VEHICLE The gases around the battery can explode if exposed to flames, sparks, or lit cigarettes. An explosion could result in injury or vehicle damage. Batteries contain sulfuric acid which can burn skin, eyes and clothing, if contacted.
Page 229 Roadside Emergencies Connecting the jumper cables 1. Connect the positive (+) jumper cable to the positive (+) terminal of the discharged battery. Note: In the illustrations, lightning bolts are used to designate the assisting (boosting) battery. 2. Connect the other end of the positive (+) cable to the positive (+) terminal of the assisting battery.
Page 230 Roadside Emergencies 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 4. Make the final connection of the negative (-) cable to an exposed metal part of the stalled vehicle’s engine, away from the battery and the carburetor/fuel injection system.
Page 231 Roadside Emergencies Jump starting 1. Start the engine of the booster vehicle and run the engine at moderately increased speed. 2. Start the engine of the disabled vehicle. 3. Once the disabled vehicle has been started, run both engines for an additional three minutes before disconnecting the jumper cables.
Page 232 Roadside Emergencies 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.
Page 233: Wrecker Towing
Roadside Emergencies WRECKER TOWING If you need to have your vehicle towed, contact a professional towing service or, if you are a member of a roadside assistance program, your roadside assistance service provider. On 4x2 vehicles, it is acceptable to tow the vehicle with the front wheels on the ground and the rear wheels off the ground using a wheel lift On 4x4 vehicles, it is recommended that your vehicle be towed using flatbed equipment with all the wheels off the ground.
Page 234 If the vehicle is towed by other means or incorrectly, vehicle damage may occur. Ford Motor Company produces a towing manual for all authorized tow truck operators. Have your tow truck operator refer to this manual for proper hook-up and towing procedures for your vehicle.
Page 235: Customer Assistance
Center at 1-800-392-3673 (FORD). Away from home If you own a Ford or Mercury vehicle and are away from home when your vehicle needs service, or if you need more help than the authorized dealer could provide, after following the steps described above, contact the Ford Customer Relationship Center to find an authorized dealer to help you.
Page 236 If you own a Lincoln vehicle and are away from home when your vehicle needs service, or if you need more help than the authorized dealer could provide, after following the steps described above, contact the Ford Customer Relationship Center to find an authorized dealer to help you.
Page 237 Customer Assistance In some states (in the U.S.) you must directly notify Ford in writing before pursuing remedies under your state’s warranty laws. Ford is also allowed a final repair attempt in some states. In the United States, a warranty dispute must be submitted to the BBB...
Page 238 You are not bound by the decision but may choose to accept it. If you choose to accept the BBB AUTO LINE decision then Ford must abide by the accepted decision as well. If the arbitrator has decided in...
Page 239 4,600 participating Ford or Lincoln Mercury and Ford of Canada authorized dealers. If you did not take advantage of the Ford Extended Service Plan at the time of purchasing your vehicle, you may still be eligible. Since this...
Page 240 Customer Assistance complete details about Ford Extended Service Plan coverage options, or visit the Ford ESP website at www.ford-esp.com. GETTING ASSISTANCE OUTSIDE THE U.S. AND CANADA Before exporting your vehicle to a foreign country, contact the appropriate foreign embassy or consulate. These officials can inform you of local vehicle registration regulations and where to find unleaded fuel.
Page 241: Reporting Safety Defects (U.s. Only)
Obtaining a French owner’s guide French Owner’s Guides can be obtained from your authorized dealer or by writing to Ford Motor Company of Canada, Limited, Service Publications, P.O. Box 1580, Station B, Mississauga, Ontario L4Y 4G3. REPORTING SAFETY DEFECTS (U.S. ONLY)
Page 242: Cleaning
Cleaning WASHING THE EXTERIOR Wash your vehicle regularly with cool or lukewarm water and a neutral pH shampoo, such as Motorcraft Detail Wash (ZC-3–A), which is available from your authorized dealer. • Never use strong household detergents or soap, such as dish washing or laundry liquid.
Page 243 Cleaning racks, bumpers, side moldings, mirror housings or the windshield cowl area. The paint sealant will “gray” or stain the parts over time. PAINT CHIPS Your authorized dealer has touch-up paint and sprays to match your vehicle’s color. Take your color code (printed on a sticker in the driver’s door jamb) to your authorized dealer to ensure you get the correct color.
Page 244 Cleaning • Never wash or rinse the engine while it is running; water in the running engine may cause internal damage. • Cover the highlighted areas to prevent water damage when cleaning the engine. • 5.4L V8 gasoline engine • 6.8L V10 gasoline engine PLASTIC (NON-PAINTED) EXTERIOR PARTS Use only approved products to clean plastic parts.
Page 245 Cleaning • For routine cleaning, use Motorcraft Detail Wash (ZC-3–A). • If tar or grease spots are present, use Motorcraft Bug and Tar Remover (ZC-42). • For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass Cleaner (ZC-23). WINDOWS AND WIPER BLADES The windshield, rear and side windows and the wiper blades should be cleaned regularly.
Page 246 Cleaning INTERIOR TRIM • Clean the interior trim areas with a damp cloth, then dry by wiping with a dry, soft, clean cloth. • Do not use household or glass cleaners as these may damage the finish. INTERIOR For fabric, carpets, cloth seats and safety belts: •...
Page 247 Cleaning LEATHER SEATS FOR THE KING RANCH F-250 AND F-350 CREWCAB ONLY (IF EQUIPPED) Your vehicle is equipped with seating covered in premium, top-grain leather which is extremely durable, but still requires special care and maintenance in order to ensure longevity and comfort. Regular cleaning and conditioning will maintain the appearance of the leather.
Page 248 The high-pressure fluid could penetrate the sealed parts and cause damage. FORD, LINCOLN AND MERCURY CAR CARE PRODUCTS Your authorized dealer has many quality products available to clean your vehicle and protect its finishes. These quality products have been specifically engineered to fulfill your automotive needs;...
Page 249 Cleaning Motorcraft Dash and Vinyl Cleaner (ZC-38–A) Motorcraft Deluxe Leather and Vinyl Cleaner (U.S. only) (ZC-11–A) Motorcraft Detail Wash (ZC-3–A) Motorcraft Dusting Cloth (ZC-24) Motorcraft Engine Shampoo and Degreaser (U.S only) (ZC-20) Motorcraft Engine Shampoo (Canada only) (CXC-66-A) Motorcraft One Step Wash and Wax Concentrate (ZC-6-A) Motorcraft Paint Sealant (ZC-45) Motorcraft Premium Car Wash Concentrate (U.S.
Page 250: Maintenance And Specifications
Maintenance and Specifications SERVICE RECOMMENDATIONS To help you service your vehicle: • We highlight do-it-yourself items in the engine compartment for easy location. • We provide a scheduled maintenance guide which makes tracking routine service easy. If your vehicle requires professional service, your authorized dealer can provide the necessary parts and service.
Page 251 Maintenance and Specifications Working with the engine on • Automatic transmission: 1. Set the parking brake and shift to P (Park). 2. Block the wheels. • Manual transmission: 1. Set the parking brake, depress the clutch and place the gearshift in N (Neutral).
Page 252: Engine Compartment
Maintenance and Specifications IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT 5.4L V8 gasoline engines Refer to the 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for diesel engine component locations. 1. Transmission fluid dipstick (automatic transmission) 2. Air filter assembly 3.
Page 253 Maintenance and Specifications 6.8L V10 gasoline engine Refer to the 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for diesel engine component locations. 1. Transmission fluid dipstick (automatic transmission) 2. Engine coolant reservoir 3. Brake fluid reservoir 4.
Page 254 In very cold weather, do not fill the reservoir completely. Only use a washer fluid that meets Ford specification WSB-M8B16–A2. Do not use any special washer fluid such as windshield water repellant-type fluid or bug wash as...
Page 255: Engine Oil
Maintenance and Specifications 4. Poor wiper quality can be improved by cleaning the wiper blades and the windshield; refer to Windows and wiper blades in the Cleaning chapter. 5. To prolong the life of the wiper blades, it is highly recommended to scrape off the ice on the windshield before turning on the wipers.
Page 256 Maintenance and Specifications • 5.4L V8 engine • 6.8L V10 engine 2006 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)
Page 257 Maintenance and Specifications 6. Wipe the indicator clean. Insert the indicator fully, then remove it again. • If the oil level is between the MIN and MAX marks, the oil level is acceptable. DO NOT ADD OIL. • If the oil level is below the MIN mark, add enough oil to raise the level within the MIN-MAX range.
Page 258 Change your engine oil and filter according to the appropriate schedule listed in the scheduled maintenance information. Ford production and aftermarket (Motorcraft) oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford material and design specifications, start-up engine noises or knock may be experienced.
Page 259: Battery
Maintenance and Specifications BATTERY Your vehicle is equipped with a Motorcraft maintenance-free battery which normally does not require additional water during its life of service. However, for severe usage or in high temperature climates, check the battery electrolyte level. Refer to the scheduled maintenance information for the service interval schedules.
Page 260 Maintenance and Specifications Batteries normally produce explosive gases which can cause personal injury. Therefore, do not allow flames, sparks or lighted substances to come near the battery. When working near the battery, always shield your face and protect your eyes. Always provide proper ventilation.
Page 261: Engine Coolant
Maintenance and Specifications • The vehicle may need to be driven 10 miles (16 km) or more to relearn the idle and fuel trim strategy. • If you do not allow the engine to relearn its idle trim, the idle quality of your vehicle may be adversely affected until the idle trim is eventually relearned.
Page 262 Maintenance and Specifications • All engines M I N When the engine is cold, check the level of the engine coolant in the reservoir. • The engine coolant should be at the “FULL COLD” level or within the “COLD FILL RANGE” as listed on the engine coolant reservoir (depending upon application).
Page 263 • Add Motorcraft Premium Gold Engine Coolant (yellow-colored), VC-7–A (U.S., except CA, OR and NM), VC-7–B (CA, OR and NM), meeting Ford Specification WSS-M97B51–A1. Note: Use of Motorcraft Cooling System Stop Leak Pellets, VC-6, may darken the color of Motorcraft Premium Gold Engine Coolant from yellow to golden tan.
Page 264 Recycled engine coolant Ford Motor Company does NOT recommend the use of recycled engine coolant in vehicles originally equipped with Motorcraft Premium Gold Engine Coolant since a Ford-approved recycling process is not yet available.
Page 265 Maintenance and Specifications Used engine coolant should be disposed of in an appropriate manner. Follow your community’s regulations and standards for recycling and disposing of automotive fluids. Coolant refill capacity To find out how much fluid your vehicle’s cooling system can hold, refer to Refill capacities in this section.
Page 266 Maintenance and Specifications Vehicles driven year-round in non-extreme climates should use a 50/50 mixture of engine coolant and distilled water for optimum cooling system and engine protection. What you should know about fail-safe cooling (if equipped) If the engine coolant supply is depleted, this feature allows the vehicle to be driven temporarily before incremental component damage is incurred.
Page 267: Fuel Information
Maintenance and Specifications 2. Arrange for the vehicle to be taken to a service facility. 3. If this is not possible, wait a short period for the engine to cool. 4. Check the coolant level and replenish if low. Never remove the coolant reservoir cap while the engine is running or hot.
Page 268 Maintenance and Specifications Gasoline may contain benzene, which is a cancer-causing agent. Observe the following guidelines when handling automotive fuel: • Extinguish all smoking materials and any open flames before refueling your vehicle. • Always turn off the vehicle before refueling.
Page 269 Maintenance and Specifications The flow of fuel through a fuel pump nozzle can produce static electricity, which can cause a fire if fuel is pumped into an ungrounded fuel container. Use the following guidelines to avoid static build-up when filling an ungrounded fuel container: •...
Page 270 The customer warranty may be void for any damage to the fuel tank or fuel system if the correct genuine Ford or Motorcraft fuel filler cap is not used. The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap.
Page 271 Gasolines that meet the World-wide Fuel Charter should be used when available. Ask your fuel supplier about gasolines that meet the World-wide Fuel Charter. Cleaner air Ford endorses the use of reformulated “cleaner-burning” gasolines to improve air quality. 2006 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt)
Page 272 Maintenance and Specifications Running out of fuel Avoid running out of fuel because this situation may have an adverse affect on powertrain components. If you have run out of fuel: • You may need to cycle the ignition from OFF to ON several times after refueling, to allow the fuel system to pump the fuel from the tank to the engine.
Page 273 Maintenance and Specifications • Use the same filling rate setting (low-medium-high) each time the tank is filled. • Allow no more than 2 automatic click-offs when filling. • Always use fuel with the recommended octane rating. • Use a known quality gasoline, preferably a national brand. •...
Page 274 Maintenance and Specifications • Idling for long periods of time (greater than one minute) may waste fuel. • Anticipate stopping; slowing down may eliminate the need to stop. • Sudden or hard accelerations may reduce fuel economy. • Slow down gradually. •...
Page 275 The scheduled maintenance items listed in the scheduled maintenance information are essential to the life and performance of your vehicle and to its emissions system. If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting 2006 F-250/350/450/550 (f23)
Page 276 Maintenance and Specifications emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability. Do not park, idle, or drive your vehicle in dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, which can start a fire.
Page 277 Maintenance and Specifications These temporary malfunctions can be corrected by filling the fuel tank with good quality fuel and/or properly tightening the fuel cap. After three driving cycles without these or any other temporary malfunctions present, the light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.
Page 278 Maintenance and Specifications POWER STEERING FLUID Check the power steering fluid. Refer to the scheduled maintenance guide for the service interval schedules. If adding fluid is necessary, use only MERCON ATF. Check the fluid level when it is at ambient temperature, 20°F–80°F (-7°C–25°C): 1.
Page 279 Check the clutch fluid level. Refer to the scheduled maintenance information for the service interval schedules. Use only a DOT 3 brake fluid designed to meet Ford specification ESA-M6C25–A. Refer to Lubricant Specifications in this chapter. Brake fluid is toxic. If brake fluid contacts the eyes, flush eyes with running water for 15 minutes.
Page 280 Maintenance and Specifications 1. Clean the reservoir cap before removal to prevent dirt and water from entering the reservoir. 2. Remove cap and rubber diaphragm from reservoir. 3. Add fluid until the level reaches the step in the reservoir. 4. Reinstall rubber diaphragm and cap onto reservoir.
Page 281 Maintenance and Specifications Low fluid level Do not drive the vehicle if the fluid level is at the bottom of the dipstick and the ambient temperature is above 50°F (10°C). Correct fluid level The transmission fluid should be checked at normal operating temperature 150°F-170°F (66°C-77°C) on a level surface.
Page 282 Maintenance and Specifications If an overfill occurs, excess fluid should be removed by a qualified technician. An overfill condition of transmission fluid may cause shift and/or engagement concerns and/or possible damage. Do not use supplemental transmission fluid additives, treatments or cleaning agents.
Page 283 5. Install and tighten the fill plug securely. Use only fluid that meets Ford specifications. Refer to Lubricant specifications in this chapter. 2006 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt)
Page 284 Use only fluid that meets Ford specifications. Refer to Lubricant specifications in this chapter. DRIVELINE UNIVERSAL JOINT AND SLIP YOKE If the original universal joints are replaced with universal joints equipped with grease fittings, lubrication will be necessary.
Page 285: Air Filter(S)
Maintenance and Specifications Note: Do not start your engine with the air cleaner removed and do not remove it while the engine is running. Changing the air filter element • 5.4L Engine 1. Release two retainer clamps. 2. Pull air filter tray assembly out toward front of vehicle and lift air filter element up and out of housing.
Page 286 Maintenance and Specifications • 6.8L Engine 1. Loosen the clamps that secures the air filter cover in place. 2. Carefully separate the two halves of the air filter housing. 3. Remove the air filter element from the air filter housing. 4.
Page 287: Part Numbers
PCV valve. Replace the PCV valve with one that meets Ford material and design specifications for your vehicle, such as a Motorcraft or equivalent replacement part. The customer warranty may be void for any damage to the emissions system if such a PCV valve is not used.
Page 288: Refill Capacities
Maintenance and Specifications REFILL CAPACITIES Ford Part Fluid Application Capacity Name Front axle Motorcraft SAE F-250/350 5.8 pints (2.8L) 80W-90 (Dana 60 axle) Premium Rear F-350/450/550 5.8 pints (2.8L) Axle Lubricant (Dana 60 axle) Rear axle Motorcraft SAE F-250 /350 6.9 pints (3.3L)
Page 289 Maintenance and Specifications Ford Part Fluid Application Capacity Name Engine oil Motorcraft SAE 5.4L V8 and 7.0 quarts (includes filter 5W-20 Premium 6.8L V10 (6.6L) change) - gas Synthetic Blend engines engines Motor Oil (US) Motorcraft SAE 5W-20 Super Premium Motor...
Page 290 Add 8 oz. (236 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford Specification EST-M2C118–A for complete refill of limited slip axles. Ford design rear axles contain a synthetic lubricant that does not require changing unless the axle has been submerged in water. Dana rear axles also contain a synthetic lubricant but do require a change.
Page 291: Lubricant Specifications
Maintenance and Specifications LUBRICANT SPECIFICATIONS Ford part Ford part Ford Item name or number specification equivalent High E8TZ-19590–A ESA-M1C198–A Temperature XG-11 (FAD) Spindle bearing 4X4 Front Axle and Wheel Bearing Grease Motorcraft SAE XY-80W-90–QL WSP-M2C197–A Front axle 80W-90 (4X4) Premium Rear...
Page 292 Maintenance and Specifications Ford part Ford part Ford Item name or number specification equivalent Motorcraft SAE XO-5W20-QSP WSS-M2C930-A 5W-20 Premium (US) and API Synthetic Blend CXO-5W20–LSP12 Certification Motor Oil (US) (Canada) Mark Engine oil Motorcraft SAE 5W-20 Super Premium Motor...
Page 293 Add 8 oz.(236 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification EST-M2C118-A for complete refill of limited slip axles. Ford design rear axles contain a synthetic lubricant that does not require changing unless the axle has been submerged in water. Dana rear axles also contain a synthetic lubricant but do require a change.
Page 294 Maintenance and Specifications ENGINE DATA Engine 5.4L V8 engine 6.8L V10 engine Cubic inches Required fuel 87 octane 87 octane Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9 1.02–1.28mm 1.02–1.28mm Spark plug gap (0.040–0.050 inch)* (0.040–0.050 inch)* Ignition system Coil on plug Coil on plug Compression ratio 9.8:1 9.2:1...
Page 295 Maintenance and Specifications F–250 Crew Cab Dimension Body style Crew Cab Crew Cab Crew Cab Crew Cab 4x2, Short 4x4, Short 4x2, Long 4x4, Long box - box - inches box - inches box - inches inches (mm) (mm) (mm) (mm) (1) Overall 77.5 (1969) 80.0 (2032)
Page 296 Maintenance and Specifications F–350 (except Crew Cab) Dimension Body style Regular SuperCab Regular SuperCab Chassis Cab Style Style Side - Chassis Cab - Side - inches Cab - inches inches (mm) inches (mm) (mm) (mm) (1) Overall 76.9 (1953) 77.4 (1966) 76.8 (1951) 77.3 height...
Page 297 Maintenance and Specifications Dimension Body style Regular SuperCab Regular SuperCab Chassis Cab Style Style Side - Chassis Cab - Side - inches Cab - inches inches (mm) inches (mm) (mm) (mm) (5) Overall 225.6 246.6 (6264) 226.4 (5751) 231.2 a,b,c,d length (5730) (5872)
Page 298 Maintenance and Specifications Body style Crew Cab Crew Cab, Crew Cab, Dimension Chassis Cab - Short box - Long box - inches (mm) inches (mm) inches (mm) (3) Overall 106.4 (2703) 99.5 (2527) 99.5 (2527) width (4) Wheelbase 176.2 (4475) 156.2 (3967) 172.4 (4379) (5) Overall...
Page 299 Maintenance and Specifications Dimension Body style Regular Regular SuperCab Crew Cab Chassis Chassis Chassis 4x2 Chassis 4x4 4x2/4x4 – 4x2/4x4 – – inches – inches inches inches (mm) (mm) (mm) (mm) (5) Overall 225.6 225.6 246.6 (6264) 261.0 length (5730) (5730) (6629) 249.6...
Page 300 Maintenance and Specifications Dimension Body style Regular Regular Crew Cab Crew Cab Chassis Chassis Chassis Chassis Cab 4x2 – Cab 4x4 – Cab 4x2 – Cab 4x4 – inches inches inches inches (mm) (mm) (mm) (mm) (2) Track - 74.8 (1900) / 74.8 (1900) / 74.8 (1900) / 74.8 (1900) /...
Page 301 Maintenance and Specifications 2006 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)
Page 302 Maintenance and Specifications IDENTIFYING YOUR VEHICLE Safety Compliance Certification Label The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label is located on the structure by the trailing edge of the driver’s door or...
Page 303 Maintenance and Specifications 1. World manufacturer identifier 2. Brake type and gross vehicle weight rating (GVWR) 3. Vehicle line, series, body type 4. Engine type 5. Check digit 6. Model year 7. Assembly plant 8. Production sequence number TRANSMISSION/TRANSAXLE CODE DESIGNATIONS You can find a transmission/transaxle code on the vehicle Safety Compliance Certification Label.
Page 304: Accessories
Not all accessories are available for all models. The following is a list of several Genuine Ford Accessory products for your vehicle. Not all accessories are available for all models. For a...
Page 305 Accessories Interior style Electrochromatic compass/temperature interior mirrors Floor mats Speed control Lifestyle Bedliners and bedmats Sport Liner Towing mirrors Trailer hitches, wiring harnesses and accessories Peace of mind Full vehicle covers Keyless entry Mobile-Ease hand-free communication system Remote start Vehicle security systems For maximum vehicle performance, keep the following information in mind when adding accessories or equipment to your vehicle: •...
Page 306 Accessories • Electrical or electronic accessories or components that are added to the vehicle by the authorized dealer or the owner may adversely affect battery performance and durability. 2006 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)
Page 307: Index
Index jumping a disabled battery ..228 maintenance-free ....259 replacement, specifications ...287 Accessory delay ......58 servicing ........259 Air cleaner filter ..284–285, 287 BeltMinder .........104 Air conditioning ......36 Brakes ........172 Airbag supplemental restraint anti-lock ........173 system ........109 anti-lock brake system (ABS) and child safety seats ....110 description ......109 warning light ......173 disposal ........113...
Page 308 Emergencies, roadside specifications ......291 jump-starting ......228 Cruise control Emergency Flashers ....205 (see Speed control) ....61 Emission control system ..275 Customer Assistance ....203 Ford accessories for your Engine ........294 vehicle ........248 cleaning ........243 Ford Extended Service coolant ........261 Plan ..........239 diesel ...........7 Getting assistance outside the fail-safe cooling .......266...
Page 309 Index Exhaust fumes ......171 Gas mileage (see Fuel economy) ....272 Gauges .........16 transmission fluid Fail safe cooling ......266 temperature gauge ....20 Fluid capacities ......288 Foglamps ........40 Hazard flashers ......205 Four-Wheel Drive vehicles ..185 description ......189 Head restraints ......90 driving off road .......191 Headlamps ........39 electronic shift ....186, 189 aiming ........41, 43...
Page 310 Index Keys fold away ........60 positions of the ignition ..167 heated ........58 side view mirrors (power) ..58 signal .........59 Moon roof ........66 Lamps Motorcraft parts ....267, 287 autolamp system .......39 daytime running light ....40 fog lamps ........40 headlamps .........39 Octane rating ......271 headlamps, flash to pass ..41 instrument panel, dimming ..41 Oil (see Engine oil) ....255...
Page 311 Index Remote entry system ....82 Specification chart, illuminated entry ......86 lubricants ........291 locking/unlocking doors ...80 Speed control ......61 Reverse sensing system ...183 Starting your Roadside assistance ....203 vehicle ......167–168, 171 jump starting ......228 Steering wheel controls ........66 Safety Belt Maintenance ..108 tilting .........54 Safety belts (see Safety restraints) ..97–101...
Page 312 Index Transfer case Vehicle Identification Number fluid checking ......284 (VIN) ..........302 Transmission Vehicle loading ......148 automatic operation ..55, 177 Ventilating your vehicle ...172 brake-shift interlock (BSI) ..177 fluid, checking and adding (automatic) ......280 fluid, checking and adding (manual) .........283 Warning lights (see Lights) ..12 fluid, refill capacities ....288 Washer fluid ......254 lubricant specifications ..291...

This manual is also suitable for:

2006 f-250 2006 f-450 2006 f-550

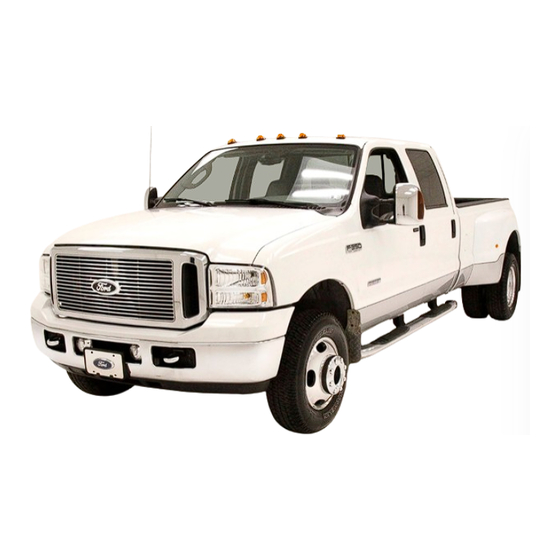

Ford 2006 F-350 Owner's Manual

Introduction

Instrument Cluster

Entertainment Systems

Climate Controls

Lights

Driver Controls

Locks and Security

Seating and Safety Restraints

Tires, Wheels and Loading

Driving

Roadside Emergencies

Customer Assistance

Cleaning

Maintenance and Specifications

Accessories

Index

Quick Links

Table of Contents

Related Manuals for Ford 2006 F-350

Summary of Contents for Ford 2006 F-350

This manual is also suitable for:

Table of Contents
