SY-6IEB Quick Start Guide

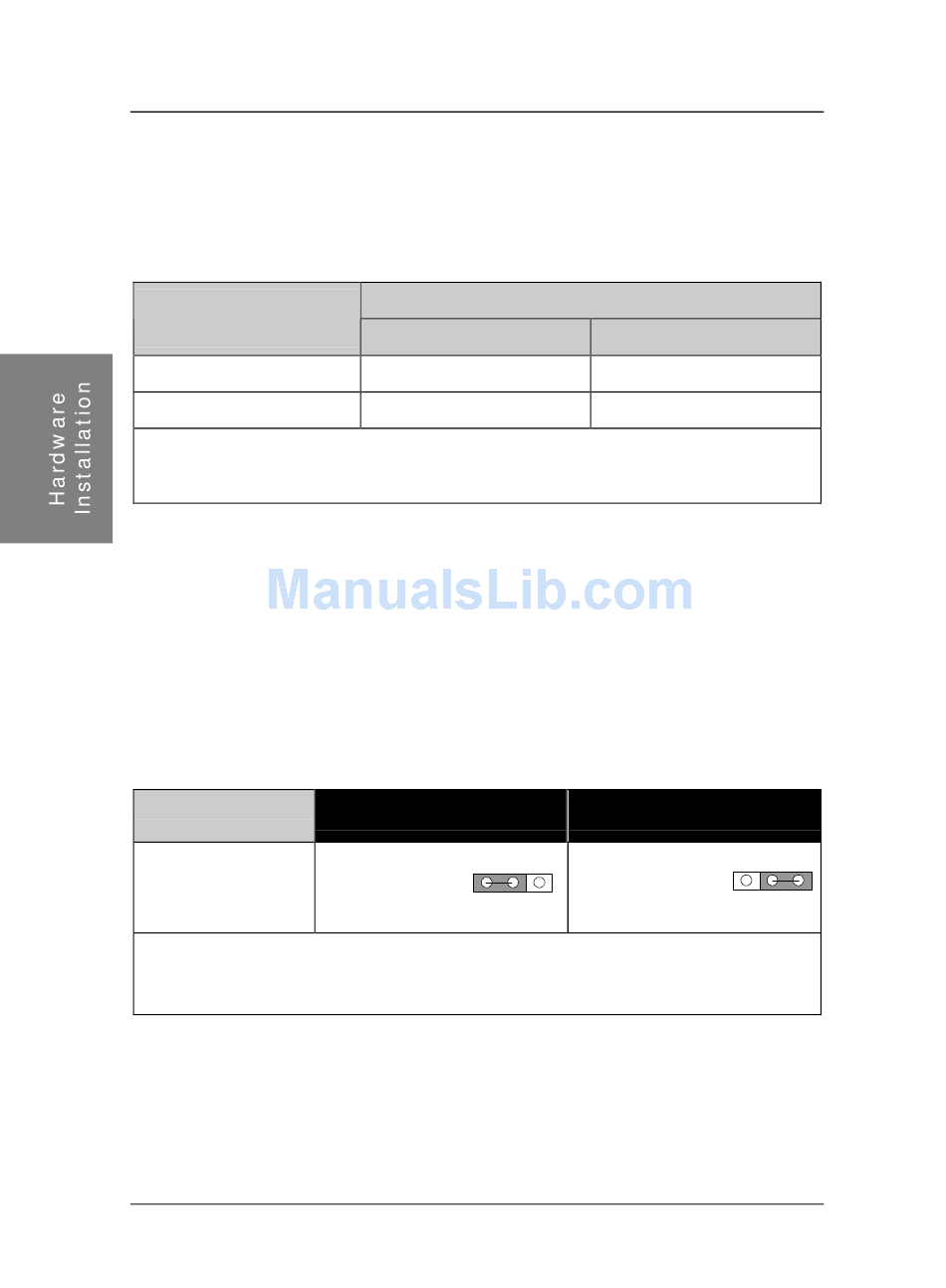

Step 3. Configure Memory
Your board comes with two DIMM sockets, providing support for up to 256MB of main
memory using DIMM modules from 8MB to 128MB with no restriction on memory
configuration. Therefore, you can install memory modules in any combination.

Memory Configuration

MEMORY
CONFIGURATION
RAM Type
RAM Module Size (MB)
Note : There are two types of DIMM modules with different operating voltages:
3.3V and 5.0V. Please note that only 3.3V EDO DIMM modules can be used
on this Motherboard.
Step 4. Set the CPU Frequency
You do not need to set any jumper for the CPU frequency. Instead, CPU settings are
changed through the BIOS [SOYO COMBO SETUP]. Please refer to Chapter 3 - Quick
BIOS Setup for details on how to set the Pentium
Step 5. Enable/Disable the Keyboard Wake-Up (JP10)
You can choose to enable the Wake-Up by Keyboard or Mouse function by shorting pin 1-2
on jumper JP1, otherwise, short pin 2-3 to disable this function.
Support Wake-Up
by Keyboard
JP10 Setting
Important: When using the Keyboard Wake-Up function, please make sure the ATX
power supply can take at least 720mA load on the 5V Standby lead (5VSB) to meet the
standard ATX specifications.
DIMM 1
EDO/SDRAM
8/16/32/64/128
®
Enable
Enable Wake-up
by Keyboard
function
1
(short pin 1-2)
8
DIMM Banks
DIMM 2
EDO/SDRAM
8/16/32/64/128
II processor frequency.
Disable
Disable Wake-up
by Keyboard
function
2
3
(short pin 2-3)
2 3
1
