Audio Outputs
All outputs are a balanced differential configuration.
Some outputs include an attenuator to reduce the signal
to mic level. Wiring is the same for either line or mic
level, as indicated in the following illustrations.
USING A LINE OUTPUT WITH THE DIGITAL ATTENUATION
APPLIED WITH THE CONTROL PANEL TO ACHIEVE MIC
LEVEL WILL RESULT IN ADDED NOISE
Use the outputs marked as MIC/LINE OUTPUTS for mic
level applications. Using the other outputs marked LINE
OUTPUTS with control panel attenuation can result in
up to 40 dB off additional noise.

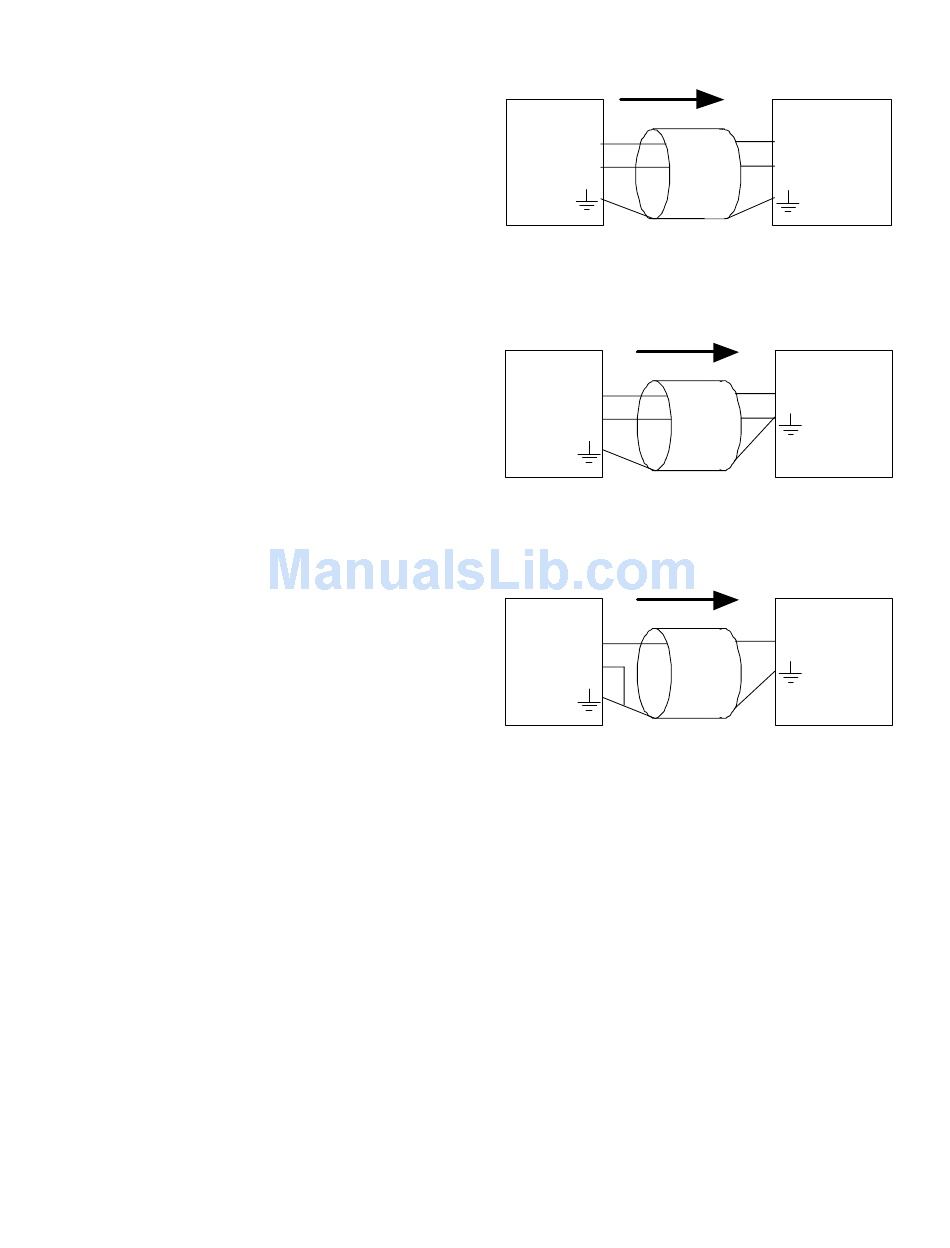

When the DM output is connected to a balanced input,
wire it as indicated in this illustration.
Select Mic or Line either from the front panel LCD
interface or via the software GUI.
NOTE:
Rio Rancho, NM
DM Series Installation Guide
DM Out
+
-
Shield
DM Out to Balanced Input
(3-Wire)
DM Out
+
-
Shield
DM Out to Unbalanced Input
(3-Wire)
DM Out
+
-
Shield
DM Out to Unbalanced Input
(2-Wire)
Destination
+
-
Destination
+
Destination
+
