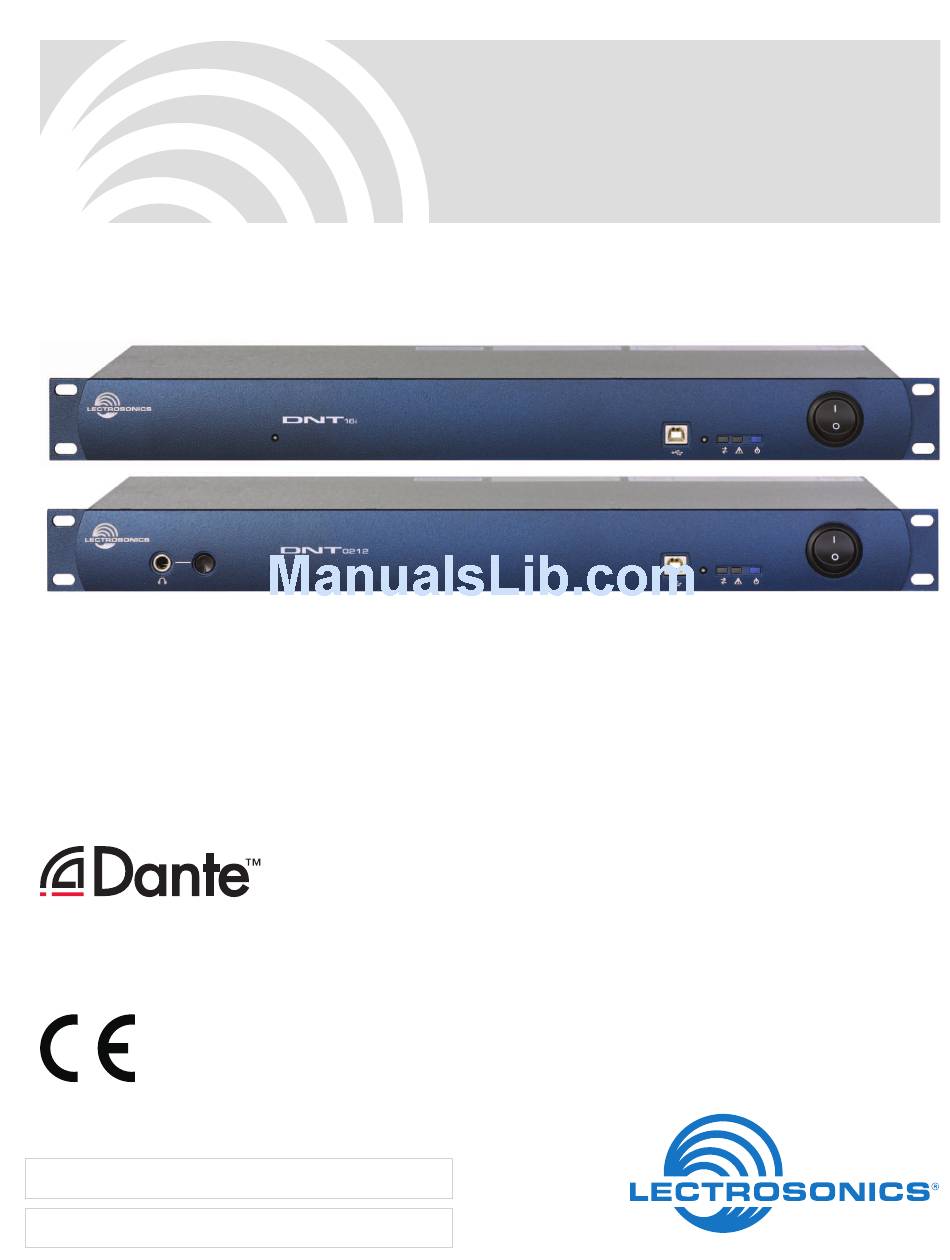

- Page 1 INSTALLATION AND STARTUP GUIDE DNT Series DNT16i/DNT0212 Network Processors A trademark of Audinate Pty Ltd. Fill in for your records: Serial Number: Rio Rancho, NM, USA Purchase Date: www.lectrosonics.com...
-
Page 2: Table Of Contents
Network and PC Connections ..........12 CAUTION: Changes or modifications not expressly Signal Routing ..............13 approved by Lectrosonics, Inc. could void the user’s Replacement Parts and Accessories ......... 14 authority to operate the equipment. Service and Repair .............. 15 This equipment has been tested and found to comply Returning Units for Repair .......... -
Page 3: Overview
The secondary network dupli- The DNT16i is an “input” device, providing 16 analog cates real-time audio traffic. If the primary network fails mic/line inputs. The input signals are digitized and for any reason, the secondary network’s audio contin-... -
Page 4: Dnt16I Front Panel
ASPEN Digital Processor DNT16i Front Panel System Recovery Mode Switch Status LEDs Recessed switch is used to recover after a failed firm- • Comm LED - indicates USB, RS-232 and network ware update. communication • Alert LED - blinks to indicate fault or error USB Port •... -
Page 5: Dnt0212 Front Panel
Installation and Quick Start Guide DNT0212 Front Panel Headphone Monitor Firmware Update Mode Switch Standard 1/4 inch jack and level control. Drives both Recessed switch used to place the processor into the channels of stereo headphones. firmware update mode. System Recovery Mode Switch Status LEDs Recessed switch is used to recover after a failed firm- •... -
Page 6: Dnt Control Panel Software
Click on I Agree, then on Next to continue. Another screen will appear during the installation, prompting for permission to install the USB drivers. Click on Next to continue. When the installation is complete the final screen will appear. Click on Finish to close the installer. LECTROSONICS, INC. -
Page 7: About Dante Software
Installation and Quick Start Guide About Dante Software Dante Software Installation Dante Controller is a second software package needed to route network audio signals between the processor and other nodes on a network. The software Bonjour Print Services (for Windows only) is downloaded from the Audinate web site and will run on Windows and Mac platforms. -
Page 8: Mandatory Settings
Dante Controller software. Select NOTE: Once everything is set up and audio is Network flowing to and from the network, a second gigabit Config switch and network can be added and the mode can be changed to Redundant. Select Switched LECTROSONICS, INC. -
Page 9: Dnt Control Panel Software - Signal Flow Configuration
Installation and Quick Start Guide DNT Control Panel Software - Signal Flow Configuration If DHCP is enabled and the IP address is assigned by a network server, the address will appear in the In each processor: Network Settings dialog box. Otherwise a static IP The following signal connections and routing must be address may be entered into the same dialog box. -
Page 10: Hardware Connections
It does not transport audio. The Eth- ernet port is also used with third party control devices such as LCD touch panels. LECTROSONICS, INC. -
Page 11: Programmable Inputs
Installation and Quick Start Guide Programmable Inputs Programmable Outputs Programmable inputs are provided to enable external Programmable outputs are used for several purposes: control over a variety of parameters. Each input can • indicate the current state of a programmable input respond to a contact closure, a DC voltage source, •... -
Page 12: Network And Pc Connections
The DNT processors send and receive audio via the Dante network, and to and from local devices con- nected directly to them. Server/Router Local audio sources Primary Network DNT16i Gigabit Ethernet switch Secondary Network DNT0212 Gigabit Ethernet switch Analog audio outputs... -
Page 13: Signal Routing
Installation and Quick Start Guide Signal Routing The signal flow screen of the DNT16i processor pro- vides an overview with access to individual settings directly or by double clicking on an element. Each DNT processor has an internal matrix that can connect to local audio devices and Dante transmit and receive channels. -
Page 14: Replacement Parts And Accessories
ASPEN Digital Processor Replacement Parts and Accessories Replacement Parts Accessories DNTDISK DNT Software CD 21553 DB-9 Plug 21554 DB-9 Shell Kit 21499 Power Cord 21559 DB-25 Shell Kit 21558 DB-25 Connector 21580 5-pin Phoenix Connector 21713 USB Cable 35679 Screwdriver LECTROSONICS, INC. -
Page 15: Service And Repair
There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a mod- est flat rate plus parts and shipping. - Page 16 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
