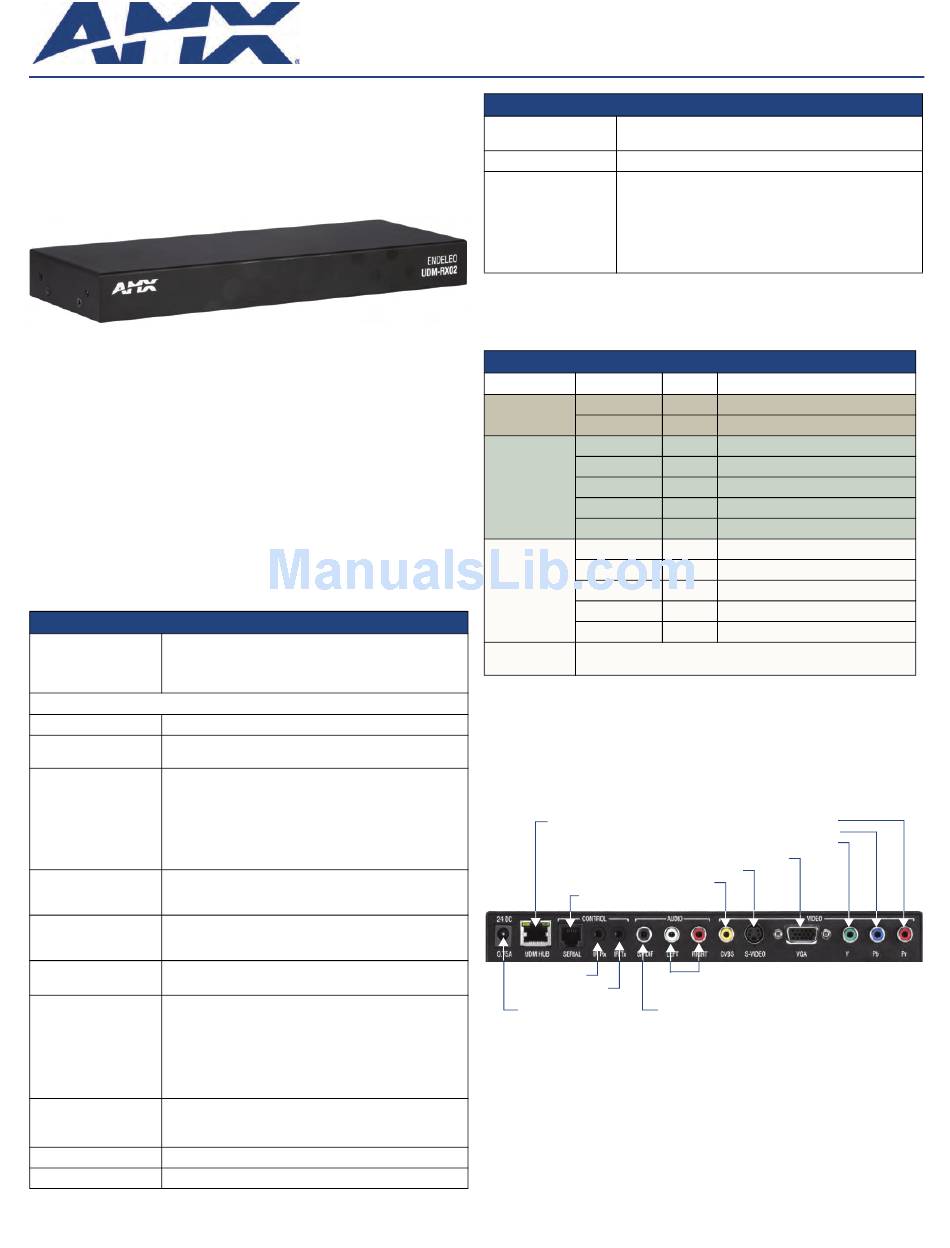

AMX UDM-RX02 Installation Manual

Overview
Installed at the display device, the UDM-RX02 converts the signal received from the
UDM-1604 or UDM-0102 Multi-Format Distribution Hub to standard audio/video signals. With
intelligent receiver technology, each UDM-RX02 is powered remotely from the Multi-Format
Distribution Hub via Cat 5/5e/6 cable.
The receiver supports an embedded control function to allow detection of a change in signal
from the hub and automatic switch of the Plasma or LCD screen to its new video format.
The UDM-RX02 also allows an optional local power supply to be added for long cable runs.

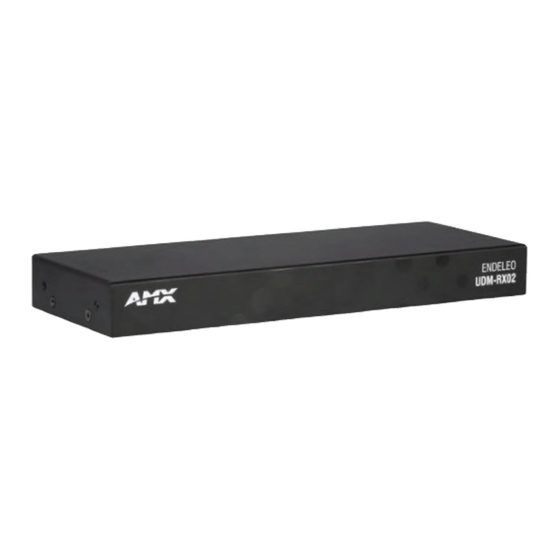

UDM-RX02
FIG. 1

Common Application

Perfect for the receiving end of sources to be displayed in classrooms, conference rooms or
other presentation rooms.
Features
• Video Support for 1600 x 1200 (UXGA), 1920 x 1080 (HDTV), Component YPbPr,
S-Video, Composite PAL/NTSC
• S/PDIF, Digital and analog stereo audio support
• IR blaster and receiver ports
Compatibility
The UDM-RX02 is compatible for use with the following UDM Hubs:
• UDM-0102 (FG-UDM-0102) - supports Common Synch Mode.
• UDM-0404 (FG-UDM-0404) - supports Common Synch Mode.
• UDM-1604 (FG-UDM-1604C) - supports Common Synch Mode.
• UDM-1604 (FG-UDM-1604) - does not support Common Synch Mode. In this case,
the UDM-RX02 will function, but without Common Synch Mode.

Product Specifications

UDM-RX02 Specifications
Power Requirements: 24VDC @ .75A
Note: In most cases the UDM-RX02 is remotely powered by
the UDM Multi-Format Distribution Hub (see Powering on the
UDM-RX02).
Rear Panel Connectors:
Power Socket: 2.1mm barrel-style DC power socket (female)
UDM Hub (RJ45) Port: Provides audio/video transport as well as control via Cat5,
Cat5e or Cat6 to an UDM Hub.
Serial (RJ12) port: Provides serial RS232 control of remote devices.
It also allows administrators to control the various functions to
the UDM-RX02 from a command line prompt and terminal
connection.
• See the Serial Port (RJ12) section for more details.
• Requires a DB9-to-RJ12 adapter cable (FG-RS01) to
connect to a PC.
IR Rx Port: 3.5mm stereo input port, for connection of an IR receiver to
allow setup of the UDM-RX02, local compensation
controls, and remote control of centrally located IR devices.
IR Tx Port: 3.5mm stereo IR Transmitter output port allows one IR-con-
trolled device (such as a DVD or VCR player) to be controlled
via optional wired IR emitter.
Audio Connectors: • Black RCA connector - Digital audio
• White / Red RCA connectors - Analog audio L/R
Video Connectors: • Yellow RCA female connector - CVBS (supports composite
video)
• S-Video - S-video female connector
• VGA - HD15 female connector (supports VGA video)
• Green RCA female connector - Component output: Y
• Blue RCA female connector - Component output: Pb
• Red RCA female connector - Component output: Pr
Operating Environment: • 35°F - 95°F (5°C - 35°C)
• Max. relative humidity - 85% (non-condensing)
• Heat Dissipation (Typical): 30.7 BTU/hr
Dimensions (HWD): 1" x 8 15/16" x 3 3/8" (25 mm x 227 mm x 85 mm)
Weight: 1.45 lb. (658 g)
UDM-RX02
UDM-RX02 Specifications (Cont.)
Certifications: • CE
• FCC part 15 Class A
Included Accessories: UDM-PS 24VDC, 30W Power Supply (57-0102-01)
Other AMX Equipment: • RS232 DB9/RJ12 Connection Cable (FG-RS01)
• UDM-RC02 Multi-Format IR Remote Control
(FG-UDM-RC02)
• UDM-RC05 Multi-Format IR Remote Control
(FG1402-70)
• IR01 IR Emitter Module (FG-IR01)
• IR03 External IR Receiver Module (FG-IR03)
Configuration
The UDM-RX02 is configured via the UDM Hub's WebConsole. Refer to the UDM Hub's
Operation/Reference Guide for details.
Audio & Video Formats/Resolutions/Distance
Audio & Video Formats/Resolutions/Distance
Class Format
Composite 720x480
720x576
Component 720x480
720x576
1280x720
1920x1080
1920x1080
VGA 640x480
800x600
1024x768
1280x1024
1600x1200
* When using VGA modes with audio enabled, the maximum cable
distance is approximately 200 m / 650'.
Note: The maximum distances indicated above are not absolute, but are recommended
distances that have been tested to deliver video at the specified resolutions, without
significant signal degradation. In particular, lower resolutions (640 x 480, 720 x 480 and
800 x 600) can often be delivered significantly further than what is indicated in the table.
Refer to the UDM Hub's Operation/Reference Guide for additional details on maximum cable
distances.

Wiring and Connections

All of the connectors and ports are located on the rear panel (FIG. 2):
UDM HUB port (RJ45) - from an
"OUTPUT" port on the UDM Hub
CVBS port
Serial port (RJ12)
IR Rx port
IR Tx port
Power connector SPDIF female Digital Audio port
UDM-RX02 - rear panel components
FIG. 2
UDM Hub Port (RJ45)
The UDM-RX02 connects to a UDM Hub through a Cat 5/Cat 6 connection. Refer to the
UDM Hub's Operation/Reference Guide for details.
Serial Port (RJ12)
The SERIAL (RJ12) port allows administrators to control the various functions to the
UDM-RX02 from a command line prompt and terminal connection.
• Requires a DB9-to-RJ12 adapter cable (FG-RS01) to connect to a PC.
• Default settings = 9600, 8 bit, No Parity, 1 Stop Bit.
Installation Guide
Multi-Format Receiver
Name Distance
NTSC 300 m / 1000'
PAL 300 m / 1000'
480p 300 m / 1000'
576p 300 m / 1000'
720p 300 m / 1000'
1080i 300 m / 1000'
1080p 300 m / 1000'
VGA 300 m / 1000' *
SVGA 300 m / 1000' *
XGA 300 m / 1000' *
SXGA 300 m / 1000' *
UXGA 300 m / 1000' *
Component (Pr) port
Component (Pb) port
Component (Y) port
VGA (HD15) port
S-Video port
RCA audio
(left/right)
