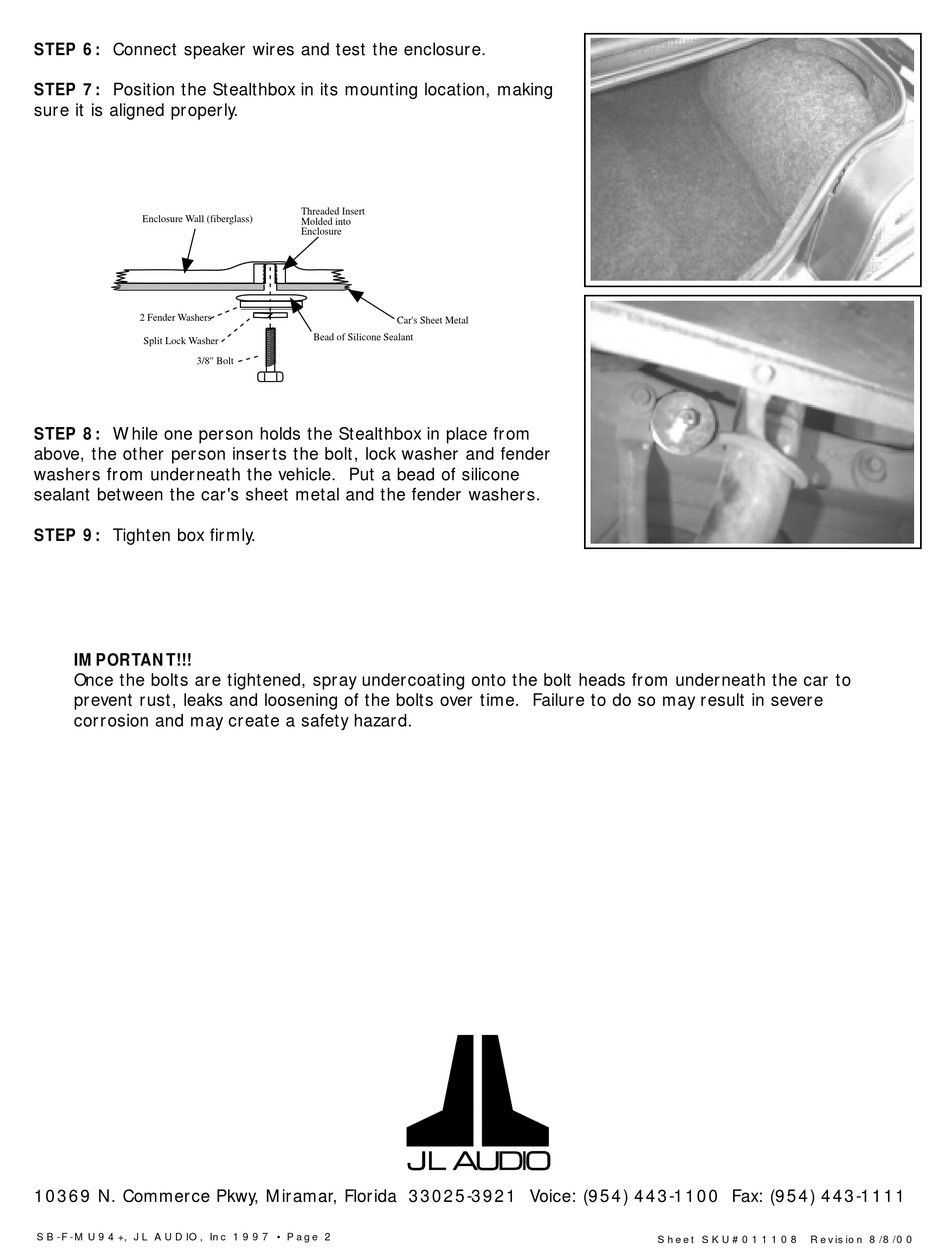

STEP 6: Connect speaker wires and test the enclosure.

STEP 7: Position the Stealthbox in its mounting location, making
sure it is aligned properly.
Enclosure Wall (fiberglass)
2 Fender Washers
Flat Washer
Split Lock Washer
3/8" Bolt
STEP 8: While one person holds the Stealthbox in place from
above, the other person inserts the bolt, lock washer and fender
washers from underneath the vehicle. Put a bead of silicone
sealant between the car's sheet metal and the fender washers.

STEP 9: Tighten box firmly.

IMPORTANT!!!
Once the bolts are tightened, spray undercoating onto the bolt heads from underneath the car to
prevent rust, leaks and loosening of the bolts over time. Failure to do so may result in severe
corrosion and may create a safety hazard.
10369 N. Commerce Pkwy, Miramar, Florida 33025-3921 Voice: (954) 443-1100 Fax: (954) 443-1111
SB-F-MU94+, JL AUDIO, Inc 1997 • Page 2
Threaded Insert
Molded into
Enclosure
Car's Sheet Metal
Bead of Silicone Sealant
Sheet SKU#011108 Revision 8/8/00
