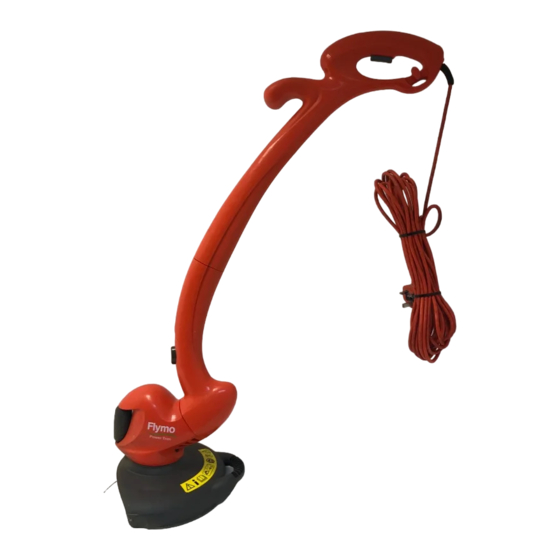

Flymo Power Trim Operator's Manual
Electric lawn trimmer
Hide thumbs
Also See for Power Trim:
- Manual (54 pages) ,
- Instruction manual (9 pages) ,
- Original instructions manual (8 pages)
Related Manuals for Flymo Power Trim
Summary of Contents for Flymo Power Trim

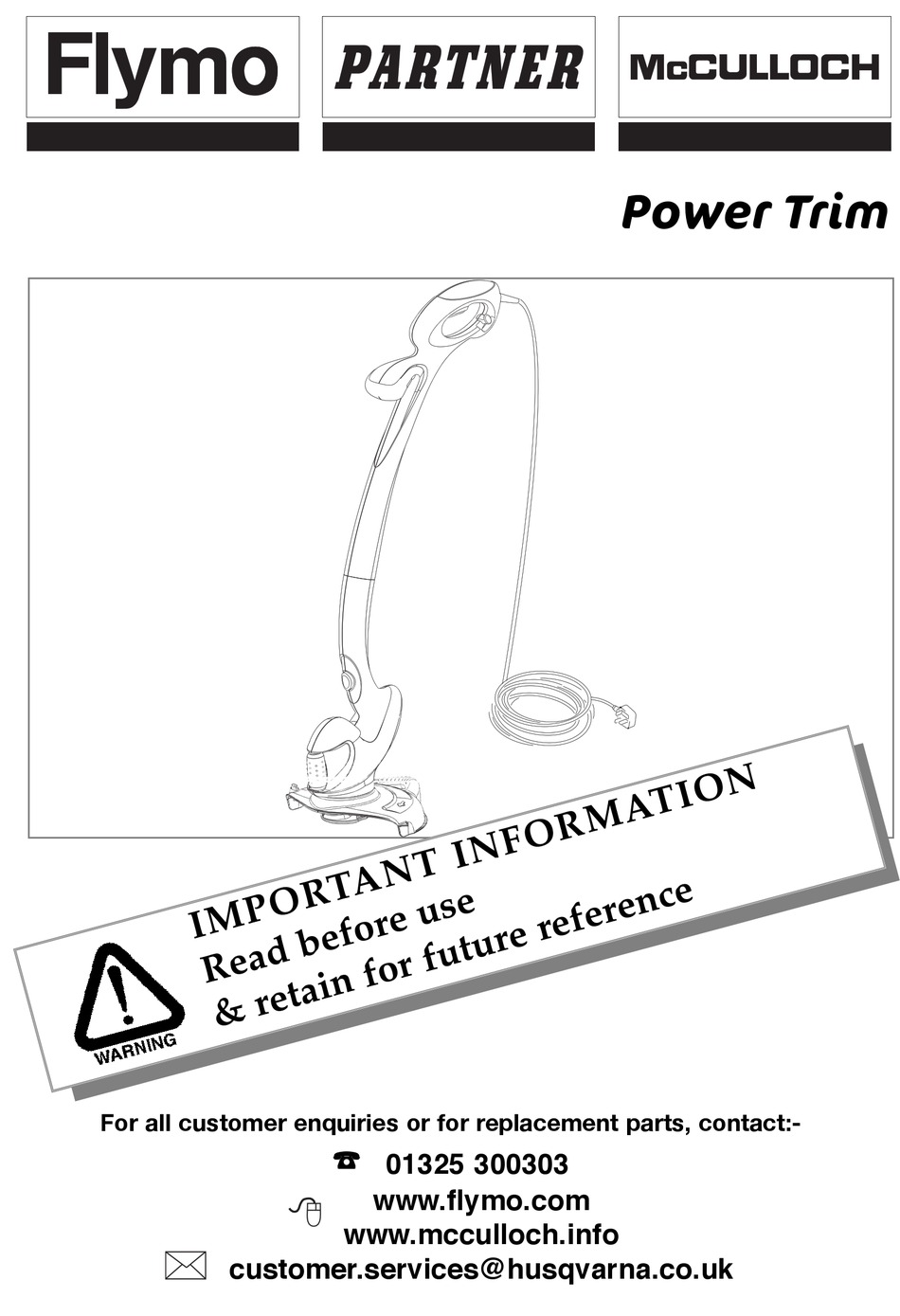

- Page 1 Power Trim For all customer enquiries or for replacement parts, contact:- ☎ ☎ 01325 300303 www.flymo.com www.mcculloch.info customer.services@husqvarna.co.uk...
-
Page 2: Carton Contents
Carton Contents Switch Lever Steady Handle Electric Cable with moulded on plug Upper Shaft Instruction Lower Manual Shaft Guard IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new product. IF ANY PARTS ARE MISSING CONTACT:- Husqvarna Outdoor Products Customer Service Department direct Telephone : 01325 300303, Fax : 01325 318193 Safety... -
Page 3: Cables
4. Immediately disconnect from the mains electricity 2. Avoid operating your trimmer in wet grass, where supply if the cable is cut, or the insulation is dam- feasible. aged. Do not touch the electric cable until the elec- 3. Take care in wet grass, you may lose your footing. trical supply has been disconnected. -
Page 4: Starting And Stopping
Assembly Instructions Shaft Assembly (A) 1. Locate the lower shaft (A1) into the upper shaft (A2). 2. Grasp firmly and hold steady the lower shaft. Locate the upper shaft and snap together firmly. • The unit is correctly assembled when the gap between the upper and lower shaft has been closed. -
Page 5: Manual Line Feed
How to trim and edge • WARNING • The use of eye protection is recommended. Do not lean over the trimmer whilst trimming or edging, objects may be thrown by the cutting line. Do not allow cutting head to rest on the ground. Do not overload your trimmer. -
Page 6: Cutting Head
To fit nylon line only: Cleat • Remember ! Your Flymo Trimmer is designed to use only nylon line with a maximum diameter of 1.5mm. Use only genuine Flymo nylon line. 1. IMPORTANT - Always wind the line onto the upper section of the spool first. -
Page 7: Maintenance
Fault Finding Chart (Automatic Line Feed only) WARNING Disconnect from the mains electricity supply before attempting any maintenance or adjustment. FAULT CHECK ACTION Is the automatic line feed work- Manually feed out line. LINE NOT FEEDING ing? Is the line fed out and visible? Remove cap and spool, free line LINE TOO SHORT Has line been removed from... -
Page 8: Environmental Information
Environmental Information Husqvarna Outdoor Products are manufactured under an The symbol on the product or on its packaging Environmental Management System (ISO 14001) using, indicates that this product may not be treated as house- where practical, components manufactured in the most hold waste.
