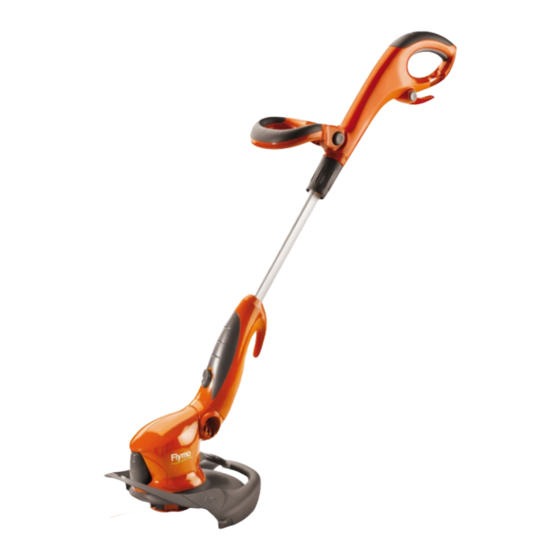

Flymo Power Trim 500 XT Original Instructions Manual

Flymo Power Trim 500 XT Original Instructions Manual

Electric lawn trimmer
Hide thumbs Also See for Power Trim 500 XT:

Advertisement

Power Trim
®
500 XT
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Trim 500 XT and is the answer not in the manual?

Questions and answers

Paul Briggs
April 22, 2025

How to remove spool head from my Flymo 500xt

1 comments:
Mr. Anderson
May 11, 2025

To remove the spool head from a Flymo Power Trim 500 XT:

1. Disconnect the trimmer from the mains electricity supply.
2. Locate the two latch releases on the spool cap underneath the cutting head.
3. Push the cap release latches in.
4. Pull the cap away from the spool holder.
5. Take hold of the spool and pull it out to remove it from the trimmer.

This answer is automatically generated

Summary of Contents for Flymo Power Trim 500 XT

  • Page 1 Power Trim ® 500 XT Original Instructions...
  • Page 2: Carton Contents

    Trimmer Head Plant and Tree Guard IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new Flymo product. IF ANY PARTS ARE MISSING CONTACT:- Husqvarna UK Ltd. Customer Service Department direct Telephone : 0844 844 4558...
  • Page 3: Assembly Instructions

    CONNECTORS 4.It is important that the outer sheath is clamped Flymo connectors are suitable for use with 2 core cable correctly into the 3-pin plug. only. Under no circumstances should these connectors 5.If in doubt consult your local Service Repairer or be used for earthed products.
  • Page 4: Double Auto Feed System

    Assembly Instructions cont’ Safety Guard Assembly (B1) & (B2) 1. Locate the safety guard over the cutting head. Ensure the nylon line is fed through the hole in the safety guard as illustrated in fig B1. 2. Push into location and turn safety guard in the direction illustrated in Fig B2, until a click is heard and the safety guard is securely locked in position.
  • Page 5: How To Use

    How to use • WARNING • The use of eye protection is recommended. Do not lean over the trimmer whilst trimming or edging, objects may be thrown by the cutting line. Do not allow cutting head to rest on the ground. Do not overload your trimmer.
  • Page 6: Cutting Head

    7. Refit the cap. To fit nylon line only: • Remember ! Your Flymo Trimmer is designed to use only nylon line with a maximum diameter of 1.5mm. Cleat Use only genuine Flymo nylon line.
  • Page 7 7. Refit the cap. To fit nylon line only: • Remember ! Your Flymo Trimmer is designed to use only nylon line with a maximum diameter of 1.5mm. Cleat Use only genuine Flymo nylon line.
  • Page 8: Maintenance

    Maintenance • WARNING Disconnect from the mains electricity supply, before at- tempting any maintenance or adjustment. Cutting head continues to rotate after the trimmer has been switched off. Keep fingers and hands clear of the line cutter on leading edge of guard. Caring for your product After you have finished using your product follow the pro- cedure below:...
  • Page 9: Environmental Information

    Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Copyright © 2008 Flymo S.A. All rights reserved. Flymo® and other product and feature names are registered or unregistered trademarks of Flymo S.A.
