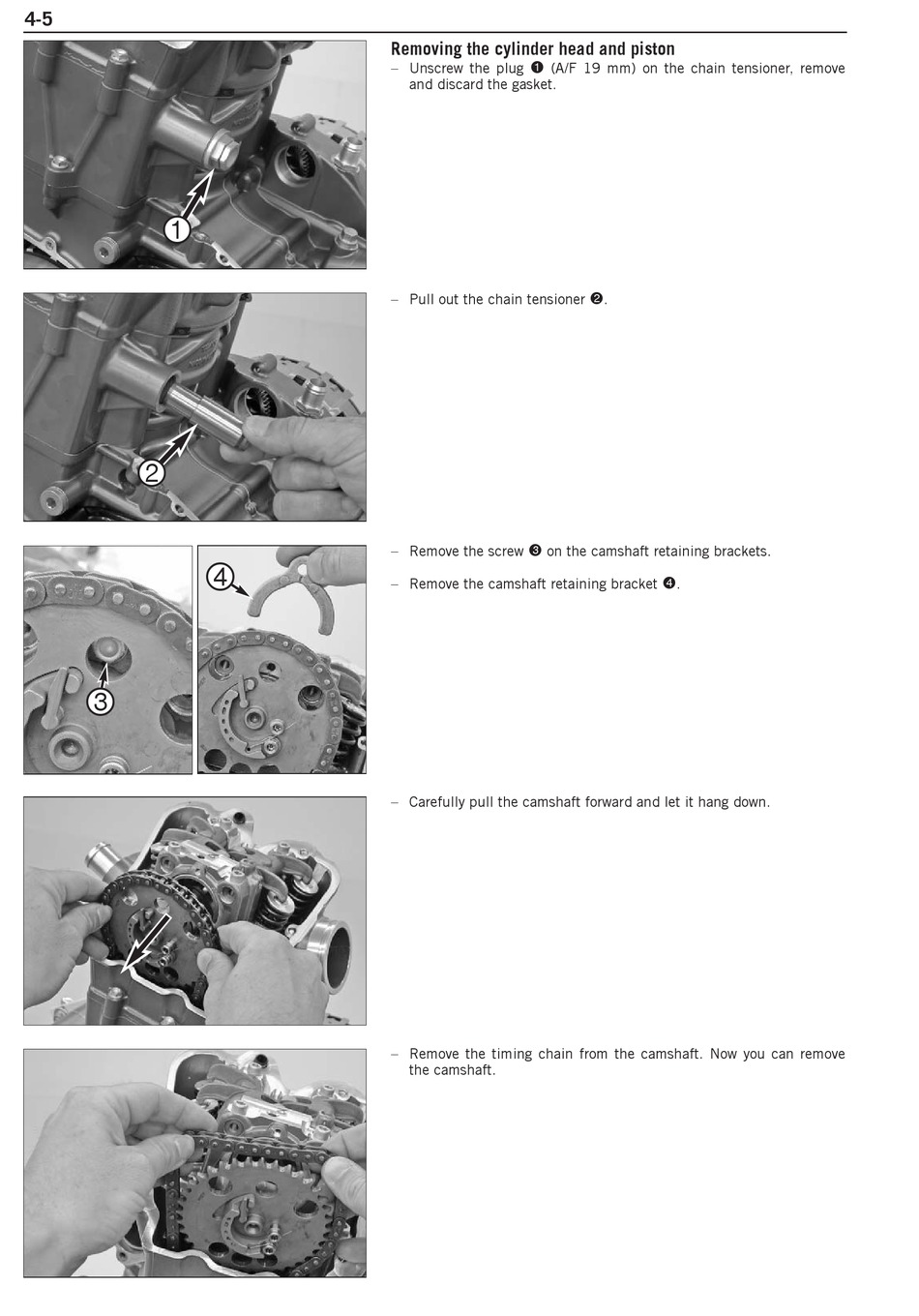

Removing the cylinder head and piston

– Unscrew the plug (A/F 19 mm) on the chain tensioner, remove
1
and discard the gasket.
– Pull out the chain tensioner
– Remove the screw on the camshaft retaining brackets.
3
– Remove the camshaft retaining bracket
– Carefully pull the camshaft forward and let it hang down.
– Remove the timing chain from the camshaft. Now you can remove
the camshaft.
.
2
.
4
