allen 900 NOL SFC 20LM Operation Manual

Razorback riders professional 900 seriel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Version 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 900 NOL SFC 20LM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for allen 900 NOL SFC 20LM

Summary of Contents for allen 900 NOL SFC 20LM

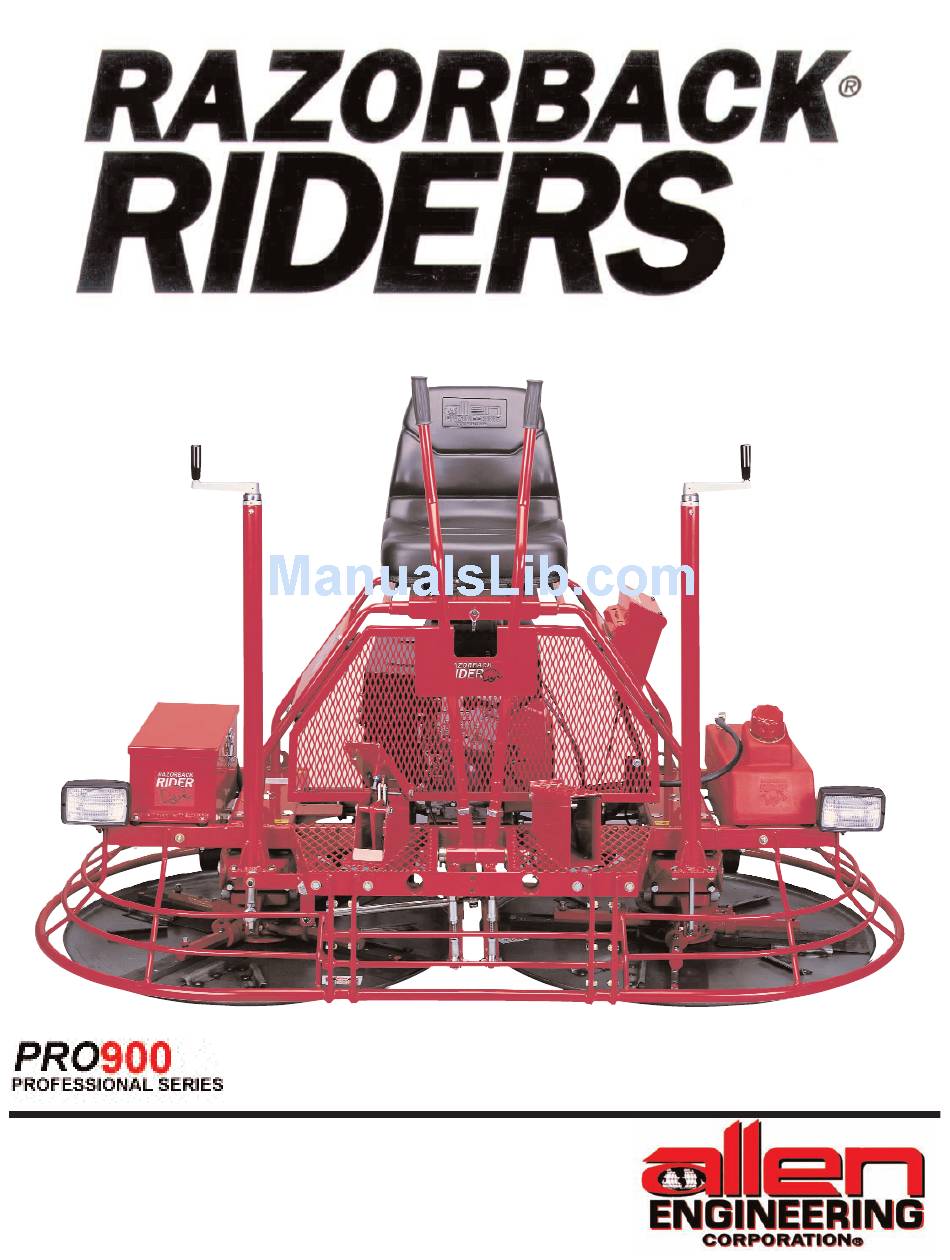

  • Page 1 Version 2...
  • Page 2 EDGER # 041270 Allen Engineering’s Razorback Riding Trowels are covered under one or more of the following patent numbers: U.S. Design Patents: 323,510; 340,340; 344,736; 400,542; 402,998; 402,999; 403,332; 410,931. U.S. Utility Patents: 5,108,220; 5,238,323; 5,480,257; 5,480,258; 5,613,801; 5,685,667; 5,803,658; 5,816,739; 5,890,833; 5,934,823; 5,967,696; 5,988,938; 6,048,130; 6,053,660; 6,089,786. Canadian Patents: 2,039,893. French Patents:...

  • Page 3: Serial Number

    OPERATIONS OPERATIONS IDENTIFICATION PLATE An identification plate listing the Model Number and Serial Number is attached to each unit and is located on the left side of the mainframe. The plate should not be removed. Please record the information found on this plate below so it will be available should the identification plate become lost or damaged .

  • Page 4: Table Of Contents

    This machine is built with user safety in mind. However, it can present hazards if improperly operated and serviced. Follow operating instructions carefully! If you have any questions about operating or servicing this equipment please contact your Allen Engineering Distributor or Allen Engineering Corp. Customer Service at 800-643-0095 or 870-236-7751. 1A-3...
  • Page 5 Complete any warranty requirements as specified by the engine manufacturer in their instructions found inside the battery box. Your engine and clutch is not manufactured by Allen Engineering Corp., and therefore is not covered under Allen Engineering warranty. Your engine manufacturer should be contacted if you wish to purchase a parts manual or a repair manual for your engine.
  • Page 6 PUBLICATION. ALLEN ENGINEERING RESERVES THE RIGHT TO CHANGE ANY POR- TION OF THIS DOCUMENT WITHOUT NOTIFICATION. Information Contained in This Manual This manual provides information and procedures to safely operate and maintain the Allen Engineering PRO ® 900-NOL-SFC Model Razorback Riding Trowels.

  • Page 7: Safety Note

    OPERATIONS 1.1 Safety Notes This manual contains NOTES, CAUTIONS and WARNINGS which must be followed to reduce the possibility of improper service damage to the equipment or personal injury. Read and follow all NOTES, CAUTIONS and WARNINGS included in this manual. NOTE Contains additional information important to a procedure.

  • Page 8: Operating Safety

    OPERATIONS 1.3 Operating Safety Familiarity and proper training are required for the safe operation of this equipment! Equipment operated improperly or by untrained personnel can be dangerous! Read the operating instructions contained in both this manual and the engine manual and familiarize yourself with the location and proper use of all controls. Safety Precautions 1.

  • Page 9: Service Safety

    ALWAYS keep area around muffler free of debris such as leaves, paper, cartons, etc. A hot muffler could ignite such items starting a fire. ALWAYS replace worn or damaged components with spare parts designed and recommended by ALLEN ENGINEERING. ALWAYS disconnect battery on machines before servicing to avoid accidental start-up.

  • Page 10: Technical Data

    900 OL STD Onan 20 900 NOL STD Onan 20 This information was acquired from extensive sound and vibration analysis tests ran at Allen Engineering Corporation. The data above was acquired from May till June of 1996. 1A-9...

  • Page 11: Description

    ® most worse conditions. All Allen Engineering Razorback Riders are equipped with a safety shutdown switch and a low oil shut down for added job safety and engine protection. Operating time between fuel refills is approx- imately 2-1/2 to 3 hours with a rotor speed up to 155 RPM for a PRO 900-NOL-SFC (depending on model).

  • Page 12: Operating

    OPERATIONS 1.10 Operating ® To utilize your Allen Engineering Razorback Rider to its fullest capacity the machine should be driven in the direction the operator is facing. This will finish the widest possible area while giving the operator an excellent view of the slab surface about to be troweled.

  • Page 13: Steering

    OPERATIONS 1.12 Steering A slight "feathering motion" forward and backward with the left hand control lever is required to move the machine in a straight path to the left or right while operating the right hand control lever. See illustration. forward reverse rotate clockwise...

  • Page 14: Periodic Maintenance Schedule

    OPERATIONS 1.14 Periodic Maintenance Schedule The chart below list basic trowel and engine maintenance. Refer to engine manufacturer's Operation Manual for additional information on engine maintenance. A copy of the engine Operator's Manual was supplied with the machine when it was shipped. To Service the engine pull the seat locking pin out and tilt seat back. DAILY EVERY 20 EVERY 50 EVERY 100 EVERY 300 HOURS...

  • Page 15: Drive Belts

    1.16 Drive Belts OPERATIONS To Tighten Belts 1. Loosen the four engine bolts. 2. Then locate the engine plate adjustment screws, on the back of the engine. 3. Next loosen the nylon locknuts and jamnuts. 4. Turn all nylon locknuts counterclockwise an equal number of turns to pull the engine backward until cor- rect belt tension is attained.

  • Page 16: Control Linkage Lubrication

    1.17 Control Linkage Lubrication OPERATIONS The control linkage is equipped with seven grease fitting to lubricate pivot points. Grease control linkage once a week or every 20 hours to prevent wear and ensure free movement and smooth response of control levers. Use a general purpose grease and add one to two shots of grease to each fitting.

  • Page 17: Lift Lever Adjustment

    1.20 Lift Lever Adjustment OPERATIONS Damage to or replacement of a trowel arm can change the adjustment of the lift lever. This can unbalance the trowel arms and cause the trowel to wobble during operation. To operate smoothly the lift lever on all arms must be adjusted the same to ensure that the trowel is balanced correctly.
  • Page 18 1.21 Transporting Trowel OPERATIONS Optional dolly jacks are available for short moves or to aid in servicing the trowel. Install dolly jacks as follows: 1. Inspect dolly jack for serviceability and damage. 2. Place riding trowel on firm level ground. 3.

  • Page 19: Battery Jump Start Procedures

    1.22 Battery Jump Start Procedure OPERATIONS Occasionally it may be necessary to jump start a weak battery. If jump starting is necessary the following pro- cedure is recommended to prevent starter damage, battery damage, and personal injury. Warning: Jump starting a battery incorrectly can cause the battery to explode resulting in severe personal injury or death.
  • Page 20 PARTS INFORMATION PARTS TABLE OF CONTENTS Frame Assembly ............. . .2A-2 Engine Mounting System .

  • Page 21: Frame Assembly

    FRAME ASSEMBLY PARTS 900 EDGER ILL. PART # DESCRIPTION QTY. 1.....037769 ..SEAT W/ GLIDES ..........1 2.
  • Page 22 ENGINE MOUNTING SYSTEM PARTS KAWASAKI ENGINE MOUNTING SYSTEM PARTS ILL. PART # DESCRIPTION QTY. 034235 ENGINE, 22HP KAWASAKI 035463 GASKET 034413 HEADER 036943 OIL DRAIN HOSE 035949 ENGINE MOUNT PLATE 034401 MUFFLER GUARD 034617 MUFFLER CLAMP 037641 MUFFLER MOUNTING BRACKET 036784 TAILPIPE 039411...
  • Page 23 ENGINE MOUNT SYSTEM PARTS 2A-4...
  • Page 24 ENGINE MOUNT SYSTEM Cont’d PARTS HONDA ENGINE MOUNTING SYSTEM PARTS LIST ILL. PART # DESCRIPTION QTY. 1....028973 ..ENGINE, HONDA 20 HP ......1 2.

  • Page 25: Clutch Assembly

    CLUTCH ASSEMBLY PARTS KAWASAKI ENGINE SHOWN AS REFERENCE ILL. PART # DESCRIPTION QTY. 1....026992 ..KEY ..........1 2.

  • Page 26: Driveline Assembly

    DRIVELINE ASSEMBLY PARTS ILL. PART # DESCRIPTION QTY. 1....024726 ..KEY, 1/4” SQ X 3” LG ....... . .3 2.
  • Page 27 STANDARD FAN COOLED(SFC) GEARBOX PARTS RIGHT HAND SITTING ON MACHINE (SOM) PART#: 034196 2A-8...
  • Page 28 (SFC) GEARBOX RIGHT HAND (SOM) PARTS PART#: 034196 (cont’d) ILL. PART # DESCRIPTION QTY. 1....010513 ..GREASE FITTING 1/4-28 STRAIGHT ....1 2.
  • Page 29 SFC GEARBOX LEFT HAND (SOM) PARTS PART#: 034197 2A-10...
  • Page 30 SFC GEARBOX LEFT HAND (SOM) PARTS PART#: 034197 (cont’d) ILL. PART # DESCRIPTION QTY. 1....010513 ..GREASE FITTING 1/4-28 STRAIGHT ....1 2.
  • Page 31 STANDARD(STD) GEARBOX PARTS RIGHT HAND SITTING ON MACHINE(SOM) PART#: 026443 2A-12...
  • Page 32 STD GEARBOX RIGHT HAND(SOM) PARTS PART#: 026443 ILL. PART # DESCRIPTION QTY. 1....201163 ..ALEMITE ......... . .1 2.
  • Page 33 STANDARD(STD) GEARBOX LEFT HAND SITTING ON MACHINE(SOM) PARTS PART#: 026442 2A-14...
  • Page 34 STD GEARBOX LEFT HAND(SOM) PARTS PART#: 026442 ILL. PART # DESCRIPTION QTY. 1....201163 ..ALEMITE ......... . .1 2.
  • Page 35 FUEL SYSTEM ASSEMBLY PARTS TANK SHOWN FOR REFERENCE ONLY. THE 900 EDGER TANK IS DIFFERENT. 2A-16...
  • Page 36 FUEL SYSTEM ASSEMBLY (cont’d) PARTS ILL. PART # DESCRIPTION QTY. 1....028243 ..THROTTLE CABLE 52” HD (HONDA - KAW. - LINAMAR) ..1 .
  • Page 37 ELECTRICAL COMPONENTS PARTS 2A-18...
  • Page 38 ELECTRICAL COMPONENTS (cont’d) PARTS ILL. PART # DESCRIPTION QTY. 1....029301 ..4 LIGHT WIRING HARNESS (KAWASAKI - LINAMAR) ..1 .
  • Page 39 WIRING HARNESS PARTS 2A-20...
  • Page 40 CROSSHEAD AND PIVOT BOX ASSEMBLY PARTS ILL. PART # DESCRIPTION QTY. 1....026384 ..CROSSHEAD RH ........1 .
  • Page 41 PITCH CONTROL ASSEMBLY PARTS 2A-22...
  • Page 42 PITCH CONTROL ASSEMBLY (cont’d) PARTS 032370 ASSEMBLY ILL. PART # DESCRIPTION QTY. 1....032115 ..KNOB, PITCH CONTROL ......1 2.
  • Page 43 STEERING LEVER ASSEMBLY PARTS 2A-24...
  • Page 44 STEERING LEVER ASSEMBLY (cont’d) PARTS ILL. PART # DESCRIPTION QTY. 1..018510 ..GREASE FITTING 1/4-28 x 45 DEG... . . 1 2.
  • Page 45 SPRAY SYSTEM ASSEMBLY PARTS 2A-26...
  • Page 46 SPRAY SYSTEM ASSEMBLY (cont’d) PARTS ILL. PART # DESCRIPTION QTY. 1...012705 ... .CAP, BRASS CP1325 ......2 2.
  • Page 47 SPIDER ASSEMBLY PARTS 2A-28...
  • Page 48 SPIDER ASSEMBLY (cont’d) PARTS ILL. PART # DESCRIPTION QTY. 1...012612 ... .NUT, HEX SELFLOCK 5/16-18 ....1 2.
  • Page 49 KAWASAKI CONTROL PANEL ASSEMBLY PARTS ILL. PART# DESCRIPTION QTY. 1...034613 ... .LENS, GREEN ....... .1 2.
  • Page 50 ACCESSORIES PARTS CRUISE CONTROL KIT PART# 028848 ILL. PART# DESCRIPTION QTY. 1... .010018 ... . .BOLT, 5/16-18 x 1/2 ......2 2.
  • Page 51 ACCESSORIES (cont’d) PARTS DOLLY JACK SYSTEM -- SET PART # 027684 ILL. PART# DESCRIPTION QTY. 1...010040 ... .BOLT, 3/8-16 x 2 .......8 2.
  • Page 52 ACCESSORIES (cont’d) PARTS RIDING TROWEL VINYL COVER PART #: 026594 FLOATING DISCS (PANS) PART #: 026910-2 LIFTING BRIDLE (SLING TYPE) PART #: 035461 TROWEL ARM ALIGNMENT JIG PART #: 016863 SPIDER PULLER ASSEMBLY PART #: 035688 2A-33...
  • Page 53 Engineering Corporation reserves the choice to repair or replace. 2. If Allen Engineering Corporation chooses to replace the part, it will be at no cost to the customer and will be made available to the Distributor/Dealer from whom the customer purchased the product.

This manual is also suitable for:

900 nol sfc 22ka900 nol sfc 25ko900 nol sfc 20hoRazorback riders professional 900 nol sfc 25ko w/o sprayRazorback riders professional 900 nol sfc 20ho w/o spray
