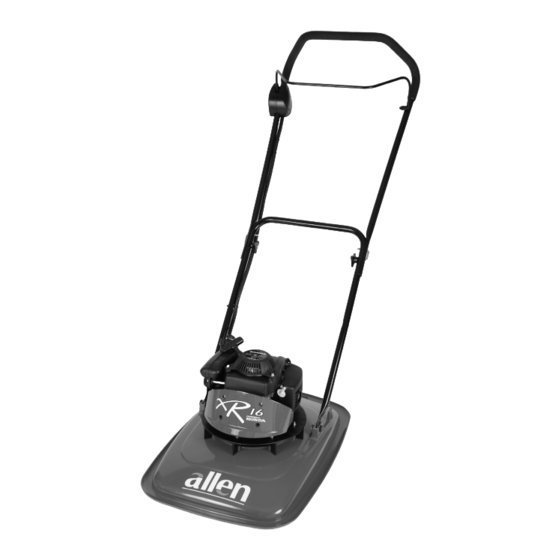

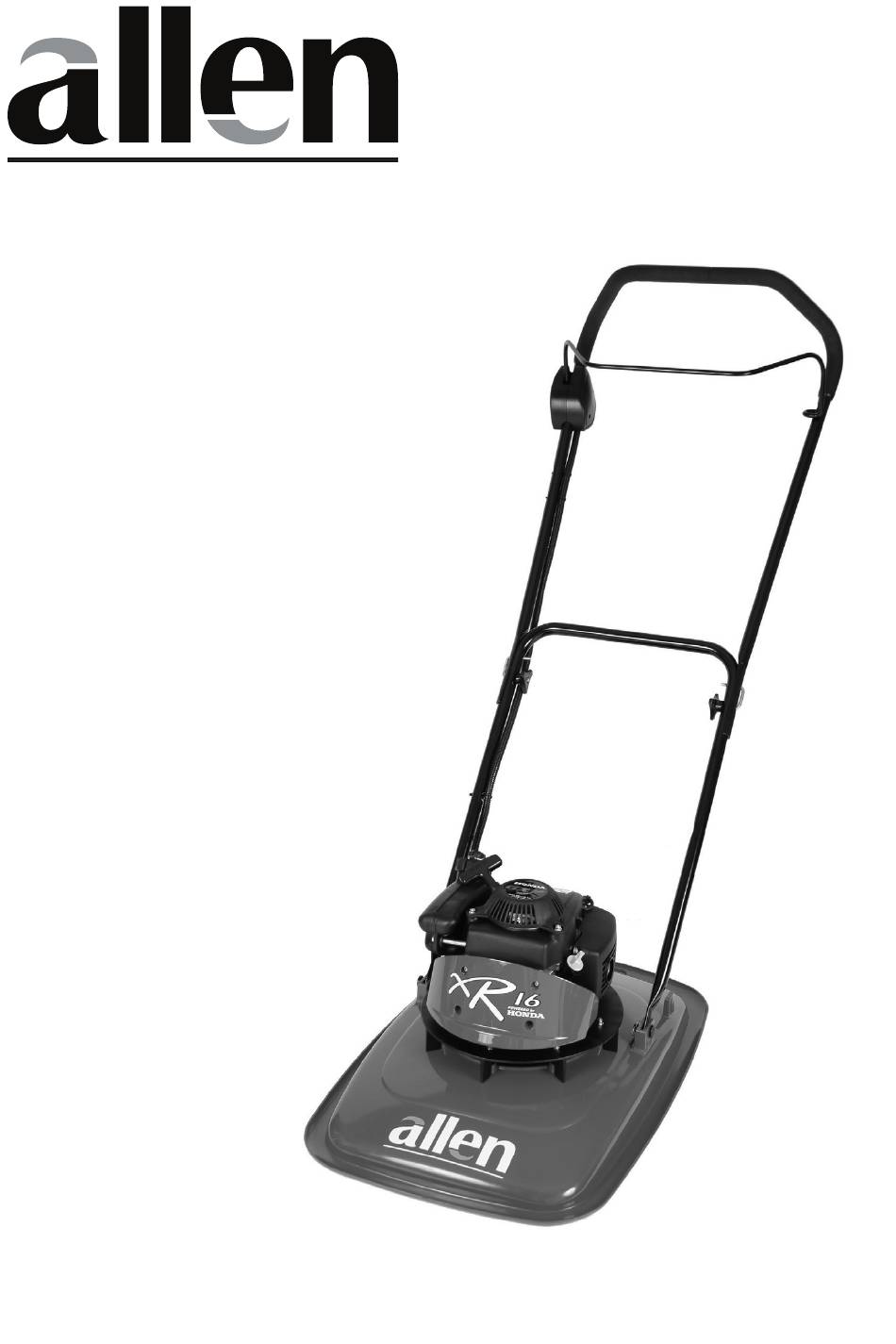

- Page 1 XR16 Hovertrim OWNER’S HANDBOOK MODELS: 185 Hovertrim Original Version (EN) Issue: 12.01.2011 From Serial No. 311000001 Part No: 111-2627 (C)
-
Page 3: Table Of Contents
CONTENTS Contents - Cutting Grass on Slopes & Banks Main Features / Specifications - Stopping - Adjusting the Cutting Height & Introduction Replacement of Nylon Cutting System Warranty - Before Trimming Safety Precautions 8 - 13 Hovertrim Maintenance 20 - 23 - Safety Alert Symbol - Engine - Training... -
Page 5: Main Features / Specifications
Specifications Sound Pressure level: Code The sound pressure level at the Operator’s Model XR16 Hovertrim position is 87 dB(A). This machine produces Engine Honda sound levels in excess of 85 dB(A) at the Operator’s ear and can cause hearing loss... -
Page 6: Introduction
INTRODUCTION Thank you for purchasing an Allen machine. The following pages are designed to help you gain safe and efficient service from your machine. IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the product as it gives essential information regarding product safety, operation, maintenance and specifi- cations. -
Page 7: Warranty
WARRANTY LIMITED WARRANTY Allen products are manufactured by Hayter Limited. The manufacturer warrants to the original user/purchaser that this unit shall be free from defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The manufacturers of the engine furnish their own war- ranty and services are provided through their authorised network (Refer to “Engine War-... -
Page 8: Safety Precautions
SAFETY PRECAUTIONS Safety Alert Symbol This safety alert symbol indicates important safety messages. When you see this symbol be alert to the possibility of injury. Carefully read the following and inform others. Your machine is perfectly safe if used correctly. Failure to observe the following precautions may result in seri- ous injury. - Page 9 SAFETY PRECAUTIONS Preparation continued Inspect the area where the equipment is to be used and remove all objects such as rocks, toys and wire which can be thrown by the machine. Use extra care when handling gasoline and other fuels. They are flammable and vapors are explosive.
-
Page 10: Operation
SAFETY PRECAUTIONS Operation Do not operate the engine in a enclosed space where exhaust fumes (carbon monoxide) can collect. Refuel outdoors only and do not smoke while refuelling. Do not operate the machine under the influence of alcohol or drugs. Always pull the starter cord slowly until resistance is felt. -
Page 11: Maintenance & Storage
SAFETY PRECAUTIONS Operation continued Stop the engine and disconnect the spark plug lead: Before clearing blockages. Before cleaning / checking or working on the machine. After striking a foreign object. Inspect the machine for damage and ensure necessary repairs are made before re-starting. - Page 12 Keep all parts in good working condition and all hardware tightened. Replace all worn or damaged decals. Always replace worn or faulty parts with genuine Allen parts. Allow the engine to cool before storing in any enclosure. To reduce the risk of fire hazard, keep the engine and the sur- rounding deck area free of grass, leaves, or excessive grease.
-
Page 13: Safety Symbols
111-3687 Information Symbols Serial Number Decal Engine Stop 2010 Manufactured by Hayter Limited, Spellbrook, Bishop’s Stortford Herts. England CM23 4BU XR16 Hovertrim 16’’ Petrol STOP Code Serial No: 185E 311000001 Contact Seago International, Inc. 229 Ninth Street NW... -
Page 14: Assembling The Hovertrim
ASSEMBLING THE HOVERTRIM Delivery Checklist Remove the machine from the packaging and check that the following items have been supplied correctly. If any items are missing, contact your local dealer. Main deck, lower and upper handlebars. 1. R-Clip x 3 2. -
Page 15: Before Starting The Hovertrim
BEFORE STARTING THE HOVERTRIM Prevent Engine Damage To prevent engine damage the engine is shipped without oil or gasoline. The engine must be filled with the correct grade of oil and gasoline before starting. Oil Type FILLER CAP/DIPSTICK Always use high quality detergent oil classified SAE 10W-30. -
Page 16: Operating The Hovertrim
OPERATING THE HOVERTRIM Footstop Positions 1. Transport and storage 3. Operator - maximum 2. Operator - minimum 4. Park 5. Service When in the service position, rest the handlebar on the floor to gain access to engine and undercarriage. Ensure fuel line and vent valve are closed. -
Page 17: Controls
OPERATING THE HOVERTRIM Controls Check that the engine stop lever moves freely and returns to it’s rest position when released. Starting FUEL CAP VENT 1. Open the fuel tank vent by turning the vent knob at least 2 or 3 turns counterclockwise. OPEN 2. -
Page 18: Cutting Grass On Flat Ground
OPERATING THE HOVERTRIM Starting continued 4. Hold the handlebar together with the engine stop lever, place your foot on the deck and tilt the machine towards you. This will take the load off the engine making it easier to start. Pull the starter grip lightly until you feel resistance, then pull briskly. -
Page 19: Adjusting The Cutting Height & Replacement Of Nylon Cutting System
OPERATING THE HOVERTRIM Adjusting the Cutting Height & Replacement of Nylon Cutting System The cutting height of your machine has been set at the highest position (1). If you prefer a lower cut follow these instructions: Turn the gasoline tap to the off position and close the vent knob. -
Page 20: Hovertrim Maintenance
HOVERTRIM MAINTENANCE To prevent accidents stop the engine and disconnect the spark plug lead before attempting to carry out mainte- nance procedures on the mower. Engine 1. Spark Plug / Lead 2. Exhaust Guard 3. Exhaust 4. Oil Filler Cap / Dipstick 5. -
Page 21: Spark Plug Service
HOVERTRIM MAINTENANCE Spark Plug Service Use only an approved spark tester (1) as shown in the dia- gram. Replace the spark plug every 100 hours or every season, which ever occurs first. A spark plug wrench is available from any authorised Honda service dealer. Check the spark plug gap with a feeler gauge and set at 0.7 - 0.8mm. -
Page 22: Securing Nuts & Bolts
HOVERTRIM MAINTENANCE Securing Nuts & Bolts Regularly check that all securing nuts and bolts are tight. Replace missing or damaged items immediately. The following torque settings apply: Bolt 111-1504 2 ¼ x ¼ Hex Head tighten to 18.44 ft/lbs. Oil Service Check the oil level daily before starting the engine and en- sure that the correct oil level is maintained. -
Page 23: Storage
HOVERTRIM MAINTENANCE Storage During transport and storage ensure the fuel cap vent knob and fuel line valve are closed. Engines stored in excess of 30 days need to be protected with a fuel additive or drained of fuel to prevent gum from forming in the fuel system or on essential carburettor parts. -
Page 24: Trouble Shooting
TROUBLE SHOOTING PROBLEM CAUSES CORRECTIVE ACTION 1. Engine stop lever released 1. Operate engine stop lever Engine will not 2. Incorrect oil level 2. Check oil level turn over 3. Obstruction under deck 3. Remove obstruction 1. Excess oil level 1. -
Page 25: Parts List & Drawings
MAINFRAME PARTS LIST Item No. Description Part No. Qty Item Note DECAL - MAN EYE / EAR PROTECTION 111-2153 ALLEN XR16 DECAL 111-1825 WASHER 1/4*7/8*.08" THK 09263 NUT M6 NYLOC 'T' TYPE 09438 CABLE TIE HY3966 BOLT M6*45 09568 SCREW PLASTITE DIA 5*22 PAN POZI 09765... -
Page 26: Mainframe Exploded Drawing
MAINFRAME EXPLODED DRAWING... -
Page 27: Blade Options / Kits Parts List
BLADE OPTIONS / KITS PARTS LISTS Kit Options Parts List - Extension Handlebars Item No. Description Part No. Item Note Throttle Control & OPC H292387 Not Shown Handwheel H192204 Not Shown Handlebar Extension H292392 Not Shown... -
Page 28: Notes
NOTES... - Page 29 NOTES...
- Page 30 NOTES...
- Page 31 NOTES...
-
Page 32: Customer Info
CUSTOMER INFORMATION ALLEN_logoPantone.eps Serial No. Engine Type:- GXV57 Engine:- Honda ALLEN_logocmyk.eps Date of Sale:- Your local Dealer:- Allen_logoblack.eps ALLEN_haylogoPantone.eps Notes:- Manufactured by Hayter Limited ALLEN_haylogocmyk.eps Manufactured by Hayter Limited Allen_haylogoblack.eps Manufactured by Hayter Limited Seago International, Inc 229 Ninth Street NW, Hickory, NC28601, USA. Free Phone: +001 800-780-9889...
