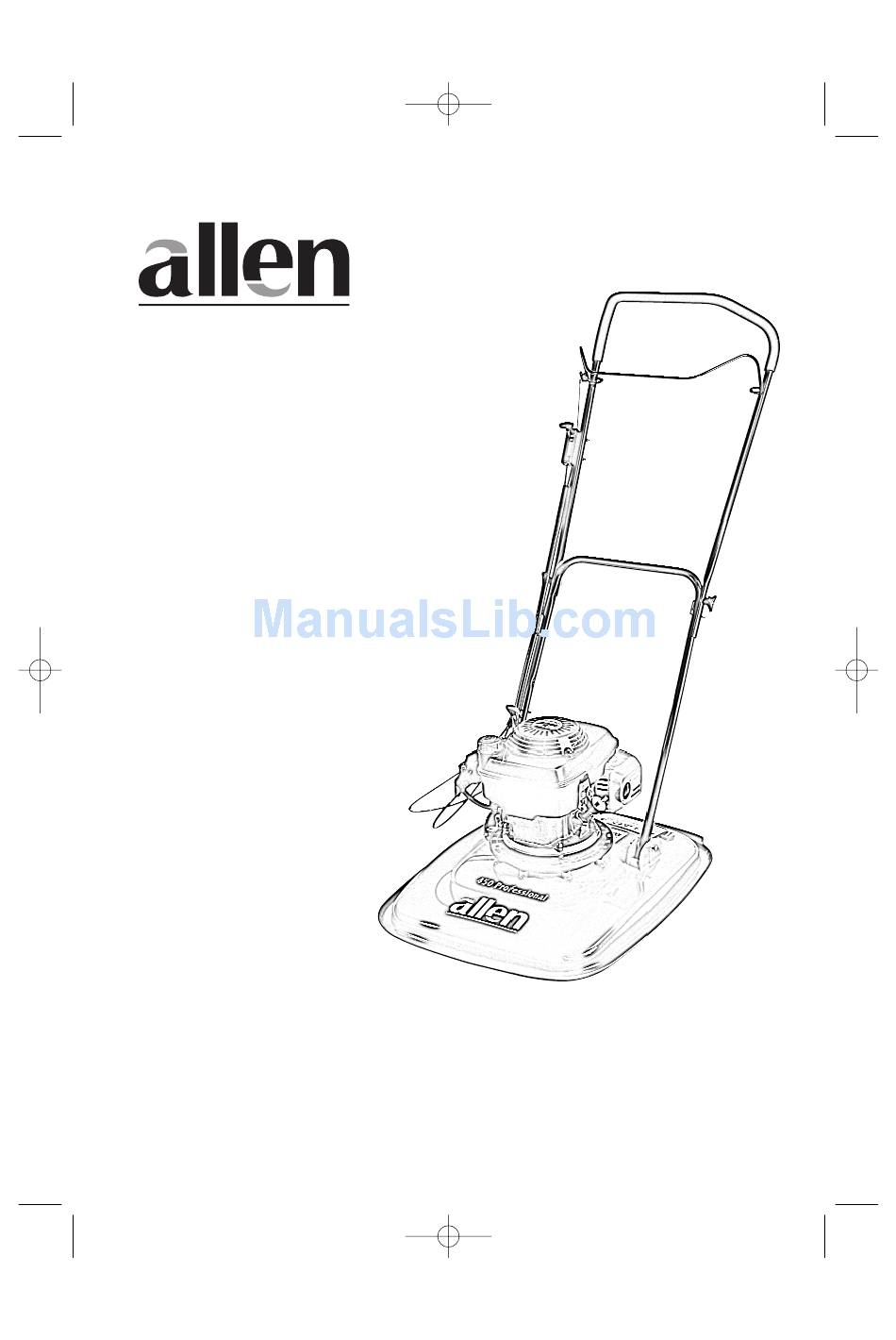

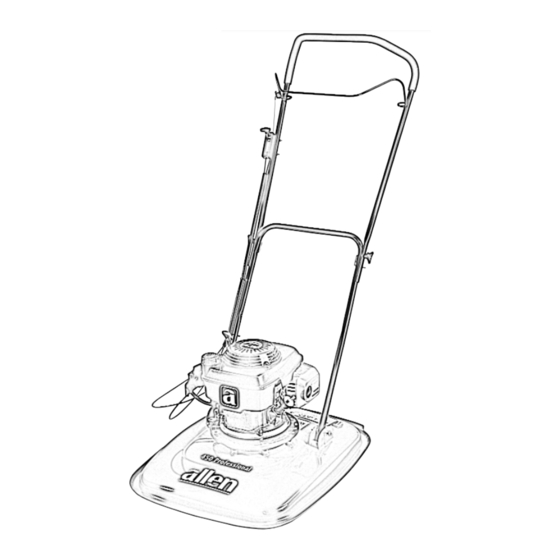

- Page 1 111-2596 (A) 23/7/08 3:27 pm Page 1.1 Manufactured by Hayter Limited Hover Mowers & Hovertrim OWNER'S HANDBOOK MODELS 446 Hovertrim 450 Professional 453 Professional (English Version) PART NUMBER: 111-2596 (1) ISSUE 23.07.08 CODE FROM SERIAL NO. 180E 280010000 181E 280010000...
- Page 2 111-2596 (A) 23/7/08 3:27 pm Page 1.2...
-
Page 3: Specifications
Handlebar Securing Knob. Throttle Control. Engine Stop Lever. Handlebar. Fuel Cap. Oil Dipstick. Fuel On/Off Tap. Air Cleaner. DTP-000-010-A Specifications Code Model 446 Hovertrim 450 Professional 453 Professional Engine Honda Honda Honda Engine type GCV135 GCV160 GCV160 Fuel type Unleaded petrol... - Page 4 111-2596 (A) 23/7/08 3:27 pm Page 1.4...
-
Page 5: Table Of Contents
111-2596 (A) 23/7/08 3:27 pm Page 1.5 CONTENTS 1.3 Main Features/Specifications 1.21 - Storage 1.5 Contents 1.22 - 1.23 Trouble Shooting 1.6 Introduction 1.24 - 1.28 Parts List 1.24 - Mainframe Parts List 1.7 Warranty 1.25 - Exploded View - Mainframe 1.26 - 1.27 - Blade Options / Kits Parts List 1.8 - 1.11 Safety Precautions... -
Page 6: Introduction
Page 1.6 INTRODUCTION Thank you for purchasing an Allen machine. The following pages are designed to help you gain safe and efficient service from your machine. IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the product as it gives essential information regarding mower safety, operation, maintenance and specifications. -
Page 7: Warranty
Page 1.7 WARRANTY LIMITED WARRANTY Allen mowerʼs are manufactured by Hayter Limited. The manufacturer warrants to the original user/purchaser that this unit shall be free from defects in material and workmanship under normal use and service for a period of one year from the date of purchase. -
Page 8: 1.11 Safety Precautions
111-2596 (A) 23/7/08 3:27 pm Page 1.8 SAFETY PRECAUTIONS Safety Alert Symbol This safety alert symbol indicates important safety messages. When you see this symbol be alert to the possibility of injury. Carefully read the following and inform others. Your machine is perfectly safe if used correctly. Failure to observe the following precautions may result in serious injury. -
Page 9: Operation
111-2596 (A) 23/7/08 3:27 pm Page 1.9 SAFETY PRECAUTIONS Preparation - Do not attempt to start the engine if petrol is spilled or a smell of petrol is present. Move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapours have dissipated. -
Page 10: 1.11 - Maintenance And Storage
111-2596 (A) 23/7/08 3:27 pm Page 1.10 SAFETY PRECAUTIONS Operation Do not put hands or feet near or under rotating parts. Never pick up or carry the machine while the engine is running. Never touch the exhaust/exhaust guard or cooling fins when the engine is hot. -
Page 11: Safety Symbols
If the fuel tank has to be drained, this should be done outdoors and when the engine is cool. Wear strong work gloves when removing and reassembling the cutting device. Always replace worn or faulty parts with genuine Allen parts. Safety Symbols Danger of being hit by Danger of severing toes or Safety Alert - Be aware to the fingers in cutting mechanism. -
Page 12: Assembling The Machine
111-2596 (A) 23/7/08 3:27 pm Page 1.12 ASSEMBLING THE MACHINE Delivery Checklist Remove the machine from the packaging and check that the following items have been supplied correctly. If any items are missing contact, your local dealer. Main deck, lower and upper handlebars. 1. -
Page 13: Before Starting The Machine
111-2596 (A) 23/7/08 3:27 pm Page 1.13 BEFORE STARTING THE MACHINE Prevent Engine Damage To prevent engine damage the engine is shipped without oil or petrol. The engine must be filled with the correct grade of oil and petrol before starting. Oil Type Always use high quality detergent oil classified SAE 10W-30. -
Page 14: 1.19 Operating The Machine
111-2596 (A) 23/7/08 3:27 pm Page 1.14 OPERATING THE MACHINE Controls Check that the engine stop lever moves freely and returns to it’s rest position when released. Starting - Step 1 Place the throttle control to the start position, ensure that the fuel tap is in the ‘On’... -
Page 15: Cutting Grass
111-2596 (A) 23/7/08 3:27 pm Page 1.15 OPERATING MACHINE Cutting Grass Start at the outside boarder of the lawn and move up and down as you would with a conventional walk behind mower. Cutting Grass on Slopes and Banks Start at the top and move the machine from side to side while slowly and carefully moving down the slope. -
Page 16: Adjusting The Cutting Height
Reposition the spacers as required. See diagrams for cutting device option. High Note for the 446 Hovertrim: One spacer is required above the disc at all times. NOTE: The large spacer must be positioned directly below the impeller at all times. -
Page 17: 1.21 Machine Maintenance
111-2596 (A) 23/7/08 3:28 pm Page 1.17 MACHINE MAINTENANCE To prevent accidents stop the engine disconnect the spark plug lead before attempting to carry out maintenance procedures on the mower. Engine 1. Finger Guard 2. Carburettor 3. Spark Plug / Lead 4. -
Page 18: Spark Plug Service
111-2596 (A) 23/7/08 3:28 pm Page 1.18 MOWER MAINTENANCE Spark Plug Service Use only an approved spark tester (1) to check for a spark as shown in the diagram. Replace the spark plug every 100 hours or every season, whichever occurs first. -
Page 19: Deck Housing
111-2596 (A) 23/7/08 3:28 pm Page 1.19 MACHINE MAINTENANCE Deck Housing Remove grass debris from the top and underside of the deck immedi- ately after use. Securing Nuts & Bolts Regularly check that all securing nuts and bolts are tight. Replace missing or damaged items immediately. -
Page 20: Cutterbar Removal
111-2596 (A) 23/7/08 3:28 pm Page 1.20 MAINTENANCE MACHINE Cutterbar Removal Drain the fuel by running the engine until the fuel tank is empty and the engine stops. Remove the spark plug lead and allow the engine to cool. Turn the mower on its left hand side and ensure that the carburet- tor is uppermost. -
Page 21: Flexiblade Replacement
111-2596 (A) 23/7/08 3:28 pm Page 1.21 MAINTENANCE MACHINE Cutterbar Sharpening Continued If the cutterblade is not balanced the heavy end will rotate downwards. Sharpen the heavy end until the cutterblade is correctly balanced. 1CG480V25B Flexiblade Replacement Drain the fuel by running the engine until the fuel tank is empty and the engine stops. -
Page 22: 1.23 Trouble Shooting
111-2596 (A) 23/7/08 3:28 pm Page 1.22 TROUBLE SHOOTING PROBLEM POSSIBLE FAULT REMEDY Engine will not turn over Engine stop lever released. Operate engine stop lever. Incorrect oil level. Check oil level. Obstruction under deck. Remove obstruction. Engine smokes Excess oil level. Check oil level. - Page 23 111-2596 (A) 23/7/08 3:28 pm Page 1.23 TROUBLE SHOOTING PROBLEM POSSIBLE FAULT REMEDY Engine vibrates excessively Mounting bolts loose. Tighten bolts Cutterbar bolt loose. Tighten bolt Cutterbar out of balance. Balance cutterbar Bent crankshaft. Consult your dealer Damaged impeller or blade Consult your dealer Uneven cut Cutterbar out of balance...
-
Page 24: Parts List
H290011 Impeller Mk II H192268 Spanner Petrol H190210 Not Shown Decal-Warning 111-0083 Not Shown Decal 446 Hovertrim Logo H295125 Not Shown Decal 450 Professional Logo H295126 Not Shown Decal Logo Allen H295128 Not Shown Decal - Man Eye / Ear Protection... -
Page 25: Mainframe Parts List
111-2596 (A) 23/7/08 3:28 pm Page 1.25 MAINFRAME PARTS LIST HAY-G00001-C 1.25... -
Page 26: Parts List
111-2596 (A) 23/7/08 3:28 pm Page 1.26 PARTS LIST BLADE OPTIONS KIT OPTIONS Item No. Description Part No. Item Note Spacer H192270 Spacer Disc H192025 Blade Ret.Spigot Steel H192272 Blade/Head Bolt H292018 Safeway Disc H292401 Flexiblade 143mtr H292384 Flexiblade 27mtr H292385 Blade 20"... - Page 27 111-2596 (A) 23/7/08 3:28 pm Page 1.27 BLADE OPTIONS PARTS LIST KIT OPTIONS Continued Kit - Swinging Blade Item No. Description Part No. Item Note Spacer H192270 Spacer Disc H192025 Bottom Plate H292340 Bottom Plate H292341 Swinging Blade (Pack 3) H292318 Swinging Blade (Pack 60) H292318-60...
- Page 28 111-2596 (A) 23/7/08 3:28 pm Page 1.28 PARTS LIST OPTIONS Kit - Undercarriage (Transport Wheel) Item No. Description Part No. Item Note Undercarriage H192284 Kit Axle Securing Bolts H190235 Wheel H292033 Kit Axle Spacers H290032 Axle H192286 Spacer Under Carriage H192281 Hook Petrol Hover H192282...
-
Page 29: Declaration Of Conformity
111-2596 (A) 23/7/08 3:28 pm Page 1.29 DECLARATION CONFORMITY EC DECLARATION OF CONFORMITY Manufacturer: HAYTER LIMITED, Address: Spellbrook, Bishop’s Stortford, Herts. CM23 4BU. ENGLAND declare that the trimmer: Model name: Hovertrim Model No: CODE 180E Cutting width: 46 cm Speed of rotation of the cutting device: 3400 rpm Engine Manufacturer: Honda... -
Page 30: Ec Declaration Of Conformity
111-2596 (A) 23/7/08 3:28 pm Page 1.30 DECLARATION CONFORMITY EC DECLARATION OF CONFORMITY Manufacturer: HAYTER LIMITED, Address: Spellbrook, Bishop’s Stortford, Herts. CM23 4BU. ENGLAND declare that the lawnmower: Model name: Hovermower Hovermower Type: Pedestrian rotary Pedestrian rotary Model No: CODE 181E CODE 182E Cutting width: 51 cm... -
Page 31: Notes
111-2596 (A) 23/7/08 3:28 pm Page 1.31 NOTES 1.31... - Page 32 111-2596 (A) 23/7/08 3:28 pm Page 1.32 NOTES 1.32...
-
Page 33: Customer Information
111-2596 (A) 23/7/08 3:28 pm Page 1.33 CUSTOMER INFORMATION Serial No: Engine:- Engine Type:- GCV135 Honda Engine:- Engine Type:- GCV160 Honda Date of Sale:- Your Local Dealer:- Notes:- 1.33... - Page 34 111-2596 (A) 23/7/08 3:28 pm Page 1.34 YOUR DEALER IS: Manufactured by Hayter Limited Hayter Limited Spellbrook, Bishop’s Stortford, Herts, CM23 4BU, England. Tel: +44 (0) 1279 723444 Fax: +44 (0) 1279 600338 e-mail: sales@hayter.co.uk www.hayter.co.uk...
