INSTALLATION INSTRUCTIONS
DishDrawer
dishwasher
TM
DD24SUT7
US CA
590225A
10.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DishDrawer DD24SUT7 and is the answer not in the manual?

Questions and answers

Related Manuals for DCS DishDrawer DD24SUT7

Summary of Contents for DCS DishDrawer DD24SUT7

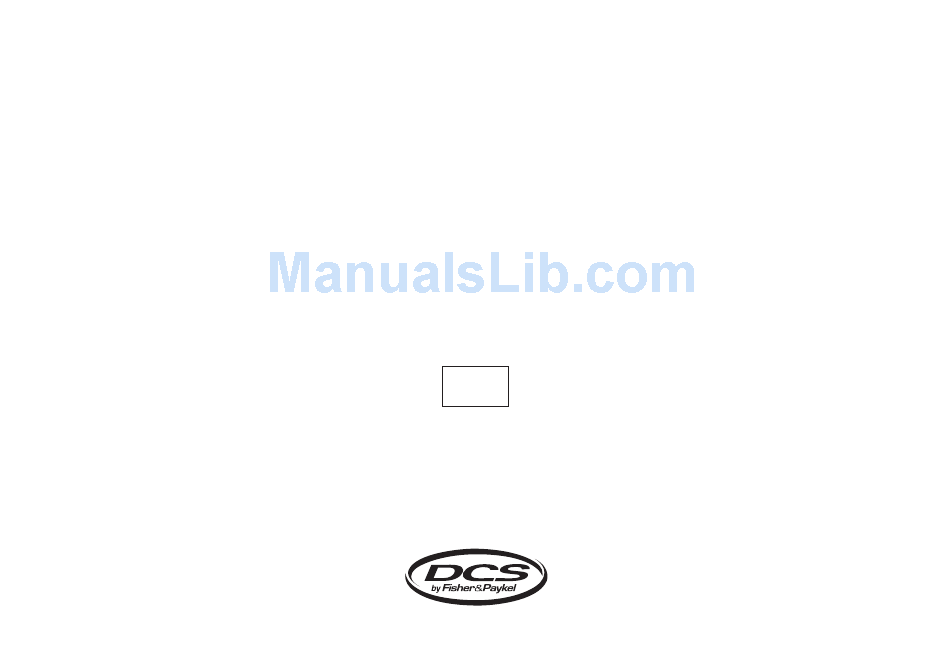

  • Page 1 INSTALLATION INSTRUCTIONS DishDrawer dishwasher DD24SUT7 US CA 590225A 10.11...

  • Page 3: Safety And Warnings

    SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS! WARNING! Installation of this dishwasher requires basic mechanical and electrical skills. Electrical hazard Be sure to leave these Instructions with the Customer. Installation must comply with your local building, electricity, and plumbing regulations. Before installing the dishwasher, remove the house fuse or open the circuit breaker.

  • Page 4: Parts Supplied

    If the Drain hose supplied is not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hoses by 11’ 10” (3.6m). The kit is available from the nearest DCS by Fisher & Paykel Authorized Service Center, or Toll free 1.888.936.7872 or www.dcsappliances.com...
  • Page 5 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION REMOVE THE DRAWER REMOVE THE ACCESS COVER & POWER CORD Product may move. Mark chassis position on cavity Access cover To prevent kinked hoses, we recommend rotating the drawer counter-clockwise and resting it on its side after removal. WARNING! Press the release tabs in on Electrical Shock Hazard...

  • Page 6: Product Dimensions

    PRODUCT DIMENSIONS Plan Side Product dimensions inches (mm) overall height of product 17 7⁄8”( (incl. front panel height) overall width of product 23 13⁄16”( overall depth of product 22 11⁄16”( (excl. handle) depth of chassis 21 ¾ ”( (to back of front panel) maximum extension of drawer 21 ¾...

  • Page 7: Cabinetry Dimensions

    CABINETRY DIMENSIONS Plan Side Minimum clearances from adjacent cabinetry Cabinetry dimensions inches (mm) min. ½ ” (13 mm) min. 1⁄16” (2 mm) clearance from a clearance corner cupboard to adjacent cupboard door inside height of cavity 18”( inside width of cavity 24”( inside depth of cavity min.

  • Page 8: Cavity Preparation

    CAVITY PREPARATION Important! COUNTERTOP The power outlet must be located in a cabinet adjacent to the dishwasher cavity. Moisture 110-120 VAC max. 15 A 3⁄8” (10mm) protection tape must These marks indicate be applied. formed bracket screw locations, if securing by drawer removal.
  • Page 9 MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE Left hand side Right hand side Drain hose - 78 ½" (2000 mm) Drain hose - 70 ½" (1800 mm) Inlet hose - 64 ¾" (1650 mm) Inlet hose - 49" (1250 mm) Power cord - 29 ½"...
  • Page 10 NOW CHOOSE WHICH INSTALLATION METHOD (a) or (b) IS MORE SUITABLE FOR YOUR CABINETRY... RECOMMENDED METHOD (a) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY) ATTACH SIDE MOUNTING BRACKETS Clip all four side mounting brackets into their slots using a flat-bladed screwdriver.
  • Page 11 PULL THROUGH HOSES & MOVE INTO THE CAVITY SECURE THE DRAWER Open the drawer halfway. Using a flat-bladed screwdriver, prize the gray Replace the gray rubber plug out rubber plug back into of the trim moulding. the trim moulding and ensure the trim seal is facing forward.
  • Page 12 ALTERNATIVE METHOD (b) - SECURE BY DRAWER REMOVAL PULL THROUGH HOSES & MOVE INTO THE CAVITY As you push product in, pull through hoses and cord, ensuring they don’t get kinked or twisted. Important! If product cannot be pushed in far enough, pull out again and rearrange hoses and cord.
  • Page 13 REMOVE THE DRAWER SECURE THE DRAWER TO THE CABINETRY The product has three pairs of fixing points: Product may move. Mark chassis position on cavity Ensure the sound insulation is repositioned correctly. To prevent kinked hoses, we recommend rotating the drawer counter-clockwise and resting it on its side after removal.
  • Page 14 THERE ARE THREE DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE. Dishwasher and Standpipe Ø 1½ ” (38 mm) Dishwasher using Air Break with Drain Hose Joiner Dishwasher using sink trap with drain hose joiner If space is limited for fixing, push hose through drain If space is limited...

  • Page 15: Final Checklist

    The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed at the end of this document or contact your local DCS by Fisher & Paykel dealer.
