Summary of Contents for Dolmar PS-9010
-

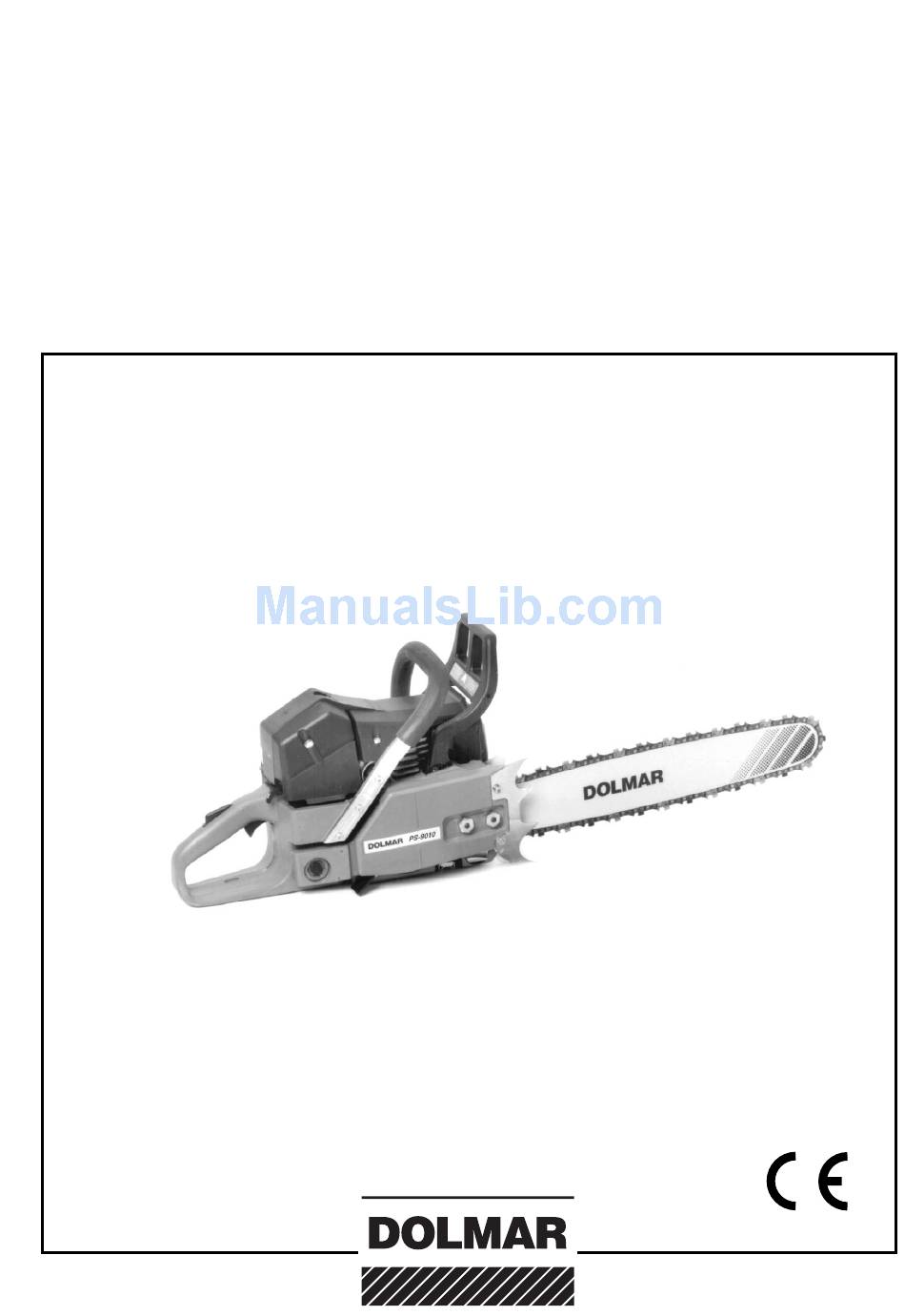

Page 1: Instruction Manual
Instruction Manual Original Instruction Manual Important: Read this instruction manual carefully before putting the chain saw into operation and strictly observe the safety regulations! Keep this Instruction Manual! PS-9010 http://www.dolmar.com... -
Page 2: Table Of Contents
Thank you for purchasing a DOLMAR product Table of contents Page We want you to be satisfi ed with your DOLMAR product. Packing .................2 You have decided to buy one of the most up-to-date chain saws. Delivery inventory ...............3 DOLMAR is worldwide the longest established and consequently Symbols ................3... -
Page 3: Delivery Inventory
Delivery inventory 1. DOLMAR chain saw PS-9010 2. Guide bar 3. Saw chain 4. Chain protection cover In case that one of the parts listed should not be included in 5. Assembly tool the delivery inventory, please, consult your sales agent. -
Page 4: Safety Precautions
fi rst-time users we recommend the use of reduced-kickback saw chains for added safety (see "Kickback", page 6). Ask your DOLMAR dealer. Children and young persons aged under 18 years must not be allowed to operate the chain saw. Persons over the age of 16 years may, however, use the chain saw for the purpose of being trained as long as they are under the supervision of a qualifi... -
Page 5: Fuels / Refuelling
Fuels / Refuelling Stop the engine before refuelling the chain saw. Do not smoke or work near open fi res (5). Let the engine cool down before refuelling. Fuels can contain substances similar to solvents. Eyes and skin should not come in contact with mineral oil products. Always wear protective gloves when refuelling. -
Page 6: Kickback
Kickback - When working with the chain saw dangerous kickbacks may occur. Kickbacks are produced when the upper part of the end of the guide bar inadvertently touches wood or other hard ob- jects (10). In this case the chain saw is thrown without any control and with high energy potentials in the direction of the user (risk of injuries). - Page 7 Be careful when cutting splintery wood. Cut pieces of wood may be pulled along (risk of injuries). When cutting with the bottom edge of the guide bar, the chain saw may be pushed in the direction of the user if the chain gets clamped.
-
Page 8: Transport And Storage
All other works must be carried out by the DOLMAR service. Use only original DOLMAR spare parts and accessories. Applying spare parts which are not original DOLMAR parts or accesories and guide bar/chain combinations or lengths results in a high risk of accidents. For accidents and damage resulting from using sawing devices or accesories which have not been approved we cannot accept any responsibility. -
Page 9: Technical Data
Specifi c consumption at max. load per ISO 7293 g/kWh Fuel tank capacity Chain oil tank capacity Mixture ratio (fuel/two-stroke oil) - when using DOLMAR oil 50:1 / 100:1 (HP-100) - when using Aspen Alkylat (two-stroke fuel) 50:1 (2%) - when using other oils... -
Page 10: Putting Into Operation
PUTTING INTO OPERATION Mounting the guide bar and chain CAUTION: Before doing any work on the guide bar or chain, always switch off the engine and pull the Use the universal wrench delivered with the chain saw for the plug cap off the spark plug (see "Replacing the following works. -
Page 11: Tightening The Saw Chain
Chain brake Engaging the chain brake (braking) The PS-9010 comes with an inertia chain brake as standard equipment. If kickback occurs due to contact of the guide-bar If the kickback is strong enough the sudden acceleration of the... -
Page 12: Fuels / Refuelling
In order to obtain an optimum engine output and to protect The chain oil BIOTOP sold by DOLMAR is made of special your health and the environment use unleaded fuel only. vegetable oils and is 100% bio-degradable. BIOTOP has been To lubricate the engine, use a synthetic oil for two-stroke air- granted the "blue angel"... -
Page 13: Adjusting The Chain Lubrication
(G/3) must be cleaned regularly. The adjusting screw is mounted on the bottom side of the casing. The oil pump has been adjusted to a medium feed quantity by DOLMAR. Note: For changing the feed quantity use the universal wrench and... -
Page 14: Starting And Stopping The Engine
Pay attention you test the chain brake, do NOT use the chain saw. Take to the direction the wind is blowing and avoid unnecessary the chain saw to a DOLMAR service center. exposure to the oil spray! -
Page 15: Adjusting The Carburetor
Adjust the carburetor only with the engine warm, a clean air fi lter, and properly installed cutting tool. Carburetor adjustment may be done only by a DOLMAR service centre. Improper adjustment can cause damage 4. Set maximum permissible speed to the engine. -
Page 16: Working In Winter
Have carburetor adjustment done by to 13,500 rpm), turn the adjusting screw (H) a maximum an authorised DOLMAR service centre. 1/8 turn clockwise.The top speed in the governor can be The carburetor is factory-adjusted for the air pressure at sea clearly heard from the ignition misses. -
Page 17: Maintenance
MAINTENANCE Sharpening the chain CAUTION: Before doing any work on the guide bar or chain, always switch off the engine and pull the plug cap off the spark plug (see "Replacing the spark plug"). Always wear protective gloves! 0,64 mm (.025") Characteristics of a correctly sharpened chain (type Sharpen the chain if... -
Page 18: Cleaning The Guide Bar
It is recommended to have it checked and maintained regu- NOTE: Do not remove the foam material (K/9). larly for your own safety by a DOLMAR service centre. Remount the protective plate and the guide plate. After mounting carry out a functional check of the chain... -
Page 19: Checking And Replacing The Sprocket
Checking the sprocket Replacing the sprocket CAUTION: Protective gloves must be put on. Check the sprocket before mounting a new chain (A). Loosen the fastening nuts (C/1). Worn out sprockets (more than 0,2 mm) (B) may damage the Pull off the sprocket guard (C/2). new chain and must therefore be replaced. -
Page 20: Replacing The Starter Cable
Replacing the starter cable Demount the fan housing (H/1) (4 screws). Wind the cable around the drum as far as possible. Then pull the cable with the starter grip approx. 50 cm out of the The cable drum must not be demounted. drum, hold the drum tightly and wind the cable once again Remove the old cable. -
Page 21: Cleaning The Air Fi Lter
Cleaning the air fi lter Position a screw driver between the two latches and separate Demount the fi lter cover (A/1) (2 screws). the upper and lower part by turning it. Caution: Pull the choke (A/2) to shut the choke shutter and to prevent dirt particles from entering the carburetor. -
Page 22: Replacing The Vibration Damper
Replacing the vibration dampers CAUTION: Always switch off the engine and pull the plug cap off the spark plug (see "Replacing the spark plug"). Always wear protective gloves! CAUTION: Start the chain saw only after having assembled it completely and inspected! Always replace all fi... -
Page 23: Instructions For Periodic Maintenance
The maintenance and repair work of modern engines as well as all safety related assemblies require qualifi ed technical training and the availability of a workshop equipped with special tools and testing devices. We therefore recommend you to consult a DOLMAR service centre for the performance of all work not described in this instruction manual. -
Page 24: Troubleshooting
To fi nd your local distributor, please visit www.dolmar.com Please, take in mind that in case foreign spare parts are used instead of original DOLMAR spare parts this will automatically invalidate the DOLMAR product guarantee. -
Page 25: Extract From The Spare Parts List
Extract from the spare parts list PS-9010 Use original DOLMAR spare parts only. For performance of repairs and replace- ment of other parts your DOLMAR service centre should be consulted. Pos. DOLMAR No. Qty. Denomination 415 050 452 1 Solid nose bar 20" (50 cm) 415 060 452 1 Solid nose bar 24"... -
Page 26: Eu Conformity Declaration
(L ) is 118 dB(A). The EU-Type-Examination Certificate was performed by: TÜV Product Service GmbH, Zertifizierstelle, Ridlerstr. 31, D-80339 München. The technical documentation is on fi le at DOLMAR GmbH, Jenfelder Straße 38, Abteilung FZ, D-22045 Ham- burg. Hamburg, 4.11.2009... -
Page 27: Note
Notes... - Page 28 To fi nd your local distributor, please visit www.dolmar.com DOLMAR GmbH Specifi cations subject to change without notice Postfach 70 04 20 D-22004 Hamburg Germany Form: 995 701 551 (11.09 GB) http://www.dolmar.com...
