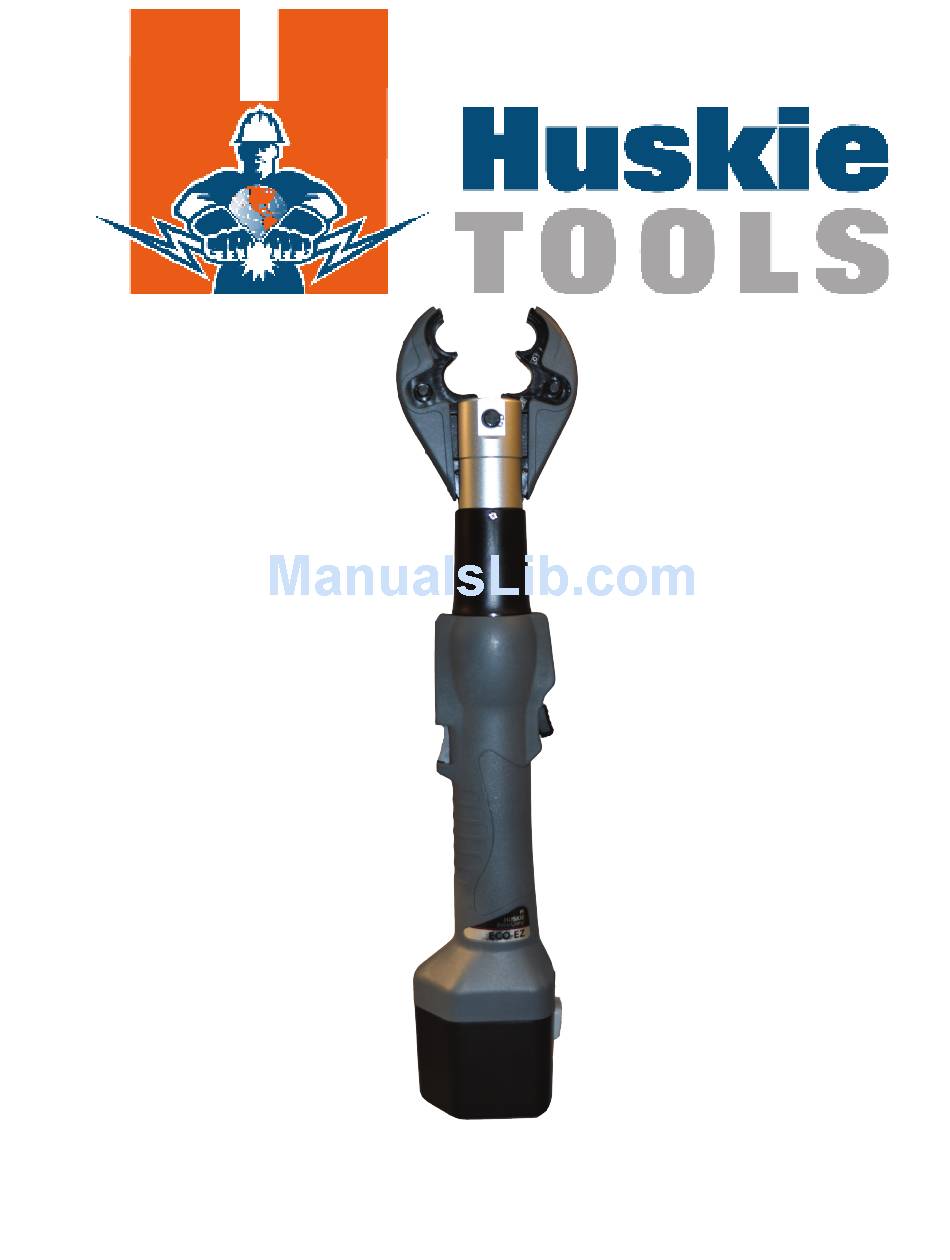

- Page 1 Operating Instruction Manual For ECO-EZO Battery Powered Compression Tool With Parts List...
- Page 2 Connect with us! @huskietoolsinc facebook.com/huskietools linkedin.com/company/huskie-tools youtube.com/user/huskietools www.huskietools.com info@huskietools.com...
-
Page 3: Specifications
SPECIFICATIONS CRIMPING TOOL (ECO-EZ) BATTERY POWERED COMPRESSION TOOL Output: 6 Ton Weight: 6 lbs. with Battery • One Hand Operation Size: 20.5” L • Rotational Head • Audible Bypass when Predetermined BATTERY CARTRIDGE (BP-80) Pressure is Achieved • Tested Up To 75kV Battery Type: Lithium Ion •... -
Page 4: Kit Includes
KIT INCLUDES Battery and Charger • 1 Battery Powered Tool • BP-80 Huskie Tools Lithium Ion Battery • 1 Carrying Case • CH-90 Huskie Tools Tri-Chemistry Charger • 1 CH-90 Tri-Chemistry Charger • This charger can charge the BP-80 and ALL previous •... -
Page 5: Charging The Battery
OPERATING INSTRUCTIONS CHARGING THE BATTERY 1. Insert the plug end into a 120V power source. The LED (Power) indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS COMPRESSION 1. Select an appropriate size of die for the connector. Insert half of the dies into the jaw by pressing the push pins. When the push pins are released, they will return to their original position and hold the die in place. -
Page 7: Important Operating Precautions
IMPORTANT OPERATING PRECAUTIONS PRECAUTION FOR THE TOOL 1. Select appropriate dies for the connector to be compressed. Incorrect combinations result in inferior connections of the conductors. Consult your connector manufacturer for the recommended die/connector combinations. 2. Always point the tool AWAY from other people. 3. - Page 8 ECO-EZ BREAKDOWN www.huskietools.com info@huskietools.com...
- Page 9 ECO-EZ PARTS LIST DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. Housing ((L) EZ-01AG Ram Spring (685) EZ-31 Housing (R) EZ-02AG Cover EZ-32 Switch Knob EZ-03 M3 X 6 Screw 13S-23 Spring (187) 40U-10 Guide Ring EZ-33 Switch Rod EZ-04 Body Head EZ-34A Switch Unit EZ-05...
- Page 10 EZO JAW BREAKDOWN www.huskietools.com info@huskietools.com...
- Page 11 EZO JAW PARTS LIST DESCRIPTION CODE Retaining Screw 58-01 Push Pin 58-02 Spring (5) 58-03 Collar 58-04 3 X 12 Drive Pin (AW) 40-05 Spring (681) ND-06 www.huskietools.com info@huskietools.com...
-
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Consult Factory for Repair Insufficient Hydraulic Oil Service MOTOR RUNS, BUT THE TOOL Invert tool to allow air to rise Air Block in Hydraulic System JAWS WILL NOT ADVANCE towards the top of the oil bladder Consult Factory for Repair Defective Hydraulic Circuit Service... -
Page 13: Warranty
WARRANTY Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 3 year warranty. - Page 14 WARRANTY HOW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not Prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
