OPERATION MANUAL
OPERATION MANUAL
EP-750HA

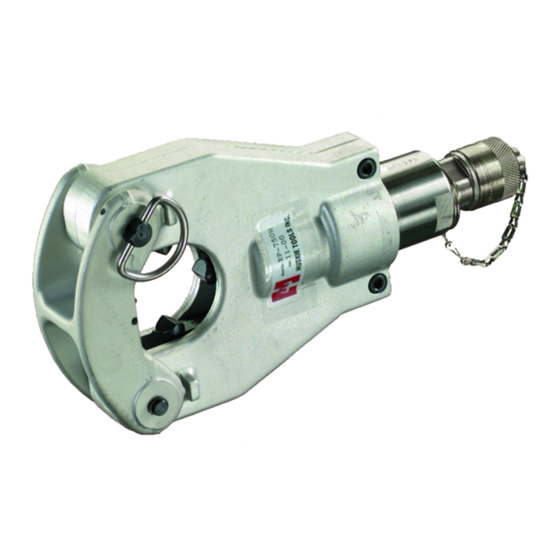

EP-750HA: 6.2 Ton Flip-Top Dieless Remote C-Head
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
www.spartacogroup.com
Advertisement
Related Manuals for Huskie Tools EP-750HA
Summary of Contents for Huskie Tools EP-750HA
- Page 1 OPERATION MANUAL OPERATION MANUAL EP-750HA EP-750HA: 6.2 Ton Flip-Top Dieless Remote C-Head Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
-
Page 2: Table Of Contents
REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing a Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets. -
Page 3: Warranty
WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty. -
Page 4: Safety
SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protection could result in serious eye injury from flying This safety alert symbol indicates a potential debris. personal injury hazard; it is not used for messages related to property damage only. -
Page 5: Specs/Kit Includes
Anderson style head has a flip-top opening and a pull-pin locking mechanism to accept larger connectors up to 750 MCM. Output force is 6.2 tons, and 10,000 psi external pumping source is required. The EP-750HA is supplied with a 3/8” male, screw type coupler and a carrying case. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Compression 1. Before connecting the tool head, make sure the pump and hose being used is working prop- erly, and adjusted to and rated at 10,000 psi. The use of a pump or hose not rated at 10,000 psi working pressure may cause severe damage and result in personal injury. - Page 7 OPERATING INSTRUCTIONS PRECAUTION FOR THE TOOL 1. Always point the tool AWAY from other people. 2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool should be allowed to return to room temperature to ensure smooth operation Use the tool only after it has been at room temperature for 1 hour.
-
Page 8: Breakdown
BREAKDOWN www.spartacogroup.com 800-860-6170... -
Page 9: Parts List
PARTS LIST DESCRIPTION CODE QTY. Yoke 6H-04B M3 X 5 Screw UC-37A Slide Pin 6H-01A 3 X 28 Drive Pin (AW) 38A-01 Pin (156) 6H-02A CE-8 Snap Ring 16-09 UC-34 Side Jaw ( C ) 6H-10C Roller Retainer UC-08 Roller UC-07 Spring (390) 6H-11... - Page 10 NOTES www.spartacogroup.com 800-860-6170...
- Page 11 NOTES www.spartacogroup.com 800-860-6170...
- Page 12 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
