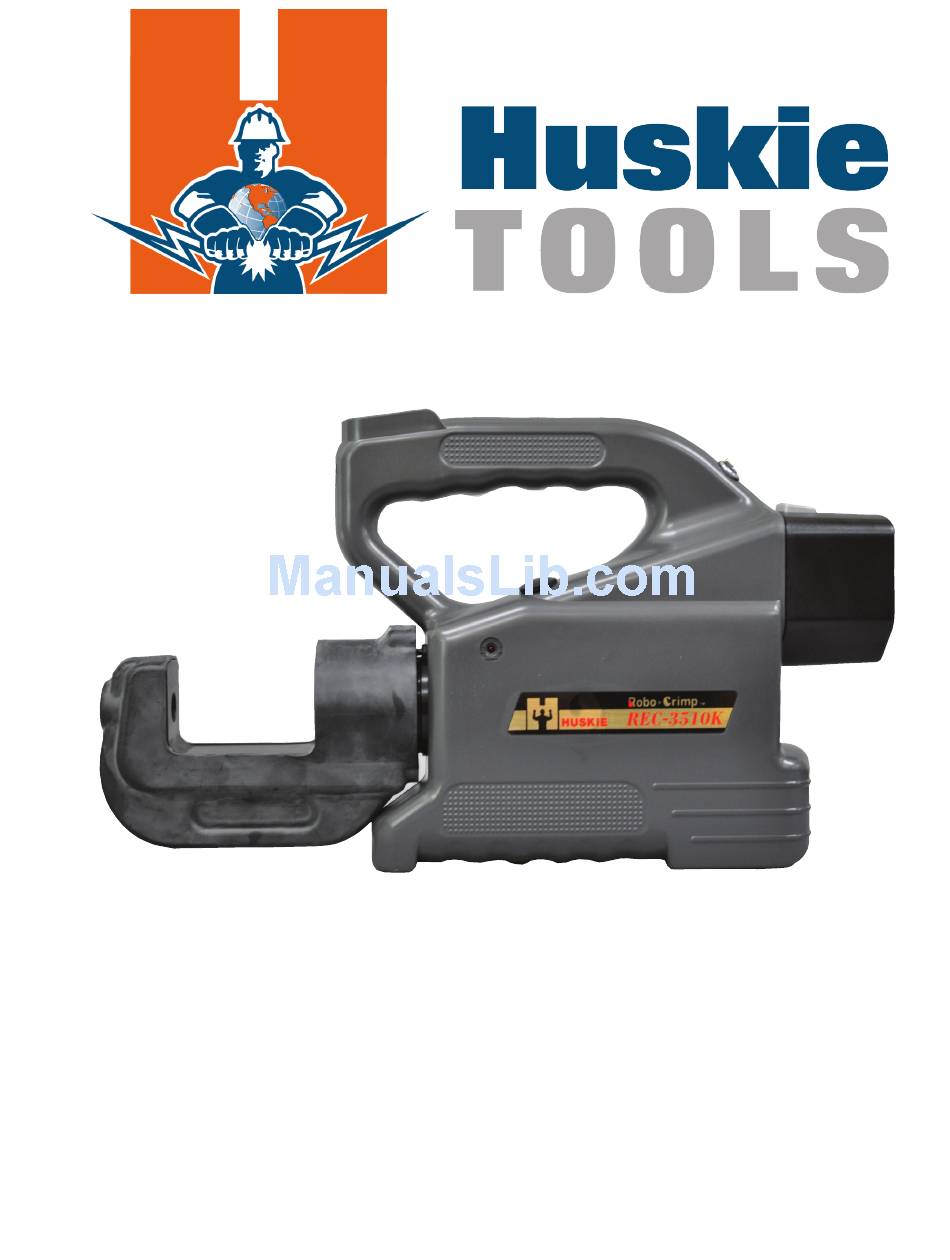

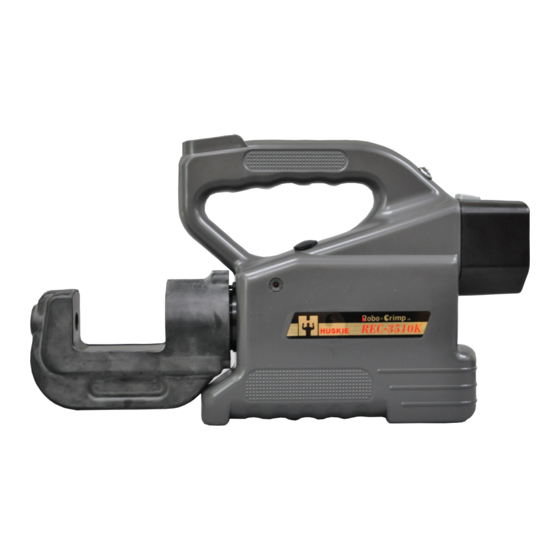

- Page 1 OPERATING INSTRUCTION MANUAL REC-3510K 12 TON BATTERY- POWERED COMPRESSION TOOL 1.5” JAW OPENING...
- Page 2 Connect with us! @huskietoolsinc facebook.com/huskietools linkedin.com/company/huskie-tools youtube.com/user/huskietools www.huskietools.com...
-
Page 3: Specifications
SPECIFICATIONS REC-3510K FEATURES Output: 12Ton • Tested up to 75kV Weight: 20 Ibs. with battery • Rotational Head Size: 19” L x 10.5” H x 3.5”W • Rapid Advance Jaw Opening: 1.5” • Ergonomically Balanced • Weather Resistant Housing CRIMPING ESTIMATES •... -
Page 4: Kit Includes
KIT INCLUDES Battery and Charger • 1 Battery Powered Tool • BP-80 Huskie Tools Lithium Ion Battery • 1 Carrying Case • CH-90 Huskie Tools Tri-Chemistry Charger • 1 CH-90 Tri-Chemistry Charger • This charger can charge the BP-80 and ALL previous •... -
Page 5: Charging The Battery
OPERATING INSTRUCTIONS CHARGING THE BATTERY 1. Insert the plug end into a 120V power source. The LED (Power) indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. - Page 6 OPERATING INSTRUCTIONS COMPRESSION 1. Retract the ram by pressing the rocker switch. 2. Select the appropriate size die set for the connector. Insert die half in ram by pressing into place and secure by tightening the 3mm set screw with the provided allen key. 3.
-
Page 7: Important Operating Precautions
IMPORTANT OPERATING PRECAUTIONS PRECAUTION FOR THE TOOL 1. Select appropriate dies for the connector to be compressed. Incorrect combinations result in inferior connections of the conductors. Consult your connector manufacturer for the recommended die/connector combinations. 2. Always point the tool AWAY from other people. 3. - Page 8 BREAKDOWN www.huskietools.com...
- Page 9 REC-3510K PARTS LIST DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. M4 x 16 S crew 13S -08 P -5 Back-Up Ring (B.C.) E3-126 Hous ing ( R ) 351-01 P -5 O-Ring 5N-35 Control Unit 351-02 S pring (371) 51-17 Binder...
-
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Consult Factory for Repair Ser- Insufficient Hydraulic Oil vice MOTOR RUNS, BUT THE Invert tool to allow air to rise to- TOOL JAWS WILL NOT AD- Air Block in Hydraulic System wards the top of the oil bladder VANCE Consult Factory for Repair Ser- Defective Hydraulic Circuit... -
Page 11: Warranty
WARRANTY Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 3 year warranty. - Page 12 WARRANTY HOW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not Prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
- Page 14 198 N. Brandon Drive Glendale Heights, Illinois 60139 Toll Free 1-800-860-6170 Fax (800) 345-3767 huskietools.com 6/12 info@huskietools.com...
