OPERATION MANUAL
OPERATION MANUAL
IL-ND

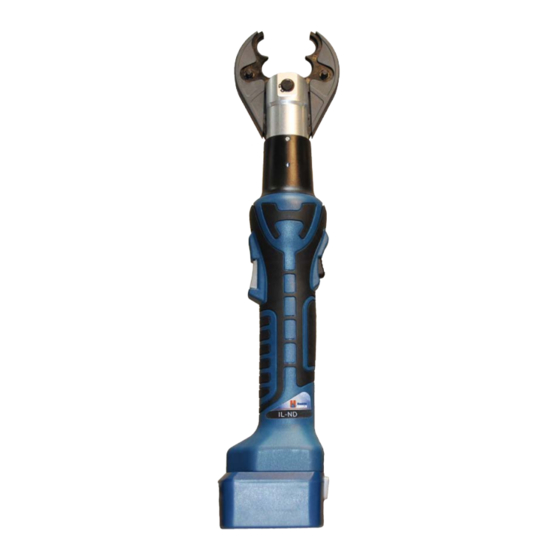

IL-ND 6 Ton Streamline Compression Tool
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
www.spartacogroup.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Huskie Tools IL-ND
Summary of Contents for Huskie Tools IL-ND
- Page 1 OPERATION MANUAL OPERATION MANUAL IL-ND IL-ND 6 Ton Streamline Compression Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767...
-
Page 2: Table Of Contents
REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing an Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets. -
Page 3: Warranty
WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty. -
Page 4: Safety
SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protection could result in serious eye injury from flying debris or hydraulic oil. This safety alert symbol indicates a potential personal injury hazard; it is not used for messages related to property damage only. -
Page 5: Kit Includes
• 2 BP-84 Lithium Ion Batteries • 1 Carrying Strap Battery and Charger • BP-84 Huskie Tools Lithium Ion Batteries • CH-94 Huskie Tools Charger • This charger can charge the BP-84, BP-82 and BP-80 only. Huskie Tools batteries, including the BP-70, BP-70EI and the BP-70MH must be charged with the CH-90, CH-80, or previous charger models. -
Page 6: Specifications
SPECIFICATIONS IL-ND Features Specifications Output 6 Ton • Lightweight ergonomic design • One handed operation Weight 7.3 lbs. with Battery • Tested up to 75kV Size 3.37” L x 21” H x 3.1”W • Compatible with all Huskie 14.4V Batteries •... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS CHARGING THE BATTERY 1. Insert the plug end into a 120V power source. The LED (Power) indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. -
Page 8: Operating Instructions (Part 2)
OPERATING INSTRUCTIONS COMPRESSION 1. Select an appropriate size of die for the connector. Insert half of the dies into the jaw by pressing the push pins. When the push pins are released, they will return to their original position and hold the die in place. Attach the other half of the die in the same manner. 2. -
Page 9: Operating Precautions
OPERATING PRECAUTIONS PRECAUTION FOR THE TOOL 1. Select appropriate dies for the connector to be compressed. Incorrect combinations result in inferior connections of the conductors. Consult your connector manufacturer for the recommended die/connector combinations. 2. Always point the tool AWAY from other people. 3. -
Page 10: Breakdown
BREAKDOWN www.spartacogroup.com 800-860-6170... -
Page 11: Parts List
PARTS LIST Description Code Number Description Code Number Qty Suction Valve EZ-20 Housing set ILHS-BLUE P-3 O-Ring EZ-21 Switch Knob IL-03 5/32" Steel Ball 22-21 Spring 4OU-10 Valve Spring EZ-22 Switch Rod IL-05 M3X5 Screw UC-37A Release Lever EZ-07 Release Spring EZ-23 Lever Support EZ-06... -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Consult Factory for Repair Insufficient Hydraulic Oil Service MOTOR RUNS, BUT THE Invert tool to allow air to rise TOOL JAWS WILL NOT Air Block in Hydraulic System towards the top of the oil ADVANCE bladder Consult Factory for Repair Defective Hydraulic Circuit... - Page 13 NOTES www.spartacogroup.com 800-860-6170...
- Page 14 NOTES www.spartacogroup.com 800-860-6170...
- Page 15 NOTES www.spartacogroup.com 800-860-6170...
- Page 16 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
