Quick Start Guide
for

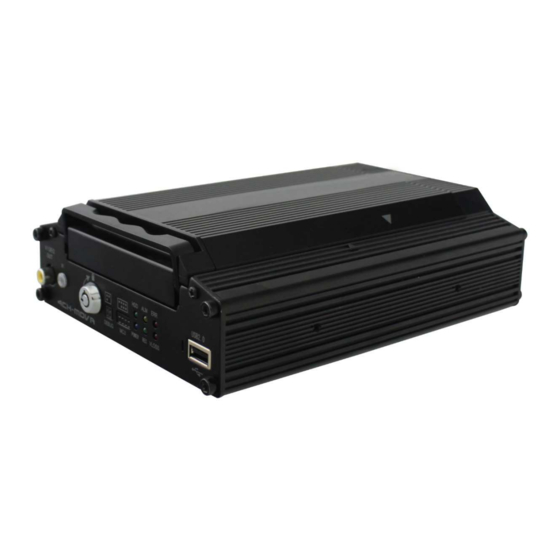

Ness IQ-MDVR-4
Mobile Digital Video Recorder

Advertisement

Table of Contents
loading

Related Manuals for Ness IQ-MDVR-4

Summary of Contents for Ness IQ-MDVR-4

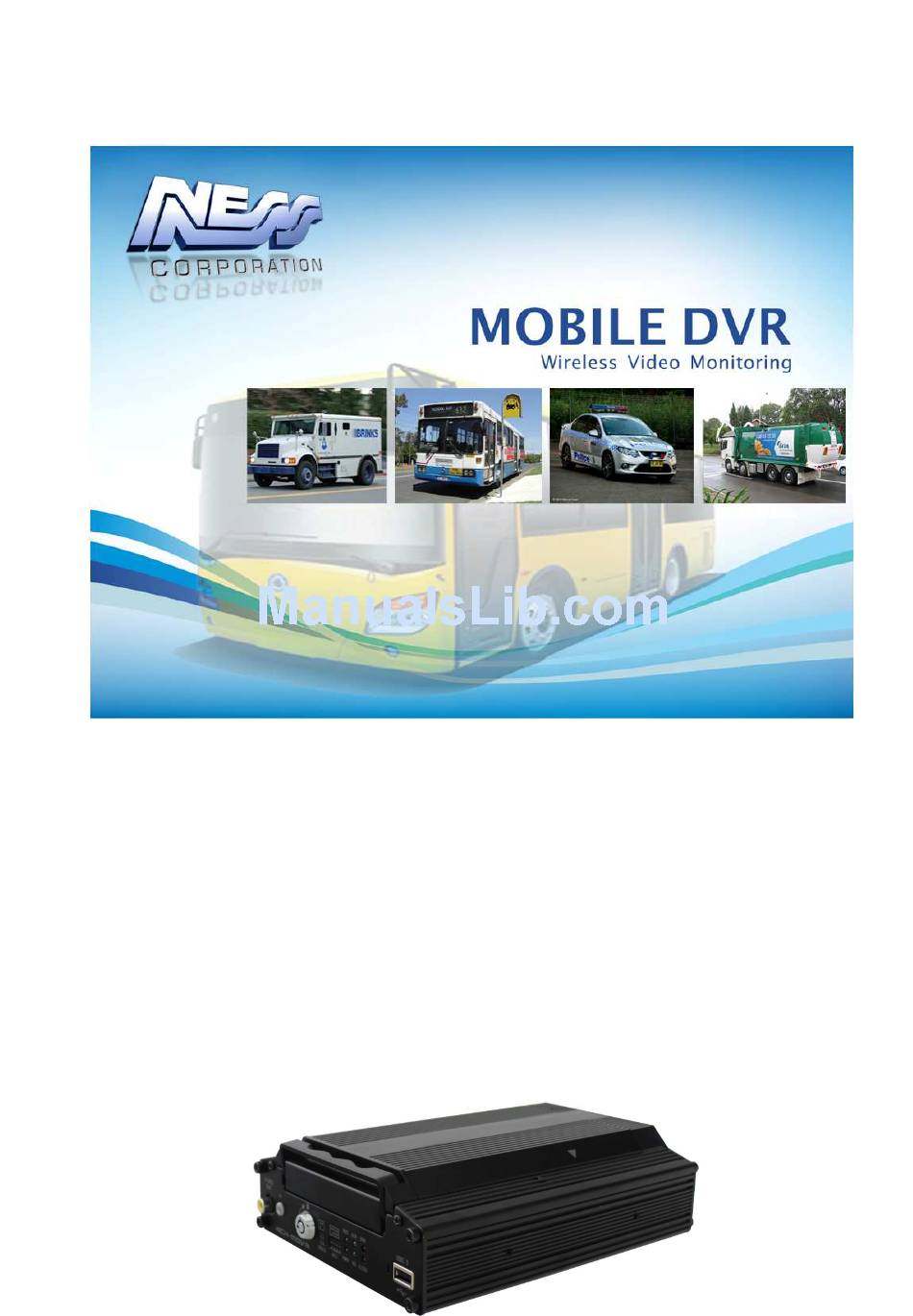

  • Page 1 Quick Start Guide Ness IQ-MDVR-4 Mobile Digital Video Recorder...

  • Page 2: Table Of Contents

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. MENU TREE STRUCTURE ........................3 SYSTEM START UP ..........................4 LOG IN TO THE SYSTEM ........................6 1. DATE / TIME ............................7 2. REGISTER INFO ............................ 8 3. FORMAT ..............................9 RECORD MENU ............................

  • Page 3: Menu Tree Structure

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. MENU TREE STRUCTURE...

  • Page 4: System Start Up

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. SYSTEM START UP Install the HDD/SD card first and then lock it in front panel. For testing, just connect the red wire and yellow wires together to Power + (8~36V DC) and connect the black wire to GND.
  • Page 5 Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. Keyboard: Press 【Enter】to use keyboard to type device ID and password. 1）0~9, number key, press【Enter】to select the number. 2）123: Input type shift key. (Number, capital, small letter) 3） 【 ←...

  • Page 6: Log In To The System

    Ness IQ-MDVR-4 – Mobile Black Box Recorder. Essential Steps for Setting up the IQMDVR This section will provide essentials details required to setup the Ness IQ-MDVR only. For a more detailed guide PLEASE refer to the User Manual Once a setting is made press SAVE to make all the setting valid. Once saved, you will be provided with confirmation the setting has been applied.

  • Page 7: Date / Time

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. 1. Set DATE/TIME DATE FORMAT: Press 【ENTER】to select different format MM/DD/YYYY, DD/MM/YYYY, or YYYY-MM-DD TIME FORMAT: 12H or 24H, Press【ENTER】to select different formats. TIME SYNC SOURCE: The system allows you to have the time synchronized via by either “GPS” or “NTP”.

  • Page 8: Register Info

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. REGISTER INFO UNIT S/N: The serial Number of the MDVR. UNIT ID: Device ID. Use the NUMERIC keypad to enter the system ID from 00000 to 99999. This ID is used when logging in to the unit locally (if security is enabled).

  • Page 9: Format

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. 3. FORMAT the HDD and/or SD card Any newly fitted HDD (and SD Card) must be formatted before it can be successfully used. Select the device you want to format, Video Storage, SD card or USB.

  • Page 10: Record Menu

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. RECORD MENU 4. Set OPTIONS Setup the basic parameters. VIDEO TYPE:. The default setting is NTSC. Set to PAL RECORD MODE: Record mode, three modes as following: GENERAL: When MDVR is power on and start up, the MDVR will start to record automatically.

  • Page 11: Options

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. Options - Page 2 MEDADATA CAPTURE: metadata information, it will create a black box metadata file in HDD when you enable this option. RECORD FILE TIME（ （ （ （ MIN） ） ） ） : Sets the Record file pack size, 15, 30, 45, 60 minutes optional.

  • Page 12: Camera Settings

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. 5. CAMERA SETTINGS Camera Setting Setup enables the record function and live view for each channel. ENABLE: Enables the record function for the camera. NAME: The name of the channel. For example, if you setup the name of CH1 is ‘Front Door’, you will see ‘Front Door’...

  • Page 13: Record Settings

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. 6. RECORD SETTINGS Selects the configuration for Resolution, frame rate, image quality parameter setting for each channel. RES: Resolution, D1, HD1, CIF optional. For example: D1 resolution is 704×576, HD1 resolution is 704×288, and CIF resolution is 354×288.

  • Page 14: Sub-Streaming

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. 7. SUB-STREAMING This is used for video transmission to WCMS software which won't affect the recording on MDVR. There are two modes SUB-STREAM, mode 1 is for broad bandwidth, such as connect in LAN or WIFI, mode 2 is for wireless transmission like GPRS or 3G.
  • Page 15 Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. MODE2 is based on Bandwidth, when you select and press SURE, you will enter into the interface as follow: BAND WIDTH: Setup the band width for video transmission, for 3G it can be 500~800.

  • Page 16: Network Settings Menu

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. NETWORK SETTINGS MENU 8. SERVER The Server IP and port setting is used with CMS (Center Management System) software and Ceiba Software. MESSAGE SERVER: When using the CMS (Center Management System) software you must assign the IP address to allow IQ-MDVR to send the video and data to this destination.

  • Page 17: Local Network

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. 9. LOCAL NETWORK (Wired LAN Port) The Local IP is the IP setting for the IQ-MDVR. The IP address must be a fixed address to use the Network capabilities. Use NUMERIC keypad to enter the TCP/IP address information:...

  • Page 18: Wifi Setup

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. 10. WIFI SETUP When turned on, the following screen will be displayed. GET IP TYPE: There are two options; STATIC IP means you will need to manually program a static IP for the MDVR to connect to your WIFI server or AUTO IP means it will get a dynamic IP (DHCP).

  • Page 19: Mobile Network

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. 11. MOBILE NETWORK This interface is the network setup for wireless 3G modules. Select the corresponding mode for your SIM card. MODULE TYPE Choose the module type here: GPRS/ CDMA/ EVDO/ WCDMA/ EDGE/ TD-WCDMA/ NONE.

  • Page 20: Peripheral

    Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. PERIPHERAL 12. EXT.COM SETUP The external RS232/485 communications module (Sold separately) is an external accessory connection used for connecting PTZ, Inertia sensor, LED CONTROL PANEL, LED screen, station announcement and so on.
  • Page 21 Quick Start Guide Ness IQ-MDVR-4 – Mobile Black Box Recorder. Ness Corporation www.nesscorporation.com...
